Dimplex FTE10 Bedienungsanleitung

Installation and

Operating Instructions

Model: FTE10 10L Dehumidifier

Model: FTE16 16L Dehumidifier

Model: FTE20 20L Dehumidifier

08/52826/0 Issue 0

_________________________________________________________________________________________________________________________________________________

Products comply with the European Safety Standard EN60335-2-40 and the relevant parts of the European Standards for Electromagnetic Compatibility (EMC) EN55014, and

EN61000 along with EN62233 covering Electromagnetic Field (EMF) requirements. These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC.

_________________________________________________________________________________________________________________________________________________

SAFETY INFORMATION

1. Please read the operating instructions carefully before using your

dehumidifier for the first time and keep them in a safe place.

2. Never immerse the appliance in water or other liquids.

3. Never operate the appliance if a cable or connector has been damaged,

after appliance malfunction or if the appliance was dropped or is

otherwise damaged.

4. Please ask a professional service agent to repair the product. Improper

repair may cause danger to users.

5. Never allow children to operate the appliance.

6. Disconnect the appliance from mains power whenever it is not in use,

before relocating it, and before cleaning.

7. Operate the appliance only at the voltage specified on the rating label.

8. This appliance is designed for household purposes (not commercial)

only.

9. DO NOT COVER. Never cover or obstruct in any way the outlet at the

top of the dehumidifier or the air inlet slots at the rear of the

dehumidifier.

10. To prevent spillage, empty the water tank before relocating the

appliance.

11. Do not tip the appliance to any side as escaping water could damage

the appliance. Only operate the product in a level upright position.

12. This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not

play with the appliance.

13. When the supply cord is damaged, it must be replaced by the

manufacturer, or a professional service agent only.

14. Only operate this appliance with a minimum of 50cm clearance all

around i.e. away from walls, furniture and overhanging objects such as

curtains or a shelf.

15. When the unit stops, you have to wait for 3 minutes before you can

restart the unit to protect the compressor from damage

OPERATING INSTRUCTIONS

Control panel

Air outlet

Carry handle

Front panel

Air inlet

Water outlet tube

(continuous use)

Water tank

CONTROL PLATE DESCRIPTION

OPERATION INSTRUCTION

Starting the unit

Allow the unit to stand upright for 24hrs to let the compressor stabilize

before first use or when transported.

1. Firstly, turn the humidity control switch to the “OFF” position.

2. Plug in the dehumidifier.

3. Turn on the humidity control switch (clockwise) and set it at the desired

humidity level, please refer to table in point 4 below (e.g. position”4 = 60%).

4. For assistance in drying clothes in a laundry/ utility room, please select

maximum dial position for continuous operation and maximum moisture

removal.

Turning off the unit

1. Turn the humidity control switch fully anticlockwise to the “OFF” position

and the power supply is cut off and the unit stops operating.

2. If the dehumidifier is not in use for a long time, please disconnect the power

cord plug from the supply outlet.

NOTES AND PRECAUTIONS

1. The dehumidifier will not operate if the humidity dial is set lower than the

ambient humidity e.g. room humidity 40% and dial setting 2 or 4. In other

words the higher the humidistat dial setting e.g. position 8 the dehumidifier

will attempt to dry the ambient humidity to 20% (RH) relative humidity.

2. When the water tank is full an automatic float switch shuts down the

product and the tank full LED illuminates. Remove the water storage tank

and empty its contents, carefully replace the empty water tank back in

position, the unit will now automatically restart operating.

3. The following table indicates the approximate relative humidity settings

against its related position number on the humidity control switch:

CONTROL SWITCH

POSITION NO.

APPROXIMATE

HUMIDITY SETTING

Cont.

Continuous

running

8 20

﹪

7 30

﹪

6 40

﹪

4 60

﹪

2 80

﹪

4. The ideal position is around position 6- approximately 40% relative

humidity

5. The operational temperature range for this unit is 5-35°C. Please note the

effectiveness of the product reduces as the ambient temperature reduces.

For example in a room of 6

C- little if any moisture will be removed. The

product works on the principal that it requires a high ambient temperature

with warm air drawing over a very cold compressor creating water

droplets.

6. Other than on the case of note 2 above, where the dehumidifier does not

start, the operational light does not illuminate or the dehumidifier

intermittently stops for unknown reasons, please check the plug and

power supply for poor connection. If the plug and power supply are in

good condition, wait for 10 minutes and restart the unit (it can take about

10 minutes for the unit to reset). If the unit still does not start after 10

minutes, please contact your retailer or the manufacturer for repair.

7. When the dehumidifier is in operation, the running compressor will

produce heat. This is normal and may potentially raise the room

temperature.

8. When the product is defrosting, the defrost LED will illuminate. The

reason this happens is because the compressor gets very cold to

maximize moisture removal. The defrost function protects the compressor

from freezing up and avoid damage to the product.

DRAINAGE INSTRUCTION

Switch off before carrying out any of these

operations and leave for 3 minutes before switching

on again. The extracted water is collected by the

water tank (set up as supplied), or can be set up to

drain continuously using a PVC hose (not included)

connected to a drain outlet, the drain point must

be lower than the unit outlet (see details below).

USE OF WATER TANK:

When the tank full LED illuminates the tank is full, the compressor and the

fan will stop operation, please empty the water tank. Remove the water tank

as per Fig 01 and empty it. Gently refit the water tank into the unit in its

original position. Note, if the tank full LED remains on when the tank is

emptied please remove and re-fit the tank to reset the light.

CONTINUOUS DRAINAGE

If you want to use this function, please pull out the water tank and plug a 9mm

internal diameter water pipe onto the “Water out

tube” (See Fig.02). Replace the water tank into the

unit, the unit will now operate while discharging the

extracted water through the free end of the fitted

pipe, Note, you must ensure that the free end of the

pipe is below the product outlet connection and that

the drain point is likewise lower than the unit outlet.

Filter Removal

•

To remove the filter you must first remove the

water tank as instructed above.

•

The filter can then be removed from its slot by

gripping the filter handle and sliding it down

and out of the back of the appliance as

indicated below.

• Every 2 weeks, remove the filter and clean it

with warm water, below 40°C. Allow it to dry

naturally and then replace by reversing the removal instruction above.

Fig 02

Fig 01

Care and Maintenance Instruction

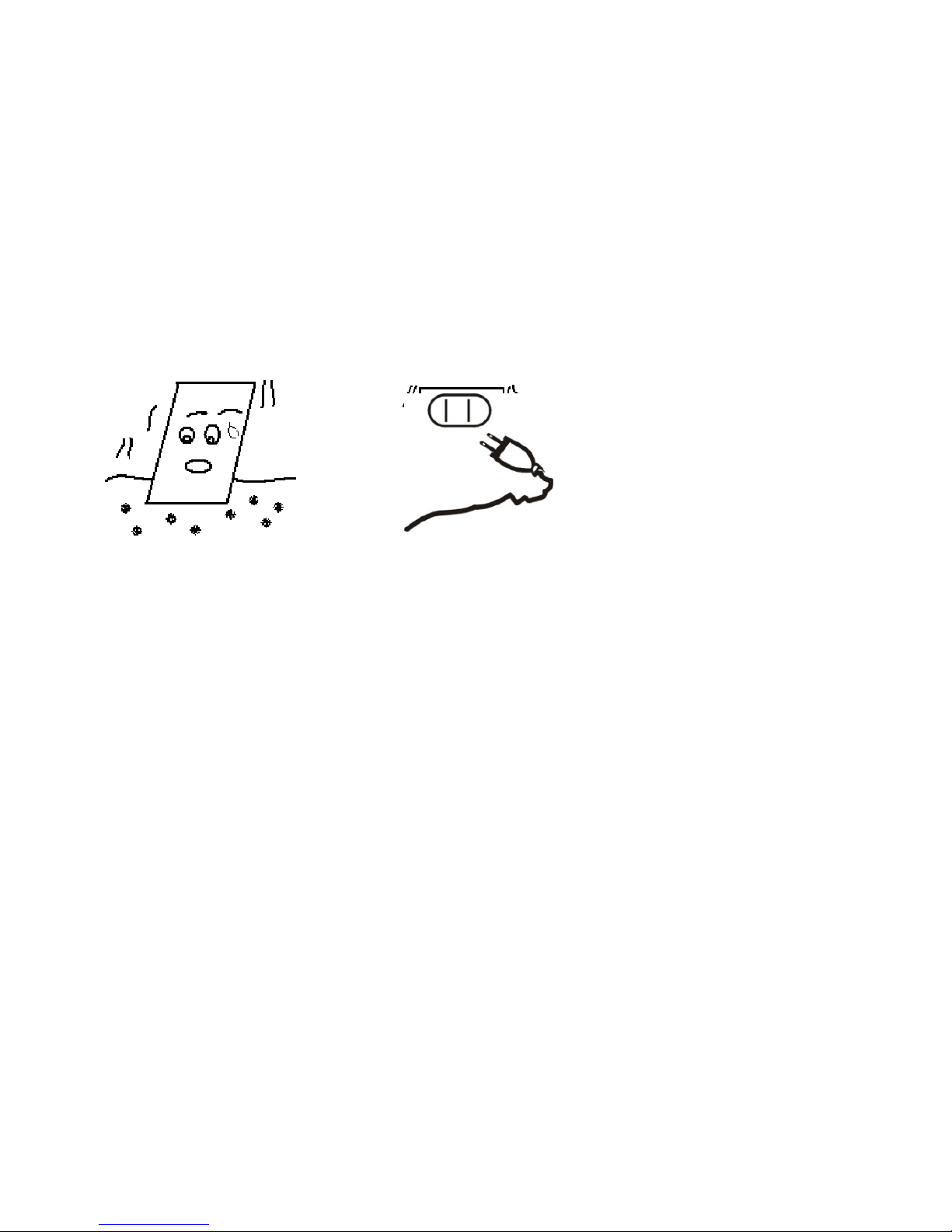

1. To avoid the occurrence of vibration and noise the unit should not be

operated while located on any soft or uneven surface.

2. Never insert any foreign objects into the unit through its air inlet or outlet

to avoid hazard or unit failure.

3. During power off or when not in use for a long time, please disconnect

the product from the mains.

4. For a better dehumidifying effect, the areas to the front, rear and above

the unit should be clear and free from any obstacles which will block the

air flow of the unit. Do not block any air inlet or outlet grilles – keep clear

of hanging drapes, curtains and furnishings – DO NOT COVER, as

specified under safety information section a clearance of 50cm

should be maintained all around the appliance when it is in use.

5. Every 2 weeks, remove the air filter and clean it with warm water, below

40°C. Allow it to dry naturally and then replace by reversing the removal

instruction above.

SPECIFICATIONS

MODEL

SPECIFICATION

FTE10

FTE16 FTE20

POWER SUPPLY 220-240V~50Hz

POWER INPUT 250W 410W 480W

RUNNING CURRENT 1.2A 2.1A 2.2A

WEIGHT 11.1Kg 13.3Kg 13.7Kg

MOISTURE REMOVAL

(@ 30

℃

℃℃

℃

& RH 80%

）

））

）

10 litre/day

16 litre/day 20 litre/day

DIMEMSIONS

(WxDxH)mm

W:365 x D:220 x H:500

APPLICABLE

TEMPERATURE

℃

℃℃

℃

- 35

℃

℃℃

℃

WATER TANK CAPACITY 2.3L

(CE) N 842/2006:

R134A is a kind of fluorinated greenhouse gas covered by

the Kyoto Protocol.

Its total global warming potential (GWP) is 1300

Recycling:

For electrical products sold within the European

Community. At the end of the electrical products useful life it

should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice in

your country.
