Dimplex DCFF40C Bedienungsanleitung

40cm High Velocity

Oscillating Floor Fan

Models: DCFF40C & DCFF40GBLK

INSTRUCTION MANUAL

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT

TABLE OF CONTENTS

WARNINGS AND PRECAUTIONS.......................................................1

STRUCTURE ...................................................................................3

OPERATION....................................................................................4

CLEANING AND MAINTENANCE .......................................................6

TECHNICAL REFERENCE DATA ........................................................8

WARRANTY ....................................................................................8

WARNINGS AND PRECAUTIONS

Warnings

•Never place the unit near gas appliances, flames or

flammable liquids.

•Never hit or shake the unit. Doing so may cause damage.

•Never cover or obstruct the air inlet or outlet.

Doing so may cause overheating.

•Never spray water on or place the unit near water.

Doing so may cause electric shock.

•Never connect other appliances to the same power outlet.

•Never connect or disconnect the power plug with wet hands.

Doing so may cause electric shock.

•Never insert fingers or objects through the guards when the unit

is operating.

•Never use an extension cord.

•Always have a professional technician, manufacturer or service agent

replace a damaged power cord.

Precautions

•This appliance is for indoor use only.

•Do not use the unit near windows or where water collects. Rain and

water collection may lead to a risk of fire or electric shock.

•Do not place the unit in a damp place or where humidity is high

(such as a bathroom).

•Do not leave the unit operating while unattended.

•Do not place the unit in direct sunlight to avoid surface

discolouration.

•This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

•Children should be supervised to ensure they do not play with the

appliance.

•Avoid electromagnetic interference. Keep the unit at least 1 metre

away from electric appliances such as televisions and radios.

•Avoid scratching and damaging the surface. Do not use chemical

solvents (i.e. Benzene, alcohol) to clean the surface.

•Place the unit on a stable surface when operating.

•Unplug the unit before cleaning, servicing or maintenance.

•Electrical connections must be in accordance with National or

Local Codes.

•The rear of the unit must be at least 50cm away from the wall and

clear of any surroundings.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

STRUCTURE

1. Front guard

2. Fixing screw #1

3. Fan blade

4. Rear guard securing nut

5. Rear guard

6. Motor shaft

7. Motor

8. Speed switch

9. Oscillation knob

10. Power cord

11. Fixing screw #2

12. Metal stand

OPERATION

BEFORE FIRST USE

•Please read these instructions carefully before use and keep them for

future reference.

•Check your local main voltage whether it is the same as stated on the

appliance.

•Before using for the first time, remove any protective films or stickers

from the appliance and ensure the power switch is in the “OFF” position.

ASSEMBLY

1. Lift the stand upright. Assemble the motor shaft (6 & 10) onto the metal

stand (12) by fastening the fixing screw #2 (11).

2. Unscrew the rear guard securing nut (4) from the motor shaft (6) by

turning the nut anti-clockwise.

3. Mount the rear guard (5) to the motor unit (7) as aligned with the three

positioning pins on the motor shaft. Secure the rear guard with securing

nut (4) by turning it in a clockwise direction.

4. Assemble the fan blade (3) to the motor shaft (6) and tighten the fixing

screw #1 (2). IMPORTANT: Make sure the fixing screw (2) is tightened

on the surface of the motor shaft (6).

5. Attach the front guard (1) to the rear guard (5) and close all clips and

lock the safety screw at the bottom of the guard.

OPERATION

1. Connect the plug to a power supply and switch on the power.

2. On/Off

- Switch the fan on by rotating the speed switch (8) at the rear in

clockwise direction. The switch is also used to adjust the fan

speed from HIGH ”3” –MEDIUM ”2” –LOW ”1” in sequence.

- The airflow direction can be adjusted upward/downward by

simply lift up or down the motor unit or rear guard. NOTE: Only

adjust the fan head when the unit is OFF. Be careful not to

insert your fingers through the guard.

- Turn the switch anti-clockwise to turn the fan OFF.

3. Speed

- Turn speed control switch (8) repeatedly to adjust the fan speed

from HIGH”3”- MEDIUM “2”- LOW “1” in sequence. Turn the

switch in anti-clockwise to turn OFF.

4. Oscillation

- To activate the oscillation function, push down the oscillation

knob (9). Pull up the oscillation knob (9) to stop oscillation at the

desired direction of airflow.

CLEANING AND MAINTENANCE

CLEANING

Over time, dust can accumulate on the fan blades, which can affect the fans

performance. It is recommended to clean the fan at least once a month.

1. Turn the unit OFF and disconnect the appliance from the main power

supply.

2. Remove any dust build up with a soft brush.

3. Wipe the surface of the unit with a soft damp cloth. Mild detergent

can be used for any stubborn marks.

4. Do not allow the motor or other electrical parts to come in contact

with water.

5. Do not use abrasive sponges, scouring pads, or a stiff brush to clean

the appliance.

6. When the fan is not being used for long periods, it’s recommended

to store the fan in its original box in a low humidity environment.

IMPORTANT

The control panel and other parts must not come into contact with water or

any other liquids.

•Do not dispose of electrical appliances as unsorted municipal waste.

Use separate collection facilities.

•Contact your local government for information regarding the

collection systems available.

•If electrical appliances are disposed of in landfills or dumps,

hazardous substances can leak into the ground water, polluting the

food chain and damaging health and well-being.

MAINTENANCE

If the unit fails to operate efficiently, is broken or other problems arise,

unplug and do not operate.

Ask for advice by calling your local after sales service agent or the

Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

TECHNICAL REFERENCE DATA

Model

DCFF40C / DCFF40GBLK

Rated Power

60W

Voltage/Frequency

220-240V/50Hz

Net Weight

4kg

Dimensions

HxWxD

Body (mm)

450x550x320

Package (mm)

250x460x460

WARRANTY

The warranty period is 12 months from the date of purchase. For service

advice, please contact the Customer Care Centre on 1300 556 816 (AU) /

0800 666 2824 (NZ).

Glen Dimplex Australia Pty Ltd Glen Dimplex Australasia Ltd

1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,

Scoresby 3179, Victoria Auckland 2013

Australia New Zealand

Ph: 1300 556 816 Ph: 0800 666 2824

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dimplex Lüfter Handbücher

Dimplex

Dimplex DCFF40MB Bedienungsanleitung

Dimplex

Dimplex DCBOX50MBK Bedienungsanleitung

Dimplex

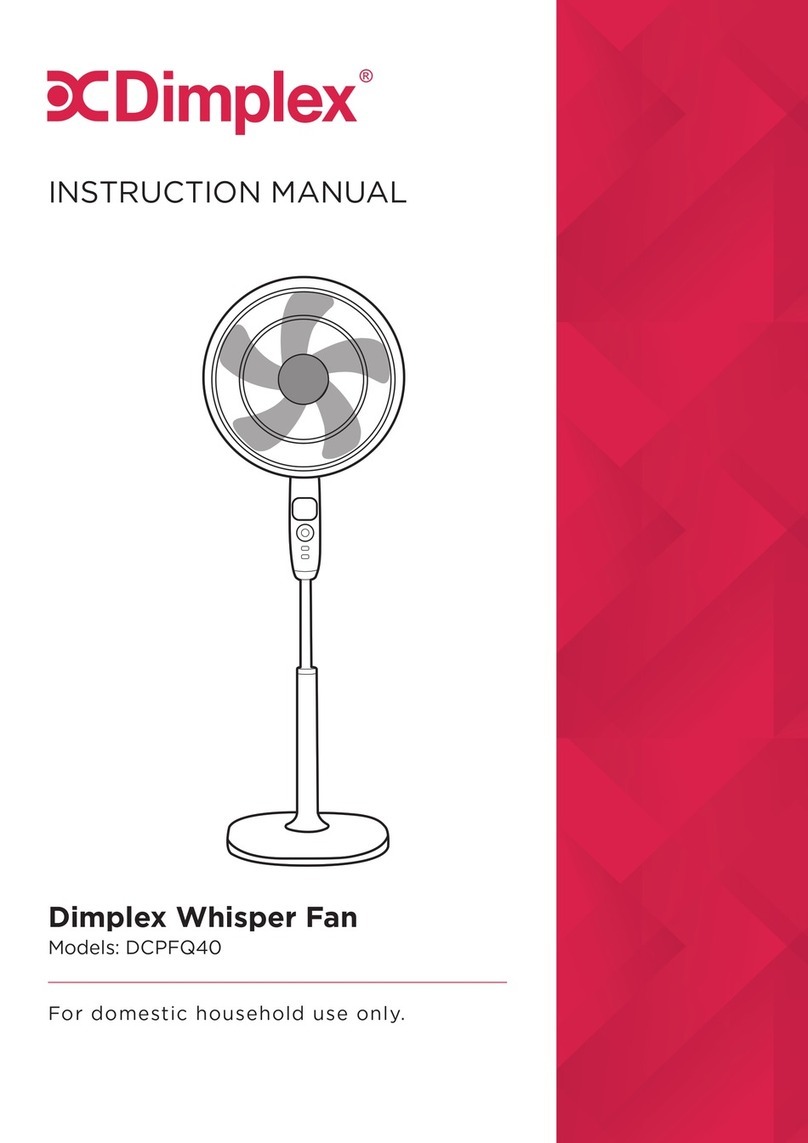

Dimplex DCPFQ40 Bedienungsanleitung
