Owners Manual

HTC521W

Non-Programmable Thermostat 3600W

HTC525W

Non-Programmable Thermostat 4000W

7213100100R01

Congratulations on your purchase of this Dimplex line-voltage thermostat. Your new ther-

mostat is preprogrammed by the installer and ready to use. Please take the time to read

and understand this manual so you can begin to enjoy the convenience this product offers.

Features

• CSAC828PerformanceCertied

• High Power up to 4000W (HTC525W only)

• Ideal for baseboard heaters, convectors, radiant ceilings and electric fan-

forced heating systems

• Temperature setting and display in °C or °F

• Manual, precise temperature control set in half degrees

• TRIAC system (quiet operation)

• Cycle rates for proportional heating

• Room Temperature and Set Point Temperature display

• Built-in surge protection

• Memory back-up for settings

• Setting range: +5°C to +35°C (41°F to 95°F)

• Heating Power Level display

• Simple 2-wire installation

Specications

Rating: 120V~240V AC, 60Hz

HTC521W Maximum Load: 15A, 3600W @ 240V, 1800W @ 120V

HTC525W Maximum Load: 16.7A, 4000W @ 240V, 2000W @ 120V

Minimum Load: 300W @ 240V

Keep this manual in a safe place for future reference.

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial number ready.

Step-by-step Installation ....................................5

LCD Display / Buttons ......................................7

Selecting the Temperature Unit (°C or °F).......................8

Selecting the Heat Cycle Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting the Desired Set Temperature........................10

Heating Power Level Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting..........................................12

Limited 2-Year Warranty ...................................13

Table of Contents

Installation

This product is for use with high voltage system (120V~240V) with a

minimum load of 300W; it is not designed for use with low voltage (24V)

central heating & air conditioning systems or wall mounted furnaces.

Inordertoavoidre,shockordeath,shutoffpowersupplyatthecircuit

breaker or fuse and test that the power is off before wiring.

This product must be installed in accordance with the Canadian Electri-

calCode,andintheprovinceofQuebec,byaqualiedelectrician.Dim-

plex assumes no responsibility for damages caused by improper wiring.

Improper installation automatically voids the warranty.

• Verify that the heating appliance that is being connected is

withinthespeciedloadrange.

• Conrmvoltageiswithinthedevicerating.

• For wiring, use copper conductors only.

• Mustbemountedonacertiedelectricalbox.

Installation

Step-by-step Installation

1. Remove the old thermostat carefully and identify the two wires from the wall box.

2. Gently remove the faceplate from the right side of the new thermostat.

Note: Do not remove the screws from the back of the unit as these screws hold the ther-

mostat together.

3. Using the wire nuts provided, securely fasten each wire from the new thermostat to a

wire in the wall box. Rever to the wiring diagram on the next page.

Note: Ensure no bare wire is exposed.

Remove Faceplate

To remove the faceplate, genly

pull the right side of the ther-

mostat. The faceplate should

come off easily.

*120V~240V AC Lines

4. Mount the new thermostat onto the wall box using the two screws provided through

the mounting holes, and then replace the faceplate. (Place 2 screws in the right side

or 2 left holes).

Note: If mounting on a single gang box, use the two mounting holes on the left side.

5. Reconnect power supply.

Installation

Step-by-step Installation . . . continued

Operation

❶ Current Temperature

❷ Temperature Unit (°C or °F)

❸ Heating Power Level

❹ Heat “On” Indicator

❺ Set Temperature

LCD Display / Buttons

LCD Display Location of Buttons

A Down Button

B Up Button

❷

❸❹

❺

❶

Operation

Selecting the Temperature Unit (°C or °F)

This thermostat features an adjustable display setting that can display the temperature in

either Celsius or Fahrenheit.

• To enter the setting mode, press the UP and DOWN buttons at the same time for 3

seconds. The screen will display CR (cycle rate) and a number on the bottom pane

along with the Fahrenheit or Celsius temperature reading on the top pane.

• Press the UP button to toggle between the °C or °F display.

Note: The default temperature unit is °C.

Every time the temperature unit is changed, the thermostat will revert to the

default temperature setting: 20.0°C or 68.0°F.

Selecting the Heat Cycle Rate

To provide precise, consistent and economical heating, this thermostat has an adjustable

heat cycle rate. The cycle rate determines the on/off time cycles that the thermostat uses to

reach and maintain the desired temperature.

Certaincycleratesaremoreefcientwhenusedwithcertaintypesofelectricheatingsys-

tems. Selecting the correct cycle rates help maintain an even temperature, which has been

proven to reduce energy usage while improving comfort.

Operation

While it is still in the Setting mode, press the DOWN button to toggle between the various

CYCLE RATES. There are 3 different cycle rates to choose from:

Cr Cycle Rates

Cr-0 OFF(xedspan)

Cr-1 20 seconds

Cr-2 240 seconds (4 minutes)

Cr 0 isaxedspan(nocycling),withavarianceof+/-0.3°C(+/-0.6°F).Theheatingunit

will operate at full power and the power bar will appear full. This function is for users who

do not want their electric heating devices turning on and off frequently. This is the recom-

mended setting for fan-assisted electric heating devices.

Cr 1 (Default) is a 20 second cycle rate with proportional heating. This means the heating

will be turned on and off once every 20 seconds to provide a stable room temperature. This

cycle rate allows a proportional level of power to the heating device. This is indicated on

thethermostatdisplaybythepowerbarwhichwillbepartiallylled;indicatingtheamount

of power going to the heater. This setting is recommended for non-fan assisted baseboards

andelectricheatingdevicesandwillprovidethemostenergyefcientheatingandastable

temperature.

Cr 2 is a 240 second span. This means the heating will be turned on and off once every

240 seconds. This is the recommended setting for fan assisted heaters, radiant ceilings

and convectors.

Selecting the Heat Cycle Rate . . . continued

Operation

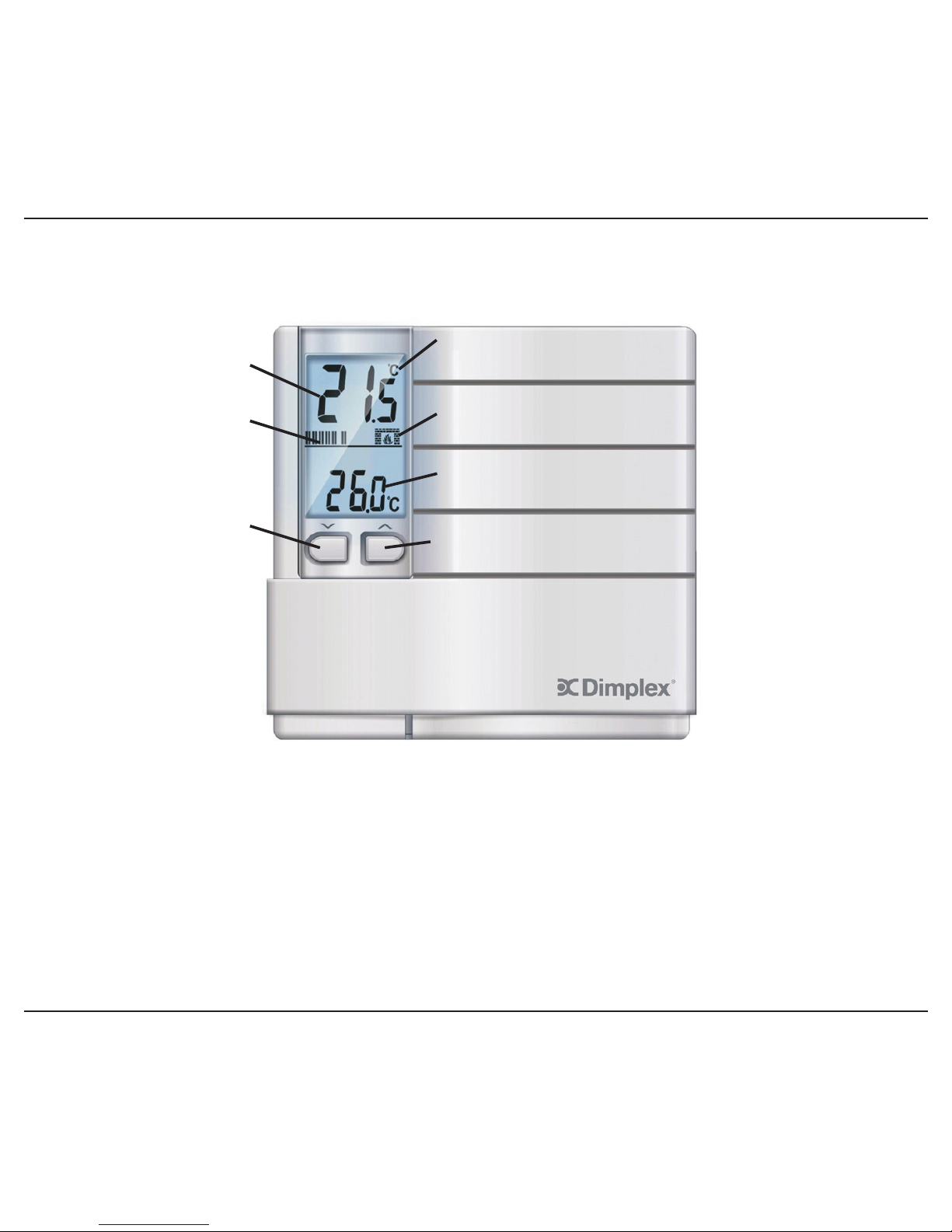

Adjusting the Desired Set Temperature

The current /room temperature (A) is normally displayed on the LCD screen. To adjust the

setting to the desired set temperature, press the UP (C) or DOWN (B) button.

•Thetemperaturecanbesetinincrementsof0.5°Cor0.5°F.

•Thetemperaturesettingrangeisfrom5°Cto35°C(41°Fto95°F.)

Tip: Press and hold the UP or DOWN button to change the setting more rapidly.
