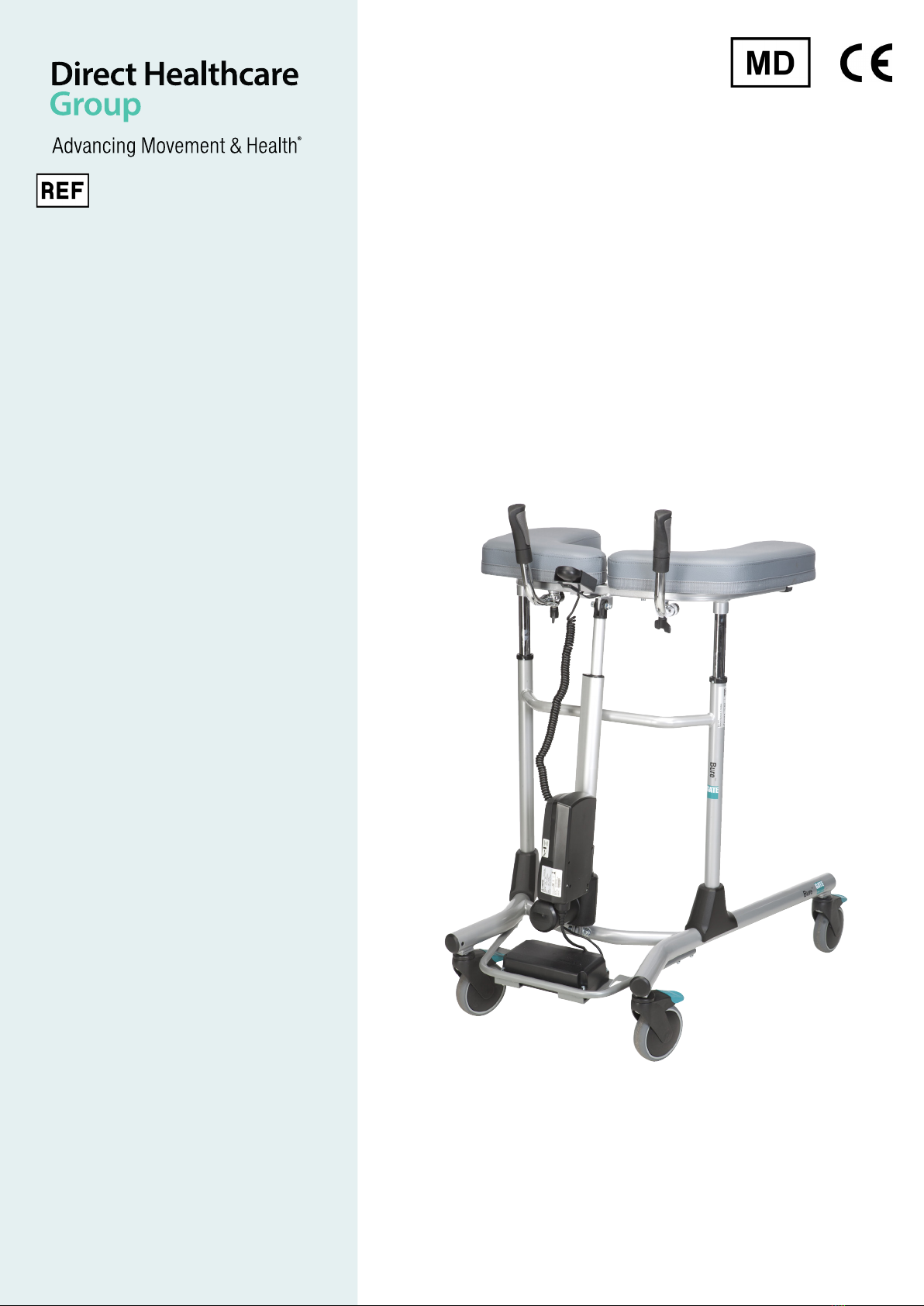

Direct Healthcare Group 56-310 Bedienungsanleitung
Bure Standard/S
Bure Low/S
User Manual
Technical Manual
Service Manual
DIRECTHEALTHCAREGROUP.COM Manual no: 802 rev. 1 210604
SWL: 150 kg/ 330 lbs
56-310
56-310-DIR
56-310-KD
56-310/100
56-310/75
56-310/75-B/0
56-310-B/0
56-310-B/1
56-311-PARSONS-KD
56-311
56-311-KD
56-311-PARSONS-KD
56-311/100
56-311/100-PU
56-311/75
56-311/75-B/0
56-311/75-B/1
56-311/75-PU
56-311/75-RS-KD
56-311-B/1
56-311-BRAKE/1-
RED
56-311-BRAKE/0-PU
56-311-PU
56-311-RED
56-311-RS
56-312
56-312-AUS
56-312-CAN
56-312-CAN-KD
56-312-KD
56-312-TK
56-312-UK
56-312-UK-KD
56-312-US
56-300
56-300/100
56-300/75
56-300/75-DIR
56-300/75-B/0
56-300/75-B/0-PU
56-300/75-B/1-PU
56-300-B/0
56-300-B/1
56-301
56-301-B/0
56-301-B/1
56-301-PU
56-301/100
56-301/100-RS
56-301/75
56-301/75-PU
56-312/100
56-312/100-UK
56-312/100-US
56-312/75
56-312/75-AUS
56-312L-AUS
56-312L-KD-AUS
56-312L-UK
56-312T
56-312T-B/0-PU
56-312T-BRAKE/0
56-312T-B/0-TKN_R
56-312T-PU
56-312T-TK
56-312T-US
56-312T/75
56-312T/75-PLUS-PU
56-312T/75-PU
56-312T/100
56-321
56-321/75
56-321/75-PU
56-321L-AUS
56-321L-UK
56-321-S
56-321-S/100
56-321-S/75
56-321-S/75-PU
56-321-S/75-UK
56-322
56-322/75
56-322-S
56-322-S-B/0
56-322-S/75
56-301/75-RS
56-302
56-302-AUS
56-302-US
56-302-W
56-302T/75-PU-AUS
56-302/100
56-302/100-US
56-302T
56-302T-FKN_R
56-302T/100
56-302T/75
56-302T/75-FKN_R
56-302T/75-PU
56-302T-PU
56-302T-TK
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
2
Contents
1. Intended Use 03
2. Contraindications, Precautions and Warnings 03
3. Raising/Lowering the Frame - Electric 04
4. Raising/Lowering the Frame - Gas 04
5. Adjusting the Handles 04
6. Left and Right Adjustment of Armrests 04
7. Locking Castors/Unlocking Castors 04
8. Control Box Wiring 05
9. Battery Charging 05
10. LED on Control Box and Battery 05
11. Maintanance 06
12. General Maintenance Advice & Cleaning 07
13. Technical Specifications 07
14. Recycling/Disposal 08
15. Warranty 08
16. Electrical System - Technical Data (T-motion/Linak) 09
17. Remote Control Plus 09
18. Parts List 10
19. Spare Parts 12
20. Accessories 13
21. Table of Symbols 13
Bure Standard
Bure S
Bure Low
Bure Low S
3
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
1. Intended Use
Walkers are indoor, movable and portable assistive aids, which together with approved accessories are
intended to be used for transfer from sitting to standing positions, and walking training. Walkers are to be used
by persons with reduced muscular strength, who shall be able to stand and perform simple leg movements.
Walkers are to be used for leaning on when walking and standing during early mobilization training. Walkers
and accessories are intended for indoor use only in Home Healthcare environment and Professional Healthcare
facility environment.
2. Contraindications, Precautions and Warnings
Contraindications
• The device may not be used by patients above the maximum weight indicated on the label of the device.
Precautions
• Check that the device is used on a dry and flat surface.
• Check the device is correctly mounted/assembled before its first use.
• Check the device after every folding/disassembly after any transport.
• Check height adjustment and leg spreading motions and inspect the actuators’ or gas pistons’ full ranges.
• Activate the brakes whenever the device is not in use.
• Check the function of the brakes before use.
• Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage,
contact Direct Healthcare Group Customer Service.
• In case of an electrical model of the device, check that the hand control does not show signs of wear
before every use.
• Check that the hand control markings are in accordance with the lifting functions.
• Check the battery status of an electrically operated model, before using the device.
• It is important to never leave the user alone during the transfer.
• Warranty applies only if repairs or alterations are made by personnel who are authorized by Direct
Healthcare Group.
• Ensure that there are no obstacles or people in the way of the device, when moving.
• Handle batteries with care. Do not drop.
• Use only batteries and cables that are intended for the device as instructed by the manufacturer.
• Verify that potential accessories that might be used are properly attached to the device before use.
• Low speed is recommended when moving with the device.
• Take care not to drive the device over thresholds with high speed or force. Approach the threshold with
lower speed and communicate the coming threshold to the user.
• Keep the instructions for use together with the product so that it can be used as a reference if necessary.
Warnings
• The caregiver must be able to read and understand the Manual/IFU of the product.
• It is important to only use approved accessories as stated in the manual/IFU to prevent unintended
detachment of components and subsequently a fall that may lead to patient injury.
• Use careful and gentle maneuvers when moving the device.
• Perform maintenance/service of the device, according to the instructions in the manual/IFU, at least once
every 12 months.
• Accessories must be properly attached. They should be tested in relation to the user’s needs and
functional ability.
• Special care must be taken when using strong electrical power sources such as diathermy and the like
so that diathermy cables are not placed on or near the device. In case of doubt consult with a Direct
Healthcare Group representative.
• When lifting the device, only use the denoted handholds. At least two people are required for lifting the
device
• Do not leave a user or patient unattended when the device is being used.
• Never move the lift by pulling on the actuator or gas piston.
• The device must not be lowered into water.
• The device must not be left or stored in a damp or humid environment.
• The device must not be cleaned using steam.
• The device must not be charged in a wet room.
• The device must not be used outdoors, only indoors.
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
4
3. Raising/Lowering the Frame - Electric
Adjust the height with the aid of the remote control <UP> and <DOWN> arrows.
4. Raising/Lowering the Frame - Gas
Release the gas strut by moving the handle upward (the gas strut will raise the
Walker). Let go of the handle at the desired height (the gas strut a locked).
Release the gas strut by moving the handle upward. Use your body weight to
press the frame down. Let go of the handle at the desired height (the gas strut
will lock).
5. Adjusting the Handles
To adjust handles to the desired position; loosen screw, adjust handle, tighten
screw.
6. Left and Right Adjustment of Armrests
The handles are adjusted to the desired position by: Loosening the knob of the
handles adjustable locks.
7. Locking Castors/Unlocking Castors
Bure Double is fitted with braked casters with directional locking (green pedal).
Depress the foot brake to set it and lock the castor. To unlock, press down on the
protruding part of the brake. Locking affects rolling and swiveling.
1
2
3
4
5
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
Linak:
1. Battery terminal socket
2. Plug socket
(NOTE: Plugs must always be connected to the control box for IP classification to
be valid.)
3. Remote control socket
4. Socket for the raise/lower actuatork
9. Battery Charging
• Connect plug to 230V wall socket. Charging begins automatically and the
battery LED flashes green.
• Make sure the battery is fully charged before using for the first time. It takes
around 25 h to fully charge the battery.
• We recommend that the battery plug be removed from the control box if the
product will be out of use for an extended period (more than one week) or if
the battery is switched off by means of the ON/OFF switch. This eliminates
the risk of disabling the battery as the control box always uses a small
quantity of electricity even when the Walker is not in use.
10. LED on Control Box and Battery
Control box – green light when power is available from battery/mains socket.
Battery:
• The LED flashes green during charging.
• ON/OFF: To use the product, press ON.
• The green lamp will begin to flash.
• Use the OFF button (hold down for 5 s) to switch off the battery if the product
will not be used for an extended period.
• The LED will shows a constant green light when the battery is fully charged.
• When the battery is in normal state/in operation, the LED lashes green at
REGULAR intervals, namely 0.5 s ON, 4 s OFF.
• When the battery requires charging (remaining charge <25%) the LED will
flash orange/red at REGULAR intervals, namely 0.5 s ON, 4 s OFF.
NOTE: The battery has an in-built device that automatically switches it off when
remaining charge is <20%. The LED is then extinguished. The battery must now
be fully charged before the electronics can be used again.
1
2
3
4
8. Control Box Wiring
Remove the control box cover to make the connections as described below. Use
a screwdriver or similar; refer to the special labels on the control box.
T-motion:
NOTE: Make sure plugs are connected to the correct
sockets otherwise the actuators can be damaged.
1. Socket for the height adjustment actuator.
2. Socket for the width adjustment actuator.
3. Remote control socket.
4. Battery terminal socket.
5. Plug socket (NOTE: Plugs must ALWAYS be connected to the control box for
IP classification to be valid).
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
6
11. Maintenance
Recommended at least once per year
Check that Action
General
The Walker feels firm/free from play.
The Walker does not rattle during manoeuvres.
The Walker is level and all of its castors are in contact with the
floor.
The Walker is not dirty
Clean with lukewarm soap solution or alcohol-based cleaning
agent (no petroleum products).
Armrest
Armrests are intact and clean.
Armrest widening is functional.
Clean; replace if damaged.
Fit lock screws/plates as required
Handle
Grips are not damaged/dirty.
Handle adjustment is functional.
Clean with lukewarm soap solution (no petroleum products).
Replace handle grips.
Fit lock screws/plates as required
Battery
Check that the charging cable is connected to the control box.
Check that the remote control is connected to the control box.
Check that connections are made according to the wiring
diagram.
Check that the battery, actuators and control box are not loose.
Fit new charging cable; this must always be connected to the
control box (IP65 protection).
Connect or fit new remote control as required.
Refer to the wiring diagram in the Technical manual.
Tighten; replace with new fasteners as required.
Height adjustment
Raising and lowering are functional.
The Walker feels stable at maximum settings.
There is no play between the vertical frame and bottom frame.
Height adjustment clamps lock.
The electric actuator fitting must be free from play.
Height adjustment via remote control is
functional. The electric actuator must run
smoothly at a constant speed.
Fit new guide sleeves (in frame) or end plugs (in chrome tubes) as
required.
Tighten all lock bolts.
Replace clamps.
Tighten the attachment fitting concerned; replace bolts/lock nuts
as necessary.
Check that the battery/remote control/ actuator are connected in
accordance with the wiring diagram. Charge the battery. Contact
customer services.
Frame parts
There is no mechanical damage.
There are no scratches.
End plugs/lower frame fitted
If damage is present, contact GATE’s customer services.
Touch up as necessary.
Fit new end plugs
Castors/brakes
Castors roll easily/tread not damaged.
The castors are firmly fastened to the lower frame.
Castor brakes functional on all castors.
Handbrake functional.
Clean or replace castors. NOTE: Castors are always fixed to the
lower frame with thread locker or lock
nuts. Do not dismantle the castors; replace the whole castor
assembly instead.
Tighten the castor bolt and fit locking nut or use thread locker
(depends on model).
Replace castor assembly.
Adjust the brake or fit new castors.
7
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
12. General Maintenance Advice & Cleaning
• Clean the Walker and its armrests clean as necessary - Wipe using a soap solution/surface disinfectant.
• The product may be cleaned in a tunnel washer or similar as electrical systems have IP65 protection.
However, the product is not corrosion proof which means washing by machine may reduce its lifetime.
• If the product is to be cleaned in a washing tunnel / washing cabin, use PU-cushions.
• Replace damaged parts immediately; must be done by experienced personnel.
• The product is only intended for indoor use.
13. Technical Specifications
Dimensions apply to Walkers with 125 mm castors.
Part No. Product Product
width
Max user
weight
Length Height Armrest/
internal
dimension
56-311 Standard GAS 78cm 150kg 80cm 90-129cmc 25-50cm
56-301 S GAS 66cm 150kg 79cm 90-129cm 30-45cm
56-322 Low GAS 78cm 150kg 80cm 75-95cm 25-50cm
56-322-S Low S GAS 66cm 150kg 79cm 75-95cm 30-45cm
56-312T Standard EL 78cm 150kg 80cm 90-130cm 25-50cm
56-302T S EL 66cm 150kg 79cm 90-130cm 30-45cm
56-321 Low EL 78cm 150kg 80cm 75-100cm 25-50cm
56-321-S Low S EL 66cm 150kg 79cm 75-100cm 30-45cm
Product weight:
Manual 15 kg, Gas 15 kg, Electric 21 kg
”LIFT” denotes suitable handhold for lifting the Walker.
NOTE: At least two people are required for lifting.
14. Recycling/Disposal
When the product is no longer usable it should be recycled in accordance with legislation and regulations
in the country concerned. All electrical parts including batteries must be removed and recycled as electrical
components. (Ask your local recycling station for further information about how the different materials in the
product (metals, plastics, electronics) should be recycled).
15. Warranty
We provide two years’ warranty for manufacturing faults (does not apply to wear parts).
For further information or enquiries please contact:
Direct Healthcare Group Sverige AB
Torshamnsgatan 35,
SE-164 40 Kista, Sweden
Tel: +46 (0)8-557 62 200
info.se@directhealthcaregroup.com
www.directhealthcaregroup.com
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
8
1
2a 2b
9
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
16. Electrical System - Technical Data (T-motion/Linak)
Actuator Lift Widening Lift Widening
Producer TiMotion TiMotion Linak Linak
Voltage 12V 24V 24 V 24 V
Push 2000N/1500N 1000N 1000N/1500N/2000N 1200 N
Pull 2000N/1500N 1000N 1000N/1500N/2000N 1200 N
Self-locking push 1000N 1000N 7A 3 A
Current 6.6 (+/-1,0)A 2.6 (+/-0,4)A 7A ut/7 A in 3A ut/3 A in
Colour Black Aluminium White White
Stroke 400mm 55mm 400 mm 55 mm
Mounting dim 605mm 167mm 606+/-2 mm 165 +/- 2 mm
Encapsulation IP66 IP66 IPX6 IPX6
IEC60601-1 3rd revision
Control box + Battery
Producer T-Motion Linak
Voltage 24V 230V/24V
Capacity 2.0AH 2,25 Ah
Encapsulation IP66 IPX6
Colour Black White
Electrical safety Class II Class II (Dubbel insulated)
IEC60601-1 3rd revision
17. Remote Control Plus
**1. Service indicator – flashes red after 11 months’ operation.
Constant light (red) after 12 months’ operation. The indicator is a reminder to review the maintenance
instruction (see Instructions for Use/Technical Manual. This should be done at least once every 12 months.
Reset: hold down buttons <2a> + <2b> for at least 30 seconds.
**The indicator will go out around 30 seconds after the remote control is
activated (battery conservation function).
BURE STANDARD/S/LOW/LOW S
DIRECTHEALTHCAREGROUP.COM
10
18. Parts List
1A
B
C
D
Armrest
Knob
Plastic washer
Washer, black
6M
N
Protective cover
Bolts
2D
E
F
Handle & grip
Clamp
Knob
7O
P
Q
R
S
T
U
Wheel frame
End bushing
Wheel
Bolt
Washer
Nut
Serrated washer
3Upper frame 8Locking handle,
height adjustment
4G
H
I
J
Chromium-plated tube
Attachment bolt (2 pcs)
Serrated washer
End bushing
9A
B
C
D
Gas strut
Handle
Arm/housing
Bolt, washer (2 pcs), nut
(attachment at bottom and top)
5K
L
Frame
Sleeve guide
10 A
B
C
D
E
Battery shelf & attachment bolts
Battery & nut/ bolt (for
attachment to battery shelf)
Control box (Linak/TiMotion)
Remote control (Linak/TiMotion)
Actuator (Linak/TiMotion)
Dieses Handbuch passt für folgende Modelle
99
Inhaltsverzeichnis
Andere Direct Healthcare Group Mobilitätshilfe Handbücher
Direct Healthcare Group
Direct Healthcare Group Bure Rise & Go Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic ReturnBelt 6031 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group GATE Bure Double 2.0 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group kirton Florien Elite Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group Bure XL Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic HighBackSling Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic Bure Rise and Go DB Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic ThoraxSling Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group GATE Bure Double 2.0 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic ReTurnBelt Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic BasicSling Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic Rowalker400 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group Bure Ortho Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic MiniLift160EE Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic EasyGlide 5050 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group Bure XL Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group Bure Rise & Go DB Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group GATE Bure Double 2.0 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic FootStool 8090 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic ReTurn7600 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic Rowalker400 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group GATE Bure XL Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group SystemRoMedic WalkingBelt 6041 Bedienungsanleitung
Direct Healthcare Group
Direct Healthcare Group GATE Bure Ortho Bedienungsanleitung
Beliebte Mobilitätshilfe Handbücher anderer Marken
Rhythm Healthcare
Rhythm Healthcare B3800F Bedienungsanleitung
AMF-BRUNS
AMF-BRUNS PROTEKTOR Bedienungsanleitung
Drive DeVilbiss Healthcare
Drive DeVilbiss Healthcare OTTER Bedienungsanleitung
Rhythm Healthcare
Rhythm Healthcare C500U Bedienungsanleitung
Lumex
Lumex RJ4200A Bedienungsanleitung
Rebotec
Rebotec Jumbo Bedienungsanleitung
