Directive Systems & Engineering DSE1227LYRMK Bedienungsanleitung

DSE1227LYRMK Rev 3/21

Directive Systems & Engineering

2702 Rodgers Terrace

Haymarket, VA 20169-1628

www.directivesystems.com

703-754-3876

12cm Loop Yagi Kit (Rear Mount), Model DSE1227LYRMK

SPECIFICATIONS

Frequency range: 2.35 to 2.48 GHz Gain: ≅18.5 dBi

Number of elements: 27 3 dB Beamwidth

Boom length: 48 inches (E plane): ≅20º

Boom diameter: 0.5 inches F/B ratio: ≥20 dB

Mast diameter: 1 1/2 in. max Maximum Power: 400 W average

Weight: (assembled) 1 pound assembled Stacking distance: 15 in. vertical (H)

Connector: Type-N female 16 in. horizontal (E)

PARTS LIST

Note: All hardware is Stainless Steel unless otherwise noted.

Anti-Seize Compound - Apply a small amount of the supplied Anti-Seize Compound to the aluminum joints and

to the threads of the U-Bolts to prevent galling.

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

CAUTION: While we strive to remove all burrs from all machined parts, there is always the possibility of

sharp edges. We strongly suggest checking the edges and use a fine file, or 400 grit sandpaper,

to remove any burrs that may have been left.

Quantity Description Quantity Description

1 0.5" drilled boom 27 4-40 x 3/4" Machine screw

2 reflector 1&2 27 4-40 Lock nut

1 driven element 2 8-32 x 1" Machine screw

5 directors 1-5 2 8-32 Hex Nut

5 directors 6-10 2 8-32 Split lock washer

4 directors 11-14 1 Small rear mount angle bracket

10 directors 15-24 1 U-bolt with nuts & lock washers

1 Anti-Seize Compound 1 Saddle

2 1/2" Black End Cap 1 Cable assy w/connector

1 Assembly Manual

P a g e | 2

DSE1227LYRMK Rev 3/21

(Can be up or down) (Can be left or right)

ASSEMBLY INSTRUCTIONS

1) Attach loops to the boom with 4-40 screws, nuts and lock washers in proper sequence.

Loops go on the side of the boom marked with an "X". Attach the contents of each bag of

elements before opening the next bag. This will prevent any mix-up of elements on the boom.

Note: The hole with the circle around it located between the two reflectors is for the

connector mounting bracket (to be installed later). Do not mount a loop in this hole.

When tightening the nuts on the parasitic elements, be careful not to torque them too tightly.

Snug down the nuts, align the elements and use a screwdriver for the final tightening. A 1/4-

inch nut driver is almost mandatory for this job! Attach the driven element with the 5/16 nut

provided. If only a single antenna is being built, it doesn't matter which way the loop is

oriented. If antennas are to be stacked, see "Instructions for Stacking Loop Yagis".

2) Attach the boom-to-mast angle bracket and 8-32 x 1" hardware on the rear of the

boom. Install U-bolt in the mast plate.

3) Install the cable assembly through the hole in the driven element mounting bolt. Make

sure the connector bracket is correctly oriented, the bend should be forward for center mount

antennas and rear facing for rear mount antennas. Solder the outer shield to the driven loop

first making sure there is no shield sticking above the large hole in the driven loop. After the

shield is soldered, pass the center conductor through the small hole in the driven loop and

bend the center conductor over and solder (See Assembly Tips below).

We have created a You Tube video, the link of which can be found on our website,

documenting the following steps:

https://youtu.be/ojXbsDv5cvU

At this point the connector assembly is facing down, connect a piece of coax and your

SWR bridge or VNA. Pull down on the connector (which will flatten the loop) until you reach

the lowest SWR. If it’s less than 1.5:1 you can stop and make sure the loop doesn’t try to pop

back up, sometimes you have to squeeze the loop with your fingers to make sure it stays in

the shape that gave the best SWR. If you want to further lower the SWR, from the rear of the

antenna, place both your thumbs on the driven loop on either side and gently push it forward

P a g e | 3

DSE1227LYRMK Rev 3/21

towards D1, you only need to tilt it maybe 3/16” to ¼” and that should drop the SWR to 1.1:1

or less.

Now, GENTLY bend the UT-141 coax after it exits the boom towards the front or rear,

depending on the mounting. You do not want to bend it so tightly that it crushes where it

extends through the bolt. The connector bracket should line up with either D1 or D2 (or the

hole with the circle around it on rear mount antennas), remove that nut and place the

connector bracket on the screw and re-attach the nut. If the bracket doesn’t line up,

sometimes you have to flip the bracket. Loosen the ¾” nut by holding the connector body with

a 9/16” open end wrench. Remove the connector bracket and flip it.

Connector doesn’t fit Front Mount Connector Rear Mount Connector

4) Attach the feedline and tape it to the mast. Seal all connections with silicone RTV or

equivalent.

5) Attach the two black end caps, and this will complete the assembly of your

DSE1327LYRMK.

6) The SWR should be 1.5:1 or better from 2250 -2350 MHz. Additional tweaking can be

accomplished by adjusting the distance between the driven element and R1 or by adjusting

the shape of the driven element.

DO NOT, UNDER ANY CIRCUMSTANCES, APPLY ANY TYPE OF SEALANT OR COATING TO THE

DRIVEN ELEMENT, T-ARMS OR CONNECTOR ASSEMBLY, OTHER THAN KRYLON®

CLEAR COAT. ANY OTHER COATING WILL ADVERSELY AFFECT THE SWR AND VOID YOUR

WARRANTY.

ASSEMBLY TIPS:

The boom diameter is 0.5 inch, and it is drilled for 4-40 hardware (no. 33 drill bit). The driven

element hole is enlarged to 1/4 inch. All elements are 0.032-inch-thick and 0.250 inch wide.

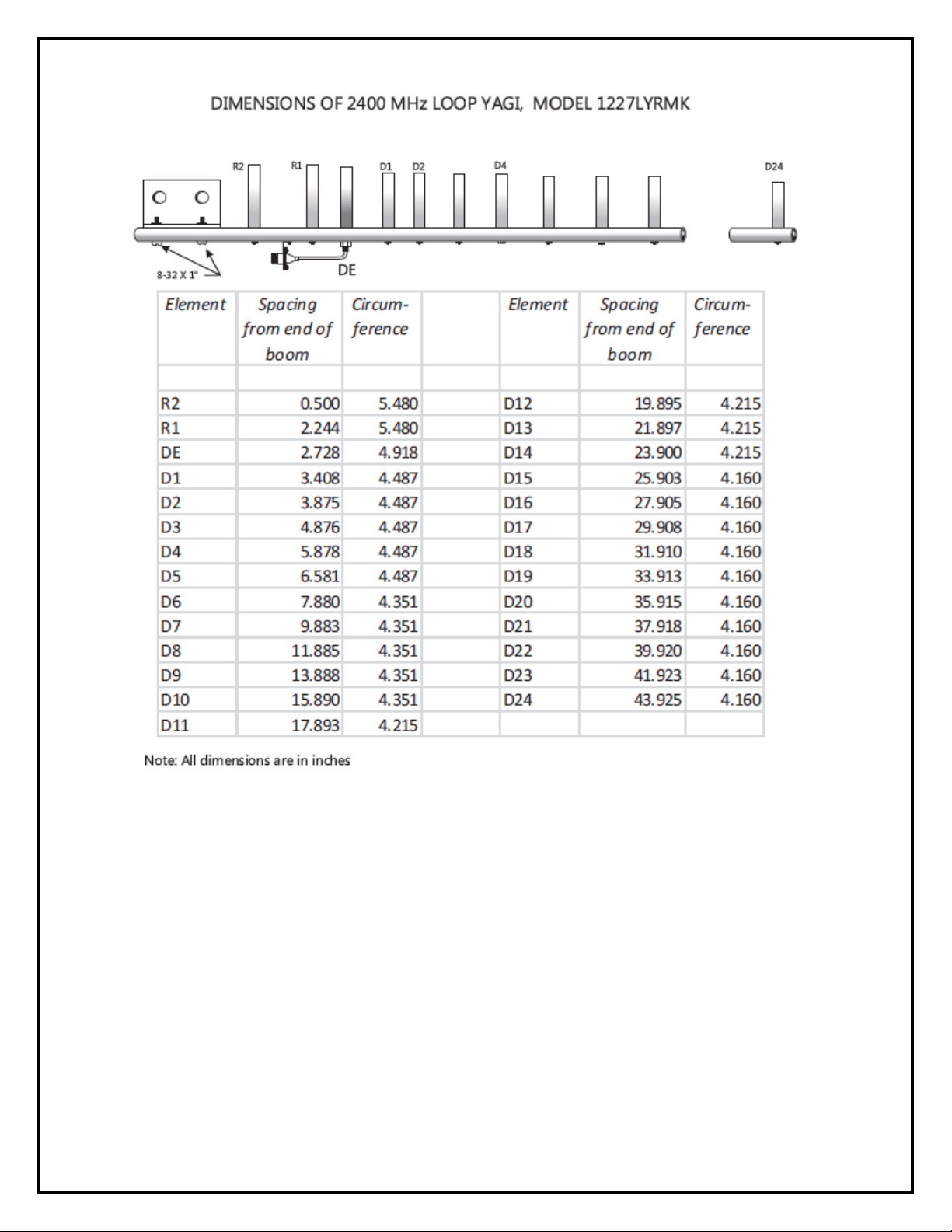

Note that the element spacing from D7 on is 2.0025 inches. To bend elements, wrap the strip

P a g e | 4

DSE1227LYRMK Rev 3/21

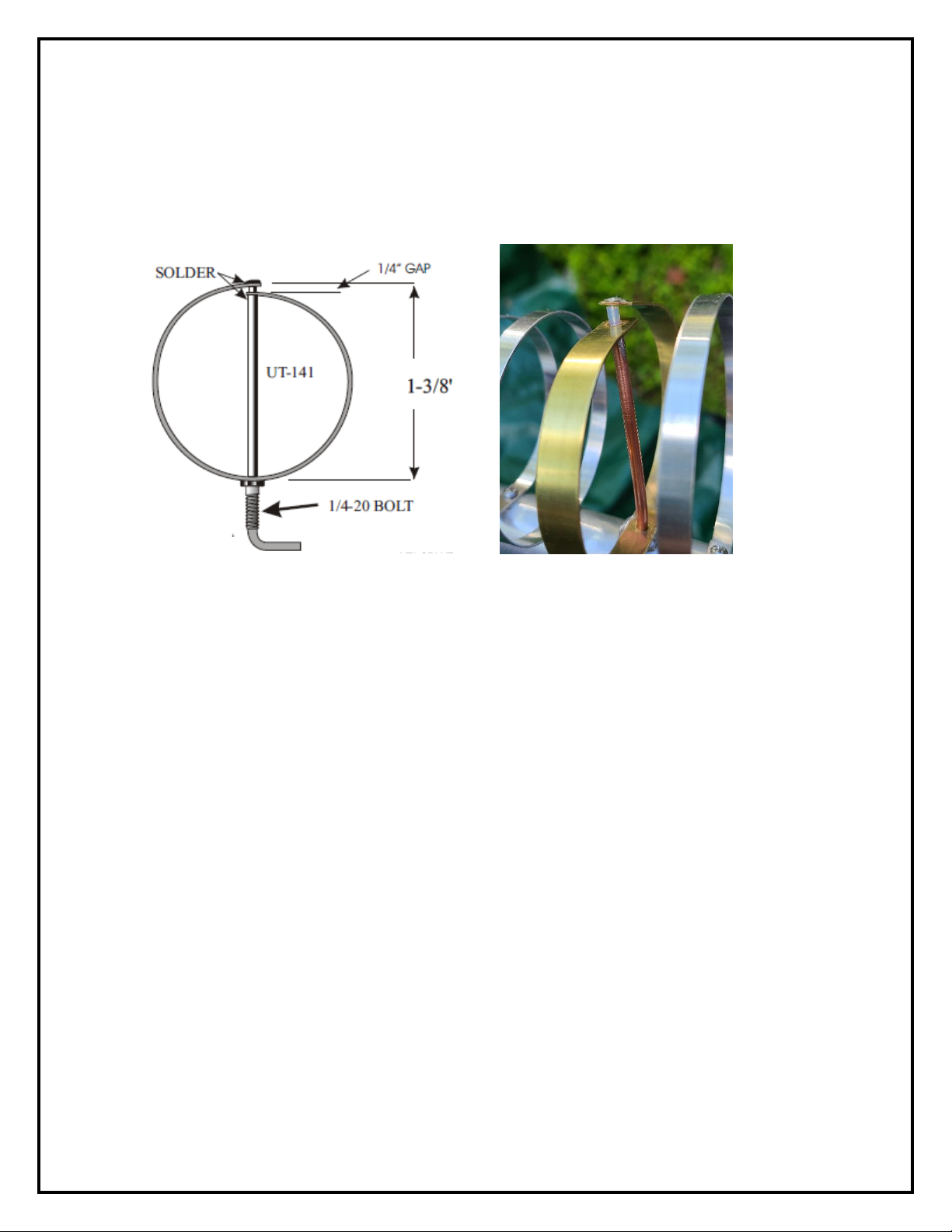

around a suitable form (such as a piece of pipe or tubing). The driven element is formed in the

same way then soldered to the mounting bolt as shown. The feed coaxial cable (0.141-inch

semi rigid) goes through the mounting bolt and is soldered to the open ends of the element.

For best match, the driven element should be approximately 1.375 inches high; this makes it

wider than it is tall. This shape can be adjusted for best match. This antenna is based on work

done by G3JVL.

Soldered Driven Element

Directive Systems Warranty Policy

All Directive Systems antennas are built with the finest materials available. We take great pride

in building a quality product that will give years of good service and performance. If there is a defect

in materials or workmanship within 90 days of purchase, Directive Systems will repair or replace

the defective part, free of charge, to the original purchaser. DO NOT RETURN ANYTHING

WITHOUT PRIOR AUTHORIZATION FROM DIRECTIVE SYSTEMS. Please contact us either by

phone or email describing the problem and we will work to resolve it.

If, after examining a new antenna you received, you are not satisfied, contact us immediately

for return authorization and refund. ANY ANTENNA THAT HAS BEEN MODIFIED WILL BE

SUBJECT TO A RESTOCKING CHARGE. IF AN ANTENNA IS SO MODIFIED AS TO MAKE IT

UNUSABLE, DIRECTIVE SYSTEMS RESERVES THE RIGHT TO REFUSE TO ACCEPT THE

ANTENNA FOR RETURN.

P a g e | 5

DSE1227LYRMK Rev 3/21
