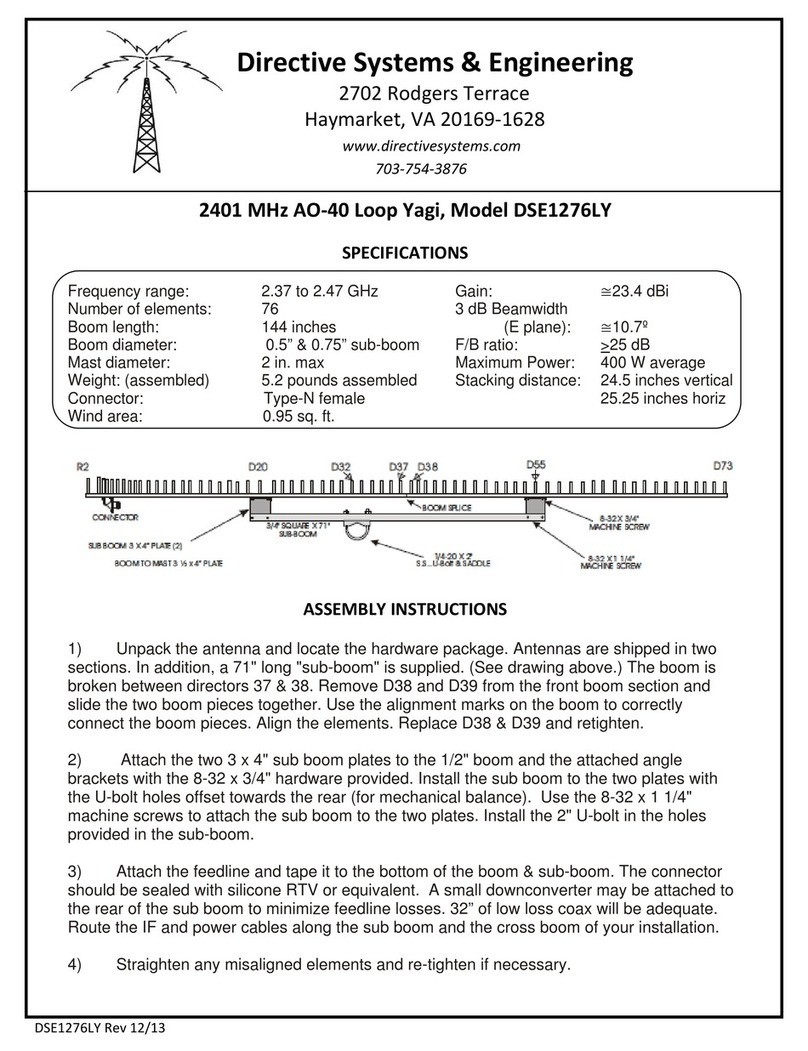

Directive Systems & Engineering DSE1276LY Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2424LYRM Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2414LYRMK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE3319LYAK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE1345LY Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2314LYRMK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2345LYK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE3318LYDRM Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSEFO144-12XPOL Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2325LYK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE1245LYK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE3318LYRMK Bedienungsanleitung

Directive Systems & Engineering

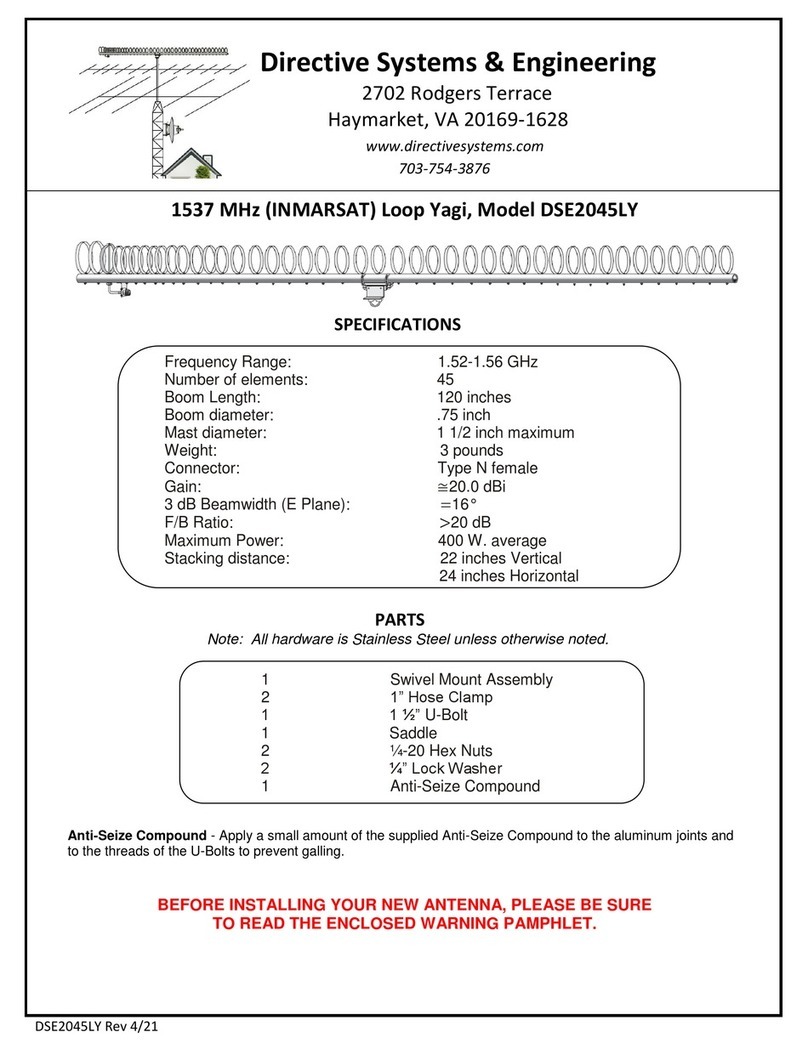

Directive Systems & Engineering DSE2045LY Bedienungsanleitung

Directive Systems & Engineering

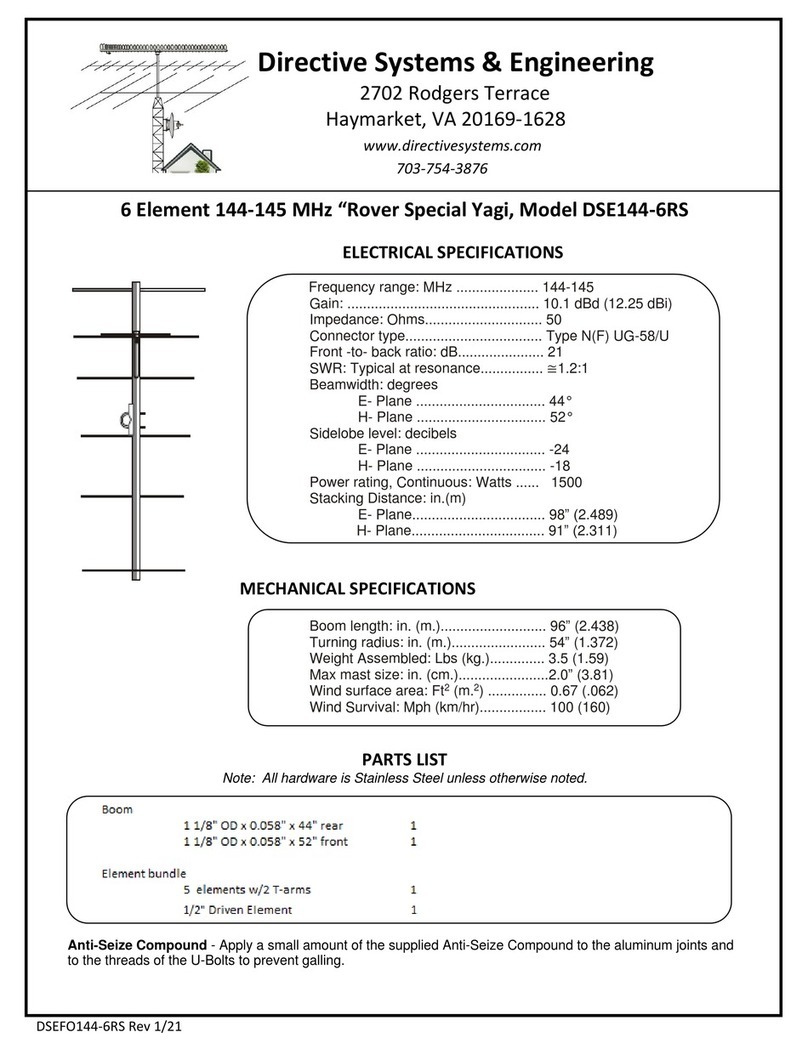

Directive Systems & Engineering DSE144-6RS Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering Yagi DSE3319LYCEL Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE1209LYRM Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2314LYRM Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE3333LYK Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE1276LY Bedienungsanleitung

Beliebte Antenne Handbücher anderer Marken

Alfa Network

Alfa Network APA-L01 Bedienungsanleitung

Naval

Naval PR-422CA Bedienungsanleitung

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Bedienungsanleitung

TERK Technologies

TERK Technologies TV44 Bedienungsanleitung

HP

HP J8999A Bedienungsanleitung

MobilSat

MobilSat MSP-S Bedienungsanleitung

Steren

Steren ANT-UHF 13 Bedienungsanleitung

Novatel

Novatel 600-G Bedienungsanleitung

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Bedienungsanleitung

TRENDnet

TRENDnet TEW-AO12O Bedienungsanleitung

Radio Shack

Radio Shack 15-1837 Bedienungsanleitung

CommScope

CommScope CMAX-OMFX-43M-I53 Bedienungsanleitung

Ramsey Electronics

Ramsey Electronics DAP25 Bedienungsanleitung

COBHAM

COBHAM SAILOR 800 VSAT Gebrauchs- und Pflegehandbuch

Trango Systems

Trango Systems AD900-9 Bedienungsanleitung

Steren

Steren ANT-100 Bedienungsanleitung

Proxim

Proxim 5054-PA-23 Bedienungsanleitung

IWCS

IWCS iriBelt II Einrichtungshandbuch

DSE3311LYRM Rev 3/21

Directive Systems & Engineering

2702 Rodgers Terrace

Haymarket, VA 20169-1628

www.directivesystems.com

703-754-3876

33cm Loop Yagi (Rear Mount), Model DSE3311LYRM

SPECIFICATIONS

Frequency range: 902-928 MHz Gain: 14.5 dBi

Number of elements: 11 3 dB Beamwidth

Boom length: 36 inches (E plane): =34º

Boom diameter: 1 inch F/B ratio: >20 dB

Mast diameter: 1 1/2 inches max Maximum Power: 550 W average

Weight: (assembled) 2 pounds Stacking distance: 17 inches’ vertical

Connector: Type-N female 19 inches’ horizontal

Note: All hardware is Stainless Steel unless otherwise noted.

Anti-Seize Compound - Apply a small amount of the supplied Anti-Seize Compound to the aluminum joints and

to the threads of the U-Bolts to prevent galling.

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

ASSEMBLY INSTRUCTIONS

1) Carefully remove the antenna from shipping container and locate the hardware package.

2) Straighten any misaligned elements and tighten hardware if necessary. But do not

touch R1, DE or D1, as these have been factory set for minimum SWR.

3) Insert the U-bolt in the Rear-Mount Bracket. The Bracket can be oriented for horizontal

or vertical polarization. (See figures below.) There are two sets of mounting holes in the rear

boom.

P a g e | 2

DSE3311LYRM Rev 3/21

(Can be up or down) (Can be left or right)

4) Attach the feed line, and tape it to the mast. The connector should be sealed with

electronic grade RTV or equivalent.

5) The antenna SWR has been adjusted at the factory for less than 1.5:1. Additional

tweaking can be accomplished by adjusting the distance between the driven element and R1

and D1, or by adjusting the shape of the driven element. NOTE: Do not attempt this

adjustment unless the proper equipment and qualified personnel are available.

6) If antennas are to be stacked, see "Instructions for Stacking Loop Yagis".

DO NOT, UNDER ANY CIRCUMSTANCES, APPLY ANY TYPE OF SEALANT OR COATING TO THE

DRIVEN ELEMENT, T-ARMS OR CONNECTOR ASSEMBLY, OTHER THAN KRYLON®

CLEAR COAT. ANY OTHER COATING WILL ADVERSELY AFFECT THE SWR AND VOID YOUR

WARRANTY.

Directive Systems Warranty Policy

All Directive Systems antennas are built with the finest materials available. We take great pride in building a

quality product that will give years of good service and performance. If there is a defect in materials or

workmanship within 90 days of purchase, Directive Systems will repair or replace the defective part, free of

charge, to the original purchaser. DO NOT RETURN ANYTHING WITHOUT PRIOR AUTHORIZATION

FROM DIRECTIVE SYSTEMS. Please contact us either by phone or email describing the problem and we

will work to resolve it.

If, after examining a new antenna you received, you are not satisfied, contact us immediately for return

authorization and refund. ANY ANTENNA THAT HAS BEEN MODIFIED WILL BE SUBJECT TO A

RESTOCKING CHARGE. IF AN ANTENNA IS SO MODIFIED AS TO MAKE IT UNUSABLE, DIRECTIVE

SYSTEMS RESERVES THE RIGHT TO REFUSE TO ACCEPT THE ANTENNA FOR RETURN.
