Telecom Test PDA
User Manual
V6-1.0
1
2
Brief Introduction
Thank you for purchasing our telecom test PDA.
This user manual includes function introduction, installation,
wiring, operation process, and problems solution. Please read
the manual carefully before use, and keep it in safe and
convenient place so that you can quickly find it when
problems occur.
Notice:
As we continue to upgrade and improve functions and features,
the contents of the user manual is subject to change without
notice.
We will try to improve this manual to ensure its content
accuracy. If you find any errors in this manual, please contact
us.
3
It is strictly forbidden to copy or reproduce all or part of this
manual without the written permission of the company.
1
Contents
Chapter I Product Overview.................................................. 1
1. Introduction............................................................... 1
2. Function List ............................................................. 2
3. Components and Functions...................................... 4
4. Main Features........................................................... 7
Chapter II Technical Specifications and Basic Functions . 8
1. Technical Specifications ............................................. 8
1.1 Optical Power Index ......................................... 8
1.2 Visual Fault Locator Index................................ 9
1.3 Gigabit Speed Test........................................... 9
1.4 HDMI .............................................................. 10
1.5 5G WIFI.......................................................... 10
2. Basic Functions......................................................... 11
2.1 OTG USB Function ........................................ 11
2.2 Charging Function.......................................... 11
2
2.3 Network Card.................................................. 12
2.4 PPPOE Dial.................................................... 13
Chapter III Usage of Main Functions ................................. 14
1. Optical Power Test.................................................... 15
2. Visual Fault Locator .................................................. 19
3. Gigabit Speed Test ................................................... 20
4. 5G WIFI Speed Test ................................................. 21
5. HDMI Function.......................................................... 21
5.1 Function description............................... 21
5.2 Operation method.................................. 22
6. Barcode Scan Function (Optional)............................ 23
7. SIM Card (Optional).................................................. 23
8. How to Install the USB Driver ................................... 23
Chapter IV Simple Troubleshooting................................... 24
1
Chapter I Product Overview
1. Introduction
The telecom test PDA is based on Android smart phone
platform, which is a handheld multi-functional testing device
design for telecom operator for LAN test, optical power test,
red light source, gigabit speed test, 5G WIFI speed test, and
TV functions.
The device can test multiple access methods, including LAN
access and optical fiber access. And it can help you confirm
whether the user line can open services; evaluate the service
quality you provide to the user. This device not only can
simulate the user's PC to test broadband IP line, or realize
PPPoE dial through the user's modem, but also used in
problems verification, such as connectivity of the broadband IP
network and the user's modem problem, or eliminate due to the
user's PC failure cannot login the webpage.
2
2. Function List
Function
Module
Module
Code
Module Classification
Remarks
Barcode
B
With 1D barcode scanning
module
Optional
Optical power
meter
G
Optical power with 1625nm
Choose one
7
Optical power with 1577nm
VFL
H
Red light source
IPTV
I
With IPTV module
Gigabit speed
Q
With Gigabit speed module
5G WIFI
5
With 5G WIFI speed test
HDMI
M
With HDMI function
SIM card
read-write
S
With SIM card read-write
function
Optional
3
Back jacket
J
With back clip port
Optional
Front camera
A
2 million pixels
Optional
B
5 million pixels
Optional
C
8 million pixels
Optional
Rear camera
A
8 million pixels
Optional
B
13 million pixels
Optional
C
16 million pixels
Optional
Battery
6
6000mAh capacity
Memory
capacity
2+16
RAM 2G, ROM 16G
Choose
one
3+32
RAM 3G, ROM 32G
4+64
RAM 4G, ROM 64G
Note: The default configuration is: the front camera is 200W,
the rear camera is 1300W, the battery is 6000mAh.
4

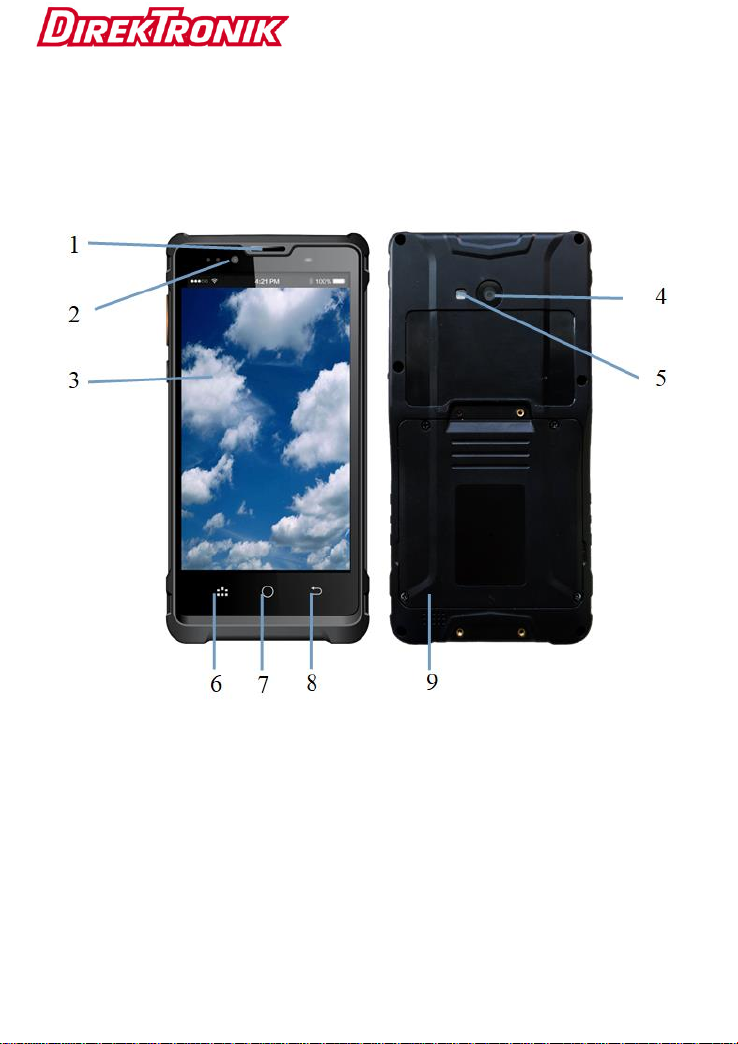

3. Components and Functions
