DISCOVER 950-0019 Bedienungsanleitung
1. Safety 3
1.1 Warnings, Cautions, Notes and Symbols 3
2. Installation 4
2.1Tools and Hardware 4
2.2 Wall Mount Overview 4
2.3 Installing the Bracket 5
2.4 Mounting the Battery to the Bracket 6
INSTALLATION GUIDE
WALL MOUNT BRACKET
FOR AES BATTERY: 42-48-6650, 44-48-3000
#4 -13511 Crestwood Place, Richmond, BC, V6V 2E9, Canada + 1.778.776.3288 info@discoverbattery.com discoverbattery.com
805-0016 REV B
3
Overview
This guide provides information about the installation of Discover AES Lithium batteries (42-48-6650, 44-48-3000) using the
AES Wall Mount Bracket.
Discover reference documents:
• Discover Energy Data Sheets for 42-48-6650, 44-48-3000
• Discover Energy 805-0015 AES LiFePO Battery 44-24-2800 42-48-6650 Manual
• Discover Energy 805-0025 AES LiFePO Battery 44-48-3000 Manual
Visit discoverbattery.com for the most recent version of published documents.
Certain conguration, installations, service, and operating tasks should only be performed by qualied personnel in
consultation with local utilities and/or authorized dealers. Qualied personnel should have training, knowledge, and
experience in:
• Installing electrical equipment
• Applying applicable installation codes
• Analyzing and reducing hazards involved in performing electrical work
• Installing and conguring batteries
No responsibility is assumed by Discover Battery for any consequences arising out of the use of this material.
Read AES Battery Manual and Safety instructions before installing the battery.
2discoverbattery.com
3
1. Safety
1.1 Warnings, Cautions, Notes and Symbols
▲WARNING
Important information regarding possible personal injury.
▲CAUTION
Important information regarding possible equipment damage.
▲NOTE
Additional information concerning important
procedures and features of the battery.
2. Installation
▲WARNING
Heavy Equipment
Each AES battery weights up to 90 kg (200 lbs). A two-person lift is
required.To prevent personal injury, always use proper lifting techniques
during installation. Failure to follow these instructions can result in a
serious injury if the battery falls or is dropped on a person.
▲WARNING
Heavy Equipment
For structural and seismic stability, the AES Battery must be
mounted onto a vertical supporting surface strong enough to support a
minimum of 227 kg (500 lbs) per battery. Failure to follow these instruc-
tions can result in death or serious injury.
2.1 Tools and Hardware
The following tools and hardware are not included with the bracket. Depending on your installation, additional tools and
hardware may be required:
• Socket wrench, appropriately sized
• Level
• Lag bolts
• Additional materials and hardware for additional wall-mount support
3discoverbattery.com

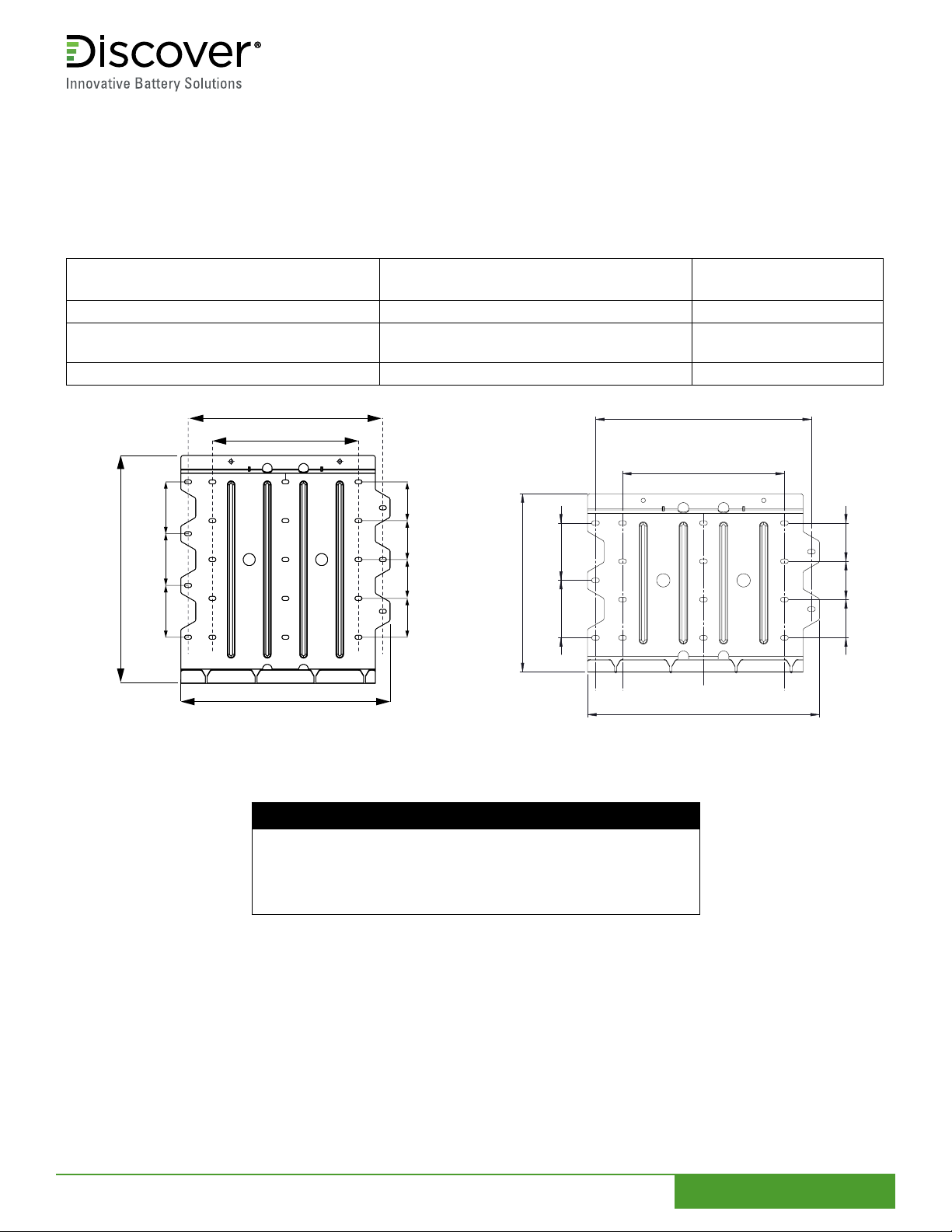

2.2 Wall Mount Overview
Each battery requires a separate bracket. Attach the bracket to the wall before attaching the AES battery to the wall mount.
Each bracket requires a minimum of four 1/4 inch diameter lag bolts or other fasteners. Fasteners must be strong enough to
support 227 kg (500 lbs).
Mounting Surface Minimum Required Fastener Minimum Number of
Fasteners Per Wall Mount
Wood Studs 16 inch on-center 1/4 inch Diameter x 3 1/2 inch long lag bolt 4
Wood studs not 16 inch on-center
(3/4 inch min. plywood panel required) 1/4 inch diameter x 1 inch long wood screw 6
Steel studs at 16 inch on-center (min. 18 gauge) 1/4 inch diameter self-drilling screw 4
▲NOTE
If the wall does not have 16 inch on-center studs, adequate
support for the bracket will have to be provided. For example, a
sheet of plywood can be attached to the wall, and the bracket can
then be attached to the plywood.
4discoverbattery.com
18.72in
3.19in
4.25in
4.25in
4.25in
3.19in
3.19in
3.19in
17.18in
12in
16in
1.77in
17.18
13.20
4.254.25
2.82.82.8
16
12
950-0019 AES Wall Mount
Bracket for AES 42-48-6650
950-0023 AES Wall Mount
Bracket for AES 44-48-3000
5discoverbattery.com

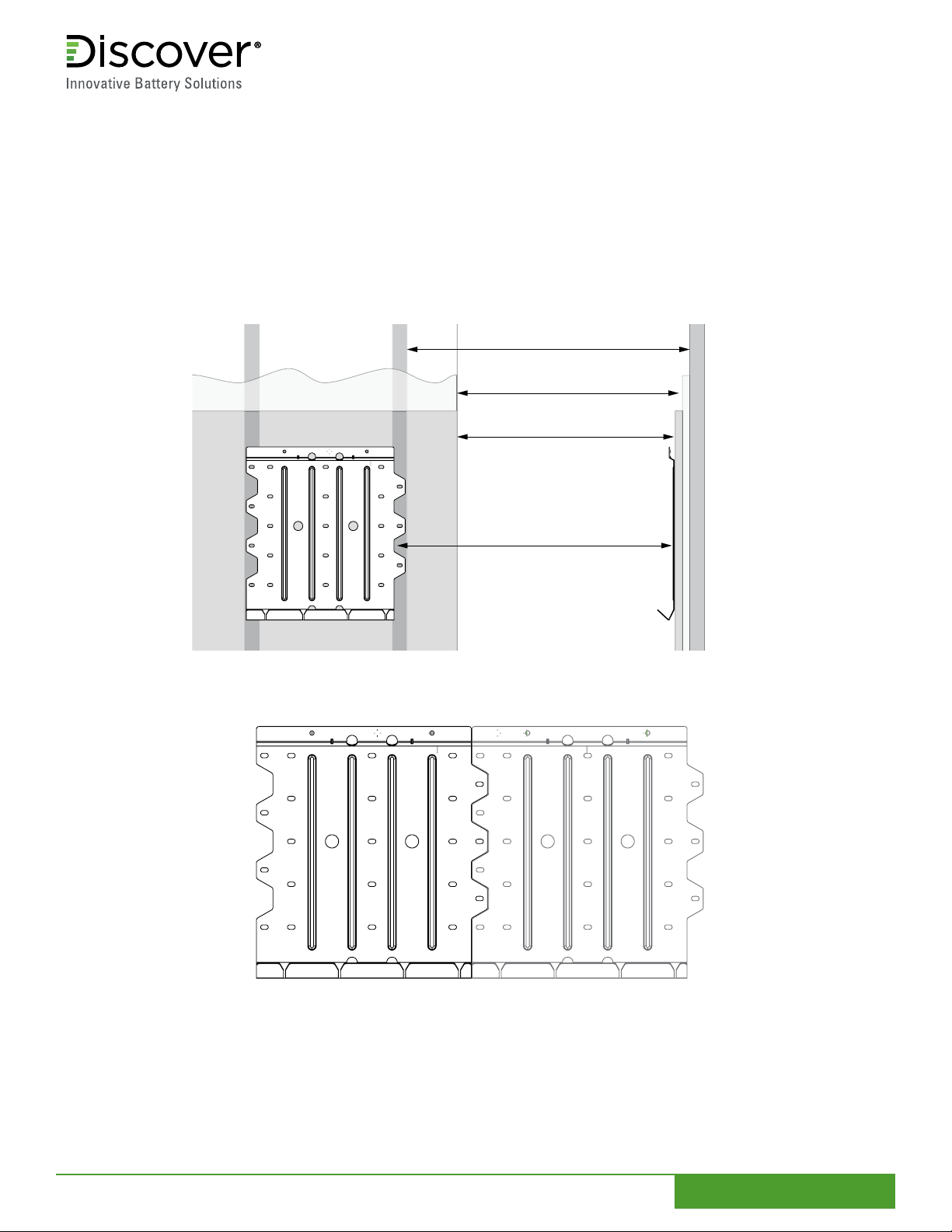

2.3 Installing the Bracket
1. Locate the wall studs.
2. If necessary install a 3/4 inch (minimum) plywood panel or appropriate additional support panel to the wall studs. Use
hardware sized to support a minimum of 227 kg (500 lbs) when installing additional support panels to the wall.The
additional support must span across at least three wall studs.
3. Using a level, secure the rst mounting bracket to the wall. Ensure the mounting plate is centered on the wall studs, as
shown.
4. Install additional wall mounts as required.The wall mounts are designed to interlock with each other when installed
adjacent to each other.
Mounting Plate
Wallboard
Wallstuds
Plywood support panel (optional)
6discoverbattery.com

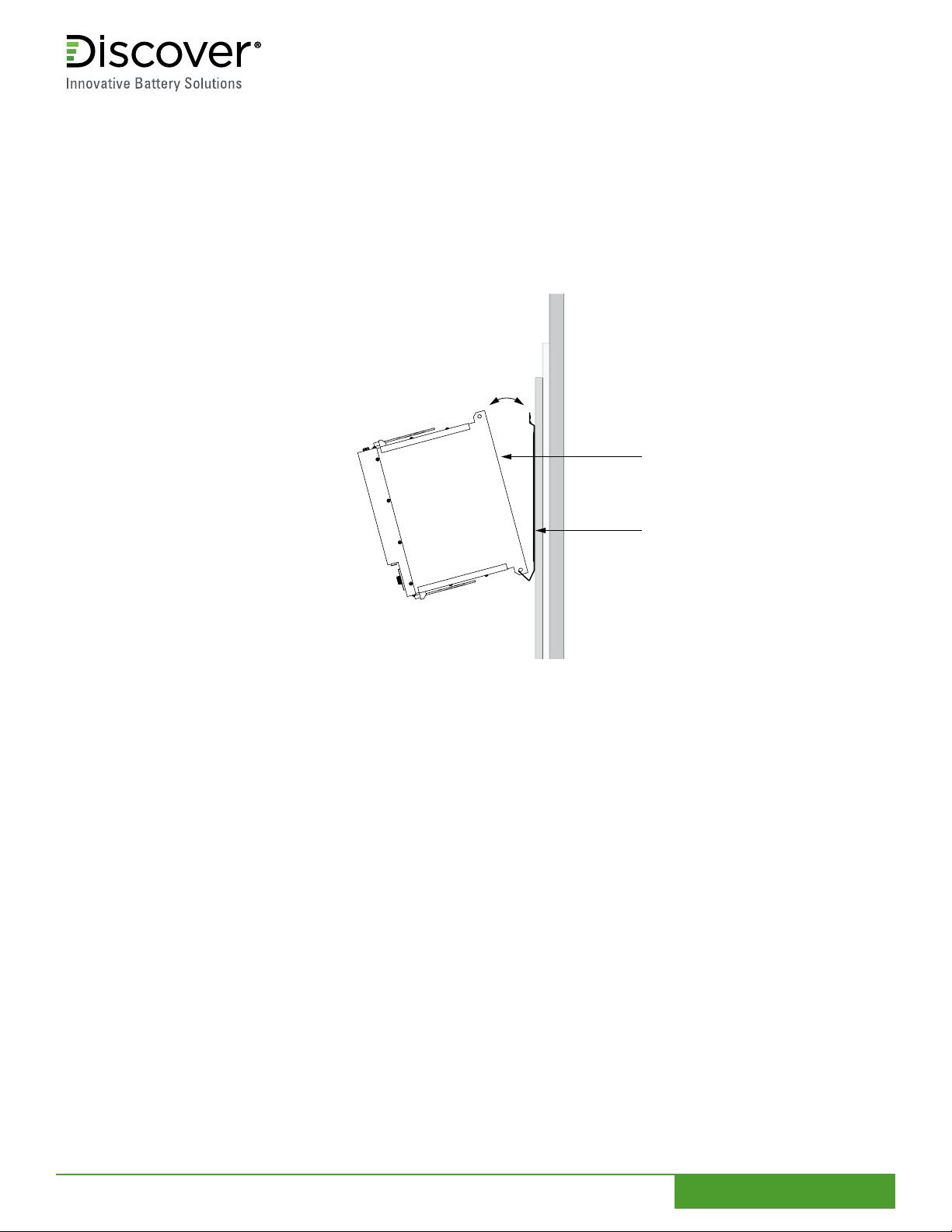

2.4 Mounting the Battery to the Bracket
1. Align the ange of the AES Battery with the bottom edge of the bracket, as shown.
2. Lower the AES Battery ange onto the bracket.
3. Secure the top of the AES Battery to the two PEM studs with M8 nuts (included).Torque nuts to 1.4 - 1.5 N-m (12.4 - 13.3
in-lbs).
Mounting Plate
Discover AES
