Dixon ZTR 8000 Series Bedienungsanleitung

8000 SERIES

ZTR® MOWERS

Operator's Manual

IMPORTANT - READ CAREFULLY

The Dixon®ZTR®Mower is both easy and fun to operate. However, any power mower

must be operated properly to be safe. It is not a toy or a recreational vehicle. Before you

start to use the mower, read the operator's manual carefully and become completely

familiarwiththecontrols.

The information in this operator's manual applies to all Dixon®ZTR®8000 Series

Commercial Mowers. Your Dixon dealer will gladly answer any questions.

See your dealer for warranty service, parts and repairs.

DIXONINDUSTRIES,INC.

ABLOUNTInternationalInc.Co.

PO BOX 1569

COFFEYVILLEKS 67337 0945

3162512000

INDEX

8000 Series

Part No. 13092-0700

SAFETY ............................................Pages 4-9

WARRANTY POLICY..........................Page 10

SPECIFICATIONS .............................Page 11

SEAT ADJUSTMENT...........................Page 12

CONTROLS .......................................Pages 13-16

OPERATION INSTRUCTIONS ............Pages 17-22

CARE AND MAINTENANCE ................Pages 23-33

STANDARD SERVICE PARTS LIST .....Page 34

TROUBLESHOOTING.........................Pages 35-36

SAFETY

RIDING LAWNMOWERS, IF IMPROPERLY OPER-

ATED, CAN CAUSE SERIOUS INJURY OR DEATH

The most common causes of injury to the operator or bystander...

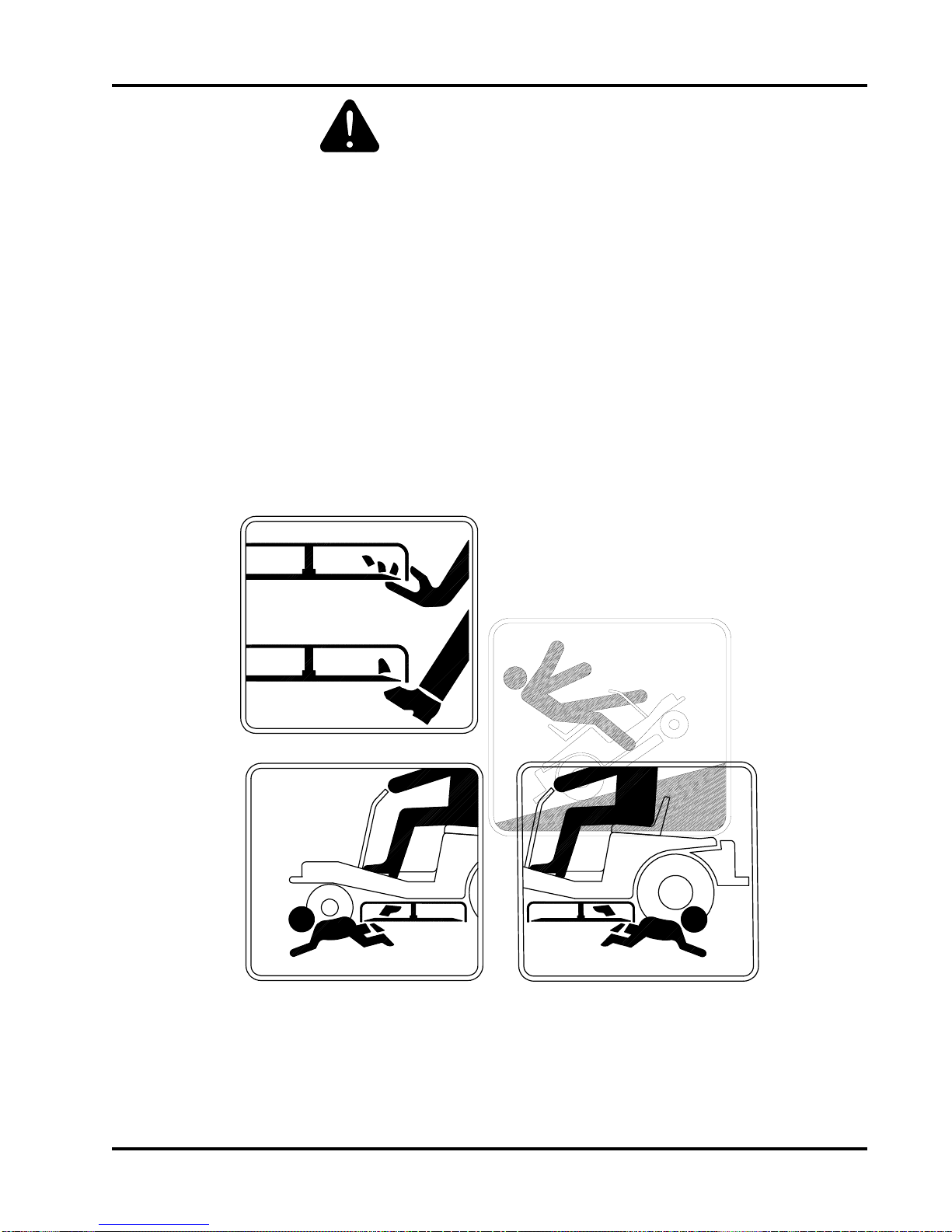

BLADE CONTACT TIP-OVER

RUN-OVER BACK-OVER

...read and understand this manual to prevent injuries.

SAFETY

Safety Alert Symbol

When you see this symbol,

BE ALERT to the potential for injury.

Follow recommended safety precautions and safe

operating practices.

Danger

indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury.

Warning

indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury.

Caution

indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate injury.

It may also be used to alert against unsafe practices.

SAFETY

Thiscuttingmoweriscapableofamputatinghands&feet,

andthrowingobjects.

Failuretoobservethefollowingsafetyinstructionscouldresultin

seriousinjuryordeath.

GENERAL OPERATION:

• Read, understand, and follow all instructions in the manual and on the mower before starting.

• Only allow responsible adults, who are familiar with the instructions, to operate the mower.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the

blade.

• Be sure the area is clear of other people before mowing. Stop mower if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and

whilebacking.

• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the

mower without either the entire grass catcher or the deflector in place.

• Slow down before turning.

• Never leave a running mower unattended. Always turn off blades, set parking brake, stop engine,

and remove key before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging chute.

• Mow only in daylight or good artificial light.

• Do not operate the mower while under the influence of alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the mower into a trailer or truck. Do not ride the mower

when loading & unloading.

• Always wear safety goggles or safety glasses with side shields when operating mower.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding

mower-related injuries. These operators should evaluate their ability to operate the riding mower

safely enough to protect themselves and others from serious injury.

• Follow the manufacturer's recommendation for wheel weights or counterweights.

•Maintain or replace safety and instruction labels, as necessary.

SLOPE OPERATION:

Slopes are a major factor related to loss-of-control and tip-over accidents,

which can result in severe injury or death.

All slopes require extra caution.

If you cannot back up the slope or if you feel uneasy on it, do not mow it!

Mow across the slope with your Dixon ZTR - never up or down.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide

obstacles.

Useslowspeed. Tiresmaylose traction on slopes eventhoughthebrakesarefunctioningproperly.

Useextracarewithgrasscatchersorotherattachments. Thesecanchangethestabilityofthemower.

Keepallmovementontheslopesslowandgradual. Donotmakesuddenchangesinspeedordirection.

Avoidstartingorstoppingona slope. Iftireslosetraction, disengagethebladesand proceedslowly

down the slope.

If front wheels lift off the ground, pull the levers back to stabilize the mower.

DO NOT

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Donot mowneardrop-offs,ditches,orembankments. Themowercouldsuddenlyturnoverifawheel

is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass. Reduced traction could cause sliding.

Do not try to stabilize the mower by putting your foot on the ground.

Do not use grass catcher on steep slopes.

SAFETY

Tragic accidents can occur if the operator is not alert to the

presence of children.

Children are attracted to lawn mowers and the mowing

activity.

NEVER assume children will stay where they were last seen.

Be alert to avoid accidents.

• Keep children out of the mowing area and under the watch-

ful care of another responsible adult.

• Be alert and turn mower off if a child enters the area.

• Before and during backing, look behind and DOWN for small

children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe mower operation.

• Never allow children to operate the mower.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

CHILDREN:

SAFETY

SERVICE:

• Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine running. Allow

engine to cool before refueling. Do not smoke.

Never refuel the mower indoors.

Never store the mower or fuel container inside a building where

there is an open flame,

If fuel is spilled on clothing, change clothing immediatley.

To prevent fire and explosion caused by static electricity:

Never fill containers inside a vehicle or on a truck or trailer bed

with a plastic liner. Always place containers on the ground

away from your vehicle before filling.

When practical, remove gas-powered equipment from the truck

or trailer and refuel it on the ground. If this is not possible,

then refuel such equipment on a trailer with a portable

container, rather than from a gasoline dispenser nozzle.

If a gasoline dispenser nozzle must be used, keep the nozzle in

contact with the rim of the fuel tank or container opening

at all times until fueling is complete. Do not use a nozzle lock-open

device.

• Never run a mower inside a closed area. The exhaust fumes are

toxic.

• Keep nuts and bolts tight, especially blade attachment bolts,

and keep equipment in good condition.

• Never tamper with safety devices. Check their proper operation

regularly.

• Keep mower free of grass, leaves, or other debris buildup.

Clean up oil or fuel spillage. Allow mower to cool before storing.

• Stop and inspect the equipment if you strike an object. Repair,

if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow objects to be

thrown. Frequently check components and replace with original equip-

ment parts, when necessary.

DIXON INDUSTRIES, INC.

a BLOUNT company

AIRPORT INDUSTRIAL PARK

PO BOX 1569

COFFEYVILLE KS 67337 0945

316 251 2000

FAX 316 251 4117

DIXON LIMITED WARRANTY POLICY - COMMERCIAL MODELS

8000Series

WARRANTY: Home Owner Application: This Dixon Warranty term is for a period of three (3) years from date of

purchase. Commercial Application: Dixon mowers used for commercial application are warranted for one (1) year

from the date of purchase or 750 hours whichever comes first. Commercial use is specified as use other than, or in

addition to, mowing at owner's primary place of residence.

DIXON ZTR MOWERS ARE WARRANTED AGAINST DEFECTS IN MATERIALS

AND WORKMANSHIP AND PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS INCLUDING

LABOR COSTS. THIS WARRANTY IS SUBJECT TO THE FOLLOWING CONDITIONS

AND LIMITATIONS:

1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.

2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon

warranty policy and allowances. All warranty claims must be approved by Dixon Industries, Inc.

3. Battery warranty: Limited to 90 days from date of purchase.

4. Accessories Warranty (Grass Catchers, Snow Blades, Covers, etc.): Limited to 90 days from date of purchase.

5 Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or alteration. The

use of parts or components other than those supplied by Dixon Industries, Inc. VOIDS ALL WARRANTY.

6. The following items are not covered by this warranty policy:

(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon dealer's

place of business.

(b) Routine maintenance or adjustments.

(d) Engines -- All engines used on Dixon ZTR mowers are warranted by each individual engine

manufacturer.

(e) Any costs or expense of providing substitute equipment while repair work is being performed on a

warranted mower.

7. There is no other express warranty. Implied warranties, including those of merchantability and fitness for a

particular purpose, are limited to the same duration of the express warranty, and to the extent permitted by

law any and all implied warranties are excluded. Liabilities for consequential damages under any and all

warranties are excluded.

Blue/Customer Yellow/Dealer White/Dixon Ind.

WARRANTY VALIDATION: At the time of sale, selling dealer must review each portion of this warranty

document, complete the information section below, secure customer's signature &send copy to Dixon Industries, Inc.

DATE OF PURCHASE MODEL S/N

Owner's Name Dealership

Address Address

Owner's Signature Dealer's Signature
