HOW-TO GUIDE:

ECP PASSTHRU

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 2

ECP PASSTHRU OVERVIEW

CellCom and DualCom Universal Communicators enable you to take over and manage ECP panels with

connection to the ECP Bus. This feature is called ECP Passthru.

Required Materials

The following software and hardware components are required to perform system takeovers:

• Compatible Honeywell VISTA panel (refer to “VISTA Panel Compatibility”)

• CellCom or DualCom with ﬁrmware Version 202 or higher

• Programming keypad

• Model 330 or Model 330-24V programming cable

• Cat 5 Ethernet cable (only when using network)

• 18-22 AWG unshielded wire (RYGB)

• Remote Link Version 2.02 or higher

+DC- Z1 Z2 Z3 GT R

+Z4- O1 O2

PROG

RESETLOAD

+DC- Z1 Z2 Z3 GTR

+Z4- O1 O2

CellCom or DualCom

DC Power

Zones 1 - 4

Tip 1

Output 1

Output 2

Ring 1

ETHERNET

Mounting Holes

Cellular Antenna

SMA Connector

Cell Modem

Tamper

Programming Connection

Terminal Block

Load and Reset Buttons

IPower and Armed LEDs

JEthernet (DualCom only)

Figure 1: CellCom and DualCom Components

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 3

WIRE THE COMMUNICATOR

The communicator can be connected to the ECP Bus of a Honeywell panel. See Table 1 and Figure 2 for the

necessary wiring connections.

Caution: Remove all AC and battery power from the panels before wiring.

1. Attach the antenna to the SMA connector. Refer to Figure 1.

2. Connect system batteries as needed, then connect the panels

to an appropriate power source.

3. Connect a programming keypad to the communicator.

a. For 12VDC applications, connect the keypad to

the communicator PROG header with a Model330

programming harness.

b. For 24VDC applications, connect the keypad to the

communicator PROG header with a Model330-24V

programming harness with an in-line resistor.

4. After programming is complete, remove the keypad and replace the housing cover on the mounted base.

Note: Address 1is reserved by the system for programming keypads.

MOUNT THE COMMUNICATOR

It is not necessary to remove the PCB from the housing when installing the communicator. The

communicator should be mounted to a wall using the included #6 screws in the mounting holes. Refer

to Figure 1 for mounting hole locations. Mount the communicator in a secure, dry place to protect it from

tampering and weather damage. If using a 685 Series Conduit Backbox, refer to the 685 Installation Sheet

(LT-1431) for mounting instructions.

+DC- Z1 Z2 Z3 GTR

+Z4- O1 O2

CellCom or DualCom

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

++–

TIP

(BROWN)

RING

(GRAY)

TIP

(GREEN)

RING

(RED)

BLACK

RED

SYNC

COM

DATA

(USE SA4120XM-1

CABLE)

1 2 3 4 5 6 7 8

OUT 17

+12 AUX

GND

OUT 18

VISTA 20P ONLY

VISTA-20P

From DC+

From DC–

From Z4+

From Z4-

To Data In (6)

To Data Out (7)

To Negative (4)

To Positive (5)

RED

BLACK

GREEN

YELLOW

RED

BLACK

GREEN

YELLOW

RED

BLACK

GREEN

YELLOW

Figure 2: ECP Wiring

Communicator to ECP Wiring

Communicator Honeywell ECP Bus

+DC Keypad Power

-DC Keypad GND

Z4+ Data Out

Z4- Data In

Table 1: ECP Wiring

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 4

PROGRAM THE COMMUNICATOR

Program Vista Keypad Device Address 20

1. Power down and then power up the Honeywell panel.

2. Within 1 minute of powering up the Honeywell panel, simultaneously press and hold the #and *

buttons on the keypad.

3. The keypad displays INSTALLER CODE. Enter the installer code (default is 4112), followed by

800.

4. Enter *193, then enter 1 0.

5. To save and exit programming, enter *99.

Change Keypad Input to ECP

1. Press and release the communicator Reset button.

2. At the communicator keypad, enter 6653 (PROG) and press CMD.

3. Advance to SYSTEM OPTIONS, then press any select key or area to enter the menu.

4. Advance to KYPD INPUT, then press any select key or area.

5. Press the third select key or area to select ECP.

6. To save programming, advance to STOP and press any select key or area.

Auto-Conﬁgure the ECP Panel

Universal Communicators with firmware Version 202 and higher enable installers to automatically

configure ECP panels for Passthru communication. Refer to Table 2 for programming messages and

troubleshooting steps.

1. Ensure the ECP panel IP address is set as default.

2. At the communicator keypad, enter 2313 (DIAG) and press CMD.

3. Advance to ECP SETUP and press any select key or area.

4. At ECP SETUP VISTA 128? If the panel is a VISTA 128, select YES. If the panel is a different model,

select NO.

5. At INST CODE, enter the ECP panel installer code and press CMD.

6. After configuration is finished, the keypad advances to GET ZONES. Press any select key or area.

As the communicator retrieves zones from the ECP panel, the number of zones is displayed and

incremented as ZONE CT (zone count).

This section assumes that you’ve already programmed basic communicator settings. For more complete

information about programming, refer to the CellCom Installation Guide (LT-1817) or the DualCom Installation

Guide (LT-1859).

To advance through the programming menu, press CMD. To go back, press the Back Arrow key. To enter a

menu, press any select key or area. To select an option, press the select key or area under that option.

COM SERIES HOW-TO GUIDE: ECP PASSTHRU | DIGITAL MONITORING PRODUCTS 5

ADDITIONAL INFORMATION

Remote Programming

VISTA panels can be remotely programmed with Remote Link and Honeywell’s Compass® software. For

information about configuring Compass to work with Remote Link on a passthru system, refer to Remote

Link How-To Guide: ECP Passthru Compass Setup (LT-1944).

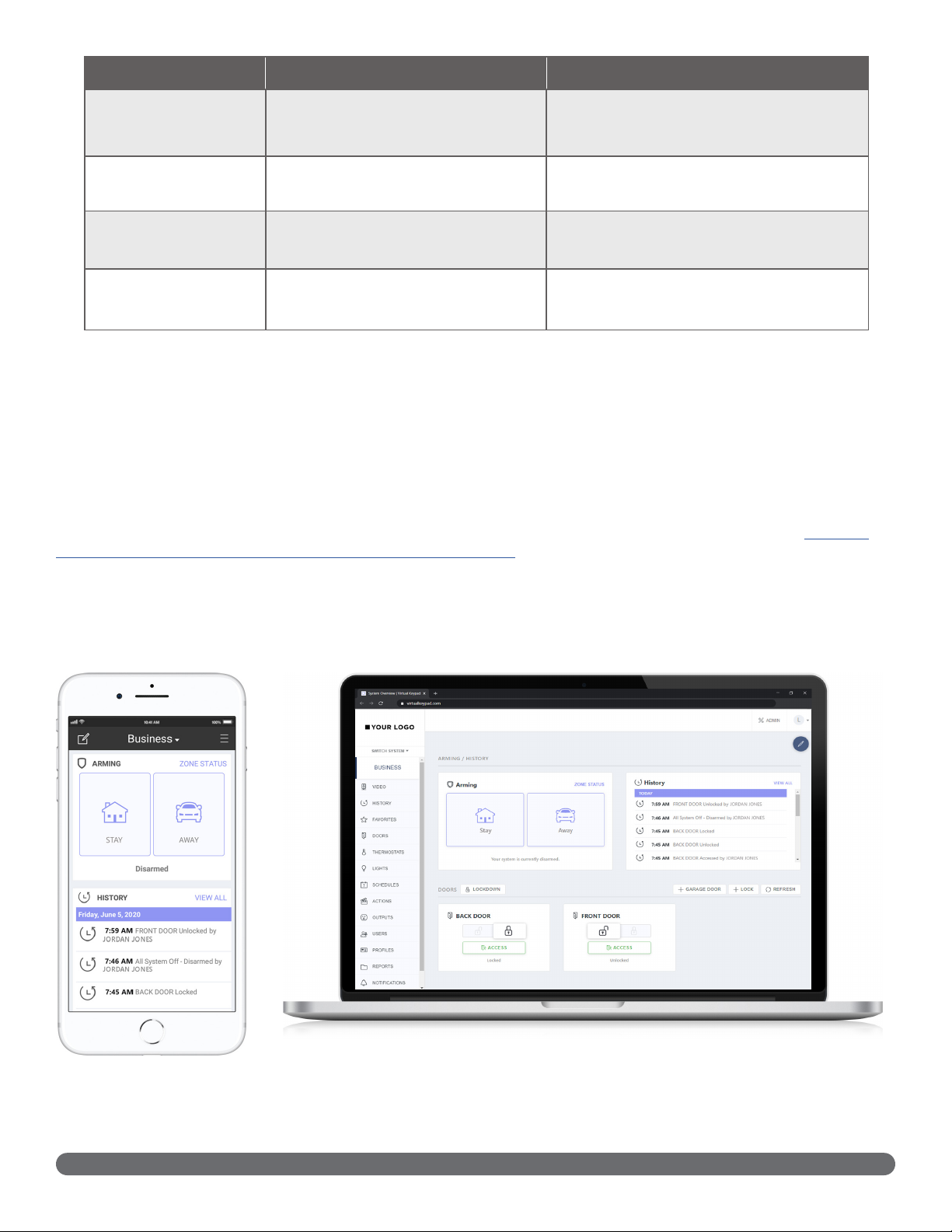

Virtual Keypad

Virtual Keypad enables users to manage their systems remotely, including arming, disarming, viewing zone

status, bypassing zones, view history, manage users, and more.

Table 2: Programming Messages and Troubleshooting

Message Meaning Next Steps

PROGRAMMING The communicator is attempting to

configure ECP panel programming

settings for ECP Passthru.

Wait for the configuration attempt to

complete. Afterward, a programming status

message is displayed (success, fail, or busy).

PROGRAM SUCCESS The ECP panel has been successfully

configured.

Finish configuration at GET ZONES.

PROGRAM FAIL The ECP panel could not be

programmed.

Check wiring connections and

communication settings, then retry

programming.

BUS IS BUSY The ECP panel could not be

programmed due to high ECP bus

traffic.

Wait and retry programming or reduce

traffic on the ECP bus, then retry

programming.

Designed, engineered,

and manufactured in

Springﬁeld, Missouri

INTRUSION • FIRE• ACCESS• NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

800.641.4282 | dmp.com

VISTA Panel Compatibility

Panel Type ECP Remote

User Management

Remote

Arming/Disarming

Remote

Zone Status

Compatible with

Compass

VISTA-10SE Rev 15 or higher No No No No

VISTA-10P Yes Yes Ye s Yes Firmware version

2.0 or higher

VISTA-15 Yes No No No No

VISTA-15P Yes Yes Ye s Yes Firmware version

5.2 or higher

VISTA-20SE Rev 12 or higher No No No No

VISTA-20P Yes Yes Yes Yes Firmware version

5.2 or higer

VISTA-20PI Yes Yes Yes Yes Firmware version

5.0 or higher

VISTA-21iP Yes Yes Yes Yes Yes

VISTA-21iPLTE Ye s Yes Ye s Yes Ye s

Note: Panels must be programmed as Stay/Away for remote arming and disarming (No

Partitions).

Vista 32, 40, 50, 128, 250 are not compatible with ECP Virtual Keypad and eSuite.
