1INSTALL THE 263HINT

Caution: Ground yourself by touching grounded

metal to discharge static before handling the

panel. Remove all AC and battery power from

the panel before installing or connecting any

modules, cards, or wires to the panel.

XT30INT Series Panel

1. Insert the SIM card into the SIM card holder

on the 263HINT.

2. Insert the PCB stando end with ﬂanges into

the stando hole in the panel PCB.

3. Hold the 263HINT at an angle and align the

SMA antenna connector with the antenna

hole in the top of the panel enclosure.

4. Align the PCB stando with the stando

hole in the 263HINT.

5. Line up the 263HINT card 12-pin connector

onto the Cell Module connector on the panel.

Caution: Make sure the 263HINT card 12-pin

connector is lined up to avoid damaging the

panel.

6. Apply even pressure to both sides of the

board and push until the connector is fully

seated on the module.

7. Attach the included antenna to the SMA

connector. See Figure 2.

DESCRIPTION

65555

SIM

CARD

Figure 1: 263HINT

Cellular Communicator

263HINT INTERNATIONAL

CELLULAR COMMUNICATOR

Installation Guide

The 263HINT Cellular

Communicator provides a fully-

supervised alarm communication

path over the

HSPA+ network.

The 263HINT is installed in the

panel enclosure and powered

by the

panel so no additional enclosure,

power supply, or battery

back-up is needed.

Compatibility

The 263HINT is compatible

with XT30INT Series panels

and XR150INT/XR550INT

Series panels.

What is Included

• One 263HINT Cellular

Communicator

• One 383 Antenna

• One PCB Stando

• One 381-2 18" Coax

Cable (263HINT/381-2

only)

• One SIM Card

Figure 2: Installing the 263HINT on an XT30INT

2 DIGITAL MONITORING PRODUCTS | 263HINT INSTALLATION GUIDE

XR150INT/XR550INT Series Panel

If needed, the PCB can be removed from the enclosure to

allow you to place the cell module.

1. Insert the PCB stando end with ﬂanges into the

stando hole in the panel PCB.

2. Align the PCB stando with the stando hole in

the 263HINT.

3. Line up the 263HINT card 12-pin connector onto

the Cell Module connector on the panel.

Caution: Make sure the 263HINT card 12-pin

connector is lined up to avoid damaging the panel.

There should be a space between the top of the

connector and the Ethernet port.

4. Apply even pressure to both sides of the board

and push until the connector is fully seated on the

module. See Figure 3.

5. Attach the 381-2 cable to the SMA connector.

6. Position one of the washers onto the 381-2 SMA

connector and push the threaded end through an

enclosure knockout. See Figure 3.

7. Position the second washer onto the threaded end

extending through the knockout and secure the

nut.

8. Attach the included 383 Antenna to the SMA

connector.

9. Attach the opposite end of the 381-2 Coax to the

SMA connector on the 263HINT. See Figure 2.

Note: As an alternative, an antenna coax can be

connected directly to the 263HINT SMA connector

when the coax enters the enclosure via conduit.

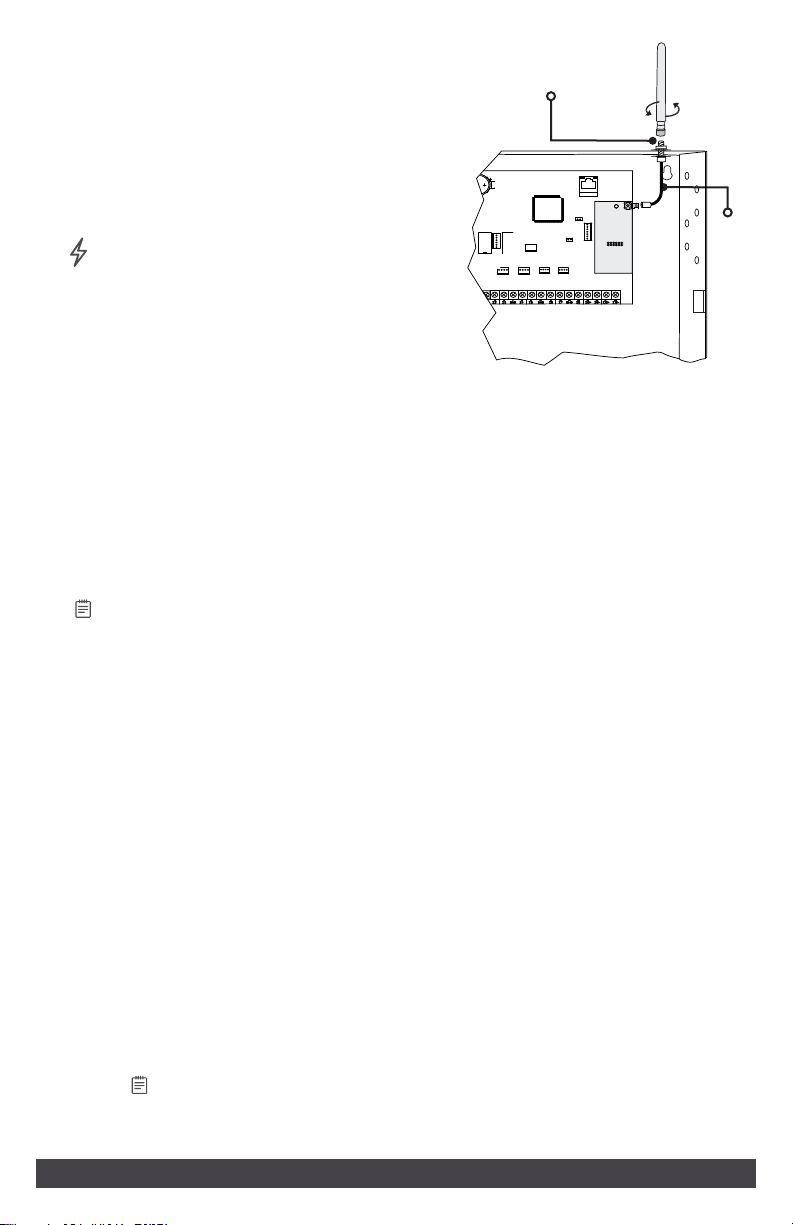

Figure 3: Installing the 263HINT

on an XR150/XR550

381-2

Coax

Cable

2ACTIVATE THE 263HINT

Cellular service is required before you can use the 263HINT for signal transmission. The

263HINT comes ready for activation with SecureCom™ Wireless, LLC. If you are using a

SecureCom Wireless SIM card, use one of the following activation options. If you are using a

dierent type of SIM, follow your organization's activation process.

To activate a SecureCom Wireless SIM, verify that it has been added to the panel by using

Remote Link™, the Dealer Admin site (dealeradmin.securecomwireless.com), the Tech APP™,

or by calling DMP Customer Service (1-866-266-2826).

Remote Link Activation

1. In Remote Link panel communication programming, select Cellular Network as the

Communication Type and select the Activate button.

In the Activate SIM/MEID window, enter the SIM number, found on the SIM card.

b. Select the rate plan for the 263HINT.

c. Select the

Activate

button at the bottom of the window.

2. After the 263HINT is installed at the site, use a keypad and enter the panel's

Diagnostics menu (2313).

a. Select

ACTIVATE CELL

by pressing a top row Select Key.

b. Press the button beneath

YES

on the next screen to activate the device.

Note:

The

ACTIVATE CELL

prompt will only display if a HSPA+ modem is installed. To

perform the cellular activation process from a keypad, the panel must be in contact

with a Verizon owned tower.

SMA Connector,

Nut, and Washers

263HINT INSTALLATION GUIDE | DIGITAL MONITORING PRODUCTS 3

Dealer Admin Activation

1. Navigate to the Dealer Admin site (dealeradmin.securecomwireless.com).

2. Select the appropriate customer from the Customer Dashboard.

3. Click Add System.

4. Enter a System Name.

5. Select an option from the System Type drop-down menu.

6. Select either Cellular or EASYconnect + Cell Backup in the Connection Type ﬁeld.

7. Enter the SIM number found on the SIM card.

8. Click Get Status.

9. Enter the Account Number.

10. Select a Rate Plan and an SMS Package for the 263HINT.

11. Click Activate Cellular Device.

Tech APP Activation

1. Navigate to the Tech APP.

2. Tap Find a Customer then search for a customer.

3. Tap Add a System.

4. Enter a System Name.

5. Scan or enter the Serial #.

6. Select an option from the System Type drop-down menu.

7. Select either Cellular or EASYconnect + Cell Backup in the Connection Type ﬁeld.

8. Enter the Account Number.

9. Enter the SIM number found on the SIM card.

10. Tap Get Status.

11. Select a Rate Plan and an SMS Package for the 263HINT.

12. Tap Activate Cellular Device.

3TEST THE 263HINT

The panels provide a diagnostics function to test the communication integrity and cellular

signal strength of the 263HINT. To use diagnostics, reset the panel, enter the diagnostics code

2313 (DIAG) and press CMD for

XR150INT/XR550INT Series panels or 231 and press CMD for XT30INT Series panels.

Communication Status

Select COMM STATUS from the Diagnostics menu. The panel tests the 263HINT for the

following items:

Cellular Signal

Select CELL SIGNAL from the Diagnostics menu. The panel tests and indicates the strength of

the signal using a bar display. One bar indicates a weak signal and seven bars indicate a strong

signal. The signal strength is displayed as a -dBm value.

• 263HINT Installed • Cellular Tower Detected • 263HINT Registered

• 263HINT Operating • Connect Success • 263HINT Identiﬁed

• Communication Path Integrity

Designed, engineered, and

manufactured in Springﬁeld, Missouri

using U.S. and global components.

LT-1270INT 18114 1.01

INTRUSION • FIRE •ACCESS •NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

888.436.7832 | DMP.com

Speciﬁcations

Primary Power 12.0VDC from panel

Current Draw

Standby 24 mA

Alarm 28 mA

Compatibility

XT30INT Series panels

XR150INT/XR550INT Series panels

Accessories

381-2 18" Coax Cable

381-12 12' Coax Extension

381-25 25' Coax Extension

383 Antenna (included)

386 Outdoor Antenna Mounting Bracket

387-1 3dB Fiberglass Antenna w/Bracket

387-2 2dB Attack Enclosure Antenna

387-3 3dB MEG Antenna

Ordering Information

263HINT/381-2 International Cellular

Communicator with 18" Coax Cable

263HINT International Cellular Communicator

263HINT CELLULAR

COMMUNICATOR

65555

SIM

CARD

INTERNATIONAL CERTIFICATIONS

Security Grade: 3

Environmental Class: II

Intertek (ETL) Listed

EN 50130-4:2011+A1:2014 Alarm systems. Electromagnetic compatibility. Product family

standard: Immunity requirements for components of ﬁre,

intruder, hold up, CCTV, access control and social alarm

systems.

EN 50130-5:2011 Alarm systems. Environmental test methods.

EN 50131-1:2006/A1:2009 Alarm systems. Intrusion and hold-up systems. System

requirements.

EN 50131-3:2009 Alarm systems. Intrusion and hold-up systems. Control and

indicating equipment.

EN 50136-1:2012 Alarm systems. Alarm transmission systems and equipment.

General requirements for alarm transmission systems.

EN 50136-2:2013 Alarm systems. Alarm transmission systems and equipment.

Requirements for Supervised Premises Transceiver (SPT).

EN 61000-3-2:2006+A1+A2 Electromagnetic compatibility (EMC) — Part 3 – 2: Limits for

harmonic current emissions.

EN 61000-3-3:2013 Electromagnetic compatibility (EMC)-Part 3-3:

Limits-Limitation of voltage changes, voltage ﬂuctuations and

ﬂicker in public low-voltage supply systems, for equipment

with rated current≤16 A per phase and not subject to

conditional connection.

EN 61000-6-4:2007 Emission standard for industrial environments.
