DMP Electronics 1139 Bedienungsanleitung

DESCRIPTION

1PROGRAM THE PANEL

When programming the 1139 in the panel, refer to the panel

programming guide as needed.

1. In ZONE INFORMATION, enter the wireless ZONE NO:.

2. Enter the ZONE NAME and press CMD.

3. Select PN (panic) as the ZONE TYPE.

4. At the NEXT ZN? prompt, select NO.

5. At the WIRELESS? prompt, select YES.

6. Enter the eight-digit SERIAL# and press CMD.

7. Enter the SUPRVSN TIME and press CMD.

8. At the NEXT ZN? prompt, select YES if you are ﬁnished

programming the zone. Select NO if you would like to access

additional programming options.

Retard Delay (XR150/XR550 Series panels only)

When programming the 1139 as a panic zone, you have the option

to provide a Retard Delay. Follow these steps to activate the

Retard Delay and to change the delay time.

9. If NO was selected in step 8, you will see ALARM ACTION.....

Press CMD until you reach RETARD.

10. Change the default to YES.

11. Navigate to SYSTEM OPTIONS in the programing menu.

12. At the RETARD DLY: prompt, set the delay time between 1

and 250 seconds.

Figure 1: 1139 Housing

The 1139 Wireless Bill Trap

Transmitter is designed to provide

a silent alarm in retail and banking

cash drawers. When the trapped bill

is removed, a panic alarm is sent.

To reduce the possibility of a false

alarm, a delay can be programmed

to provide time to replace the bill

should it be accidentally removed.

The slide-o cover makes it easy to

install in a cash drawer and to replace

the batteries.

Compatibility

All DMP 1100 Series Wireless

Receivers and Panels. See the last

page for compatibility details.

What is Included?

• One 1139 Wireless Bill Trap

Transmitter

• Two CR2450 3.0V lithium

coin cell batteries

• One hook and loop mounting

strip set

2OPEN THE 1139

PUSH TO

OPEN

PUSH TO

OPEN

1. To open the 1139, grip the device and place both thumbs on

the bottom of the housing where it says PUSH TO OPEN.

2. Gently push down then forward until the cover slides o

completely. See Figure 2.

Figure 2: Open the 1139

1139 WIRELESS BILL TRAP

TRANSMITTER

Installation Guide

2 1139 INSTALLATION GUIDE | DIGITAL MONITORING PRODUCTS

4SELECT A LOCATION

Since the 1139 does not have a visible survey LED, use a wireless device with a survey LED to conﬁrm

communication with the panel. DMP recommends using an 1106 Wireless Transmitter. This process ensures

that the location you choose will allow the 1139 to communicate clearly with the panel.

Check the Location Using a Survey LED

1. Open the wireless device and hold it over the location where the 1139 will be placed.

2. Press the tamper switch to send data to the panel and see if communication is conﬁrmed or faulty.

Conﬁrmed: If communication is conﬁrmed, the LED blinks immediately on and immediately o for

each press or release of the tamper switch.

Faulty: If communication is faulty, the survey LED remains on for up to 8 seconds or ﬂashes

multiple times in quick succession.

3. Relocate the device or the wireless receiver until the survey LED conﬁrms clear communication.

INSTALL THE BATTERIES

Use 3.0V lithium batteries, DMP Model CR2450's, or Sony or Murata CR2450 batteries from a local retail

outlet. Keep in mind, when setting up a wireless system, program zones and connect the receiver before

installing the batteries.

1. Gently lift the PCB out of the housing as shown in Figure 3.

2. Observe polarity, then slide each battery into a holder and push into place.

3. Place the PCB back into its housing and secure the board on the posts. Ensure the switch is placed

correctly and the lever arm is in contact with the switch. See Figures 3, 4, and 5.

4. Slide on the cover until it snaps into place ensuring the cover is secured.

Figure 5: Incorrect Lever Alarm

Switch Placement

Figure 4: Correct Lever Alarm

Switch Placement

Figure 3: Remove the PCB and Install the Batteries

Posts

DIGITAL MONITORING PRODUCTS | 1139 INSTALLATION GUIDE 3

1. Place one hook and loop strip in the cash drawer and one on the bottom of the 1139.

2. Place the 1139 in the cash drawer, aligning the two hook and loop strips and securing it in place.

3. Slide one bill under the clip to hold it in place.

4. Place additional bills on top of the trapped bill for standard cash drawer operation.

INSTALL THE 1139

1. Slide o the cover to expose the inside of the 1139.

2. Push and slide each old battery out of the holders.

3. Observe polarity, then slide each new battery into a holder and push into place.

4. Slide on the cover until it snaps into place ensuring the cover is secured.

5. Place the 1139 back into the cash drawer, aligning the two hook and loop strips and securing it in place.

Caution: Properly dispose of used batteries. Do not recharge, disassemble, heat above 212°F (100°C), or

incinerate. Risk of ﬁre, explosion, and burns.

REPLACE THE BATTERY

WALK TEST THE 1139

After the 1139 has been installed, perform a Walk Test to conﬁrm the 1139 is communicating with

the panel.

Walk Test

At the keypad, enter 8144 (WALK) and select WLS. If the 1139 fails to check in at the keypad,

relocate the wireless device or receiver.

Sensor Reset to Clear LOBAT

When the battery needs to be replaced, a LOBAT message will display on the keypad. Once the battery

is replaced, a sensor reset is required at the system keypad to clear the LOBAT message.

1. On an LCD keypad, press and hold 2for two seconds. On a graphic touchscreen keypad, press

RESET.

2. Enter your user code if required. The keypad displays SENSORS OFF followed by SENSORS ON.

Designed, engineered, and

manufactured in Springﬁeld, Missouri

INTRUSION • FIRE • ACCESS • NETWORKS

2500 North Partnership Boulevard

Springﬁeld, Missouri 65803-8877

800-641-4282 | dmp.com

LT-1626 17464

Speciﬁcations

Battery

Life Expectancy 1 year using 2 batteries

Type 3.0V lithium CR2450

See Battery Life Expectancy for more details.

Transmit condition Alarm, Low Battery

Dimensions 6"H x 2.6"W x .75"D

Color Black

Housing material Flame retardant ABS

Patents

U.S. Patent No. 7,239,236

Compatibility

• 1100D Wireless Receivers

• 1100DH Wireless High Power Receivers

• 1100DI Wireless In-line Receivers

• 1100X Wireless Receivers

• 1100XH Wireless High Power Receivers

• XTLN Panels with an integrated wireless receiver

• XT50 Series Panels with an integrated wireless receiver

• XTLplus Series Panels

Certiﬁcations

FCC Part 15 Registration ID CCKPC0103

1139 WIRELESS BILL TRAP

TRANSMITTER

FCC INFORMATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (7.874 in.) from all persons. It

must not be co-located or operated in conjunction with any other antenna or transmitter.

Changes or modiﬁcations made by the user and not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Andere DMP Electronics Sender Handbücher

DMP Electronics

DMP Electronics 1103 Series Bedienungsanleitung

DMP Electronics

DMP Electronics 1142 Series Bedienungsanleitung

DMP Electronics

DMP Electronics 1103 Series Bedienungsanleitung

DMP Electronics

DMP Electronics 1103INT Bedienungsanleitung

DMP Electronics

DMP Electronics 1144INT Series Bedienungsanleitung

DMP Electronics

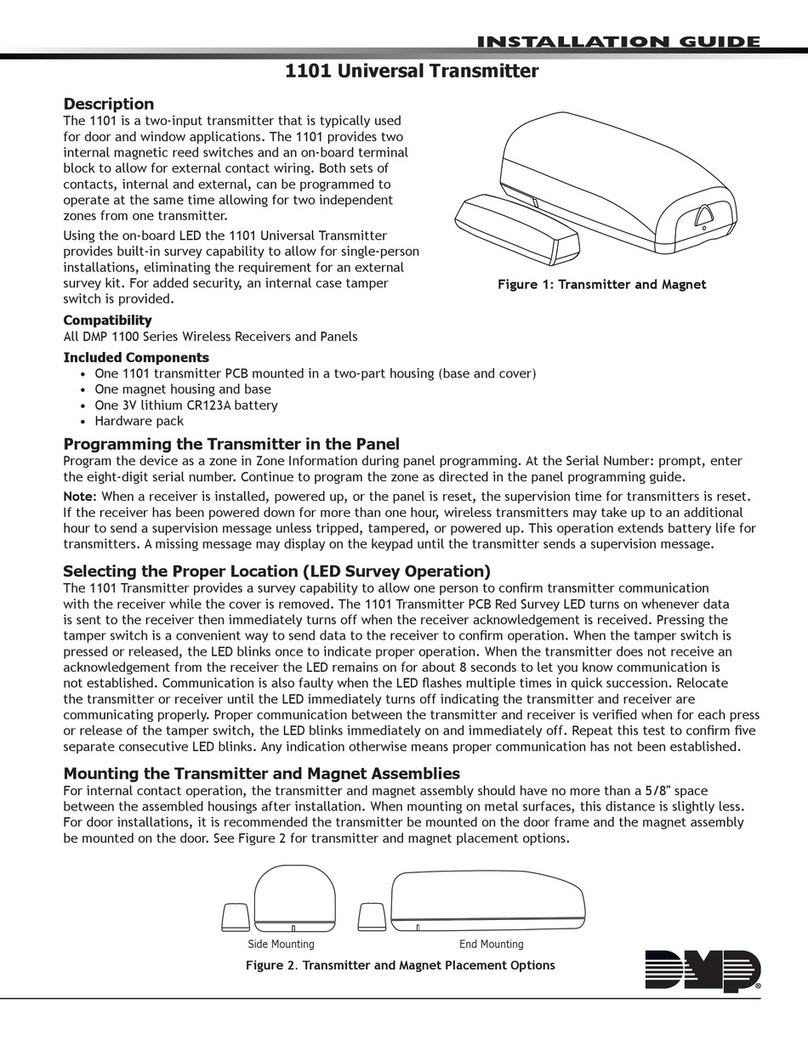

DMP Electronics 1102 Bedienungsanleitung
