Tronic Plus
Assembly

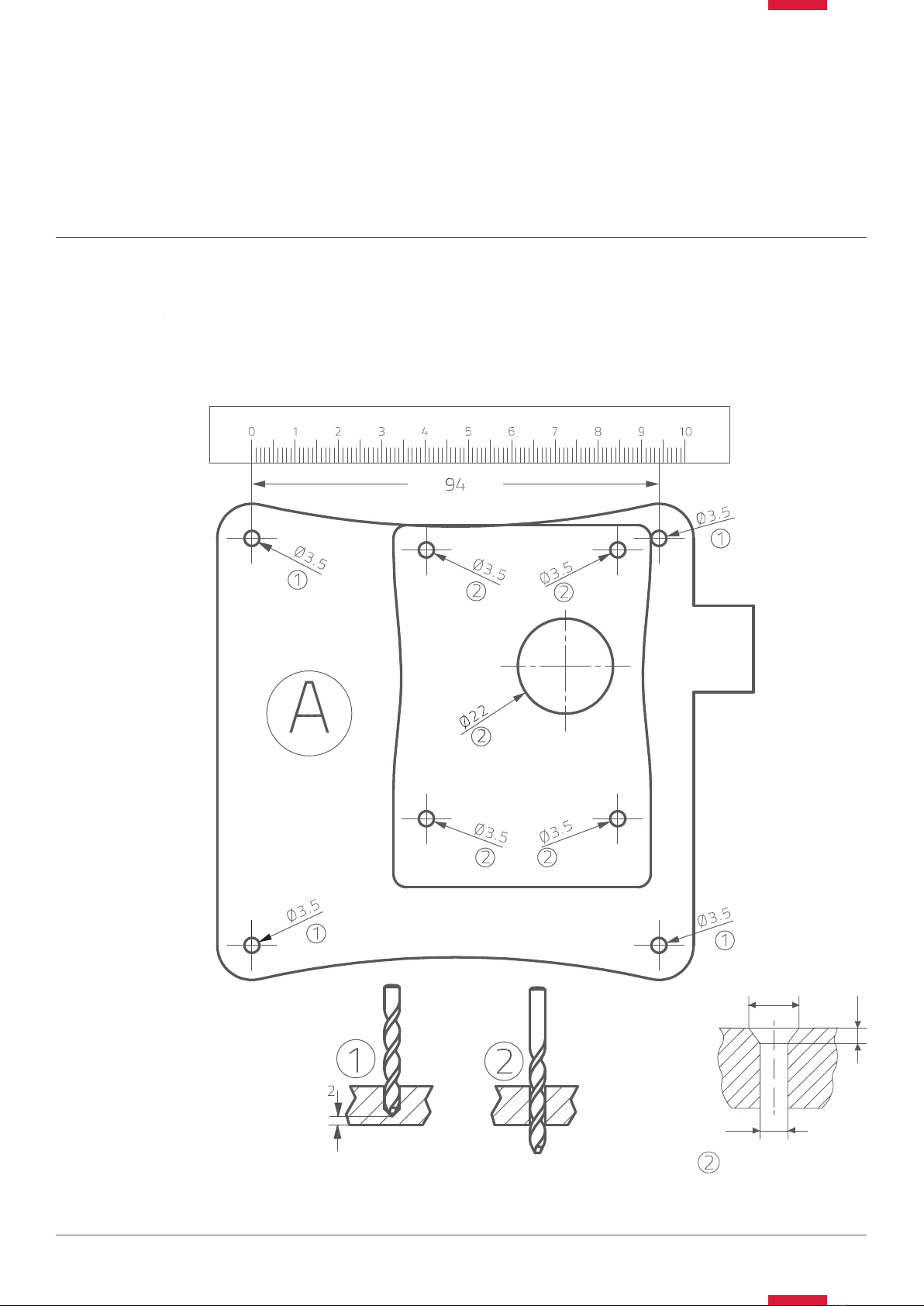

Drilling template
ASSEMBLY
Right hand door Left hand door
TRONIC+ : Drilling template
ø8,1
ø4,5
2,5
For housing
the screw head
Right hand door Left hand door
TRONIC+ : Drilling template
ø8,1
ø4,5
2,5
For housing
the screw head
Accessories

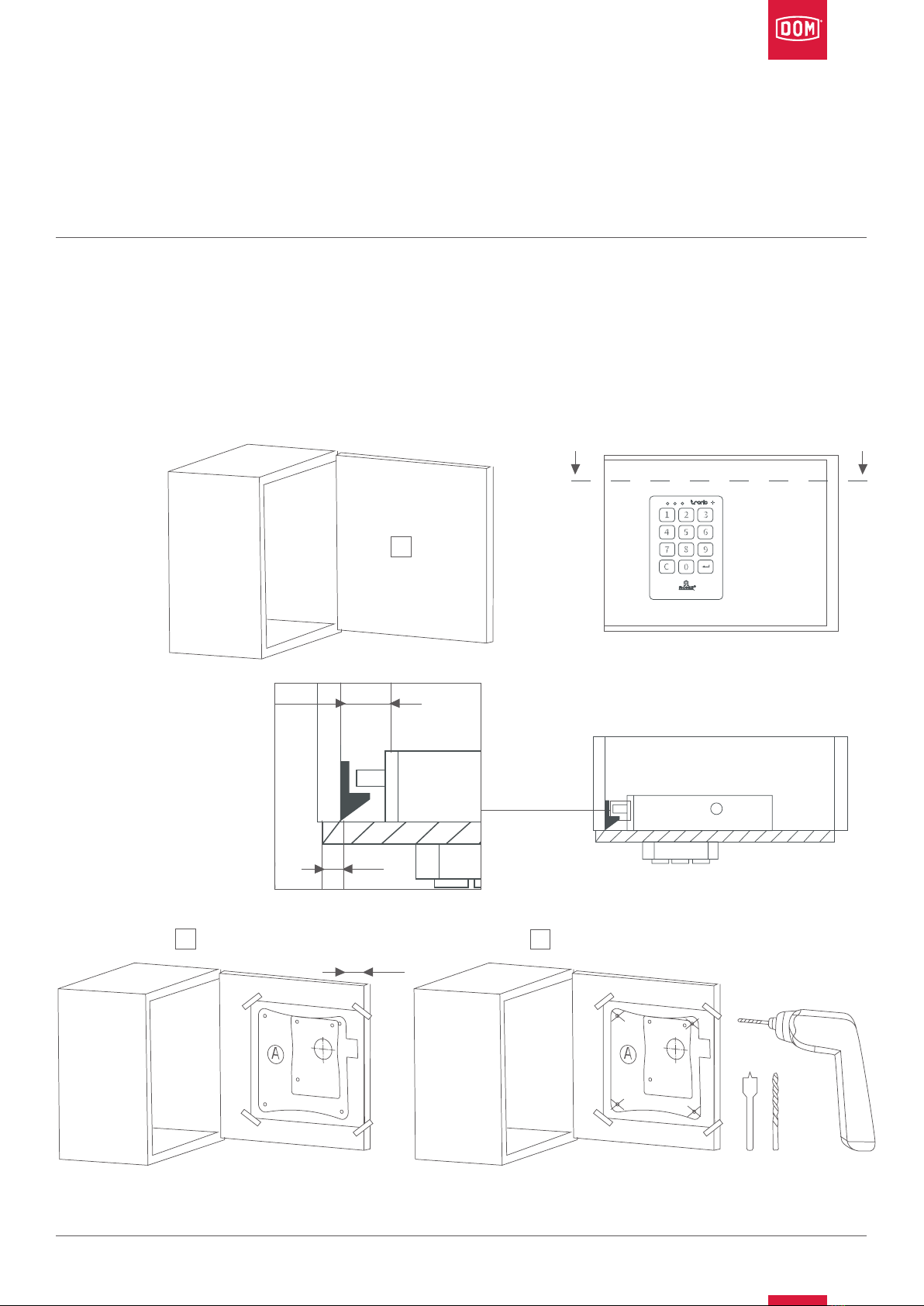

ASSEMBLY
ø5x29.5
C
D
E F
ø3.5x9.5 Strike plate
M3x18
Right door assembly

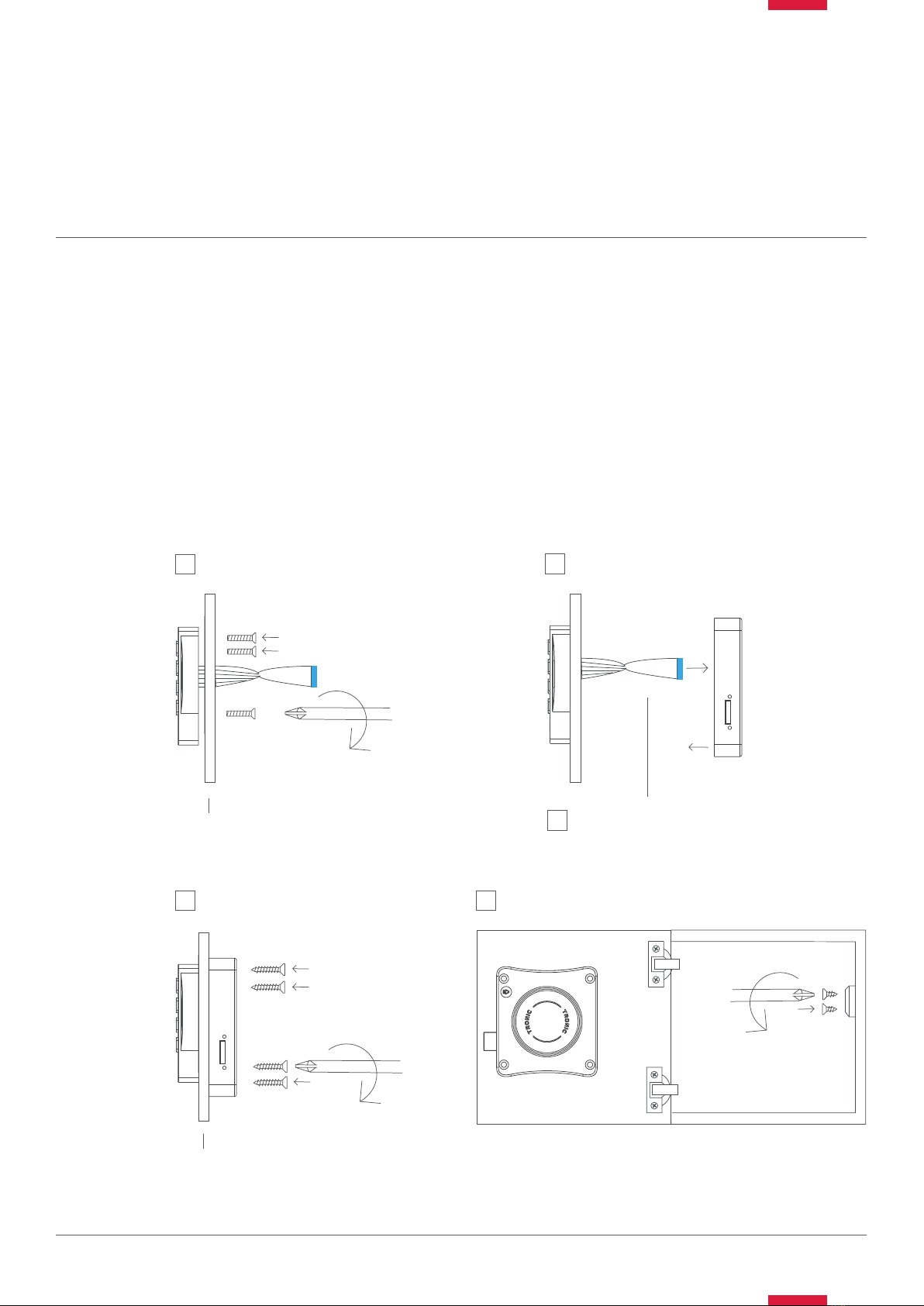

ASSEMBLY
ø3.5
ø22
1
A
2
18 + x mm
18 mm
x mm
AA
Section A-A
3
5 6
4
!Warning: Connect blue part
to the side of the legde
Right door
Right door
Right door assembly
ASSEMBLY
B
12
ø3.5
ø22
B
Le door assembly
ASSEMBLY
AA
18 mm
x mm
Section A-A
3
5 6
4
!Warning: Connect blue part
to the side of the legde
Le door
Le door
Le door assembly
ASSEMBLY
1
2
Verify that the cable is properly
connected (straight and untill
the bottom).
Don’t push any key during the wire
assembly process.
IMPORTANT
The battery pack must remain
connected during the release
of the batteries. Otherwise,
the internal clock will lose the
time configuration.
Relase the batteries thanks to
T20 Torx Security screw located
on the opposite of the battery case
Verify that the batteries are in
the right polarity (as indicated
in the battery box).
Important notes
ASSEMBLY
3
4
Verify that the latch works smoothly in
and out, without any frinction with the
door frame.
Verify that the screws are not fastened
too tight (<20kgf/cm2).
