Dometic RF60 Bedienungsanleitung

207.5912.05 0402

Type: A30-100C

Model: RF60

Operating instructions GB

Note:

The refrigerator is equipped to operate mains power, DC or liquid gas.

The desired power option is selected by means of energy selector switch (A).

Energy selector switch (A) has four settings: AC mains power, DC (12V),

Gas (liquid gas), O(Off).

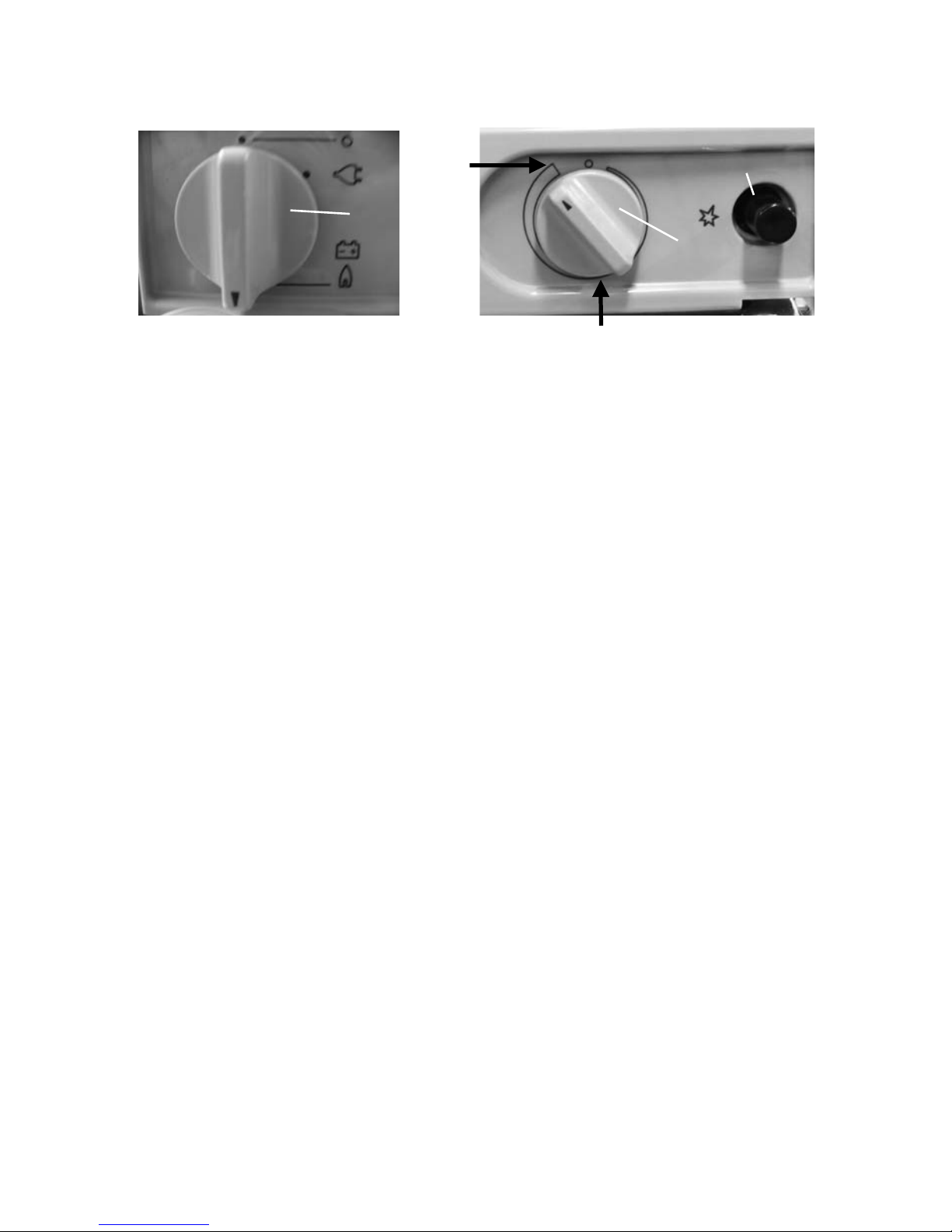

Figure 1

Figure 2

A. Energy selector switch D. Manual ignition button

B. Flame indicator (galvanometer) E. Door lock

C. Thermostat (Gas/electric)

Off

Gas

E B C D

1. Warnings and directions

These warnings are provided in the interest of safety. You must read them

carefully before installing or using the appliance!

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

If you smell gas:

- Close the locking tap of the gas supply and the valve on the cylinder.

- Open the windows and leave the room.

- Do not switch on anything electrical.

- Extinguish naked flames.

Any electrical work required to install this appliance should be carried out by

a qualified electrician.

It is dangerous to alter the specifications or modify this product in any way.

The absorption refrigerator is designed to be used specifically for the storage

of edible foodstuffs and drinks only.

There are working parts in this product which heat up. Always ensure that

there is adequate ventilation as a failure to do this will result in component

failure and possible food loss (refer to relevant instructions for unit installation

under point 4.).

Before defrosting, cleaning or maintenance work is carried out, be sure to

switch off the appliance and unplug it. Shut down gas operation!

Manufacturers' food storage recommendations should be strictly adhered to.

Refer to relevant instructions for food and drink storage under point 13.

Under no circumstances should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause injury or more

serious malfunctioning. This product should be serviced by an authorised

Service Engineer, and only genuine spare parts should be used.

Never open the cooling unit; it is under high pressure.

2. Area of use

The unit may not be installed in motor vehicles and boats when using the gas

operation method!

Dear customer,

please read the instruction book and all additional information

before using the appliance. It is most important that they should be

retained with the appliance for future reference!

Operation using liquid gas is permitted only in well ventilated rooms -

which have a capacity (length x width x height) of at least 20m3 and have a

window (which can be opened) or a door to the outside - or out of doors.

Outdoor use includes tents (awnings) which are well ventilated throughout unit

operation and flat garden terraces.

There are no restrictions on electrical operation.

Site of operation must be protected from rain and other water sources.

3. Storage of gas cylinders

Liquid gas cylinders should never be stored in unventilated areas or below

ground (funnel-shaped holes). Avoid direct sunlight. The gas cylinder should not

be exposed to temperatures in excess of 50°C.

4. Installation

To be installed horizontally on a smooth, firm or any other appropriate surface.

If necessary, adjust/align using a spirit level or a water-filled vessel.

There should be a distance of at least 10cm between the back of the unit and

any other object (wall).

Avoid placing unit in direct sunlight and next to other sources of heat.

Ventilating ducts of the refrigerator should be kept clear of all obstructions to

ensure a good air circulation.

This will result in a good, energy-saving cooling system.

5. Cleaning

Before initial use and after defrosting or before prolonged periods of disuse,

clean the unit containers and door with luke-warm water and, if necessary,

washing-up liquid. Warning: do not inadvertently press or force the opened door

past its stop-point (this could cause the hinges to break). Never use scouring or

corrosive agents to clean the unit. Wipe cleaned surfaces dry with a soft cloth.

6. AC operation

Check that the supply voltage and line voltage data correspond to the type-plate

in the unit.

(The following instructions refer in the main to coolers manufactured for the

United Kingdom).

The mains lead of your refrigerator is fitted with a non-rewirable moulded-on 13

amp plug containing a 3 amp fuse. It is a regular earthed plug for connection to

a regular earthed socket.

Due to the difference in the plugs used, an adapter will be necessary for other

countries.

If the fuse requires replacing at any time, the fuse cover/carrier should be

removed using a small screwdriver to lever it out. The old fuse should be

replaced by a 3 amp ASTA approved BS 1362 fuse and the fuse cover/carrier

must be refitted before the plug is used again.

If the fuse cover/carrier is lost, a replacement can be obtained from the service

shops. The fuse cover/carrier must be of the same colour as that of the coloured

insert in the base of the plug. In no circumstances must the plug be used without

a correct fuse cover/carrier fitted.

If the plug supplied on the mains lead is not suitable for the socket in your home,

it should be cut off and disposed of safely, or destroyed, to avoid any possible

shock hazard resulting from the plug being inserted into a 13 amp socket

elsewhere in the house. A suitable replacement plug should then be fitted as

given below.

General guide to fitting any plug

Ensure the lengths of wire inside the plug are prepared correctly. Connections

should be firmly made after all conductor strands are entered into the terminal

posts. When preparing the cable ends take care not to damage the outer sheath,

or the insulation surrounding the inner conductors. Tighten all screws. Replace

the top cover of the plug and secure.

Other versions

Your refrigerator has a 3-wire mains lead which is intended for connection to a

3-pin plug and a properly earthed socket outlet.

IMPORTANT: The wires in the mains lead of this appliance are coloured in

accordance with the following code:

GREEN-AND-YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead may

not correspond with the coloured markings

identifiying the terminals in your plug, proceed

as follows: the wire which is coloured GREEN-

AND-YELLOW must be connected to the

terminal in the plug which is marked with the

letter E or by the earth symbol or coloured

green or green-and-yellow. The wire which is

coloured BLUE must be connected to the

terminal which is marked with the letter N or coloured black. The wire which is

coloured BROWN must be connected to the terminal which is marked with the

letter L or coloured red.

WARNING - THIS APPLIANCE MUST BE EARTHED!

If a 13 amps (B.S. 1363) fused-plug is used, it should be fitted with a 3 amp fuse.

In other cases, the circuit to which the refrigerator is connected should be fitted

with a 5 amp fuse.

To turn on (Fig. 3)

- Energy selector switch (A) should be in position “AC”.

- Turn electric/gas thermostat knob (C) clockwise to position MAX. Only after

approximately 1 hour will the unit become noticably cool (frost on

evaporator).

- The temperature can be regulated using the electric/gas thermostat knob:

'0'=off, the symbol shows increasing degrees of coolness.

- After sufficient cooling (approximately 5 hours), the thermostat position can

be set to a lower temperature. (Middle position). The thermostat will now

automatically regulate the set temperature.

The devices fulfill the cooling performance requirements of the Climatic

Class N acc. to EN/ISO 7371 in the temperature range of +16°C to 32°C

ambient temperature.

To turn off (Fig. 3)

- Energy selector switch (A) should be in position '0'. (The appliance is now

fully switched off.)

- Turn thermostat knob (C) anticlockwise to position '0'.

7. DC operation

12V DC voltage appliances are shipped with bare wire ends. The wire ends

must be connected to a terminal block, which is connected to the vehicle battery

via a 15A fuse. A safety fuse must be installed in the electricity supply between

battery and refrigerator in a duct.

max. cable lengths

Cable cross section 12 V

2.5 mm2until 2.5 m

4.0 mm2until 4.0 m

6.0 mm2until 6.0 m

Figure 3 middle position

max

position

It is necessary to consider the polarity when connecting the unit.

Check that the battery voltage and line voltage data correspond to the type-plate

on the inside of the unit.

If no batteries are used independently of the vehicle, the mobile cooler should

not be operational when the vehicle is in motion, since the battery can discharge

to the extent that the vehicle engine cannot restart when the vehicle is at a

standstill.

Recommendation: before journey, pre-cool the unit using AC operation.

To turn on (Fig. 4)

- Energy selector switch (A) should be in position “DC”.

When using battery operation, the cooling performance is not thermostatically

regulated, i.e. knob (C) is ineffective.

When knob (C) is ineffective or if the temperature is unnecessarily too low:

Turn off unit

- Energy selector switch (A) should be in position '0'.

8. Liquid gas operation

The unit must not be connected to town or natural gas pipelines. It is only

suitable for use with propane/butane gas (e.g. Calor Gas, Camping Gaz,

Caravangas, etc).

The refrigerator is equipped for a specific gas-pressure, corresponding to the

standard pressure of the country in which it is sold. The rating-plate states the

pressure which is correct. It is important that a non adjustable pressure-

regulator is used to reduce the pressure in the gas cylinder to the operating

pressure specified on the rating-plate, no other pressure may be used.

Needle valve operated gas control taps are NOT suitable for use with this

appliance and must not be used as a substitute for a pressure regulator.

Figure 4

9. Connection of gas supply

(The following instructions refer in the main to coolers manufactured for the

United Kingdom. For other countries please refer to your supplier).

Always connect in the following sequence:

GAS BOTTLE →→PRESSURE-REGULATOR →→APPLIANCE.

To connect the appliance to the pressure-regulator an APPROVED FLEXIBLE

GAS TUBE must be used. This must not be longer than 1,5 m - and should have

an inside dimension of 8 mm. The flexible gas tube must not be twisted!

The pressure-regulator must be compatible for Butan (28mbar) or for Propane

(37mbar).

To connect the pressure-regulator to the gas bottle, the valve of gas bottle must be

closed.After connecting the pressure-regulator to the bottle by screwing,connect

the two ends of the tubing to the nipples and secure them with the two hose clipse.

When fitting the connection to the gas inlet of the appliance, hold counterpart to

avoid straining and possibly damaging.

The gas bottle must only be used in an upright position and particular care must

be taken every time the appliance is connected to the gas bottle to ensure that

there are no leaks, that the gas pipe (rubber hose) is not under tension or

kinked, and that it is not in contact with hot surfaces.

It must be regularly changed if it is determinated in the standard of your country.

The connection pipe and gas bottle should always be located in positions where

they will not be tripped over or otherwise inadvertently disturbed.

Before attempting to light the burner, every time after connection, turn on the gas

at the bottle and check the gas connections for leaks by applying a soap and

water solution over them and watching for bubbles, which would indicate a leak.

After testing dry off traces of detergent.

For your safety

Do not check for leaks with a naked flame!

Do not smoke while checking for leaks!

10. Gas equipment (Fig. 1.)

This consists of a gas/electric thermostat knob (C) with built-in safety pilot, a

burner with igniter plug and a piezo-gas igniter (D), and a flame indicator

(galvanometer)(B).

If, for any reason the gas flame extinguishes the ignition control is working

automatically and shuts off gas supply.

11. Igniting the gas burner (Fig. 5.)

1. Energy selector switch (A) should be in position 'Gas'.

2. Open gas cylinder or pressure regulating valve.

3. Turn thermostat knob (C) to the MAX position, press and hold down.

4. After approximately 10 seconds press knob (D) several times. (This could

take longer than 10 seconds if the unit has been out of operation for a

prolonged period or after replacing the gas cylinder. Cause: air in the pipes.)

5. After ignition, hold down knob (C) for a further 20-30 seconds before

releasing.

The flame can be controlled by flame indicator (B). The needle of the

galvanometer passes over into the green section.

6. Should no ignition occur, repeat the ignition process after 1 minute.

7. After sufficient cooling (approximately 5 hours), the thermostat position can

be set to a lower temperature. (Middle position) The thermostat will now

automatically regulate the set temperature.

12. Shutting down gas operation (Fig. 2,6,7)

- Close gas cylinder or pressure regulating valve.

- Energy selector switch (A) should be in position '0'

13. Food and drink storage

- Foodstuffs and drinks should always be stored sealed in the unit. Thus,

changes in taste and smell are avoided.

- Food and drink should be so placed in the cooler so as to allow air to

circulate freely.

-Do not place hot food or drinks in the cooler!

-Under no circumstances should inflammable liquids and/or gases be

stored in the cooler. Explosion hazard!

14. Defrosting and measures for prolonged

periods of disuse

A build up of too much ice on the evaporator hinders cooling of the unit and thus

reduces effectiveness. Therefore, it is recommended to defrost the mobile

Figure 5

middle position

max

position

cooler as soon as an approximately 5mm thick layer of ice has formed. This is

done by turning off the unit and removing any food or drink therin. Never use

heated appliances, heaters, etc. to speed up the defrosting process! If

necessary, a cloth dipped in warm water can be placed on the unit to help the

defrosting process. After defrosting, clean up the defrosted water with a clean

cloth and clean the cooler containers as described in chapter 4.

Should the unit be out of operation for a prolonged period, turn off unit and

remove contents. After defrosting, the cooler should be cleaned carefully and

dried.

To avoid any unpleasant smells forming in the cooler, the lid should be left

slightly open.

15. Door locking

During transport, the door lock (E), so that the door is kept in a closed and safe

position.

Closed Park position/vent position

Open

Andere Handbücher für RF60

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dometic Kühlschrank Handbücher

Dometic

Dometic DM50NTE UPOE Bedienungsanleitung

Dometic

Dometic RMD 8501 Bedienungsanleitung

Dometic

Dometic A30G1 Bedienungsanleitung

Dometic

Dometic RH430STE Bedienungsanleitung

Dometic

Dometic RM182 Bedienungsanleitung

Dometic

Dometic miniCool EA 3210 Bedienungsanleitung

Dometic

Dometic RM2553 and Bedienungsanleitung

Dometic

Dometic DM20F Bedienungsanleitung

Dometic

Dometic RM 5310 Bedienungsanleitung

Dometic

Dometic RM2193 Bedienungsanleitung

Dometic

Dometic RM2510 Bedienungsanleitung

Dometic

Dometic 9600008369 Bedienungsanleitung

Dometic

Dometic SUPERCOOLER RC 4000 Bedienungsanleitung

Dometic

Dometic MF20-60 Bedienungsanleitung

Dometic

Dometic ECOLINE CL440LDC Bedienungsanleitung

Dometic

Dometic RH060DB Bedienungsanleitung

Dometic

Dometic RM 2355 and Handbuch

Dometic

Dometic RH 456LDE Bedienungsanleitung

Dometic

Dometic RM1350 Elite Bedienungsanleitung

Dometic

Dometic RM 2820 Bedienungsanleitung

Dometic

Dometic NRX Series Bedienungsanleitung

Dometic

Dometic MF20-60 Bedienungsanleitung

Dometic

Dometic REFRIGERATION 10-Series Bedienungsanleitung

Dometic

Dometic MYFRIDGE DX 1280 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
