(SHEET 1 OF 2)
IS1316A(06/15)
*All pipework must be thoroughly flushed prior to installation,
as foreign materials may block the flow regulating device
and reduce the flow of water.
Note: Aerator insert housing must be retightened to prevent
removal by hand.
Important Information
*Not suitable for gravity feed systems.
*
Basin outlet is fitted with a flow regulated aerator insert. This
low flow rate may not be suitable for connection to some
Instantaneous Gas Water Heaters, some Tempering Valves,
some Solar Water Heaters & some Thermostatic Mixing Valves.
Check with the manufacturers of these products. Note:- An
aerator insert kit (Part No. SP2001), is available if required.
For applications where flow regulation is not suitable (e.g. bath)
a full flow aerator insert has been provided within the packaging.
To convert the basin outlet to a bath outlet, refer to 'Replacing
Aerator Insert'
*Brazed connections should NOT be made directly onto
the mixer, as exccesive heat will cause permanent damage.
*

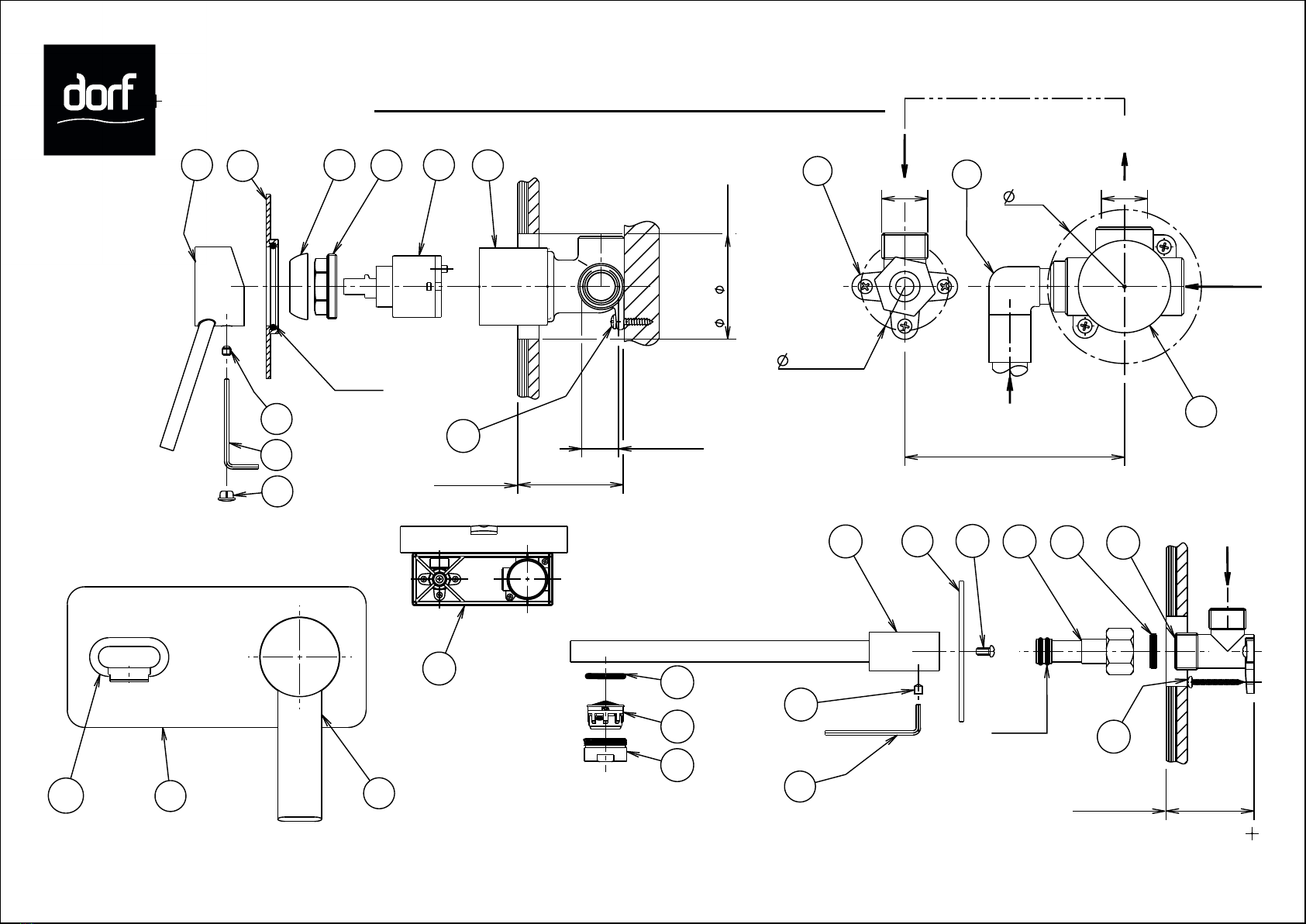

To ensure the lugged elbow (11) is mounted accurately, a
plastic template (21) is supplied to assist with installation.
PLUMBERS INSTALLATION INSTRUCTIONS
Installation
Turn on Hot and Cold water supplies and check operation.
*
*
1) Determine the orientation of the outlet (16) to the right or left of
the mixer body (9) when installed (Fig. 3). Fit suitable fittings to
the connection ports of the mixer body (9) (Fig.2).
Note: Pipework and fittings are not supplied.
When facing the mixer, the connections should be as follows:
Hot water inlet connection 'H' to the left.
Cold water inlet connection 'C' to the right.
Mixed water outlet connection, vertically upwards.
Note : A suitable elbow fitting (12+) should be fitted to the
inlet connection adjacent to the lugged elbow (11) (Fig.2).
Fit mixer body (9) onto a suitable mounting plate or noggin
in the wall using screws (10) through the holes in its base.
Important :
Mixer body (9) must be installed square to wall/tile face, to
ensure cover plate (5) sits flush.
To avoid damaging the decorative finish, do not remove the
protective sleeves until installation has been completed.
Fit handle (1) taking care that it is pushed fully onto cartridge stem,
tighten screw (2) using the 2.5mm allen key (3) then fit plug (4). (Fig. 1)
4)
5)
2) Assemble adaptor spigot (14) together with sealing washer (13)
onto the G1/2B outlet thread of the lugged elbow (11) and
tighten to provide a watertight joint. Connect the outlet of mixer
body (9) to the inlet of lugged elbow (11) using suitable pipework.
Note: Pipework and fittings are not supplied.
Check all connections for leaks.
Fit the large hole of the template (21) over the mixer body (9)
and the smaller hole onto the adaptor spigot (14). Fig. 4.
Note:- The flat face of the template must be at the back.
Place a spirit level on the corner pegs at the top of the template,
then when the alignment is horizontal fix the lugged elbow
through the holes in its base using screws (10).
Remove template (21) & discard.
3) Assemble the outlet (16) to the cover plate (5) using screws (15)
in the orientation chosen. Apply suitable lubricant to the 'O'Rings
on adaptor spigot (14). Carefully slide the cover plate (5) together
with the 'O'ring onto the mixer body (9) and adaptor spigot (14),
push evenly untill the cover plate (5) contacts the wall/tile face.
(Fig. 1). While holding the cover plate in this position tighten the
screws (17) using the 2.5mm allen key (3).
PLUMBERS INSTALLATION INSTRUCTIONS
VILLA WALL BASIN/BATH MIXER
Replacing Aerator Insert (Fig. 5)
2) Remove seal (18) & aerator insert (19) from aerator
housing (20). Check that aerator housing is clean.
Deposits of lime can be removed by washing in a
vinegar solution.
1) Carefully remove aerator housing (20) from outlet (16),
taking care not to damage the decorative finish.
3) Fit new aerator insert (19) into aerator housing (20)
followed by seal (18) then screw assembly into wall
outlet (16) and tighten securely (to prevent removal by
hand).
4) Fit handle (1) taking care that it is pushed fully onto
cartridge stem, tighten screw (2) using the 2.5mm
allen key (3) & replace plug (4).
Ensure inside of mixer body (9) is clean. First check that
seal is in position in base of new cartridge then fit new
cartridge (8) into mixer body taking care that two lugs on
base of cartridge fit into mating holes in mixer body.
Screw on nut (7). Important : Nut (7) should be tightened
to a torque of 10Nm. Replace cap (6), tightening by hand.
3)
2)
1) Turn off hot and cold water supplies.
Replacing Cartridge (Fig.1)
Carefully remove plug (4), loosen screw (2) and remove
handle (1). Unscrew cap (6) taking care not to damage
the decorative finish. Unscrew retaining nut (7) and
remove the old cartridge (8).
Hot and cold water inlet pressures should be equal.
Maximum hot water temperature : 80 C.
IMPORTANT
Pressure & Temperature Requirements.
New Regulation :-500 kPa maximum static pressure
at any outlet within a building. (Ref. AS/NZS 3500.1)
Static inlet pressure range : 150 -1000 kPa
+ Not supplied.
