1 About this manual
1.1 Information about the manual
This manual describes the installation of
OFFICE locks and contains information on
care and maintenance. The installation is
shown using the example of an OFFICE
Junior lock. All other installation options are
installed likewise.
1.2 Target group
dormakaba glass fittings may only be
installed by qualified personnel who are
specially trained in glazing installation.
1.3 Symbols used
Only use silicone- and
oil-free cleaners
(e.g. acetone).
21 Installation sequence
2.1. Step-by-step graphics
Contents
1 About this manual 1
2 Safety 1
3 Product description 2
4 Mounting 5
5 Maintenance and care 10
6 Disassembly and disposal 10
OFFICE locks
Junior, Classic, Arcos & Mundus
WN 059521 45532 – 2018-05
Mounting instructions
EN
2 Safety
2.1 Intended use
• The OFFICE locks are only suitable for
glass doors in dry interior applications.
2.2 Foreseeable misuse
• The OFFICE locks are not suitable for
emergency exit doors compliant with DIN
EN 179 and escape doors compliant with
DIN EN 1125.
• OFFICE locks are not suitable for shower,
sauna, bath or salt-water bath
applications or areas where chemicals
(e.g. chlorine) are used.
• Glass door panels must not be slammed
shut.
• Due to crushing hazards - among others
in the area of the secondary closing edge
- and possible injury caused by breakage
of glass during mounting, corresponding
protective clothing (especially gloves and
protective goggles) is required.
• Never use clamping shoes on structured
glass surfaces (except on satined glass) or
glass of heavily varying thickness unless
with a corresponding leveling layer.
2OFFICE locks 2018-05
WN 059521 45532
dormakaba Mounting instructions Product description
• Never use clamping shoes on self-cleaning
coatings.
• When adjusting glass elements, always
stick to the required clearance for the
respective fitting. Adjust clearance so that
the glass does not touch hard
components such as glass, metal or
concrete.
2.3 Requirements for the glass
door panel
• Toughened safety glass (TSG)
• In areas with additional requirements, e.g.
nurseries, the use of heat-soaked
toughened safety glass (TSG-H compliant
with DIN EN 12150-1) is recommended.
• Do not use glass with conchoidal fractures
and/or damaged edges.
• Installation should be free of tension
(torque should not be exceeded by
over-tightening screws).
3 Product description
The OFFICE locks with latch and bolt are
suitable for glass doors in dry interior
applications. The locks comply with the
current DIN EN 12209 and are designed for
the use in public buildings. The profile
cylinder is not included in the scope of
delivery.

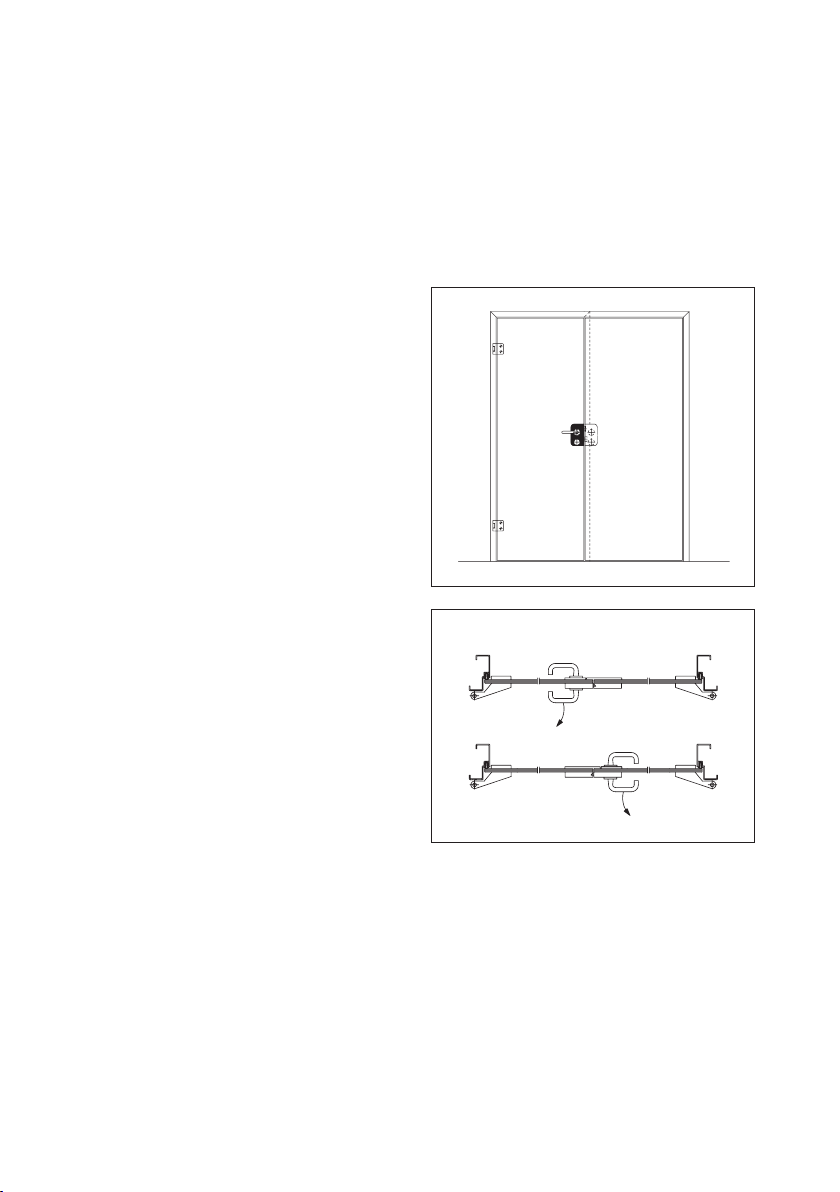

Fig. 1 Door situation
Fig. 2
DIN rightDIN left
DIN left DIN right
DIN directions
3OFFICE locks 2018-05
WN WN 059521 45532
dormakaba Mounting instructions Product description
3.1 Options
For lever handles with roses For follower
OFFICE Junior
OFFICE Classic
OFFICE Arcos
OFFICE Mundus
4OFFICE locks 2018-05
WN 059521 45532
dormakaba Mounting instructions Product description
3.2 Scope of delivery
For lever handles with roses For follower
OFFICE Junior
OFFICE Classic
OFFICE Arcos
OFFICE Mundus
5OFFICE locks 2018-05
WN WN 059521 45532
dormakaba Mounting instructions Mounting
4 Mounting
1
Follower
2a
Roses
2b
1.
2.
2.
3.
3.
1.
1.
1.
2.
2.
1.
2.
2.
4 mm
4 mm
6OFFICE locks 2018-05WN 059521 45532
dormakaba Mounting instructions Mounting
3
4
1,5 mm*
2 mm**
1.
2.
2.
3.
4.
4.
4 mm Pull off backing tape and apply
the aluminum strip to the glass
on the inside face.
4 mm
5 Nm
1.
2.
2.
* Junior, Classic, Arcos
** Mundus
7OFFICE locks 2018-05WN WN 059521 45532
dormakaba Mounting instructions Mounting
5
Detail X
X
1.
2.
3.
4.
5.
6
Detail X
X
1.
2.
2.
3.
4.
8OFFICE locks 2018-05WN 059521 45532
dormakaba Mounting instructions Mounting
7a
Lever handles with roses
NOTICE:
Roses and fixings are not included in the
scope of delivery.
1.
1.
2.
2.
3.
3.
DETAIL X
X
7b
Lever handles with follower
1.
1.
2.
2.
9OFFICE locks 2018-05WN WN 059521 45532
dormakaba Mounting instructions Mounting
NOTICE:
Lever handles are not included
in the scope of delivery.
8
1.
2. 3.
3 mm
NOTICE:
Profile cylinder and fixing screw are
not included in the scope of delivery.
9
2.
1.
Carefully cut the alu strip close
to the edge of the cover cap.
10
10 OFFICE locks 2018-05WN 059521 45532
dormakaba Mounting instructions Maintenance and care
5 Maintenance and care
• Check the OFFICE locks at regular
intervals for proper positioning, smooth
operation and correct adjustment.
• Check the function of the OFFICE locks
every 500000 movements by specialists.
• Immediately replace damaged glass
elements.
• Immediately replace damaged
components.
• Only use dormakaba original parts.
The surfaces of the OFFICE locks are not
maintenance-free and need to be cleaned
and cared for using the appropriate
materials:
• Only use non-abrasive cleaning
substances for metallic surfaces
(anodized finishes, stainless steel).
• Only use solvent-free cleaners for painted
surfaces.
• Brass finishes (without surface protector)
need to be treated with suitable care
products from time to time to prevent
tarnishing.
6 Disassembly and
disposal
Disassembly is the same procedure in
reverse. Refer to the statutory regulations
for your country for a proper disposal.
