Doro HandlePlus 334gsm Bedienungsanleitung

Doro HandlePlus 334gsm

På/av

Sidoknapp (+ / -)

Menyknapp

Display

Knapplås N

Samtalsknapp/OK

Snabbval

Laddningskontakter (för

användning med ett

laddningsställ)

Högtalare

SOS-samtal

10.

Avsluta samtal/radera/bakåt

Namnlista

Mikrofon

Knapp för nödsamtal

Batterilucka

Uttag för laddare

Uttag för headset

Halsrem

11.

12.

13.

14.

15.

16.

17.

18.

Svenska

English

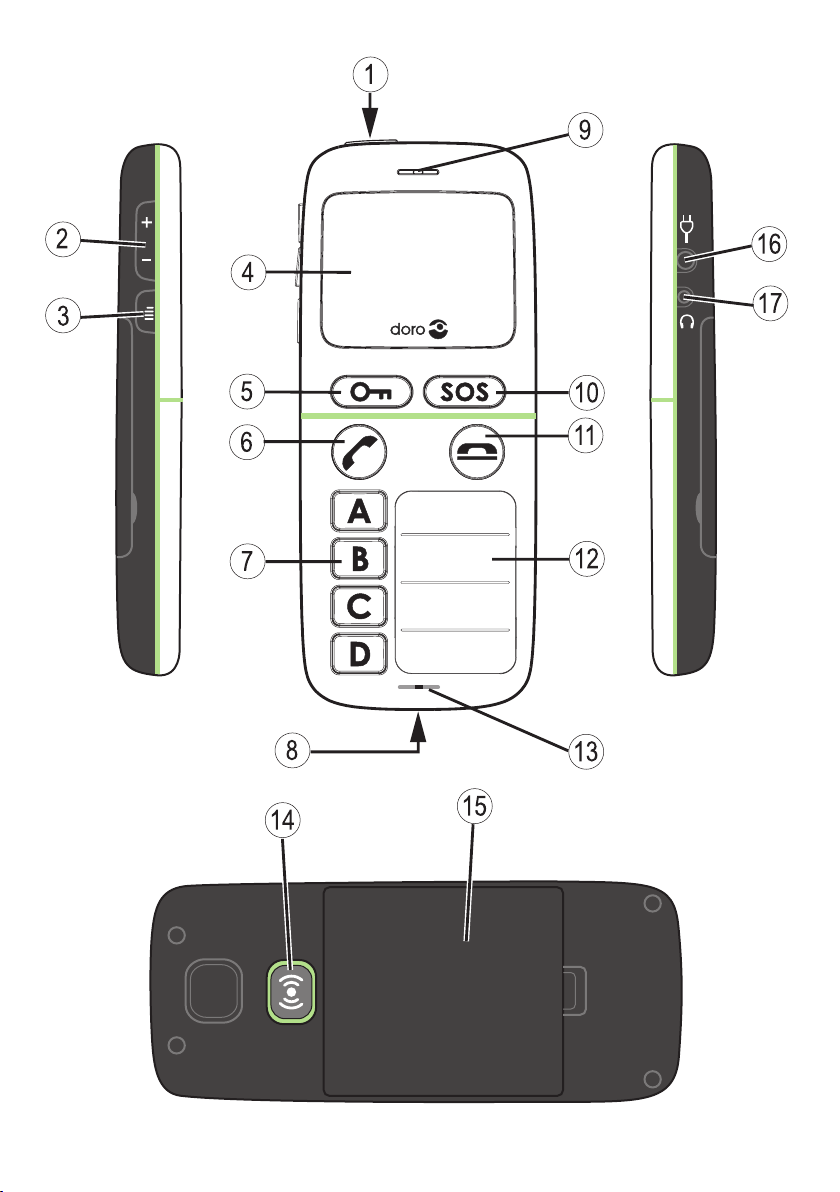

Power on/off

Side key (+ / -)

Menu key

Display

Key lock N

Call key/OK

Speed dial

Charging contacts (for use

with charging stand)

Loudspeaker

SOS call key

10.

End call/Back/Clear

Name list

Microphone

Emergency call key

Battery cover

Charging socket

Headset socket

Lanyard

11.

12.

13.

14.

15.

16.

17.

18.

Dansk

Strøm til/fra

Sidetast (+ / -)

Menutast

Display

Tastaturlås N

Opkaldstast/OK

Hurtigopkald

Stik til oplader

(til brug med ladestativ)

Højtaler

SOS-opkald

10.

Afslutte opkald/slette

Navneliste

Mikrofon

Nødopkaldstast

Batteridæksel

Stik til oplader

Stik til headset

Halssnor

11.

12.

13.

14.

15.

16.

17.

18.

Suomi

Virta päälle/pois

Sivupainike (+ / -)

Valikko-painike

Näyttö

Näppäinlukko N

Soittopainike / OK

Pikavalinta

Latauksen kosketuspinnat

(lataustelinettä varten)

Kaiutin

Hätäpuhelupainike

10.

Lopeta puhelu/Palaa/Tyhjennä

Nimiluettelo

Mikrofoni

Turvapuhelupainike

Akkukotelon kansi

Laturin liitäntä

Kuulokemikrofoniliitäntä

Kaulanauha

11.

12.

13.

14.

15.

16.

17.

18.

Norsk

Strøm på/av

Sidetast (volum)

Menytast

Display

Tastelås N

Ringetast/OK

Hurtigtaster

Ladekontakter

(for bruk med ladestativ)

Høyttaler

SOS-anrop

10.

Avslutt samtale/slette

Navnliste

Mikrofon

Tast for nødanrop

Batterideksel

Ladekontakt

Hodesettkontakt

Bærereim

11.

12.

13.

14.

15.

16.

17.

18.

English

Contents

Installation .................................... 2

Installing the SIM card and battery. . . . . . . . . . . . . . . . . . 2

Charging .................................... 3

Operation...................................... 4

Activatingthephone............................ 4

Makingacall................................. 5

Receivingacall ............................... 5

Volumecontrol................................ 5

Callinformation ............................... 5

Displaysymbols................................. 6

Additionalfunctions.............................. 7

Handsfreemode............................... 7

Textinput.................................... 7

Keylock..................................... 7

Headset..................................... 8

SOScalls999/112/911 ......................... 8

EmergencyCallkey............................. 9

Settings...................................... 10

Time&date................................. 10

Usersetup.................................. 11

Emergency.................................. 12

Speeddial.................................. 15

Networksetup ............................... 15

Securitysettings.............................. 16

Safetyinstructions.............................. 19

Troubleshooting ................................ 22

Careandmaintenance ........................... 24

Warranty and technical data . . . . . . . . . . . . . . . . . . . . . . . 25

English

Installation

Warning!

Turn off the phone and disconnect the charger before

removing the battery cover.

Installing the SIM card and battery

The SIM card holder is located behind the battery.

Remove the battery cover and the battery if it is already

installed.

Insert the SIM card by carefully sliding it into the holder.

Make sure that the SIM card’s contacts are facing inwards

and that the cut-off corner is pointing upwards. Take care not

to scratch or bend the contacts on the SIM card.

Insert the battery by sliding it into the battery compartment

with the contacts facing upwards to the right.

Replace the battery cover.

English

Charging

Warning!

Only use batteries, charger and accessories that have been

approved for use with this particular model. Connecting

other accessories may be dangerous and may invalidate the

phone’s type approval and guarantee.

When the battery is running low, is displayed and a warning

signal is heard. To charge the battery, connect the mains adapter

to the wall socket and to the charging socket .

is displayed briey when the charger is connected to the

phone, and when it is disconnected. The battery charge

indicator will be animated while charging.

If the phone is turned off when the charger is connected to the

phone only the battery charge status indicator will be shown in

the display.

It takes approximately 3 hours to fully charge the battery.

is displayed when charging is completed.

Save energy

When you have fully charged the battery and disconnected the

charger from the device, unplug the charger from the wall outlet.

Note!

To save power the LCD backlight goes off after a short while

but the phone is still charging. Press any key to illuminate

the display. Full battery capacity will not be reached until

the battery has been charged 3–4 times. Batteries degrade

over time, which means that call time and standby time will

normally decrease with regular use.

English

Operation

Activating the phone

Press and hold 1to turn the phone on/off.

The following messages may be displayed:

SIM card missing or

incorrectly inserted.

SIM card damaged or not

valid.

If the SIM card is valid but protected with a PIN code (Personal

Identication Number), PIN: is displayed.

Use the side keys +/– to enter the PIN-code and press q.

Delete with L.

On this phone there are 3 options to handle the function SIM

lock, see Settings/Security/SIM lock.

Note!

If PIN and PUK codes were not provided with your SIM card,

please contact your network operator.

Attempts: # shows the number of PIN attempts left. When

no more attempts remain, SIM blocked is displayed.

The SIM card must now be unlocked with the PUK code

(Personal Unblocking Key).

1. Enter the PUK code and conrm with q.

2. Enter a new PIN code and conrm with q.

Changing the language, time and date

The default language is determined by the SIM card. See Settings

on how to change language, time and date.

English

Important!

Before you can make calls you must carry out the steps

detailed in Settings.

Making a call

Press and hold the desired speed dial key (Ato D).

Alternatively, press the desired speed dial key (Ato D), and

press q.

Press Lto end the call.

Receiving a call

Press qto answer.

Alternatively, press Lto reject the call directly.

Press Lto end the call.

Volume control

Use the side keys +/– to adjust the sound volume during a call.

The volume level is indicated on the display.

Call information

During a call, the called or calling phone number and the elapsed

call time is displayed.

If the identity of the caller is withheld, Unknown is displayed.

Missed call

= Missed call

Press qto see the missed number.

Dial the missed call by pressing q.

Press Lto delete.

English

Display symbols

Signal strength Keylock on

Ring + vibration Battery level

Headset connected Roaming (connected to

other network)

SIM card missing Charger connected

SIM card error Charger disconnected

Keypad locked Headset connected

Unlocking keypad Headset disconnected

SOS calls Handsfree on

OK (conrmed) Handsfree off

Battery level low Error

Calling Charging (animated)

Incoming call Call ended

Searching Missed call
