USER'S MANUAL

DoubleSight DS-245V2

LCD MONITOR

DoubleSight Displays

17155 Von Karman Avenue, Suite 102

Irvine, CA 92614

TEL: 1-877-TwoLCDs(1-877-896-5237) (U.S. only)

E-mail: [email protected]

First Edition: December 2012

1

Correct posture for effective use of the LCD monitor.

3

Safety Precautions

Components Name & Introduction

Connecting the Monitor to a Camputer

Adjusting the Monitor Screen

Recommendations

Troubleshooting

Supported Mode Table

Power Save Mode

Product Specification

5

8

Index

Prior to use

Connection & Installation

Additional Information

OSD(On Screen Display) screen select & control

4

11

14

16

17

18

18

19

Safety Precautions

5

Safety Precautions

6

Safety Precautions

7

Components Name & Introduction

8

※ Check if all the components are included in the package. Contact the sales outlet if any

components are missing

※ Contact the sales if you wish to purchase optional extras.

Actual components may look different from the pictures below.

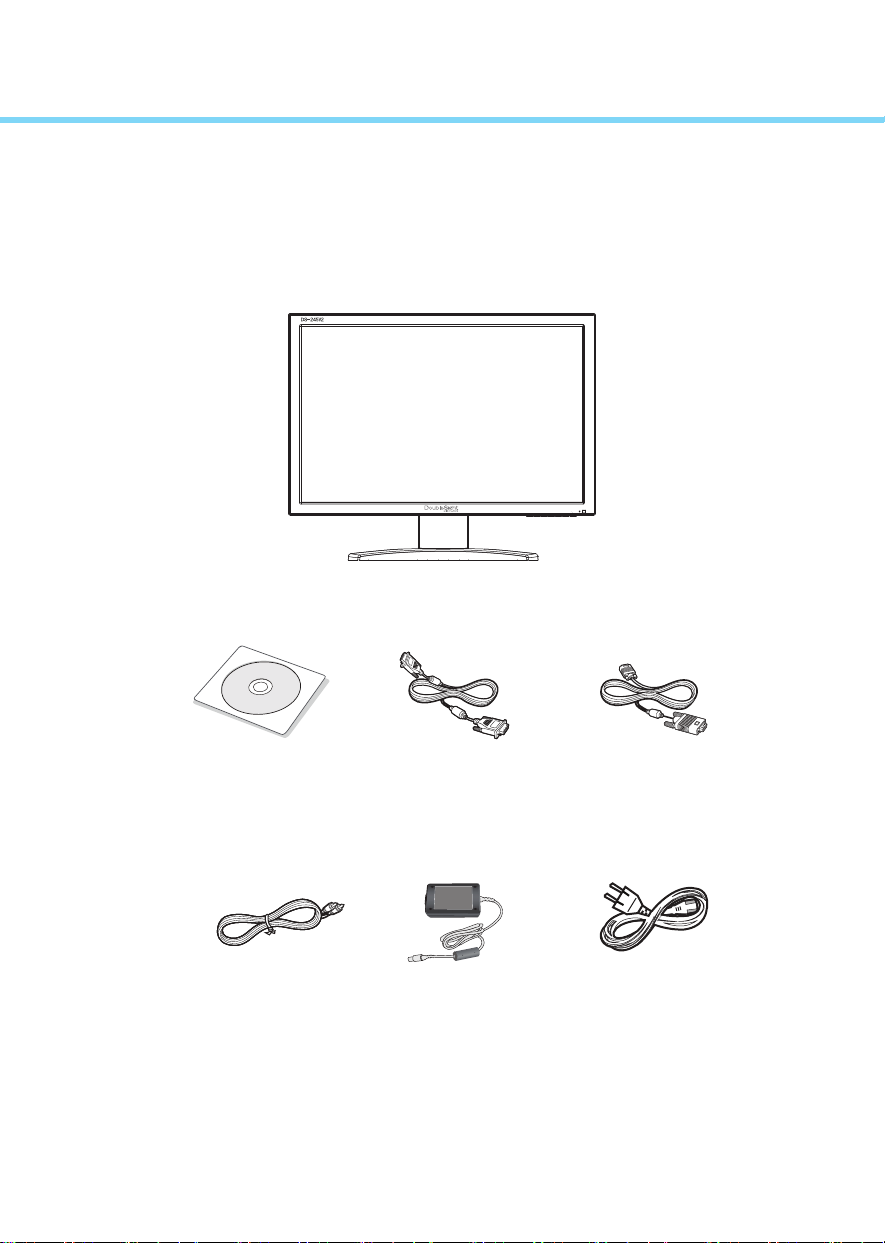

DVI-D CableManual CD VGA Cable

Monitor

Power CordAudio Cable

(PC Input Cable)

AC Adaptor

SELECT MENU VOL+ VOL- BRI HOT AUTO

Component Name & Introduction

9

①SELECT : Input Source Select / OSD SubMenu Exit

②MENU : OSD Menu On, Off / OSD SubMenu Select

③VOL+ : Volume Up / OSD Menu Up, Channel Up

④VOL- : Volume Down / OSD Menu Down, Channel Down

⑤BRI HOT : Adjusts Brightness / Contrast

⑥AUTO : In RGB mode, AUTO Adjust In Progress

⑦POWER : Power On / Off

FRONT







SELECT MENU VOL+ VOL- BRI HOT AUTO

SELECT MENU VOL+ VOL- BRI HOT AUTO

* Actual Image May Vary

Component Name & Introduction

10

REAR

AUDIO IN SP DIFPOWER

① Power input Connector

②

③

DVI Input Connector

④

VGA Input Connector

⑤

Audio Input Connector

SP DIF(For Digital Audio)

DVI-D VGA

① ② ③ ④ ⑤

* Actual Image May Vary

① ② ③ ④ ⑤
