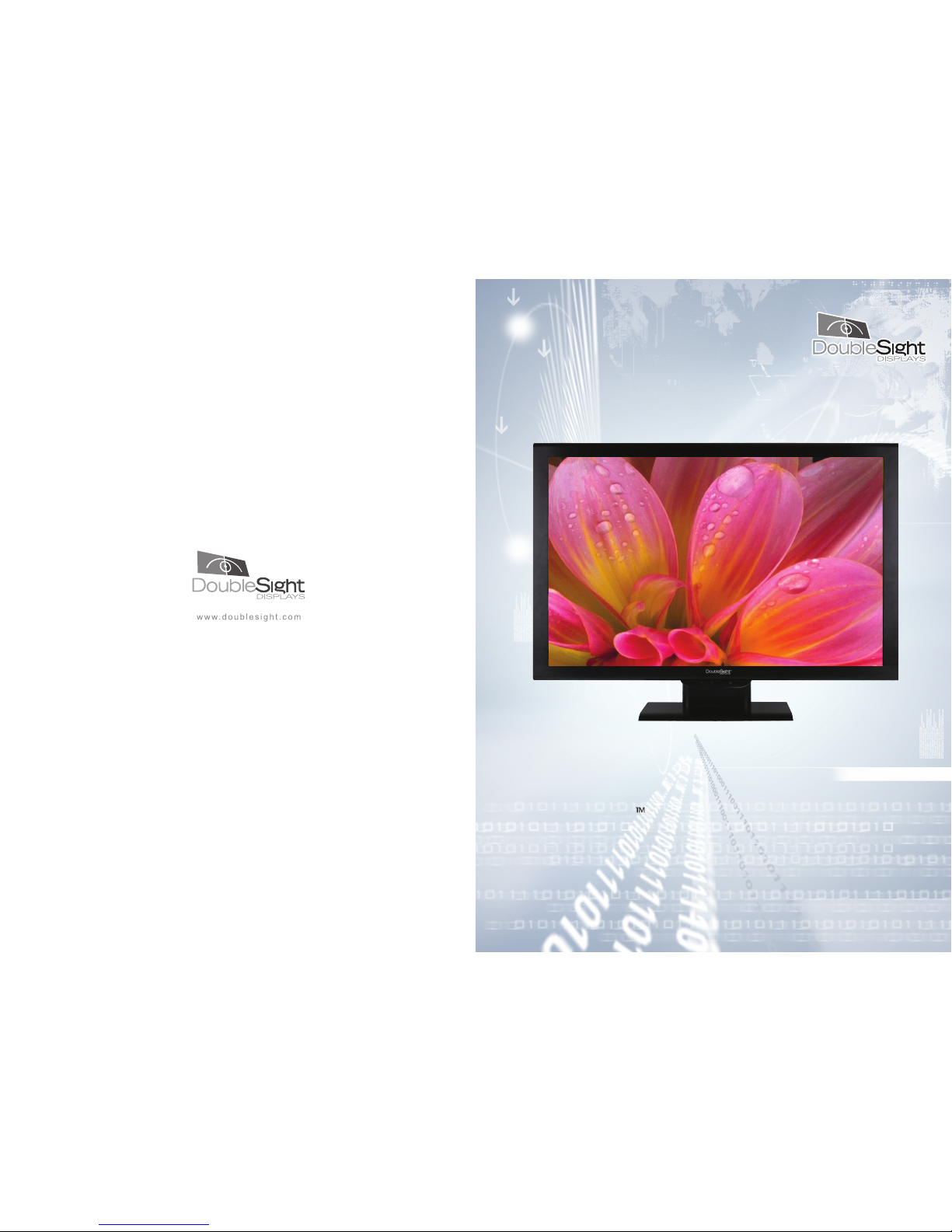

DoubleSight DS-275W Bedienungsanleitung

For the latest updates and more information, visit our website at

www.doublesight.com

Part No. 90-X-DS305W-EUEX03

M a d e i n K o r e a

DoubleSight DS-275W

LCD MONITOR

USER'S MANUAL

(877) TWO - LCDS

Correct posture for effective use of the LCD monitor.Specifications

PlacementTrademarks

Disclamer

(877) TWO - LCDS

Safety Precautions

30”Type - 2560 x 1600 @60Hz

Safety InstructionsSafety Precautions

Available Temperature & Humidity

Operating Temperature : 0 ~ 60℃

Storage Temperature : -30 ~ 80℃

Operating Humidity : 10 ~ 90 % RH

Storage Humidity : 10 ~ 90 % RH

For dot defect [dead pixel] of LCD

Available Temperature & Humidity

TFT-LCD produced by using high-end semiconductor technology with precision of 99.9% above is used for

this monitor.

However the pixels of R.G.B. & White color seem to be right sometimes or some of black pixels could be seen

on the LCD. This is not from bad quality or functional problem and you can use it without any problem.

PC system Requirement

This monitor requires the use of a graphic card which supports Dual Link DVI-D interface.

Please refer to the following list of supported graphic cards.

Supported resolution mode table(at ATI Graphic card)

Note: additional graphic cards may be available

-nVidia

- ATI : X1800 and X1900 series

: Radeon HD 4000 or above series

: Geforce 7600GT or above Series

: Geforce 7800 and 7900 series

: Geforce 300 and 400 series

: Quardro FX3450 or above series

Resolution

1920 X 1200 @ 60Hz

1920 X 1080 @ 60Hz

1600 X 1200 @ 60Hz

1280 X 1024 @ 60Hz

1280 X 800 @ 60Hz

Resolution

1280 X 768 @ 60Hz

1024 X 768 @ 60Hz

800 X 600 @ 60Hz

640 X 480 @ 60Hz

⑥ ⑤

Component name & IntroductionPacking Contents

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

LCD Monitor

User Manual

④

③

②

①

①: Power On / O

②: LED

③, ④: Adjust Brightness

⑤: DVI Signal Input (Dual link DVI-D port)

⑥: Power Input (DC24V)

Monitor Power terminal

Pin Assign

V- V+

Front

Rear Side

Dual Link DVI-D CablePower Cord AC Adaptor

Bottom

TroubleshootingConnecting to PC

1110

TroubleshootingConnecting to PC

OSD Control

To connect the monitor to the PC, please follow these instructions:

1. Connect DVI cable to the PC. Tighten all the screws.

2. Connect DVI cable to the DVI connector on the back of the monitor. Tighten all the screws.

3. Connect one end of the power cord to the AC adaptor and the other end to the AC power outlet.

4. Connect DC adaptor cable to the power input connector on the back of the monitor.

5. Turn On the monitor and PC.

6. Adjusting display resolution of PC

This monitor does not support OSD Menu control function.

- Resolution : 1,920 X 1,200

- Refresh Rate : 60 Hz

1.POWER( ) : Power ON/OFF

2.UP / DOWN : Adjust brightness

If you encounter a problem with your monitor please review these troubleshooting tips.

If the problem persists please contact your monitor dealer or DoubleSight customer service for additional

assistance.

No image on the monitor

- Check whether the DVI cable is rmly connected to the PC and the monitor.

- Check whether a graphic card is correctly inserted into the slot.

- Check whether the power of the PC and the monitor is on.

- Check whether a graphic card or mode is set appropriately on the PC.

- Check whether DVI cable pins are not inserted or bent.

No Power

- Check whether the power cord is correctly inserted and reconnect if necessary.

- Pull out the power cord from wall outlet and reconnect in 1 ~ 2 minutes.

LED lamp is on and o. It shows no image.

- Check whether DVI cable is connected to the monitor and the PC.

- Check whether the PC is in power saving made and attempt to operate keyboard and mouse.

Unstable or unfocused image or trembling

- Check whether DVI cable is connected to the monitor and the PC.

- If the PC’s display mode is changed, the screen needs readjusting. So check the display mode.

SpecificationsDimensions

1312

SpecicationsDimensions

290mm

703mm

145mm

169mm

51mm

118mm

527mm461mm

66mm

Product Weight: approximately 23.15lbs

Dimensions, apparent design and specications are subject to change without any prior notice

for the performance improvement.

Product Name 30” Wide TFT-LCD Monitor

LCD Panel

Type

Size

Actual Display Size

Resolution

Pixel Pitch

Color Depth

Contrast Ratio

Brightness

Resolution

Viewing Angle

Response Time

In-Operation

DPMS /OFF

Amorphous silicon active matrix TFT-LCD

27” diagonal length

641.28 mm (H) x 400.8 mm (V)

1,920(H) X 1,200(V)

0.2505mm x 0.2505mm

8bit, 16,777,216 Colors

1000 : 1(Typ.)

300 cd /㎡

1,920(H) X 1,200(V)

R/L : 89°/ 89°U/D : 89°/ 89°

8ms (GTG_AVR)

< 140W

< 2W

VESA DPMS

AC 100V~240V, 50~60Hz

DC 24V / 6.67A

Dual Link DVI-D

Dual link DVI-D cable, DC adaptor,

Power code, User’s manual

Power Consumption

Energy Saving Mode

Power

Video Interface

Accessories

Adaptor Input

Adaptor Output

DS-275W
