Vigor2100V/VG Quick Start Guide

Declarations

information that is protected by copyright. No part may be

reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language without written

permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

•

Microsoft is a registered trademark of Microsoft Corp.

•

Windows, Windows 95, 98, Me, NT, 2000, XP and Explorer

are trademarks of Microsoft Corp.

•

Apple and Mac OS are registered trademarks of Apple

Computer Inc.

Other products may be trademarks or registered trademarks

of their respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

•

Read the installation guide thoroughly before you set up

the router.

•

The router is a complicated electronic unit that may be

repaired only be authorized and qualified personnel. Do not

try to open or repair the router yourself.

•

Do not place the router in a damp or humid place, e.g. a

bathroom.

•

The router should be used in a sheltered area, within a

temperature range of +5 to +40 Celsius.

•

Do not expose the router to direct sunlight or other heat

sources. The housing and electronic components may be

damaged by direct sunlight or heat sources.

•

Keep the package out of reach of children.

•

When you want to dispose of the router, please follow local

regulations on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the

router will be free from any defects in workmanship or

materials for a period of three (3) years from the date of

purchase from the dealer. Please keep your purchase

receipt in a safe place as it serves as proof of date of

purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due

to faulty workmanship and/or materials, we will, at our

discretion, repair or replace the defective products or

components, without charge for either parts or labor, to

whatever extent we deem necessary tore-store the product

to proper operating condition. Any replacement will consist

of a new or re-manufactured functionally equivalent product

of equal value, and will be offered solely at our discretion.

This warranty will not apply if the product is modified,

misused, tampered with, damaged by an act of God, or

subjected to abnormal working conditions. The warranty

does not cover the bundled or licensed software of other

vendors. Defects which do not significantly affect the

usability of the product will not be covered by the warranty.

We reserve the right to revise the manual and online

documentation and to make changes from time to time in the

contents hereof without obligation to notify any person of

such revision or changes.

European

Community

Hereby, we declare that the router is in compliance with the

essential requirements and other relevant provisions of

R&TTE Directive 99/5/EC. The Vigor2100VG is designed for

the WLAN 2.4Ghz network throughout EC region,

Switzerland, and the restrictions of France.

Be a

Registered

Owner

Web registration is preferred. You can register your Vigor

router via http://www.draytek.com/. Alternatively, fill in the

registration card and mail it to the address found on the

reverse side of the card.

Firmware &

Tools Updates

Due to the continuous evolution of DrayTek ADSL & Router

technology, all routers will be regularly upgraded. Please

consult the DrayTek web site for more information on newest

firmware, tools and documents.

http://www.draytek.com/

iii

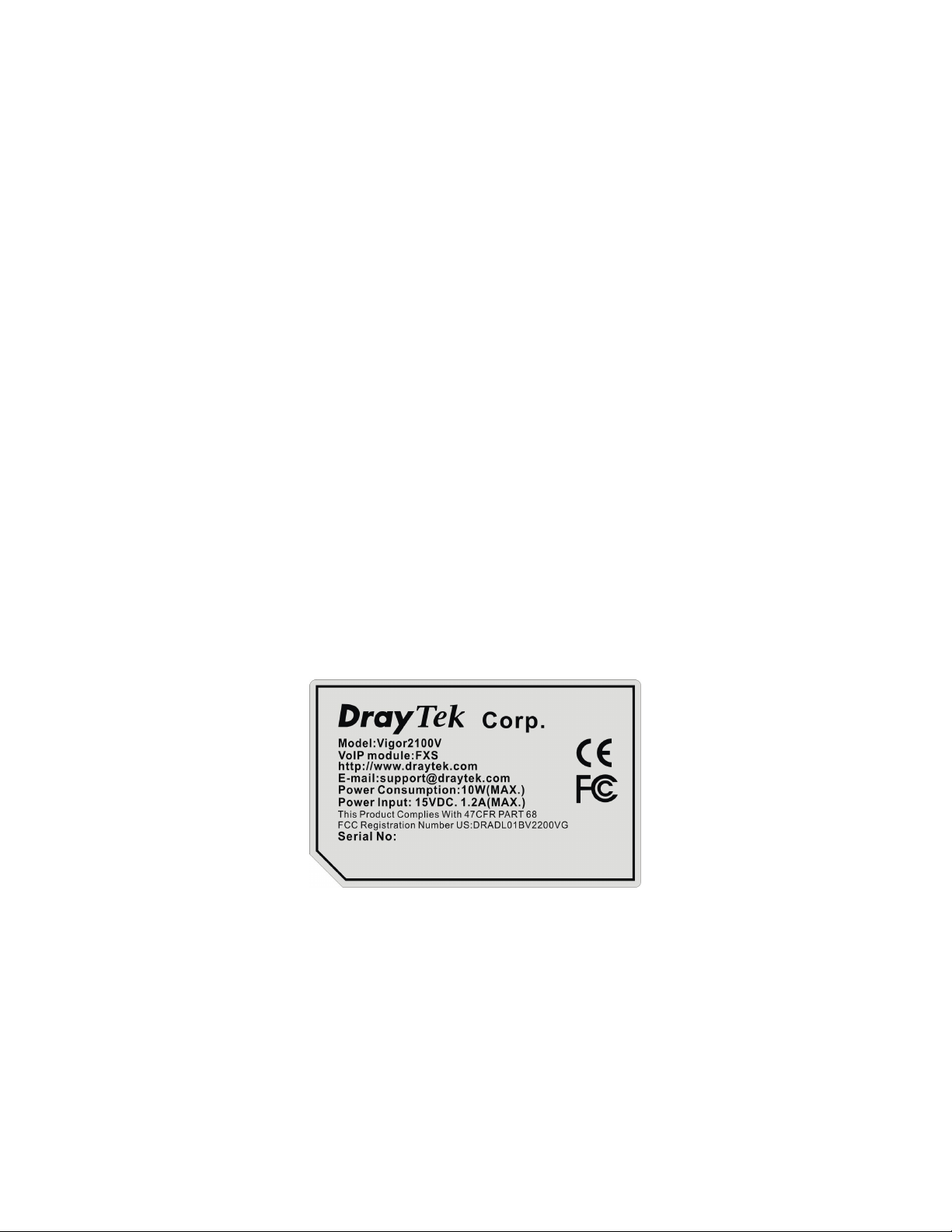

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou County, HsinChu

Industrial Park, Hsin-Chu, Taiwan 303

Product: Vigor2100V and Vigor2100VG Series Residential

Broadband VoIP Routers

DrayTek Corp. declares that Vigor2100V series of routers are in

compliance with the following essential requirements and other

relevant provisions of R&TTE Directive 1999/5/EEC.

The product conforms to the requirements of Electro-Magnetic

Compatibility (EMC) Directive 89/336/EEC by complying with the

requirements set forth in EN55022/Class B and EN55024/Class B.

The product conforms to the requirements of Low Voltage (LVD)

Directive 73/23/EEC by complying with the requirements set forth in

EN60950.

The Vigor2100VG is designed for the WLAN 2.4GHz network

throughput EC region, Switzerland, and the restrictions of France.

Commission (FCC) Interference

Statement

The Vigor2100V and Vigor2100VG have been tested and found to

comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation. Class B limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy, and,

if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is not guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient the receiving antenna.

• Increase the separate between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

Table of Contents

Introduction…………………………………………………...

1.1

Brief Overview……………………………………………………

1.2

Highlights………………………………………………………….

1.3

Front Panel LEDs and Rear Panel Interfaces…………….…

1.4

Package Contains………………………………………………..

Quick Install Your Vigor2100V/VG Router……………….

2.1

Hardware Installation……………………………….…………..

2.2

Configure Your Router via Quick Start Wizard……………..

PPPoE-type…………………………………………………………….

PPTP & Obtain IP automatically……………………………………..

PPTP & Specify an IP………………………………………………....

Static IP (fixed IP)……………………………………………………..

DHCP (for cable modem users)……………………………………..

Automatic QoS for VoIP………………………………………………

Wireless LAN Settings………………………………………

3.1

General Settings…………………………………….……………

3.2

Security Settings…………………………………………….…...

VoIP Settings………………………………………………….

4.1

DialPlan Setup……………………………………….……………

4.2

SIP Related Function Setup……………………….……………

4.3

Calling Scenario………………………………………………….

Peer to Peer……………………………………………………………

Calling via SIP Server…………………………………………………

Trouble Shooting…………………………………………….

Is the Hardware Status OK?………………………………………….

Are the Network Connection Settings on Your PC OK?…………..

Can You Ping the Router from PC?…………………………………

Are the ISP Settings OK?…………………………………………….

Back to Factory Default Setting………………………………………

1. Introduction of Benefits

Easy Internet-Sharing of your broadband* connection

Robust Firewall to help protect your network from external attacks

Making regular phone calls over your broadband connection by

simply plugging in your phone.

QoS-assured VoIP facilities to deliver superior quality.

Automatic failover for your Public Switched Telephone Network (PSTN)

during power cuts.

802.11g Compliant Wireless LAN access with security features

(Vigor2100VG only).

1.1 Brief Overview

The Vigor2100V series broadband router/Firewall with VoIP phone ports, an

Internet access solution for your LAN, which provides you with the shared web

surfing and countless value-added features, such as Firewall, Security, VoIP,

and 802.11g Wireless LAN (up to 54Mbps for Vigor2100VG only). These are

all in a reliable one-box solution.

Model comparison chart:

Vigor 2100V Vigor2100VG

Broadband Router * *

VoIP * *

Wireless AP -*

What does "PSTN life line" perform on Vigor2100V and Vigor2100VG

series?

The Vigor2100V series has a “Line” port on the rear panel for connecting to a PSTN

(regular analogue) line. The Loop Through option can be used to set an alternate

telephone number for your contact on the PSTN, which the Vigor2100V series will

dial instead of the SIP account if you lose ADSL access or power to the Vigor2100V

series. Hence, the PSTN line can act as a lifeline (backup mechanism) for VoIP calls.

The lifeline mechanism is activated automatically but can also be manually

configured.

1.2 Highlights

VoIP (Voice over IP)

Connect a regular telephone to make and

receive voice

calls using your existing broadband

connection, leaving your regular line free

Make and receive calls using your regular

phone line (POTS) or via VoIP using the

same telephone handset

Auto-Fallback - Phone switches to PSTN

during power cut SIP, RTP/RTCP protocols

compliance

WAN/Internet

One 10/100M Base-TX port with a RJ-45

connector

Quick Start Wizard for Internet access

DHCP client for cable service

Static IP address assignment for fixed IP

networks

PPPoE client

Firewall Facilities

SPI (Stateful Packet Inspection)

tracks packets and denies unsolicited

incoming data

Selectable DoS/DDoS protection

Flexible URL content filtering

User-configurable packet filtering

NAT/PAT:

Virtual server via port redirection or open

ports

DMZ host

Supports ALGs (Application Layer

Gateways) for applications

E-mail Detection

LED flashes to indicate E-mail is waiting on

your mail server (POP3)

LAN

4-port 10/100M Base-TX Ethernet switch

DHCP server for IP assignment (up to 253

users)

DNS cache and proxy

Wireless Access Point

(Vigor2100VG only)

Supports 802.11g (54Mbps data rate)

Backward compatible with 802.11b

Station List

Wireless security:

64/128 bits WEP wireless encryption

WPA/PSK encryption

Client MAC-address locking

SSID stealth

Application Support



Supports VPN pass-through



MSN Messenger V6.2, online gaming, and

other multimedia applications



UPnP protocol enables router control and

enhances access for UPnP -ready

multimedia applications

Router Management

Web-based User Interface

Command Line Interface (Telnet)

Telnet Remote Access Support

Built-in Diagnostic Function



Syslog Monitoring

1.3 Front Panel LEDs and Rear Panel Interfaces

1.3.1 Vigor2100V

LED

Status Explanation

on The firewall function is active.

Firewall

blinking When encountering DoS attacks.

E-mail

blinking When detecting one or more user-defined E-mails existing on

mail server.

orange A normal 10Mbps connection is through its corresponding port.

green A normal 100Mbps connection is through its corresponding

port.

WAN

blinking Ethernet packets are transmitting.

Solid light when the handset of phone is picked up (off

hooked).

green

Blinking per 2 seconds when phone is connected through

VoIP.

VoIP

orange Solid light when phone call is via PSTN life line.

ACT (Activity) on The router is powered on and running properly.

orange A normal 10Mbps connection is through its corresponding port.

green A normal 100Mbps connection is through its corresponding

port.

LAN

(P1, P2, P3, P4

)

blinking Ethernet packets are transmitting.

Interface

Description

PWR Connect the included power adapter to the power outlet.

Line Connect to the analog phone line for PSTN life line.

Phone Connect to the analog phone for VoIP communication.

WAN Connect the Cable/ADSL modem to access the Internet.

Factory Reset

Restore the default settings. Usage: Turn on the router (ACT LED is

blinking), press the hole and keep for more than 5 seconds. When the ACT

LED begins to blink rapidly, release the button. Then the router will restart

with the factory default configuration.

P1, P2, P3, P4

Connect to the local network devices.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Draytek Netzwerk-Router Handbücher

Draytek

Draytek Vigor 2104 Bedienungsanleitung

Draytek

Draytek Vigor3910 Series Bedienungsanleitung

Draytek

Draytek Vigor 2800VG Referenzhandbuch

Draytek

Draytek VigorBX 2000 Series Bedienungsanleitung

Draytek

Draytek Vigor 2930 Bedienungsanleitung

Draytek

Draytek VIGOR2820 series Bedienungsanleitung

Draytek

Draytek Vigor 2200E-Plus Bedienungsanleitung

Draytek

Draytek Vigor 3200 Series Bedienungsanleitung

Draytek

Draytek Vigor2130 Series Bedienungsanleitung

Draytek

Draytek Vigor 2927 Series Bedienungsanleitung

Draytek

Draytek Vigor2927 Series Bedienungsanleitung

Draytek

Draytek Vigor 2135 Series Bedienungsanleitung

Draytek

Draytek VIGOR2950 Bedienungsanleitung

Draytek

Draytek Vigor2710 Series Bedienungsanleitung

Draytek

Draytek Vigor Router 11ax Series Bedienungsanleitung

Draytek

Draytek Vigor2900 Series Security Router Bedienungsanleitung

Draytek

Draytek Vigor2920 Series Bedienungsanleitung

Draytek

Draytek Vigor2122 Series Bedienungsanleitung

Draytek

Draytek Vigor 2700Ge/e Bedienungsanleitung

Draytek

Draytek Vigor2952 Series Bedienungsanleitung

Draytek

Draytek Vigor3300 Series Bedienungsanleitung

Draytek

Draytek Vigor2760 Bedienungsanleitung

Draytek

Draytek Vigor2130 Series Bedienungsanleitung

Draytek

Draytek Vigor2600 plus Series Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
