Drayton RF701 Bedienungsanleitung

Drayton

Digistat +3RF

Invensys Controls Europe

Customer Service Tel: 0845 130 5522

Customer Service Fax: 0845 130 0622

Technical Helpline Tel: 0845 130 7722

Website: www.draytoncontrols.co.uk

Email: customer[email protected]

User Guide 06490098001 IssA

Programmable Room

Thermostat Wireless

5-2 Day / 7 Day

Model: RF701/22092

Power Supply:

Battery - Thermostat

Mains - Digistat SCR

Certification Mark

The Digistat +3RF thermostat is a programmable thermostat

5-2 Day / 7 Day product. 5–2 day allows you to set a program for

weekdays and a program for the weekend. Full 7-day functionality

allows you to set a different program for every day of the week.

Each program type allows you to set 6 time and temperature events.

Clock Setting

Your Digistat +3RF is fitted with a real-time clock, which is pre-set

at the factory. You will not have to alter the time settings.

A special feature of this real-time clock is to automatically update

the time during the summer/winter time change removing the

need to manually alter the clock.

General Operation

With the unit in Auto mode (the small arrow to bottom of screen

will point to Auto) the temperature can be changed for a short

time by using the + or - buttons. Changing the temperature in

this way will keep the Digistat +3RF set to your new temperature

until the next pre-programmed event (at which time it will revert

to programmed temperature). The temperature you are setting

will flash on the screen. Once temperature is set, the unit will

revert to showing the current temperature. The indicator will

show on the screen if the heating is turned on.

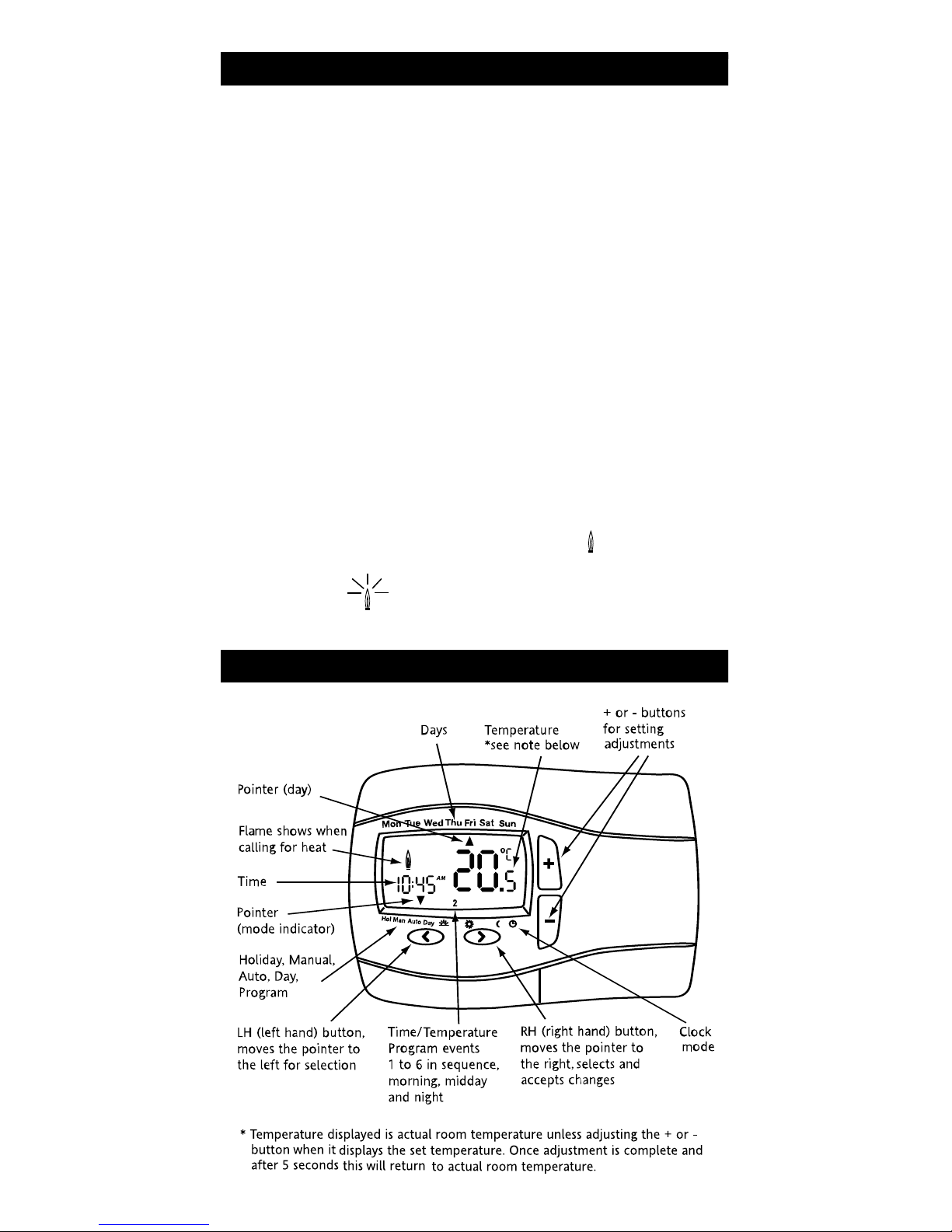

Your Digistat +3RF

Controls and Display Layout

Drayton

Digistat +3RF

A flashing flame indicates the product is in intelligent delayed

start mode (see special note).

How to replace the batteries see fig 3.

Remove the battery cover using a coin. Replace the spent

batteries with 2 x 1.5V IEC LR6 (AA) Alkaline batteries ensuring

correct orientation. Replace the battery cover pressing fully home.

(Fig 1) (Fig 2)

How do I know when to change the batteries.

When the batteries start to run low a battery icon will flash in the

display, to indicate “low battery” during this time the Digistat +3RF

will function normally (see fig 1).

Please replace batteries with 2 x 1.5V IEC LR6 (AA) Alkaline batteries.

When the battery icon alone is shown in the display, the batteries

are completely exhausted and the Digistat +3RF will cease to

function (see fig 2). Re-activate by replacing the batteries.

The Digistat +3RF thermostat is a programmable thermostat

5-2 Day / 7 Day product. 5–2 day allows you to set a program for

weekdays and a program for the weekend. Full 7-day functionality

allows you to set a different program for every day of the week.

Each program type allows you to set 6 time and temperature events.

Basic Settings

(Fig 3)

Digistat+3RF Digistat+3RF

Drayton

Digistat+3RFDigistat+3RF

Drayton

Digistat +3RF

Pre-set Program

Your Digistat +3RF comes with the following default settings

pre-programmed for your convenience:

Event 1 2 3 4 5 6

Time 6:30 8:30 12:00 14:00 16:30 22:30

Temperature 20.0 16.0 16.0 16.0 21.0 7.0

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:00 23:00

Temperature 20.0 18.0 21.0 18.0 21.0 7.0

123456

25ºC

20ºC

15ºC

10ºC

5ºC

06:30 08:30 12:00 14:00 16:30 22:30

Time Period Monday-Friday

Room Temp

123456

25ºC

20ºC

15ºC

10ºC

5ºC

07:00 09:00 12:00 14:00 16:00 23:00

Time Period Saturday-Sunday

Room Temp

Pre-set Program 1 (9 til 5)

Monday-Friday

Saturday-Sunday

Weekday

Weekend

As you can see, at 06:30 , the heating will come on to raise the

temperature to 20ºC. At 08:30, the temperature set point is dropped

from 20ºC down to16ºC, it stays at 16ºC throughout the day, until

16:30 when the temperature increases to 21ºC. The temperature

then drops down to a night-setback temperature of 7ºC until 06:30

when the cycle repeats for the next day. (Monday to Friday) or

changes to weekend setting see below.

As you can see, at 07:00, the heating will come on to raise the

temperature to 20ºC. At 09:00, the temperature set point is

dropped from 20ºC down to18ºC, it stays at 18ºC until 12:00 when

the heating comes on to raise the temperature to 21ºC. The

temperature stays at 21ºC until 14:00 when it drops down to 18ºC.

At 16:30 the heating comes on to raise the temperature to 21ºC

where it stays until 23:00 when the temperature then drops down

to a night-setback temperature of 7ºC until 07:00 when the cycle

repeats for the next day. (Saturday and Sunday) or changes to

weekday settings see above.

To adjust the times and temperatures for 5-2 Day

operation:

2. Press the once, the

display will be as shown. The

time will be flashing, use the

+ or - buttons to adjust the

1st time as required.

3. Once time has been set,

press and use the

+ or - button to adjust

required temperature

(shown flashing).

Press to confirm and

move to the next time and

temperature periods to be

adjusted confirming changes

by pressing button.

(max 6 periods).

4. Once the last weekday

temperature has been set

press once to confirm

settings and allow adjustment

of the weekend program.

Use the + and – butons and

the button to set the 6

periods for the weekend program.

5. Once the final temperature

has been set press to

confirm setting. To exit press

or until you

return to auto mode with the

bottom arrow pointing at Auto.

(* small 1 in lower half of screen

shows which time period is being set

e.g. 1=1st period, 2 = 2nd period etc)

Congratulations!

The unit is now set correctly to follow your required timings.

1. With the product operating

as normal in the Auto mode

press once and then

press the + button until the

display is flashing and shows.

(* small 1 in lower half of screen

shows which time period is being set

e.g. 1=1st period, 2 = 2nd period etc)

3. Once time has been set,

press and use the

+ or - buttons to adjust

required temperature.

Repeat the above steps

2-3 until the 6 periods

have been set for Monday

To adjust the times and temperatures for 7-Day

operation:

1. With the product operating

as normal in the Auto mode

press once and then

press the + button until the

display is flashing and shows.

2. Press the once, the

display will be as shown. The

time will be flashing, use the

+ or - buttons to adjust the

1st time as required.

Congratulations!

The unit is now set correctly to follow your required timings.

4. Once Monday has been set,

press once.

Repeat steps 2-3 until all

7 days of the week have

been set.

5. Once the final temperature

has been set press the

to confirm settings. To exit

press or until

you return to auto mode with

the bottom arrow pointing

at Auto.

To set a constant room temperature (Manual mode):

1. Press once, the display

shows temperature flashing

(example

2. Press + or - buttons to

adjust the temperature as

required. The temperature

will stop flashing after 5

seconds and start controlling

at this temperature

3. To exit manual mode press

once, to return to auto.

To change temperature for a short period (Override):

1. Press + or - buttons to

adjust set temperature. Set

temperature shown flashing

2. After 5 seconds will start

controlling at selected set

point but displays actual room

temperature. 2 chrevons

indicates override mode.

3. To exit override press

once or wait until next change

in the pre-set program.

To set holiday mode:

1. Press twice, the display

shows time flashing.

Time periods between 1 to

23(Hr)hours and 1 to

199(d)days can be set.

2. Press + or - buttons to

adjust the count down time

as required. Press once,

the display will show

temperature flashing

To switch OFF the thermostat:

Press the + and – simultaneously for 5 seconds until the OFF is

displayed.

The thermostat and heating system will now be OFF unless the

temperature in the controlled space falls below 7°C, the frost

protection set point. Please note this does not affect the

operation of the domestic hot water where provided.

To switch ON the thermostat, press any key to return to auto mode.

3. Press + or - buttons to

adjust temperature and press

to start holiday count

down time. Alternatively after

10 seconds the temperature

will stop flashing and holiday

count down time will start.

Display shows count down

time and ambient room

temperature.

4. To exit the holiday mode

press the or

once, to return to auto.

If you wish to change any User Options (shown in table 1) they can

be accessed from Auto or Man by pressing < and > simultaneously

for 3 seconds. Once you have accessed the User Options Menu (Fig

4) press > to scroll through selectable options. The settings for

each option can be changed by pressing + or - as required. Press >

to accept the change and move to the next option. To exit press <

and > simultaeously for 3 seconds. Alternatively, not pressing any

buttons for 2 mins will cause the Digistat +3RF to return to Auto.

(Fig 5) shows option 01 24 (24 hour clock).

Only selected options that have been accepted by pressing > will

be changed.

User Options

User

options What is it Min Max Default

01 Change 12h or 24h clock 12 24 24

02 Change to another

pre-set programme 1 3 1

03 Change the number of

programme events per day 2, 4 or 6 6

04 Switch on/off automatic

summer/winter time change On Off On

05 Adjust date and time Factory Set

06 Change temperature offset

C-5 5 0

07 Restore pre-set programme On Off Off

08 To disable Off function On Off On

09 Access protection lock On Off Off

(Table 1)

(Option 01)

How to change from 24hr to 12hr clock.

Enter user options, select option 01 and use + and – keys to select

desired option, 12 = 12hr and 24 = 24hr. Press > to accept change.

(Option 02)

How to change to another predefined program 1, 2 or 3.

Enter user options, select option 02 and use + and – keys to

select desired program 1, 2 or 3. 1 = program 1, 2 = program 2

and 3 = program 3. Press > to accept desired change.

Preset programs 2 and 3 are shown below:

(

Event 1 2 3 4 5 6

Time 6:30 8:30 12:00 14:00 16:30 22:30

Temperature 21.0 16.0 21.0 16.0 21.0 10.0

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:30 23:00

Temperature 21.0 18.0 21.0 18.0 21.0 10.0

Pre-set Program 2 (Home for lunch)

Monday-Friday

Saturday-Sunday

(Fig 4) (Fig 5)

(

Weekdays

As you can see, at 06:30, the heating will come on to raise the

temperature to 21°C.

At 08:30, the temperature set point is dropped to 16°C, it stays at

16°C until 12:00 when the heating comes on to raise the

temperature to 21°C. The temperature stays at 21°C until 14:00

when it drops to 16°C. At 16:30 the heating comes on to raise the

temperature to 21°C where it stays until 22:30 when the

temperature drops down to a setback temperature of 10°C until

06:30 when the cycle repeats the next day.

123456

25ºC

20ºC

15ºC

10ºC

5ºC

06:30 08:30 12:00 14:00 16:30 22:30

Time Period Monday-Friday

Room Temp

123456

25ºC

20ºC

15ºC

10ºC

5ºC

07:00 09:00 12:00 14:00 16:30 23:00

Time Period Saturday-Sunday

Room Temp

Weekday

Weekend

Weekends

As you can see, at 7:00, the heating will come on to raise the

temperature to 21°C.

At 9:00, the temperature set point is dropped to 18°C, it stays

at 18°C until12:00 when the heating comes on to raise the

temperature to 21°C. The temperature stays at 21°C until 14:00

when it drops down to 18°C. At 16:30 the heating comes on to

raise the temperature to 21°C where it stays until 23:00 when

the temperature drops down to a setback temperature of 10°C

until 07:00 when the cycle repeats the next day.

Event 1 2 3 4 5 6

Time 6:00 8:30 12:00 14:00 17:30 22:30

Temperature 21.0 19.0 21.0 19.0 21.0 16.0

Event 1 2 3 4 5 6

Time 7:00 9:00 12:00 14:00 16:30 23:00

Temperature 21.0 18.0 21.0 18.0 21.0 16.0

Pre-set Program 3 (Home Worker)

Monday-Friday

Saturday-Sunday

Andere Handbücher für RF701

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Drayton Thermostat Handbücher

Drayton

Drayton MiStat N110R Bedienungsanleitung

Drayton

Drayton Digistat+3 22083 Bedienungsanleitung

Drayton

Drayton 22084 Bedienungsanleitung

Drayton

Drayton LP722 Bedienungsanleitung

Drayton

Drayton RF701 Bedienungsanleitung

Drayton

Drayton MiStat P710R Bedienungsanleitung

Drayton

Drayton RF700/22090 Bedienungsanleitung

Drayton

Drayton Digistat +3 22083 Bedienungsanleitung

Drayton

Drayton LP10RF Bedienungsanleitung

Drayton

Drayton MiStat C C110C Montageanleitung

Drayton

Drayton 22083 Bedienungsanleitung

Drayton

Drayton 13616 Bedienungsanleitung

Drayton

Drayton Combi-Stat RTS8 Einrichtungshandbuch

Drayton

Drayton Digistat 2 Bedienungsanleitung

Drayton

Drayton HTS3 Bedienungsanleitung

Drayton

Drayton Lifestyle Leitfaden

Drayton

Drayton RF710 Bedienungsanleitung

Drayton

Drayton Digistat RF3 Bedienungsanleitung

Drayton

Drayton 13616 Bedienungsanleitung

Drayton

Drayton 30002 Bedienungsanleitung

Drayton

Drayton MiTime T720R Bedienungsanleitung

Drayton

Drayton MiStat P710R Bedienungsanleitung

Drayton

Drayton Wiser Thermostat Kit 1 Bedienungsanleitung

Drayton

Drayton Digistat+1 RF710 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
