Drieaz TurboDryer Sahara Pro X3 Bedienungsanleitung

Owner's Manual Dri-Eaz TurboDryers®

115-V Model: Sahara Pro X3

READ AND SAVE THESE INSTRUCTIONS

WARNING

ELECTRIC SHOCK HAZARD

This unit must be electrically

grounded

The power cord is equipped with a

3-prong grounding plug. Use

only

with a matching receptacle.

Do not cut off the grounding prong.

Do not use an adapter.

Do not use with a damaged power

cord

Do not use an extension cord.

Read and understand manual be-

fore operating.

Use a 115V. 3-prong

Co not use with

grounded connection an adaptor

NOTE:

Hurnidity

will rise with the use of

TurboDryers, because they lift moisture

from wet materials into the air. To learn

about managing humidity during drying,

contact your local distributor or call Dri-

Eaz Education at 800-575-5152.

Dri-Eaz Products, Inc,

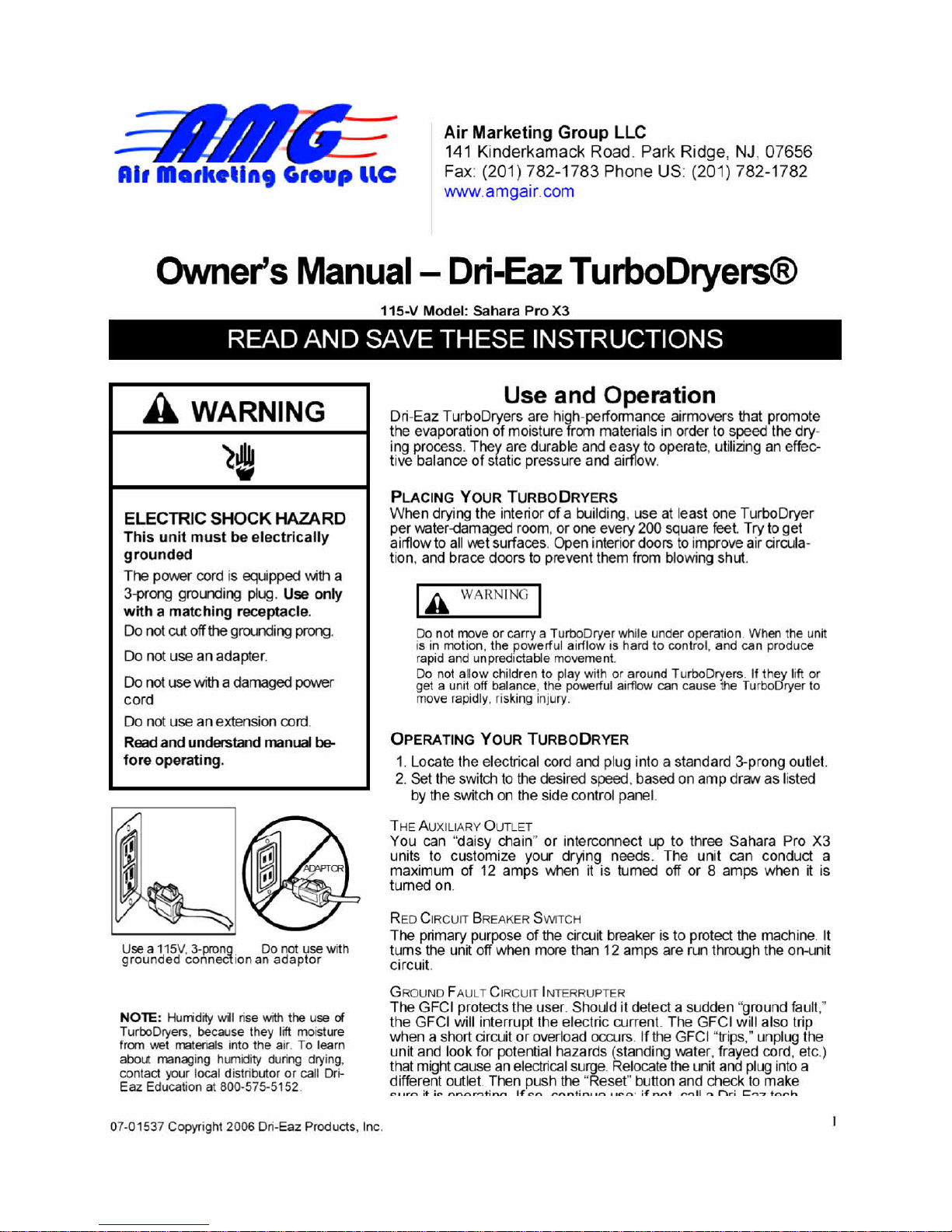

Use and Operation

Dri-Eaz TurboDryers are high-performance airrnovers that promote

the evaporation of moisture from materials in order to speed the dry-

ing process. They are durable and easy to operate, utilizing an effec-

tive balance of static pressure and airflow.

PLACING YOUR TURBO DRYERS

When drying the interior of a building, use at least one TurboDryer

per water-damaged room, or one every 200 square feet. Try to get

airflow to all wet surfaces. Open interior doors to improve air circula-

tion, and brace doors to prevent them

from blowing

shut.

A WARNING I

Do not move or carry a TurboDryer while under operation. When the unit

is in motion, the powerful airflow is hard to control, and can produce

rapid and unpredictable movement.

Do not allow children to play with or around TurboDryers. If they lift or

get a unit off balance, the powerful airflow can cause the TurboDryer to

move rapidly, risking injury.

OPERATING YOUR TURBODRYER

Locate the electrical cord and plug into a standard 3-prong outlet

2 Set the switch to the desired speed. based on amp draw as fisted

by the switch on the side control panel.

THE AUXILIARY OUTLET

You can "daisy chain" or interconnect up to three Sahara Pro X3

units to customize your drying needs. The unit can conduct a

maximum of 12 amps when it is turned off or 8 amps when it is

turned on.

RED CIRCUIT BREAKER SWITCH

The primary purpose of the circuit breaker is to protect the machine. It

turns the unit off when more than 12 amps are run through the on-unit

circuit.

GROUND FAULT CIRCUIT INTERRUPTER

The GFCI protects the user. Should it detect a sudden "ground fault,"

the GFCI will interrupt the electric current. The GFCI will also trip

when a short circuit or overload occurs. If the GFCI "trips," unplug the

unit and look for potential hazards (standing water, frayed cord, etc.)

that might cause an electrical surge. Relocate the unit and plug into a

different outlet. Then push the "Reset" button and check to make

r., re. if

•1

•

••

Nr,"resti.-..-.

EN.,

nrsr,firki

',nil n

Cn-, inedn

WARNING

ELECTRIC SHOCK HAZARD

Keep motor and electrical parts

dry.

Do not operate in standing water

Do not expose to rain, water or

snow.

Do not get the exterior. motor or wir-

ing wet.

Do not dean with wet objects, i.e.,

power washers, soap and water, etc.

If motor or electrical parts become

wet, allow them to dry completely

before using.

Read and understand manual be-

fore operating

WARNING

FIRE HAZARD

Keep air intakes clear. Reduced

airflow can cause motor to overheat.

Clean any lint or other material

from the screens before each use

Do not operate near draperies or

other material that could block the

air intakes.

Clean dust and dirt from motor

using a vacuum or compressed air.

Do not use or store where flamma-

ble vapors like gasoline, solvents, or

thinners are present.

Do not use near open flames, or

heat sources.

Read and understand manual be-

fore operating.

READ AND SAVE THESE INSTRUCTIONS

07-01537 Copyiight 2006 Dri-Eaz Products, Inc.

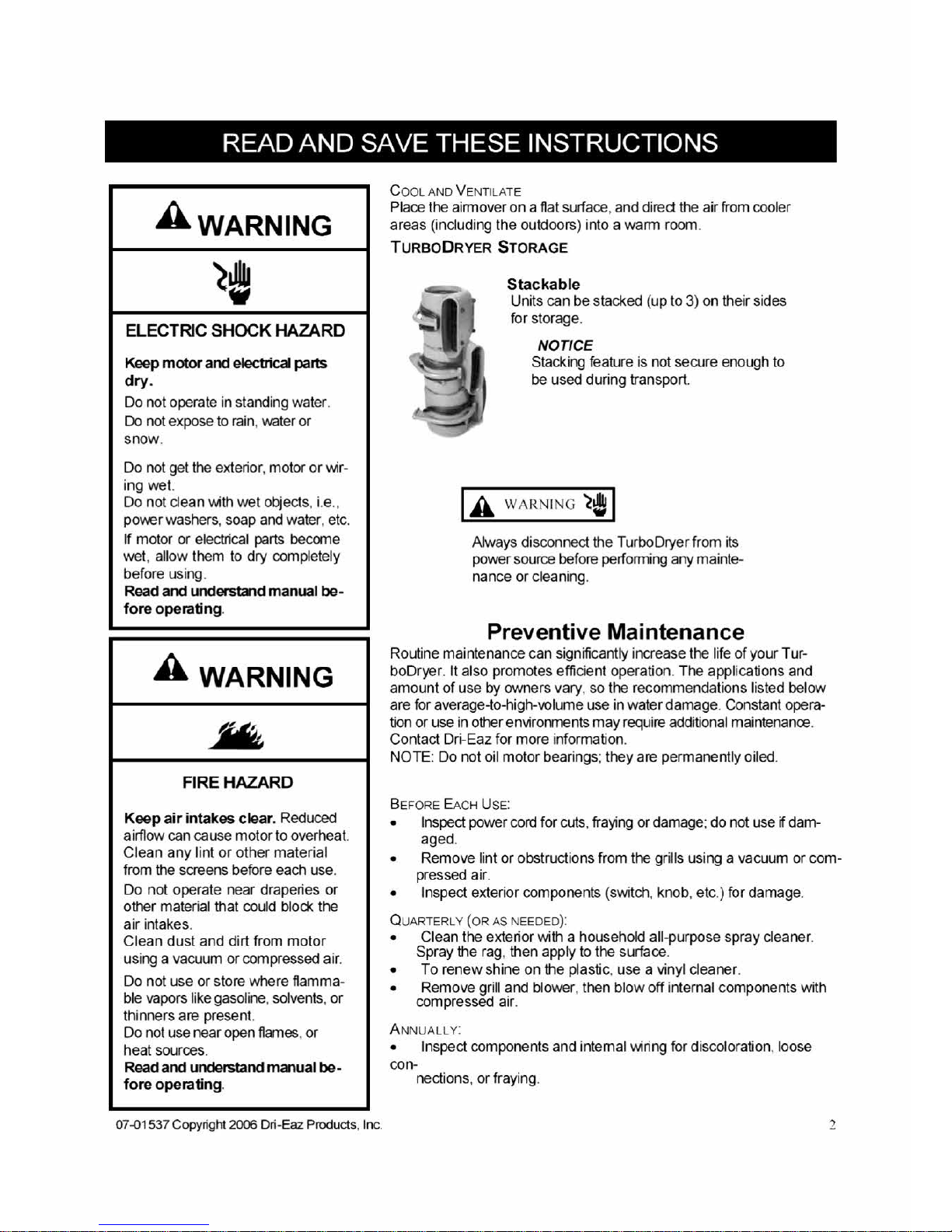

COOL AND VENTILATE

Place the airmover on a flat surface, and direct the air from cooler

areas (including the outdoors) into a warm room.

TURBODRYER STORAGE

Stackable

Units can be stacked (up to 3) on their sides

for storage.

NOTICE

Stacking feature is not secure enough to

be used during transport.

WARNINO

Always disconnect the TurboDryer from its

power source

before

performing any mainte-

nance or cleaning.

Preventive Maintenance

Routine maintenance can significantly increase the life of your Tur-

boDryer ft also promotes efficient operation. The applications and

amount of use by owners vary, so the recommendations listed below

are for average-to-high-volume use in water damage. Constant opera-

tion or use in other environments

may

require additional maintenance.

Contact Dri-Eaz for more information.

NOTE: Do not oil motor bearings: they are permanently oiled.

BEFORE EACH USE:

•

Inspect power cord for cuts, fraying or damage; do not use if dam-

aged

•

Remove lint or obstructions from the grills using a vacuum or com-

pressed air

•

Inspect exterior components (switch, knob, etc ) for damage.

QUARTERLY (OR AS NEEDED):

•

Clean the exterior with a household all-purpose spray cleaner.

Spray the rag. then apply to the surface.

•

To renew shine on the plastic. use a vinyl cleaner.

•

Remove grill and blower, then blow off internal components with

compressed air.

ANNUALLY:

•

Inspect

components and internal Wring for discoloration, loose

con-

nections, or fraying.

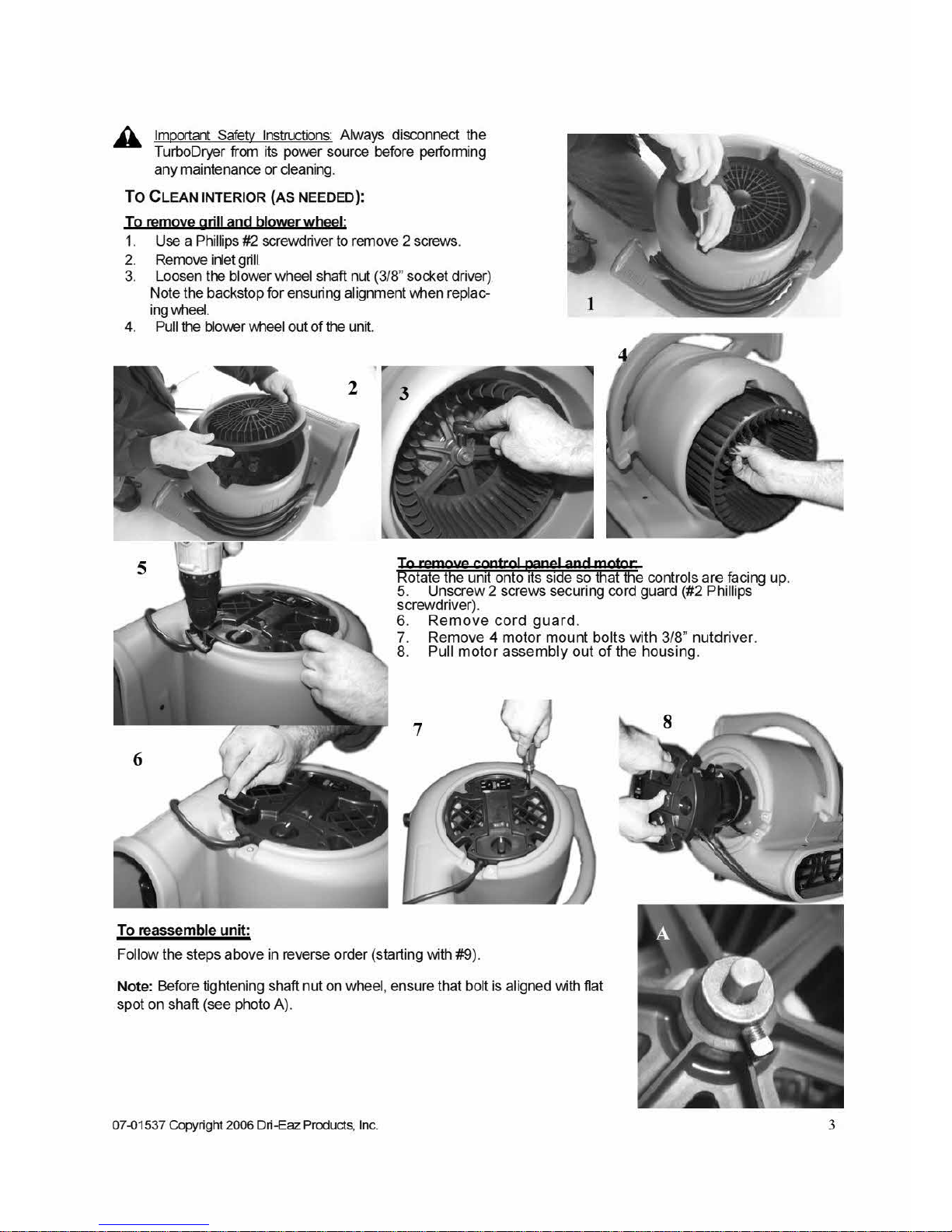

AImportant Safety Instructions:

Always disconnect the

TurboDryer from its power source before performing

any maintenance or cleaning

CLEAN INTERIOR (As NEEDED):

To remove grill and blower wheel:

Use a Phillips #2 screwdriver to remove 2 screws.

Remove inlet grill

Loosen the blower wheel shaft nut (3/8" socket driver)

Note the backstop for ensuring alignment when replac-

ing wheel.

Pull the blower wheel out of the unit.

To remo

contro

panel

arid

motor

Rotate the unit onto its side so that the controls are facing up.

Unscrew 2 screws securing cord guard (#2 Phillips

screwdriver).

Remove cord guard.

Remove 4 motor mount bolts with 3/8" nutdriver.

Pull motor assembly out of the housing.

To reassemble unit:

Follow the steps above in reverse order (starting with #9).

Note:

Before tightening shaft nut on wheel, ensure that bolt is aligned with flat

spot on shaft (see photo A).

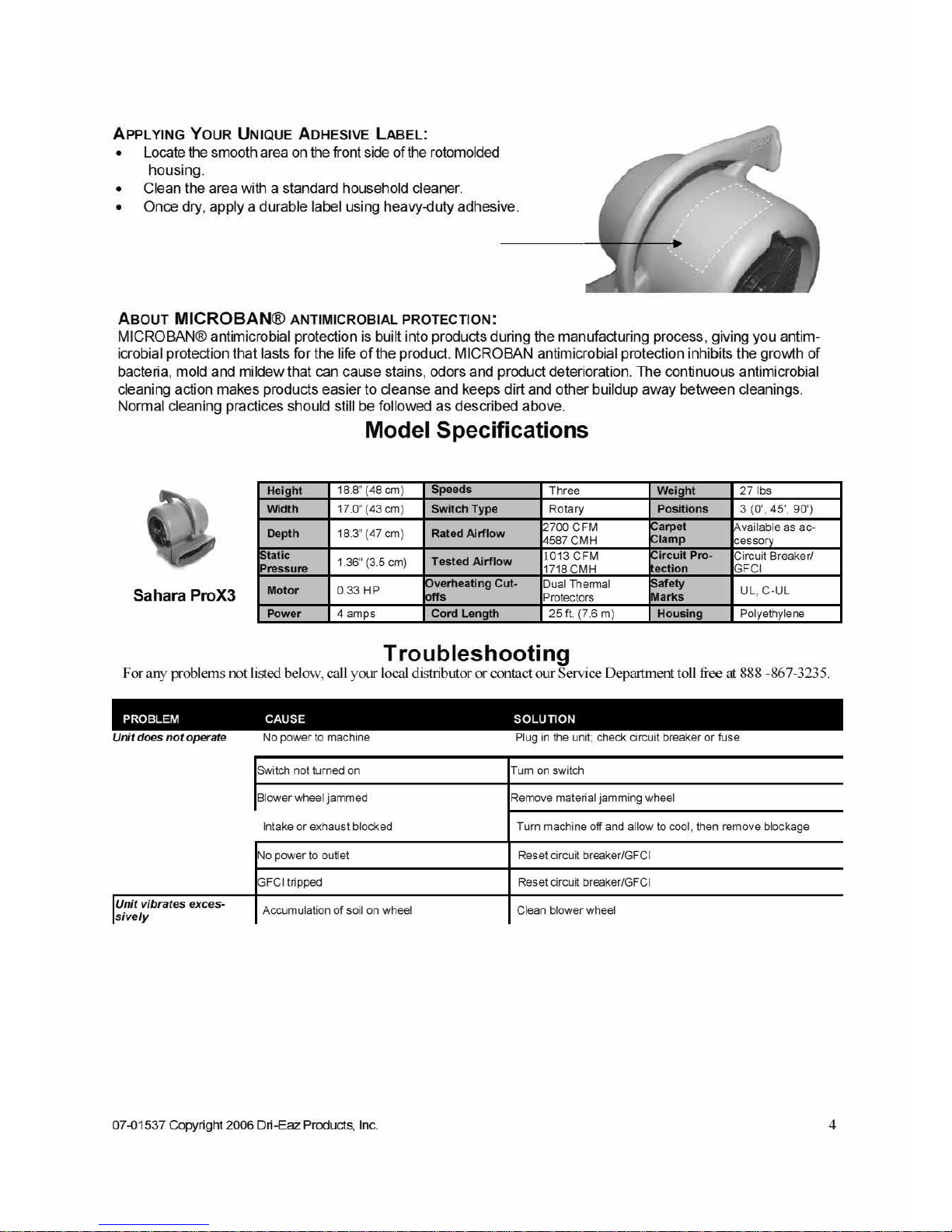

APPLYING YOUR UNIQUE ADHESIVE LABEL:

•

Locate the smooth area on the front side of the rotomolded

housing.

•

Clean the area with a standard household cleaner.

•

Once dry, apply a durable label using heavy-duty adhesive.

ABOUT

MICROBAN®

ANTIMICROBIAL PROTECTION:

MICROBANO antimicrobial protection is built into products during the manufacturing process. giving you antim-

icrobial protection that lasts for the life of the product. MICROBAN antimicrobial protection inhibits the growth of

bacteria, mold and mildew that can cause stains, odors and product deterioration. The continuous antimicrobial

cleaning action makes products easier to cleanse and keeps dirt and other buildup away between cleanings.

Normal cleaning practices should still be followed as described above.

Model Specifications

Height

18.8 (48 cm)

Speeds

Three

Weight 27 lbs

Width

17.0" (43 cm)

Switch Type

Rotary

Positions

3 (U. 45'. 90')

Depth

18.3" (47 cm)

Rated Airflow

2700 CFM

4587 CMH

Carpet

Clamp

Available as ac-

cessory

Static

Pressure

1.36" (3.5 cm)

Tested Airflow

1013 CFM

1718 CMH

Circuit Pro-

tection

Circuit Breaker/

GFC1

Motor

0.33 HP

Overheating

Cut-

offs

Dual Thermal

Protectors

Safety

Marks

UL, C-UL

Power

4 amps

Cord

Length

25 ft. (7.6 m)

Housing

Polyethylene

40),,

Sahara ProX3

Troubleshooting

For any problems not listed below, call your local distributor or contact our Service Department toll free at 888 -867-3235.

PROBLEM

CAUSE SOLUTION

Switch

not turned on

Blower wheel iarnmed

Intake or exhaust blocked

Turn on switch

Remove material jamming wheel

Turn machine off and allow to cool, then remove blockage

No power to outlet

Reset circuit breaker/GFCI

GFCI tripped

Reset circuit breaker/GFCI

Unit vibrates exces-

sively

Accumulation of soil on wheel

Clean blower wheel

Products, Inc,
