ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Model 95578

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor FreightTools.

For technical questions, please call 1-800-444-3353.

4-1/2” ANGLE GRINDER

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 2

Item Description

Electrical

Requirements 120 VAC / 60 Hz / 4.2 Amps / 11,000 RPM

Power Cord Type: 18 AWG x 2C / 6’ Long

Power Plug Type: 2-Prong / Polarized

Power Switch Type: Toggle (ON/OFF)

Spindle Size 5/8”-11 TPI with 7/8” Arbor Adapter

Required

Grinding Wheel Size

(Not Included)

4-1/2” Diameter

1/4” Thick

7/8” Spindle Hole

Side Handle

Dimensions 4-1/2” Long x 2-1/4” O.D.

Overall

Dimensions 10-1/8” Long x 8” Wide x 3-3/4” High

(with Side Handle)

Net Weight 3.5 Pounds

debris such as chips and sparks. Provide barriers or shields as needed.

Children should not be allowed in the work area.

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 3

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

PERSONAL SAFETY

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid

safety shoes, hard hat, or hearing protection must be used for appropriate

conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 4

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

24. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 5

1. Always use the Wheel Guard (4) with the Angle Grinder. The Guard protects

the operator from broken grinding wheel fragments.

2. Hold the tool by its insulated gripping surfaces when performing an opera-

tion where the cutting tool may contact hidden wiring or its own cord. Con-

tact with a “live” wire will make exposed metal parts of the tool “live” and shock

the operator.

3. Maintain labels and nameplates on the Angle Grinder. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

4. Always wear ANSI-approved safety impact eye goggles and heavy

work gloves when using the Angle Grinder. Using personal safety

devices reduce the risk for injury. Safety impact eye goggles and heavy

work gloves are available from Harbor Freight Tools.

5. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use a power tool in

areas near flammable chemicals, dusts, and vapors. Do not use this product in

a damp or wet location.

6. WARNING! All accessories for this tool must be rated for at least

11,000 RPM. Grinding wheels and other accessories running over the rated

11,000 RPM speed can fly apart and cause injury.

7. When using a hand-held power tool, always maintain a firm grip on the tool

with both hands to resist starting torque.

9. Avoid unintentional starting. Make sure you are prepared to begin work

before turning on the Angle Grinder.

10. Do not force the Angle Grinder. This tool will do the work better and safer at

the speed and capacity for which it was designed. Do not force the rotating

grinding wheel (not included) into the object being ground. Apply moderate

pressure, allowing the grinding wheel to rotate freely without being forced.

11. WARNING! Never install a carbide tipped or steel circular saw blade

for use on this tool. Never install a wood carving blade, carving disc with

saw chain cutters, or a cutting carving disc on this tool.

12. For safest operation, it is recommended that only these accessories be

used with this tool: Abrasive cut-off discs and wheels, flap wheels, wire

brushes, and wire wheel brushes.

13. Never lay this tool down until the rotating grinding wheel has come to a

complete stop. The rotating grinding wheel can grab the surface and pull the

tool out of your control.

14. Never leave the Angle Grinder unattended when it is plugged into an

electrical outlet. Turn off the tool, and unplug it from the electrical outlet before

leaving.

15. Always unplug this tool from its electrical outlet before performing inspec-

tion, maintenance, or cleaning procedures.

8. Use only 4-1/2” diameter grinding wheels (not included) having a 7/8” center

spindle hole. Never disable or modify the Wheel Guard (4).

16. WARNING! Keep hands and fingers away from cutting area and rotat-

ing grinding wheel.

17. Before using the Angle Grinder, always check to make sure the grinding

wheel (not included) is properly mounted and is not cracked or dull.

18. Industrial applications must follow OSHA guidelines.

19. The grinding wheel (not included) will become hot while cutting. Allow the

grinding wheel to completely cool before handling.

20. To avoid accidental injury, always wear heavy duty work gloves when

changing the grinding wheel.

21. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 6

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 7

and other construction activities, contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects or other reproductive harm. Some ex-

amples of these chemicals are: lead from lead-based paints, crystalline silica

from bricks and cement or other masonry products, arsenic and chromium from

chemically treated lumber. Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety equipment, such as

those dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

22. WARNING! People with pacemakers should consult their physician(s)

before using this product. Operation of electrical equipment in close proximity to

a heart pacemaker could cause interference or failure of the pacemaker.

23. WARNING! The warnings and cautions discussed in this manual cannot

cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot

be built into this product, but must be supplied by the operator.

SAVE THESE INSTRUCTIONS

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A, next page.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

FIGURE A

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 8

120 VOLT,

GROUNDED,

ELECTRICAL OUTLET

THIS PRODUCT

DOES NOT

USE A

3-PRONG PLUG

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

THIS PRODUCT

USES A

2-PRONG PLUG

FIGURE B

120 VOLT,

GROUNDED,

ELECTRICAL OUTLETS

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figures C.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figures C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figures C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figures C.)

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 9

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

FIGURE C * Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

SKU 95578 For technical questions, please call 1-800-444-3353 PAGE 10

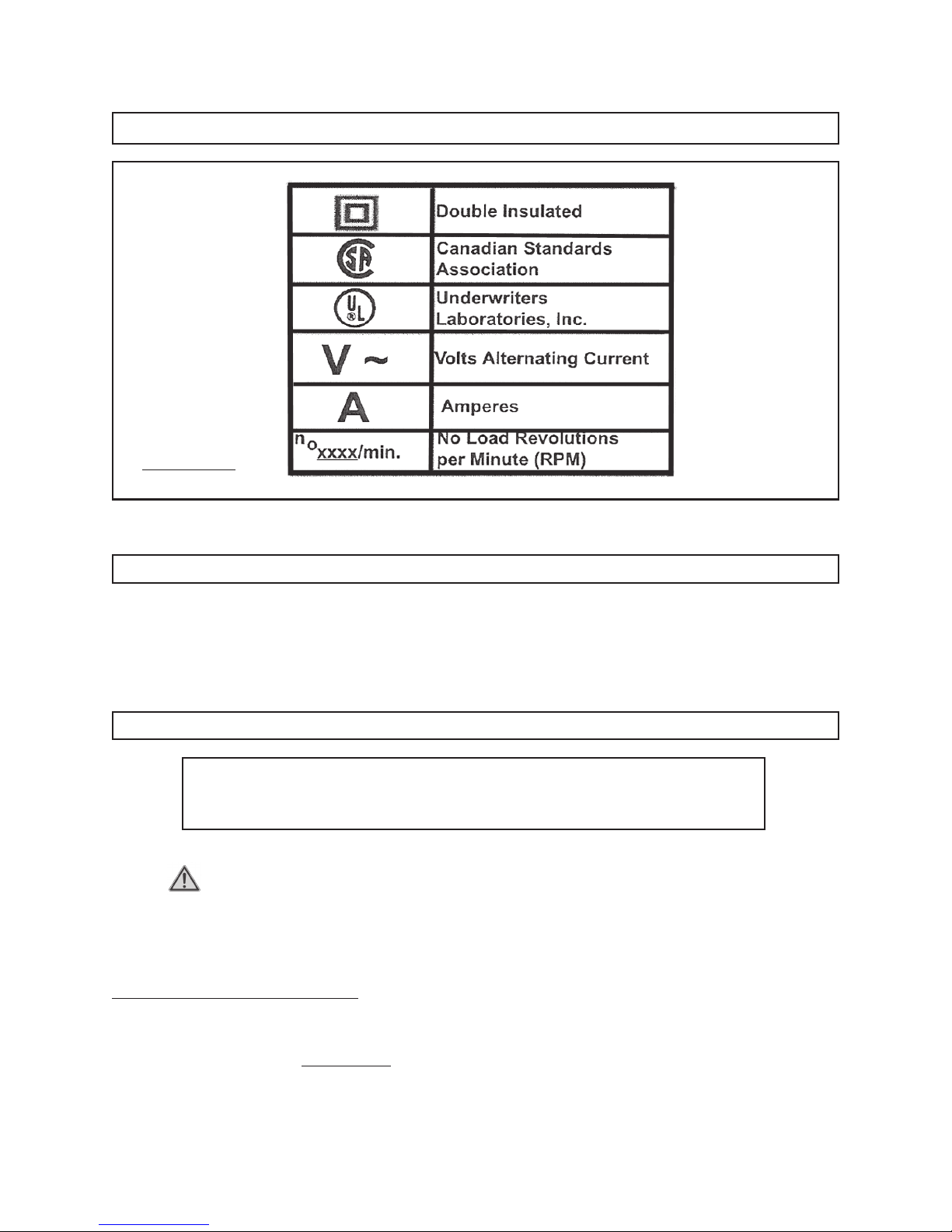

SYMBOLOGY

FIGURE D

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

ASSEMBLY INSTRUCTIONS

NOTE:

For additional information regarding the parts listed in the following

pages, refer to the Assembly Diagram on page 14.

1. CAUTION! Always make sure the PowerSwitch (41) for the Angle Grinder

is in its “OFF” position and the tool is unplugged from its electrical outlet prior to

assembling the tool, adding any accessories, or making adjustments to the tool.

To Install A Grinding Wheel:

1. Unscrew and remove the Outer Flange Nut (1) from the Spindle (7).

(See Figure E, next page.)

2. Insert the Grinding Wheel (not included) onto the Spindle (7), making sure to

Andere Handbücher für 95578

Inhaltsverzeichnis

Andere Drill Master Elektrowerkzeuge Handbücher

Drill Master

Drill Master 67042 Installationshandbuch

Drill Master

Drill Master 300 Bedienungsanleitung

Drill Master

Drill Master Drill Doctor 500X Bedienungsanleitung

Drill Master

Drill Master XP Bedienungsanleitung

Drill Master

Drill Master 97626 Montageanleitung

Drill Master

Drill Master Drill Doctor 500X Bedienungsanleitung

Drill Master

Drill Master Drill Doctor 750X Bedienungsanleitung

Drill Master

Drill Master JOURNEYMAN 400 Bedienungsanleitung

Drill Master

Drill Master 93816 Bedienungsanleitung

Drill Master

Drill Master 68986 Bedienungsanleitung

Drill Master

Drill Master Heat gun Bedienungsanleitung

Drill Master

Drill Master 62405 Bedienungsanleitung

Drill Master

Drill Master X2 Bedienungsanleitung

Drill Master

Drill Master 68242 Bedienungsanleitung

Drill Master

Drill Master XP Bedienungsanleitung

Drill Master

Drill Master 250 Handyman Bedienungsanleitung

Drill Master

Drill Master 350x Bedienungsanleitung

Drill Master

Drill Master Drill Doctor 500X Bedienungsanleitung

Drill Master

Drill Master 350x Bedienungsanleitung

Drill Master

Drill Master 750SP Bedienungsanleitung

Drill Master

Drill Master 96289 Installationshandbuch

Drill Master

Drill Master 97626 Bedienungsanleitung

Drill Master

Drill Master 46055 Installationshandbuch

Drill Master

Drill Master XP Bedienungsanleitung

Beliebte Elektrowerkzeuge Handbücher anderer Marken

AEG

AEG OMNI-JS Bedienungsanleitung

SIP

SIP 01533 Bedienungsanleitung

Ribimex

Ribimex PRS499 Bedienungsanleitung

3M Fiber Optic Connector Crimp Tool Bedienungsanleitung

Ryobi

Ryobi P524 Bedienungsanleitung

ROJEK

ROJEK FSN 300A Bedienungsanleitung

Kemper

Kemper 1740PRO Bedienungsanleitung

WABCO

WABCO OptiTire Bedienungsanleitung

EINHELL

EINHELL TE-MS 18/210 Li Bedienungsanleitung

Orgapack

Orgapack OR-T 85 Kurzanleitung

TOUGHCUT

TOUGHCUT Diamond 400 Bedienungsanleitung

Yaros

Yaros PB-3603 Bedienungsanleitung

Fein

Fein BSS 2.0 E Einrichtungshandbuch

Baileigh Industrial

Baileigh Industrial SS-2725 Bedienungsanleitung

Milwaukee

Milwaukee 2674-20 Bedienungsanleitung

Fein

Fein BLs 1.6 Bedienungsanleitung

Princess

Princess Electric Multi Sharpener Bedienungsanleitung

FOREDOM

FOREDOM K.1050 Handbuch
