Introduction

The RN series consists of cameras and video servers over IP with H.264 compression. The units are connected to a LAN via RJ45

port as any PC or other device and the images are displayed on the PC on the network using a standard Internet browser or special

registration programs. The megapixel resolution allows image detail not possible with analog systems. The video servers are used to

integrate analog sources into an IP system.

The RN series of network equipment using H.264 compression, the latest evolution in digital video compression that allows fidelity

and bandwidth economy.

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 2 Page: 2

DSE SRL - ITALY - WWW.DSE.EU

Technical data

RN-606W RN-621B RN-600C RN-636E RN-6901

Camera Type IP camera IP camera IP camera IP camera IP video servers

Sensor

1/3 "progressive scan CMOS

2mpx

1/3 "progressive scan CMOS

2mpx

1/3 "progressive scan CMOS

2mpx

1/3 "progressive scan CMOS

2mpx

Color or black / white colors colors colors colors colors

Resolution

UXGA: 1600x1200 HD720:

1280 x 720 SVGA: 800 x 600

VGA: 640 x 480 QVGA: 320 x

240

UXGA: 1600x1200 HD720:

1280 x 720 SVGA: 800 x 600

VGA: 640 x 480 QVGA: 320 x

240

UXGA: 1600x1200 HD720:

1280 x 720 SVGA: 800 x 600

VGA: 640 x 480 QVGA: 320 x

240

UXGA: 1600x1200 SVGA 800 x

600 VGA: 640 x 480

D1: 720x576 PAL (720x480

NTSC)

Frame rate

30 f / sec up to

1280x720 15 f /

sec to 1600x1200

30 f / sec up to

1280x720 15 f /

sec to 1600x1200

30 f / sec up to

1280x720 15 f /

sec to 1600x1200

30 f / sec up to

800x600 15 f /

sec to 1600x1200

25 f / sec (PAL) 30 f / sec

(NTSC)

video Compression H264 / MJPEG H264 / MJPEG H264 / MJPEG H264 / MJPEG H264 / MJPEG

Audio compression u-Law PCM 8Khz u-Law PCM 8Khz u-Law PCM 8Khz u-Law PCM 8Khz u-Law PCM 8Khz

Lan RJ45 RJ45 RJ45 RJ45 RJ45

Wifi connection 802.11b / g - - - -

Power over Ethernet - IEEE802.3af IEEE802.3af IEEE802.3af -

audio Input Microphone minijack input Microphone

+ Microphone input minijack input minijack

Audio output for two-way dialogue

minijack minijack minijack minijack minijack

Alarm inputs - 1 2 4 1

Alarm outputs - 1 1 1 1

Day / Night Yes Yes Yes Yes -

Lighting

Infrared compatible 840nm ... 1100nm 840nm ... 1100nm 840nm ... 1100nm 840nm ... 1100nm

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 3 Page: 3

DSE SRL - ITALY - WWW.DSE.EU

integrated LED 5 m. 15 m. - - -

IR filter automatic removal (ICR)

-Yes Yes Yes -

AWB 5 options 5 options 5 options 5 options -

Analog Video Output - Composite BNC Composite BNC - Composite BNC

memory slots microSD - SD microSD 2 USB 2.0 ports

Supply 5..12V DC 12V DC or PoE 12V DC or PoE 12V DC or PoE DC 12V

Absorption Max. 5W Max. 5W Max. 5W Max. 5W Max. 5W

230VAC power supply Yes No No No Yes

Support bracket Yes Yes Yes No No

Attaching the S CS CS S -

Objective Standard 4.9 mm. pin-hole 6 mm. 6 mm. 1.25 mm. -

Target

interchangeable

-Yes Yes - -

Operating

temperature

0 ° ... + 50 ° C - 30 ° ... + 50 ° C 0 ° ... + 50 ° C 0 ° ... + 50 ° C 0 ° ... + 50 ° C

Degree of protection IP40 IP66 IP40 IP40 IP40

External dimensions (mm.)

60x76x26 85x70x78 77x80x160 180 (diameter) x55 135x40x85

Weight 90 gr. 370 gr. 700 gr. 380 gr. 570 gr.

PPPoE protocol Yes Yes Yes Yes Yes

DHCP Protocol Yes Yes Yes Yes Yes

SMTP Protocol Yes Yes Yes Yes Yes

FTP protocol Yes Yes Yes Yes Yes

UPnP Protocol Yes Yes Yes Yes Yes

RTSP protocol Yes Yes Yes Yes Yes

Protocol 3GPP / ISMA Yes Yes Yes Yes Yes

HTTPS protocol Yes Yes Yes Yes Yes

Other protocols

supported

TCP / IP, ARP, ICMP, NTP,

RTP, HTTP, TCP, UDP,

Bonjour

TCP / IP, ARP, ICMP, NTP,

RTP, HTTP, TCP, UDP,

Bonjour

TCP / IP, ARP, ICMP, NTP,

RTP, HTTP, TCP, UDP,

Bonjour

TCP / IP, ARP, ICMP, NTP,

RTP, HTTP, TCP, UDP,

Bonjour

TCP / IP, ARP, ICMP, NTP,

RTP, HTTP, TCP, UDP,

Bonjour

DDNS Support Yes Yes Yes Yes Yes

Disable ping response

Yes Yes Yes Yes Yes

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 4 Page: 4

DSE SRL - ITALY - WWW.DSE.EU

supported browsers

PC (IE) Mac

(Safari)

PC (IE) Mac

(Safari)

PC (IE) Mac

(Safari)

PC (IE) Mac

(Safari)

PC (IE) Mac

(Safari)

Access Password Protection 20 3 users access

levels

20 3 users access

levels

20 3 users access

levels

20 3 users access

levels

20 3 users access

levels

Motion detection Yes Yes Yes Yes Yes

alarm Sending video E-mail / FTP E-mail / FTP E-mail / FTP E-mail / FTP E-mail / FTP

FTP Upload timed

Yes Yes Yes Yes Yes

Videoconferencing Terminal

function

Yes (10 'stations max.) Yes (max 10' stations.) Yes (max 10 'stations.) Yes (max 10' stations.) Yes (max 10 'stations.)

Recording on memory

programmable timer

Yes -Yes Yes Yes

Explorer interface customizable

Yes (colors and logo) Yes (colors and logo) Yes (colors and logo) Yes (colors and logo) Yes (colors and logo)

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 5 Page: 5

DSE SRL - ITALY - WWW.DSE.EU

Installation

Product Overview

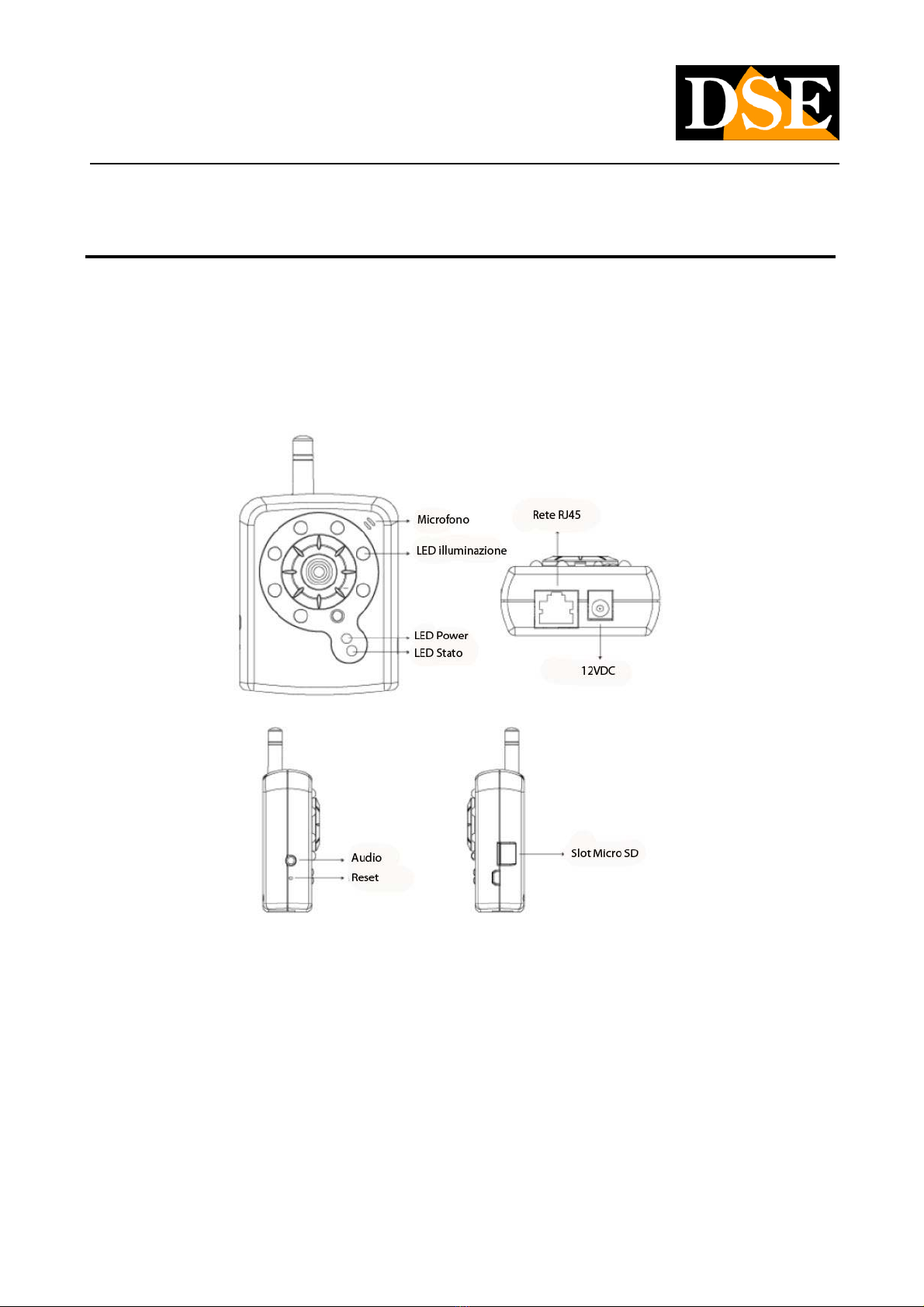

RN-606W

MIC IN - The camera is equipped with built-in microphone MIC IN - The camera is equipped with built-in microphone

AUDIO OUTPUT - This 3.5 mm jack allows you to connect the local speakers. This feature allows you to create a two-way audio AUDIO OUTPUT - This 3.5 mm jack allows you to connect the local speakers. This feature allows you to create a two-way audio

conversation between the person in front of the camera and the operator in front of the client PC.

Micro SD CARD SLOT - Slot to insert a Micro SD card to save aboard the same camera images. Micro SD CARD SLOT - Slot to insert a Micro SD card to save aboard the same camera images.

12VDC - plug which connect the power supply 220VAC / 12VDC supplied. 12VDC - plug which connect the power supply 220VAC / 12VDC supplied.

NETWORK RJ45 - RJ45 connector to connect the networkNETWORK RJ45 - RJ45 connector to connect the network

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 6 Page: 6

DSE SRL - ITALY - WWW.DSE.EU

RN-600C

IRIS - The 4-pole black connector allows you to connect an auto-iris lens control cable type DC Drive IRIS - The 4-pole black connector allows you to connect an auto-iris lens control cable type DC Drive

VIDEO - The camera provides a video output of the analog type with BNC connector that can be connected to a monitor or a VCR VIDEO - The camera provides a video output of the analog type with BNC connector that can be connected to a monitor or a VCR

conversation between the person in front of the camera and the operator in front of the client PC.

SD CARD SLOT - slot to insert an SD card (also SDHC) to save aboard the same camera images. SD CARD SLOT - slot to insert an SD card (also SDHC) to save aboard the same camera images.

SUPPLY - plug which connect the power supply 220VAC / 12VDC supplied. SUPPLY - plug which connect the power supply 220VAC / 12VDC supplied.

LAN PORT - RJ45 connector to connect the network LAN PORT - RJ45 connector to connect the network

COM / GPIO - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal COM / GPIO - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal

functions are as follows: PIN

RIFER. DESCRIPTION

1 COM Alarm output normally open (NO). It is a relay contact able to control an external device. The max.

drivable current is 130mA

2 Relay NO

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 7 Page: 7

DSE SRL - ITALY - WWW.DSE.EU

3 GND 2 alarm inputs for connecting sensors or external contacts. The ON / OFF type contacts are

connected between the input terminal and the GND

4 5 DI1

DI2 6

12V If you use the 12VDC power jack with the external power supply 2 these terminals serve to be able

to provide 12VDC power to any external equipment (eg IR illuminator). If the plug is not used

12VDC is possible to use these two terminals as a 12VDC power supply input.

7 GND

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 8 Page: 8

DSE SRL - ITALY - WWW.DSE.EU

RN-621B

12VDC - plug which connect the power supply 220VAC / 12VDC supplied. 12VDC - plug which connect the power supply 220VAC / 12VDC supplied.

BNC VIDEO - The camera provides a video output of the analog type with BNC connector that can be connected to a monitor or a BNC VIDEO - The camera provides a video output of the analog type with BNC connector that can be connected to a monitor or a

VCR

AUDIO - This 3.5 mm jack Pink allows you to connect a microphone for sound environmental recovery AUDIO - This 3.5 mm jack Pink allows you to connect a microphone for sound environmental recovery

AUDIO OUTPUT - This 3.5 mm jack lets you connect green local speakers. This feature allows you to create a two-way audio AUDIO OUTPUT - This 3.5 mm jack lets you connect green local speakers. This feature allows you to create a two-way audio

conversation between the person in front of the camera and the operator in front of the client PC.

NETWORK - RJ45 connector to connect the networkNETWORK - RJ45 connector to connect the network

INPUT / OUTPUT - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal INPUT / OUTPUT - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal

functions are as follows: PIN

RIFER. DESCRIPTION

1 COM Alarm output normally open (NO). It is a relay contact able to control an external device. The max.

drivable current is 130mA

2 Relay NO 3

GND alarm input for connecting sensors or external contacts. The ON / OFF type contact

connects between the input terminal and the GND

4 Digital IN 5

GND These two terminals running the hardware reset of the camera and restore the factory settings. Should

proceed as follows: 1 - Disconnect the power

2 - connect together with a cable terminals 5 and 6 3 - connect the power

supply the POWER LED will flash.

6 DEFAULT

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 9 Page: 9

DSE SRL - ITALY - WWW.DSE.EU

4 - when the LED starts to flash quickly break the connection between the two terminals. Wait until the

camera is reset.

USER MANUAL

Megapixel H.264 IP CAMERAS

Page: 10 Page: 10

DSE SRL - ITALY - WWW.DSE.EU

RN-636E

On the front of the camera are present microphone and speaker for audio as well as a light sensor for day / night function and the

RESET button. By turning the lens you can adjust the FOCUS. On the back there are the following connections.

12VDC - Jack to which connect a power supply 220VAC / 12VDC min. 2 A (not supplied). The power supply is not necessary if you use 12VDC - Jack to which connect a power supply 220VAC / 12VDC min. 2 A (not supplied). The power supply is not necessary if you use

the PoE power through the network cable (requires PoE switch or PoE injectors)

RJ45 - RJ45 connector to connect the network. Use CAT5 cableRJ45 - RJ45 connector to connect the network. Use CAT5 cable

MICRO SD - Slot to insert a MicroSD card to save aboard the same camera imagesMICRO SD - Slot to insert a MicroSD card to save aboard the same camera images

AUDIO - This 3.5 mm jack lets you connect a microphone for sound environmental recovery. The camera is also equipped with a built-in AUDIO - This 3.5 mm jack lets you connect a microphone for sound environmental recovery. The camera is also equipped with a built-in

microphone. The use of incroporato microphone or the external microphone is set in programming.

conversation between the person in front of the camera and the operator in front of the client PC.

GPIO - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal functions GPIO - This terminal is used to connect the inputs and outputs to control local alarm and signaling contacts. The terminal functions

are as follows PIN

RIFER. DESCRIPTION

1 GND 4 the alarm digital inputs for connecting sensors or external contacts.

2 DI4 The ON / OFF type contacts are connected between the input terminal and the GND.

3 4 DI3

DI2 5

DI1 6

GIFT Alarm output normally open (NO). It is a relay contact able to control an external device. The max.

drivable current is 130mA. To drive of greater absorption equipment resorting to an external relay.

7 COM
