DTK PRM-23I E1 Bedienungsanleitung

PRM-23I E1

High Performance

Socket370/Pentium II

PCI/AMR Mainboard

User’s Guide

Edition 3.00

P/N: 155100-8840

WARNING

For the system to operate normally, please make sure JP2 of the mainboard is set as below.

Refer to Fig. 2 in this manual for the location JP2.

If JP2 is shorted to 2-3, no CMOS data can be retained.

CAUTION

The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-

free workstation.

Be sure to unplug the power code of the system when installation or upgrade with any

devices for the system.

POWER OFF

It needs to hold the power switch 4 seconds to turn off the power, if “Delay 4 sec”selected in

Power Management Setup of BIOS.

Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.

Novell, Netware are trademarks of Novell, Inc.

Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corporation.

PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.

UNIX is the trademark of AT&T.

Intel 810 and Pentium II are registered trademark of Intel Corporation.

All other brand and product names are trademarks or registered trademarks of their

respective companies.

The information presented in this publication has been carefully checked for reliability;

however, no responsibility is assumed for inaccuracies, whereas, specification is subjected to

1 2 3

JP2

change without notice.

III

CONTENTS

CHAPTER 1 INTRODUCTION 1

CHAPTER 2 JUMPER SETTINGS 5

2.1 JUMPERS PRESENTATION 5

2.2 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 6

2.3 CPU SPEED 7

2.4 JP1 - ONBOARD ETHERNET SELECT 8

2.5 JP2 - CLEAR CMOS DATA 8

2.6 JP3 - BIOS LOCK/UNLOCK SELECT 8

2.7 JP6 - KEYBOARD/MOUSE POWER SELECT 9

2.8 RESERVED JUMPERS 9

2.9 MEMORY CONFIGUARTION 9

CHAPTER 3 CONNECTOR CONFIGURATION 11

3.1 J1 –MULTIPLE FUNCTION JUMPER 12

3.2 J2 –USB HUB EXTENSION FOR USB2 & 3 12

3.3 J3 –USB HUB EXTENSION FOR USB4 12

3.4 J4 –SYSTEM FAN CONNECTOR 12

3.5 J5, J6 –PRIMARY /SECONDARY IDE CONNECTORS 13

3.6 J7 - FLOPPY DRIVE CONTROLLER 13

3.7 J8 –CPU FAN CONNECTOR 13

3.8 J9 –POST LED 13

3.9 J10 –CUSTOMER IR CONNECTOR 13

3.10 J11 –CD-ROM AUDIO CONNECTOR (SONY) 14

3.11 J12 –CD-ROM AUDIO CONNECTOR (MISUMI/PANASONIC) 14

3.12 J13 –TV AUDIO IN CONNECTOR (RESERVED) 14

3.13 J14 –SERIAL PORT COM2 CONNECTOR 14

3.14 J22 - ATX POWER SUPPLY CONNECTOR 15

3.15 J23 –LCD/TV OUT CONNECTOR 15

3.16 AMR –AMR SLOT 17

3.17 SLOT1 –SLOT FOR PENTIUM II/III CPU 17

3.18 U1 –SOCKET370 FOR CELERON CPU 18

3.19 J16 –AUDIO/MIDI PORT CONNECTOR 18

3.20 J17 –PARALLEL PORT CONNECTOR 18

3.21 J18 –VGA CONNECTOR 19

3.22 J19 –SERIAL PORT COM1 19

3.23 J20 –UNIVERSAL SERIAL BUS PORTS 0 & 1 19

3.24 J21 –PS/2 KEYBOARD CONNECTOR 19

3.25 J21 –PS/2 MOUSE CONNECTOR 19

3.26 RETENTION MECHANISM KITS INSTALLATION GUIDE 20

CHAPTER 4 AWARD BIOS 22

CHAPTER 5 DRIVER INSTALLATION 24

5.1 VGA ON BOARD DRIVERS INSTALLATION 24

5.2 IDE DRIVERS INSTALLATION 25

5.3 AUDIO/AC97 ON BOARD DRIVERS INSTALLATION 25

CHAPTER 6 FLASH AND DMI UTILITY 26

6.1 AWARD FLASH UTILITY 26

6.2 DESKTOP MANAGEMENT INTERFACE (DMI) OVERVIEW 28

APPENDIX A QUICK GUIDE 32

CHAPTER 1 INTRODUCTION

Preface

The motherboard is a 4 layers, microATX form factor high performance PCI/AMR mainboard

with Socket 370 or Slot 1 CPU on one board. It includes Intel 810DC100 or 810E system

chipset, Realtek 10/100M EtherNet controller, Winbond USB HUB & Winbond W83627HF

LPC I/O controller on board.

Features

•Intel® Accelerated Hub Architecture Increased I/O performance allows better

concurrency for richer multimedia applications.

•Integrated graphics/AC97 controller BOM cost savings, more flexibility and better audio

quality.

•Intel® 3D graphics with Direct AGP Vivid 2D and 3D graphics, BOM cost savings,

efficient use of system memory for graphics, O/S and applications

•Optional 4MB of dedicated display cache video memory enables SKU differentiation

with increased 3D graphics performance improvement over Direct AGP.

•Low-power sleep modes Energy Savings, Suspend to DRAM (3 Watts), and On Now in

10 seconds approx..

•One software driver code base more stable platform, higher quality graphics, reduced

OEM support costs.

•Intel® Random Number Generator (RNG) enables ISV's to strengthen security products.

•Digital Video Out port allows connection of traditional TV or new digital flat panel

displays; compatible with DVI specification.

•Soft DVD MPEG 2 playback with Hardware Motion Compensation Life-like video and

audio.

•66/100/133MHz System Bus capable Flexibility for performance headroom.

•2 USB ports Plug and Play, and 3 more USB ports extension optional.

•AMR Slot supported for low cost Soft Modem card expand.

•TLR Slot supported for TV-LCD interface extension optional.

•10/100Mb EtherNet on board optional, with PC99 compliant.

•Socket370 or Slot1 exist on one Micro ATX mainboard.

Processor

•Intel Socket370 or Pentium II/IIIseries.

•The mainboard can run with following speeds:

300-550MHz for Socket370/Pentium II CPU

Above 550MHz for Pentium III CPU

•Jumperless CPU HOST frequency

Chapter 1

Chipset

•Intel 810DC100 or 810E chipsets & 82801AA ICH

•Winbond W83627HF LPC I/O Controller

•Winbond W81181D USB HUB

•Realtek RTL8139B 10/100Mb EtherNet Controller

Main Memory

•Memory configurations up to 512MB SDRAM

•DIMM socket for SDRAM (3.3V unbuffered).

•Support both Synchronous DRAM and Extended Data Output (EDO) Mode DRAM

Modules.

•ECC Function ensure data correction and integrity.

Multi I/O

•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.

•Serial ports are 16550 Fast UART compatible.

•Parallel port has EPP and ECP capabilities.

•PS/2 keyboard and PS/2 mouse connector is provided.

•Keyboard /mouse wake-up by programmable buttons.

•Programmable AC Power Failure Recovery.

•IrDA supported.

•2 or 5 USB supported.

PCI IDE

•On board supports PCI Master IDE Controller, two connectors support up to four IDE

devices such as HDD, CD ROM drive and Tape Back-up drives, etc.

•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can

be up to 16.6MB/s.

•Ultra DMA Mode supported. Transfer rate can be up to 66MB/s.

System BIOS

•Award BIOS (4M FWH).

Slots

•One AMR slot

•Three PCI slots

•One TLR TV-Out/LCD Extension slot (optional)

Form Factor

•microATX Form Factor Size (244mm x 214mm) 4 Layers

Introduction

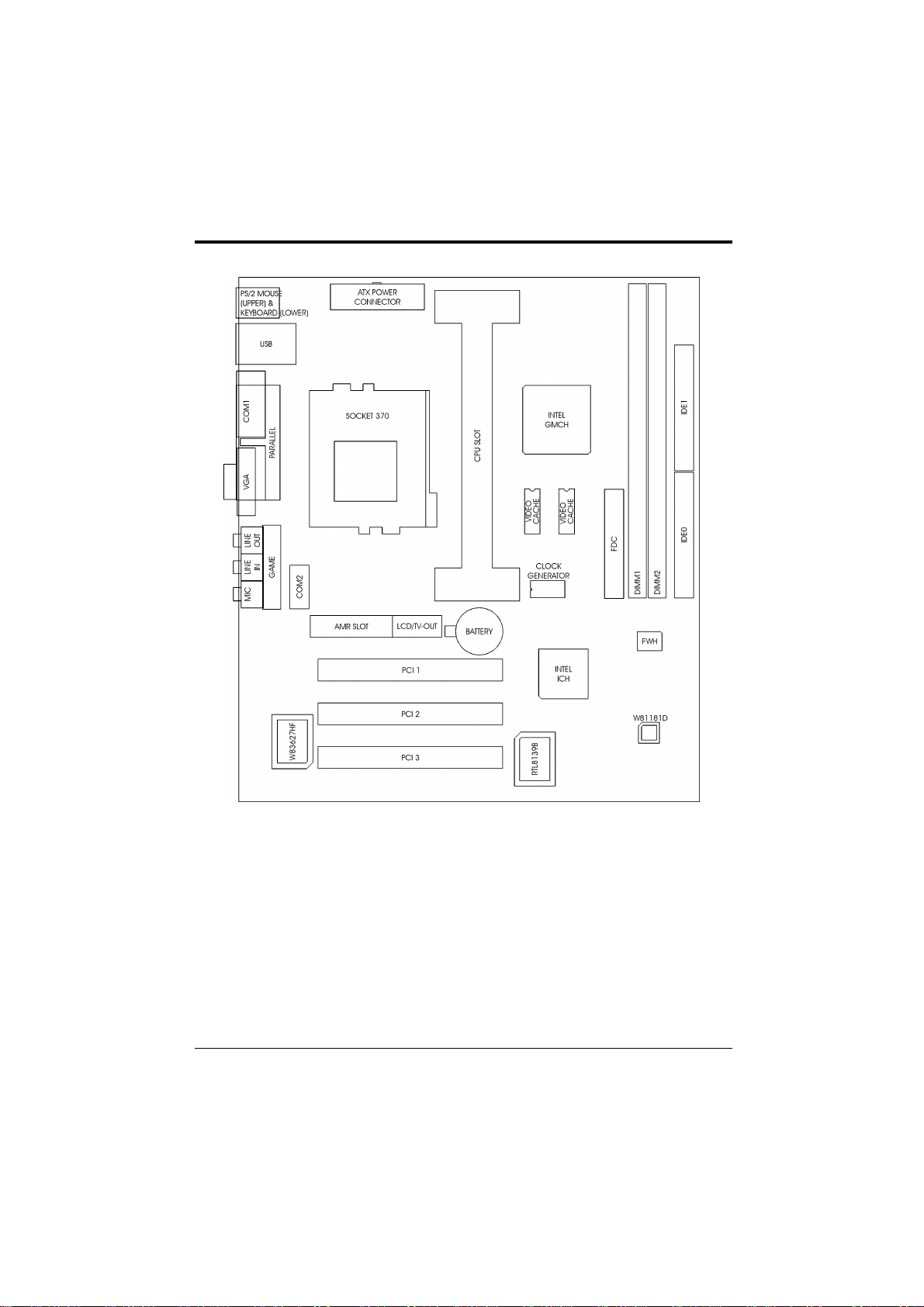

Fig. 1 Key Components of the Mainboard

Chapter 1
