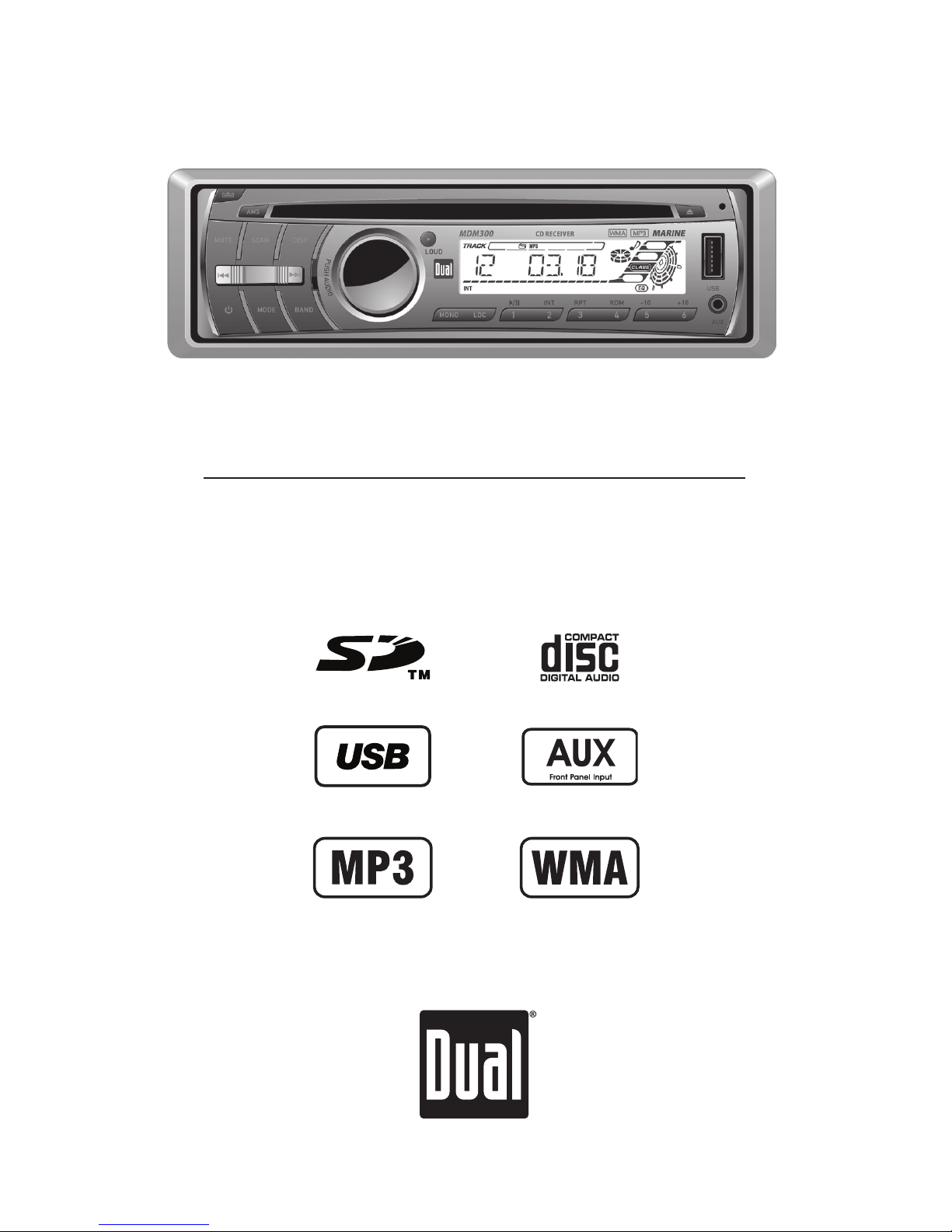

INSTALLATION/OWNER'S MANUAL

CD Marine Receiver

MDM300

MDM300 INSTALLATION

TYPICAL MOUNTING METHOD

REMOVAL KEYS

MOUNTING SLEEVE

Preparation

Please read entire manual before installation.

Before You Start

•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.

•Avoidinstallingtheunitwhereitwouldbesubjecttohightemperaturesorwhereit

wouldbesubjecttodust,dirtorexcessivevibration.

Getting Started

•Remove2transitscrewslocatedontopoftheunit.

•Insertthesuppliedkeysintotheslotsasshown,andslidetheunitoutofthemounting

sleeve.

•Installmountingsleeveintoopening,bendingtabstosecure.

•Connectwiringharnessandantenna.Consultaqualifiedtechnicianifyouareunsure.

•Testforcorrectoperationandslideintothemountingsleevetosecure.

•Snaptrimringintoplace.

Mountingsleeveopeningdimensions

7-11/64"x2-3/32"(182mmx53mm)

MDM300 INSTALLATION

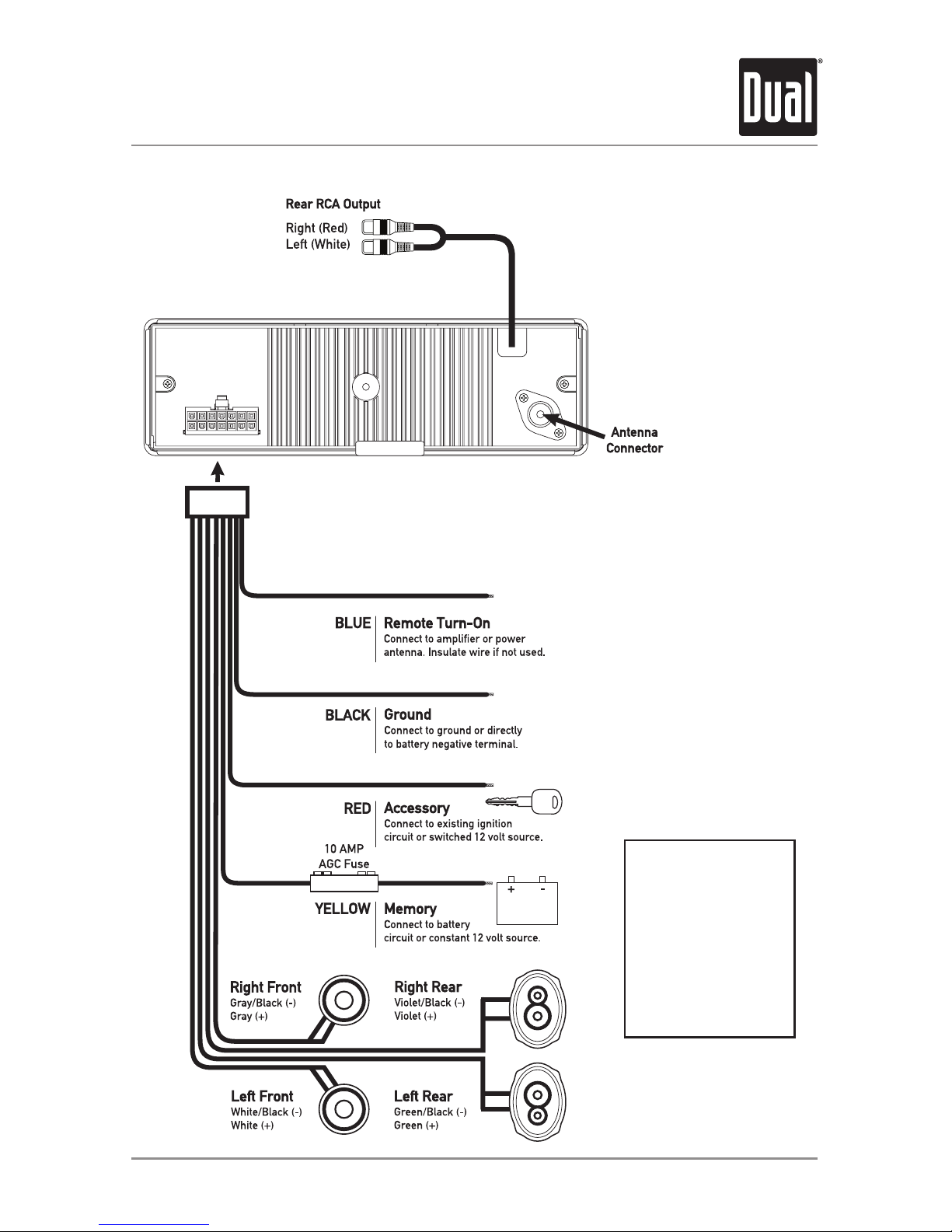

Wiring Diagram

FUSE

Whenreplacingthefuse,

makesurenewfuseisthe

correcttypeandamperage.

Usinganincorrectfuse

coulddamagetheradio.The

MDM300usesone10amp

AGCfuselocatedin-line.

MDM300 OPERATION

Control Locations - Receiver

Preset4/Random

Preset3/Repeat

Preset2/Intro

Preset1/Play/Pause

Local/Distance

Mono/Stereo

Tune/TrackUp

Band

Mode

Power

Tune/TrackDown

Release

Mute

AMS

Scan

Display

Audio/VolumeKnob

Loudness

Eject

USBInput

AuxiliaryInput

Preset6/+10Skip

Preset5/-10Skip

1 2 3456 7 8

113

2 14

3 15

4 16

517

618

7 19

8 20

1923 10

18 17 16 15 14 13 12 11202122

MDM300 OPERATION

Control Locations - Remote

Mute

Preset6/+10

Preset5/-10

Preset4/Random

Preset2/Intro

Preset1/Play/Pause

Mode

Band

Tune/TrackDown

Power

VolumeUp

Select

Tune/TrackUp

VolumeDown

Scan

Display

Loudness

Preset3/Repeat

110

2 11

312

413

514

615

7 16

817

918

MDM300 OPERATION

Press RELEASEandpullawayfromtheleftsidetoremove.

Tore-install,insertrightsideoffaceplatefirstthenpush

leftsidetosecure.

Press oranyotherbutton(exceptEJECT)toturntheunit

on. Press toturntheunitoff.

Press MODEtoselectbetweenAM/FM,CDplayer,auxiliary,

USBandSDcard.Modesofoperationareshowninthe

display.

NOTE:CD,SDandUSBmodeswillnotappearunlessaCD,

SDCardorUSBdeviceisinserted.

TheMDM300a3.5mmauxiliaryinputportonthefrontpanel

oftheunitforconnectinganaudiodevice,MP3player,etc.

Press MODEtoselectauxiliaryinputmode.

Adjustvolumeusingvolumeknob(0-47).

Press LOUDtoactivatetheLoudnessfunction.Activating

Loudnesswillenhancethebassandtreblefrequencies

whenlisteningtomusicatlowvolumes.

Press DISPtoshowtheclock.DuringplaybackofMP3/WMA

files,ID3taginformation,elapsedtime,tracknumberand

file/foldernameswillautomaticallyalternateonthedisplay.

Press RESETuponinitialinstallationorifabnormal

operationoccurs.Resetbuttonislocatedbehindthefront

panel.

Withtheuniton,pressandholdDISPuntiltheclockbegins

toflash,thenrelease.Turnthevolume knobtotherightto

adjustthehoursortothelefttoadjusttheminutes.

Theclockwilldisplay12-hourAM/PMtimeinUSAfrequency

spacingmode(PM10.00).InEuropeanfrequencyspacing

mode,theclockwilldisplay24-hourtime(22.00).

Pressandholdthevolume knobformorethan3seconds

toaccessthesetupmenu.Pressvolume knobmomentarily

toselectbetweenthemenufunctionsandrotatethevolume

knobleft/righttoadjustoractivatethedesiredfunction.

Faceplate Removal

Power On/Off

Mode

Auxiliary Input

Volume

Loudness

Display

Reset

Set the Clock

12/24-hour Clock

Setup Menu

General Operation

MDM300 OPERATION

General Operation - Setup Menu

Menu Function Options Action

Equalizer DSP Togglesbetweenthefollowingequalizationoptions:OFF,

POP,ROCK,CLASSandFLAT).

Beep

Confirmation

BEEPOFF Disablestheconfirmationbeep.

BEEPON Enablestheconfirmationbeep.

Seek Priority SEEK1 Enablesseektuningpriority.

SEEK2 Enablesmanualtuningpriority.

Programmable

Turn On Volume

VOLLAST Programsunittoalwaysturnonatthelastvolumeselected

beforeitwasturnedoff.

VOLADJ Programsunittoalwaysturnonataspecificvolume.Any

volumelevel1-47canbeselected.

*Tuner

Frequency

Spacing

FREQUSA ProgramstheunittoUSAtunerspacing.

(200kHzforFMand10kHzforAM).

FREQEUR ProgramstheunittoEuropeantunerspacing.

(50kHzforFMand9kHzforAM).

*TunerFrequencySpacingisonlyselectablefromTunermode.

MDM300 OPERATION

Press AUDIOmomentarilytoselectbetweenBass,Treble,

BalanceandFader.

Press AUDIO until BASappearsthenrotatevolumeknob

left/righttoadjust(-7minimum/+7maximum).

Press AUDIO until TREappearsthenrotatevolumeknob

left/righttoadjust(-7minimum/+7maximum).

Press AUDIO until BALappearsthenrotatevolumeknob

left/righttoadjust(BAL10L-BAL10R).

BALEVENrepresentsequalbalance

Press AUDIO until FADappearsthenrotatevolumeknob

left/righttoadjust(FAD10R-FAD10F).

FADEVENrepresentsequalfader

Audio

Bass

Treble

Balance

Fader

General Operation

BASS TREBLE BALANCE FADER

MDM300 OPERATION

Seek Tuning

Manual Tuning

Scan Tuning

Band

Storing and Recalling

Station Presets

Automatically Store

Stations

Preset Scan

Distance Tuning

Stereo / Mono

Press TUNE

or TUNE

momentarilytoseektothe

nextstrongstation.

PressandholdTUNE

or TUNE

until"MANUAL"

appears,thenpressTUNE

or TUNE

momentarily

tochangeradiofrequencyupordownonestepatatime.

Pressandholdtoadvancequickly.

Note:Seekandmanualtuningfunctionsarereversedif

SeekPriorityissettoSEEK2inthesetupmenu(referto

page7fordetailsonsettingSeekPriority).

Press SCANmomentarilytolistentothenextstrongest

stationfor5seconds.PressSCANagaintocancel.

Press BANDtoselectbetweenFM1,FM2,FM3,AM1and

AM2bands.

Upto18FMstationsand12AMstationscanbestored.To

storeastation,selectthedesiredbandandstation.Press

andholdthedesiredpresetbutton(1-6)formorethan

2seconds.Whenstored,thepresetnumberwillappearin

thedisplay.Thestationcanberecalledanytimebypressing

thecorrespondingpresetbutton.

Press AMSformorethan2secondstoautomaticallystore

allstrongeststationsinthecurrentband.

Afterthesixstrongeststationsareset,ascanofeach

storedpresetwillbegin.PressAMS or TRACK

cancel.

Press AMSmomentarilytoscanpresetstationsforfive

secondseach.Toselectastationduringthescan,press

AMSagainorpressthecorrespondingpresetbutton.

Press LOCtoselectbetweenLocalandDistancetuning.

SelectingLOCALprogramstheunittostopatonlystrong

stationswhenseektuning.

Press MONOtoselectMonoorStereooperation.Selecting

MONOcanimprovelisteninginareaswithaweakFM

signal.

AM/FM Tuner Operation

MDM300 OPERATION

Insert CD

Eject CD

Track Select

Fast Forward/Reverse

Pause

Intro

Repeat

Random

CD-R/CD-RW

Compatibility

Withthelabelfacingup,insertastandardsizeCDintothe

CDslot.TheCDwillautomaticallybeginplayback.

Press EJECTtoejecttheCD.Theunitwillchangeto

previousmodeofoperation.Ifthediscisnotremoved

within10seconds,theunitwillreloadthedisc.Theunit

doesnothavetobeturnedontoejectCD.

Press TRACK

toskiptothebeginningofthenext

track.PressTRACK

toreturntothebeginningofthe

currenttrack.PressingTRACK

againskipstothe

beginningoftheprevioustrack.

PressandholdTRACK

or TRACK

tofastforward

orreverseatrack.

Press

totemporarilystopCDplayback.

Press

againtoresumeplayback.

Press INT toplaythefirst10secondsofeachtrack.Press

INT againtoturntheIntrofunctionoff.

Press RPT tocontinuouslyrepeatsselectedtrack.Press

RPT againtoturntheRepeatfunctionoff.

Press RDM toplayalltracksinrandomorder.PressRDM

againtoturntheRandomfunctionoff.

SomeCD-RsandCD-RWsmaybeincompatiblewiththis

unit,dependingonmediatypeandrecordingmethod.In

addition,thefollowingCDsmaybeincompatiblewiththis

unit:

CDsexposedtoextremetemperaturesordirectsunlight

forextendedperiodsoftime,CDsrecordedinwhicha

recordingsessionfailedorare-recordingwasattempted

and,orencryptedorcopy-protectedCDswhichdonot

conformtotheaudioCD-DAredbookrecordingstandard.

CD Player Operation
