Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Contents Page:

Part 2: Installation Instructions class 550-16-26 – Original Instructions

1. Scope of Delivery .............................................. 3

2. General and Transportation Safety .................................. 3

3. Setting the Working Level ........................................ 4

4. Electrical Connection

4.1 Checking the Nominal Voltage ....................................... 5

5. Pneumatic Connection .......................................... 6

6. Lubrication .................................................. 7

7. Sewing Test ................................................. 8

1. Scope of Delivery

The scope of delivery depends on your order.

Before proceeding to the installation, check whether all the necessary

parts are available.

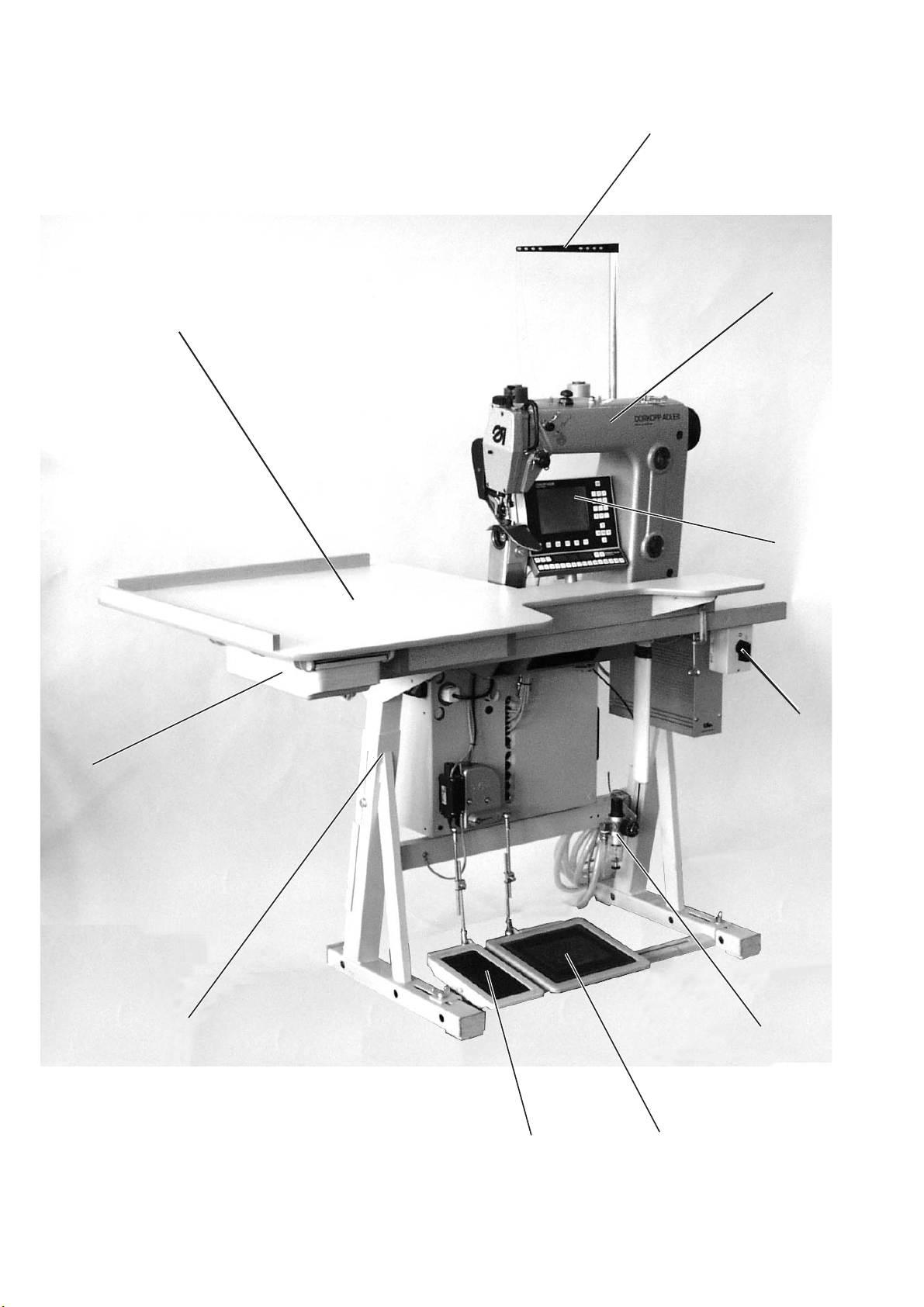

Equipment (as per subclass):

–1 Machine head

–2 Sewing light

–3Tabletop

–4Drawer

–5Stand

–6 Reel stand

–7 Control panel

–8Mainswitch

–9 Knee lever

–10 Conditioning unit

–11 Sewing motor

–12 Pedal rods

–13 Pedal

–14 Left pedal

–Small parts in the accessories

2. General and Transportation Safety

ATTENTION !

The special sewing machine should be installed exclusively by a

properly qualified staff.

If you have bought a placed special sewing machine, the following

transportation safeties have to be removed :

–Safety bands and the wood borders on the machine head and

table and stand.

–Safety block and bands on the sewing motor.

3 Setting the Working Level

–The working level can be set between 750 and 900 mm

(Measured up to the table top).

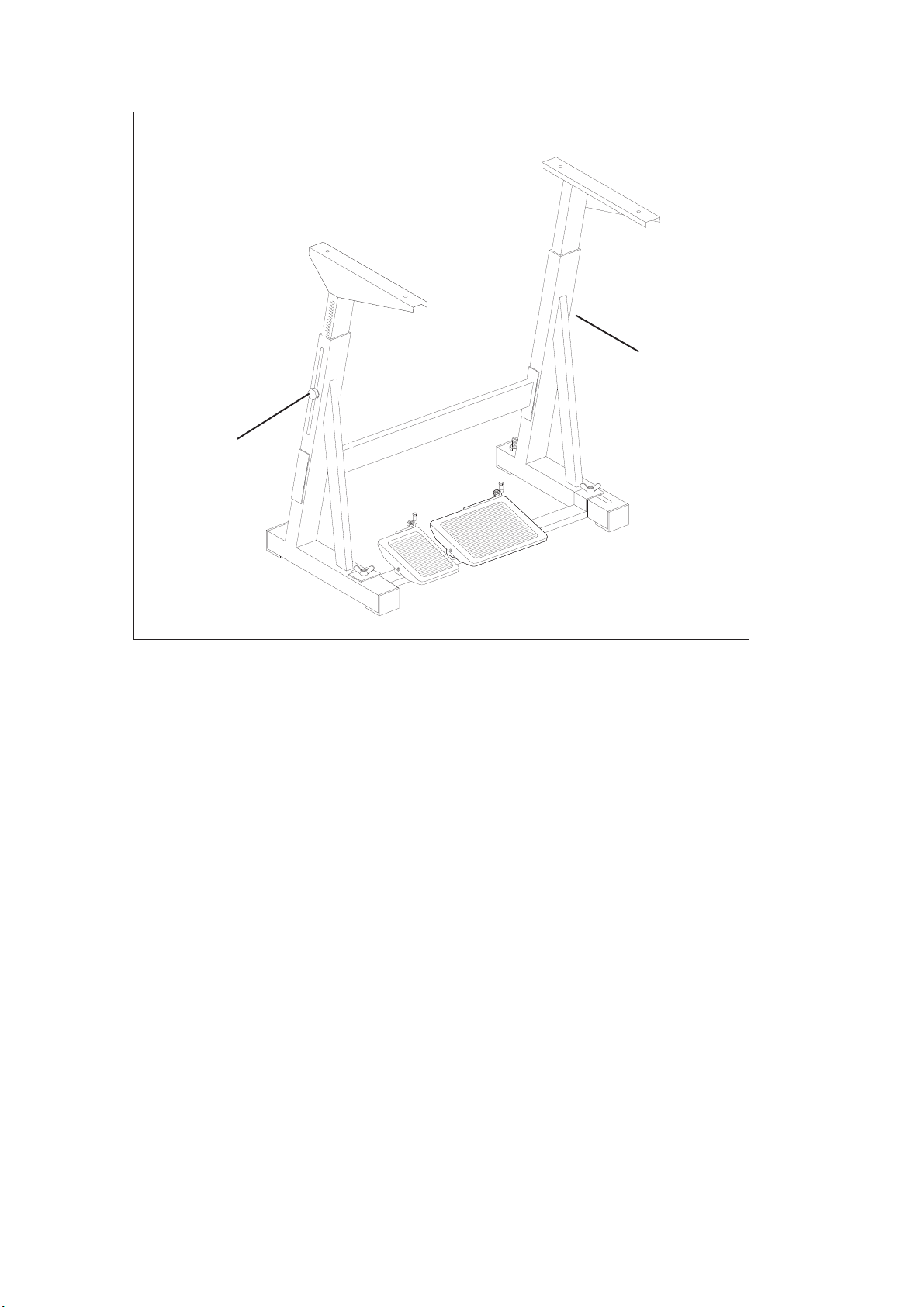

–Loosen the screws 1 on the sleepers of the stand.

–Set the table top so that it is at the desired level and in horizontal

position.

In order to avoid a jamming, push the table top in and out equally

on both sides.

–Tighten both screws 1.

4. Electrical Connection

ATTENTION !

Any work on the electrical equipment of the sewing unit should

be carried out exclusively by the properly qualified electricians or by

the

properly qualified staff!.

The mains plug must be pulled out.

It is absolutely necessary to respect the enclosed manufacturer’s

instructions for the step motor.

4.1 Checking the Nominal Voltage

ATTENTION !

The nominal voltage, stated on the type plate, should agree with the

local voltage!

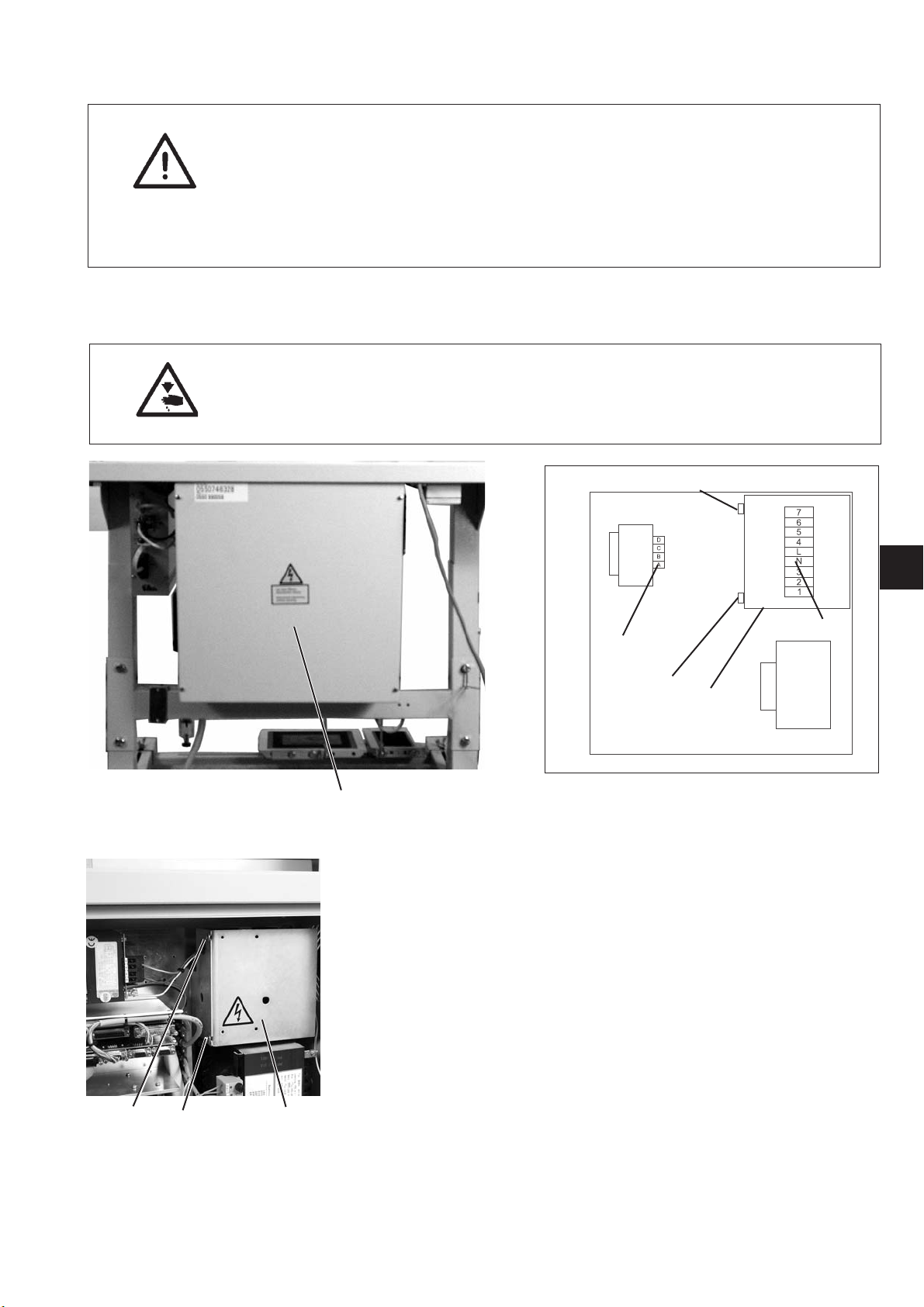

Use the terminal bar 3 and the transformer 6 in the control cabinet for

adapting to the local voltage.

–Screw off the cover 1 at the switch cabinet.

–Loosen the screws 2 and 5 and remove the guard 4.

–Check the arrangement of the connections on the terminal bar 3

and on the transformer 6.

(See circuit diagrams)

–If necessary, change the connections according to the local

voltage.

–Re-assemble the guard 4 and screw on with the screws 2 and 5.

–Re-assemble the cover 1 on the switch cabinet and screw on.

25 4

5. Pneumatic Connection

ATTENTION !

A perfect function of the pneumatic elements will only be ensured if

the line pressure ranges between 8 and 10 bar.

The service pressure of the special sewing machine amounts to 6 bar.

Pneumatic connection kit

Under the reference number 0797 003031 it is possible to obtain a

pneumatic connection kit for stands with conditioning unit for

compressed air.

It includes the following components:

- Connection hose, 5 m long, (Ø = 9 mm)

- Hose nozzles and hose binders

- Coupling socket and coupling plug

Connecting the conditioning unit for compressed air

–Connect the conditioning unit for compressed air by the

connection hose 3 (Ø = 9 mm) and the hose coupling R1/4" to the

compressed air line.

Adjusting the service pressure

The service pressure amounts to 6 bar.

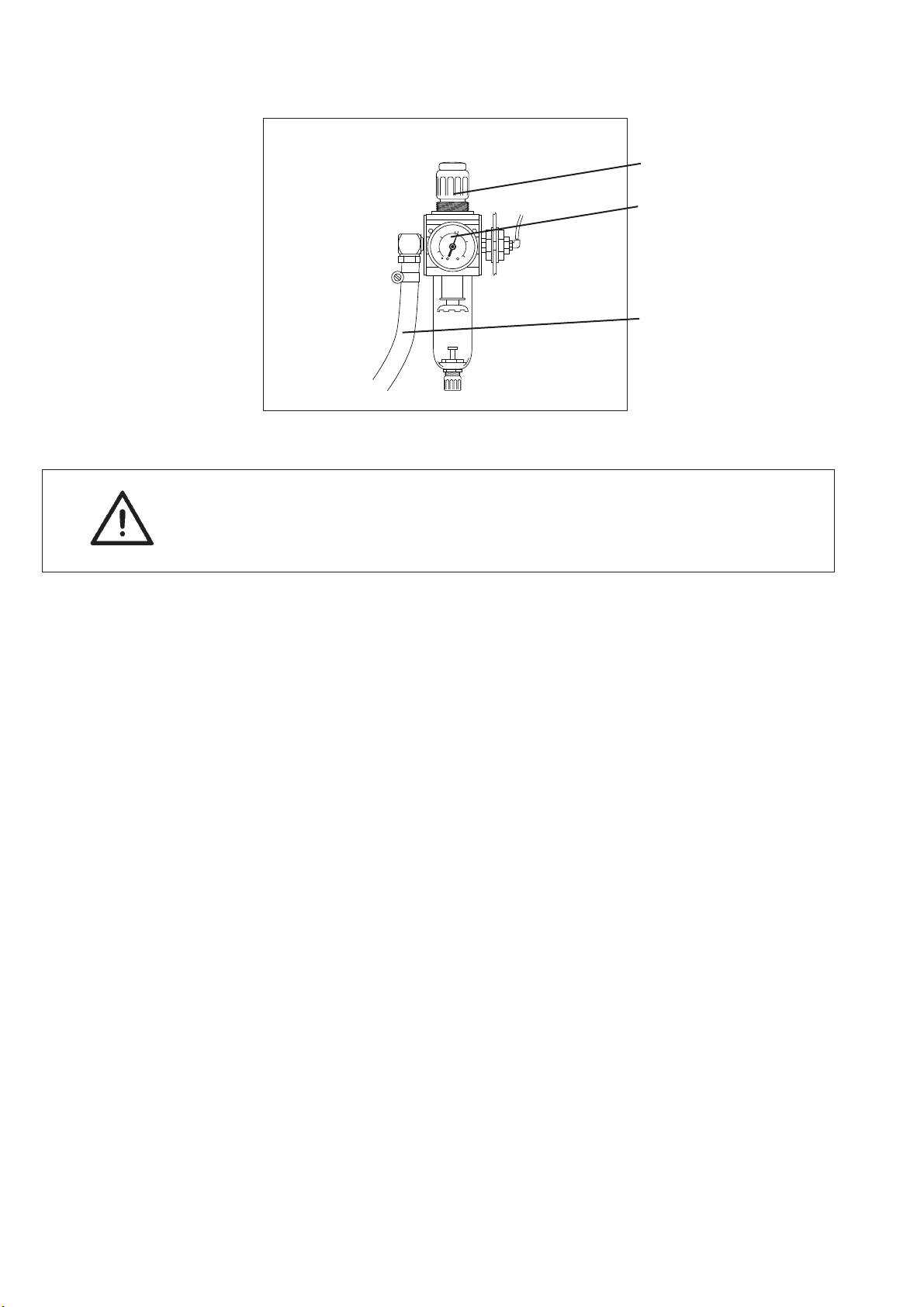

The service pressure is shown by the manometer 2.

–For adjusting the service pressure, lift the rotary handle 1 and turn

it.

For increasing the pressure = Turn the rotary handle 1 clockwise

For reducing the pressure = Turn the rotary handle 1

counter-clockwise
