Part 2: Installing instructions Kl. 745-26/ -28

1. Items supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Setting up the sewing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Removing the carriage safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.2 Movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.3 Adjusting working height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.4 Checking V-belt tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Attaching fitments removed for despatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.2 Thread pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.3 Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.4 Folder (working method A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.5 Folder and

gripper-folder (working methods B, C) . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.6 Table wideners (accessories) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.7 Stacker (accessory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.8 Suction device (accessory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1 Connecting the DAC operating panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.2 Checking rated voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.3 Checking positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5. Pneumatic connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6. Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7. Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1. Items supplied

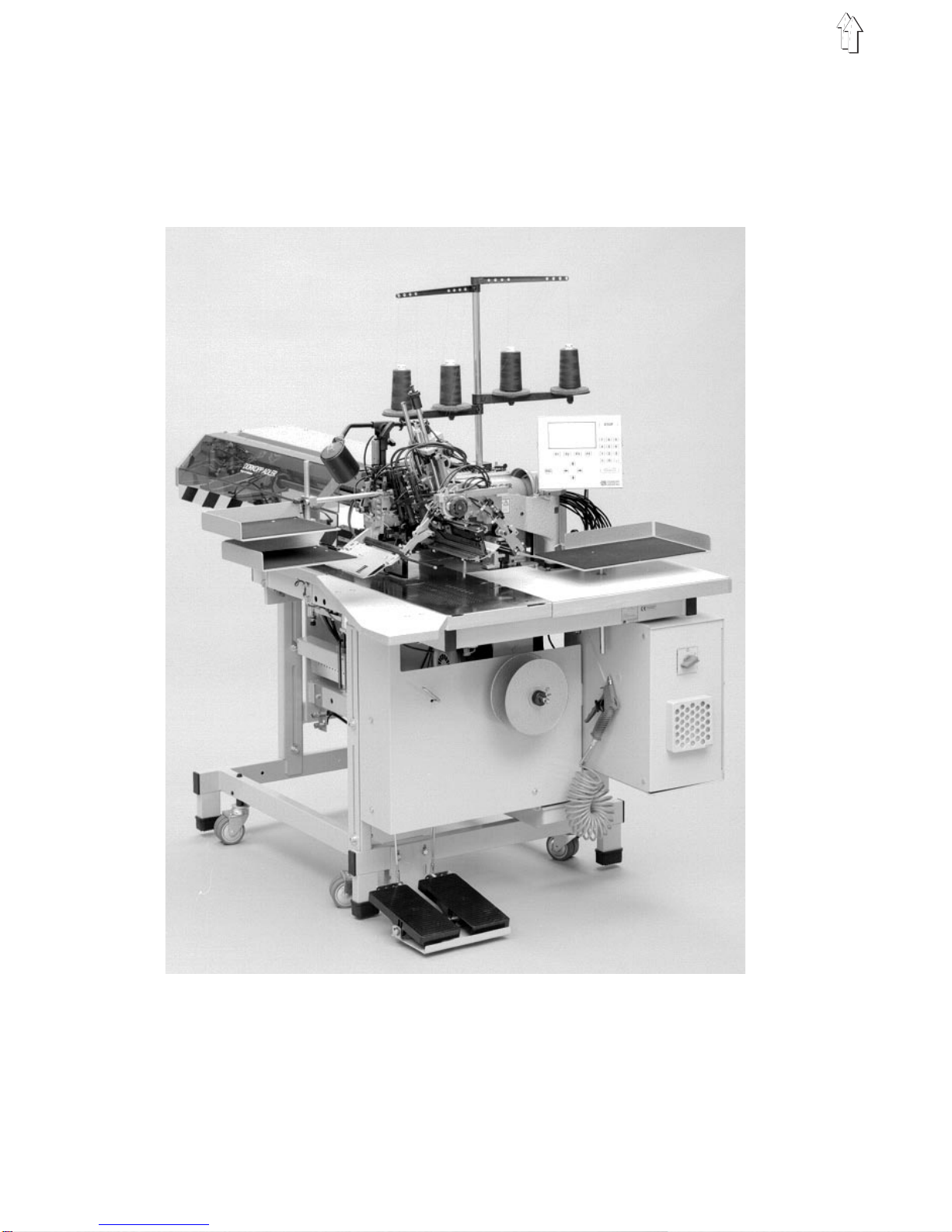

–frame with DC motor for the upper machine assembly

–stepping motors for handling material and for the longitudinal

adjustment of the trimming device

–class 935-246-00 twin-needle double-lockstitch machine

745-26: with component set 0935 745304 for joint needle-bar

switching

745-28:with component set 0935 745307 for separate needle-bar

switching

–DAC control device

–reflex light barrier for flap sensing

–two guide lamps for fabric placement

–sewing lamp

–compressed-air maintenance unit with compressed-air pistol

–thread pillar

–trays for items to be sewn on operator’s right and left

–tools and hardware set

2. Setting up the sewing machine

Attention!

The sewing machine may only be set up by specialist trained

personnel.

2.1 Removing the carriage safety device

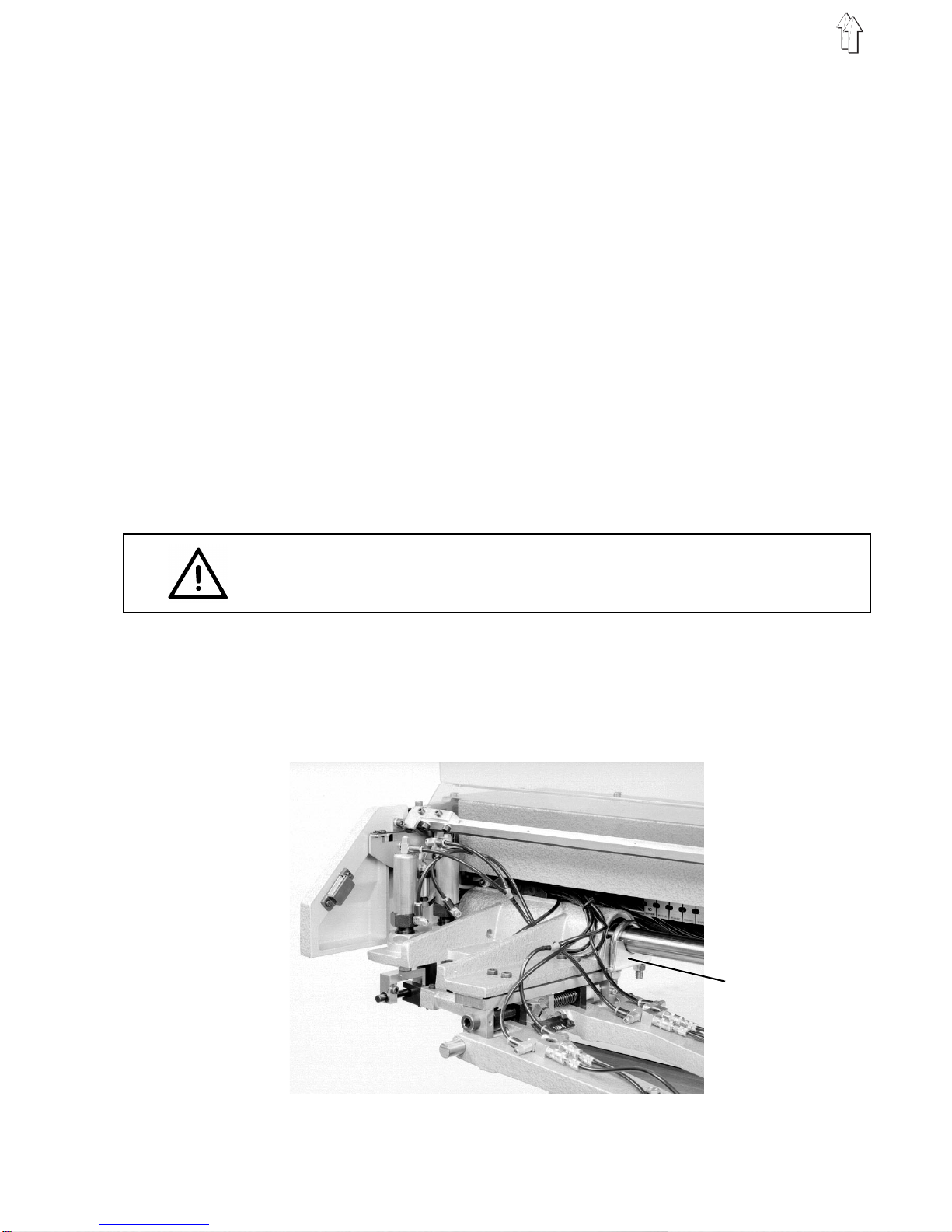

The carriage safety device 1 locks the carriage in its rearmost position.

It must be removed before the sewing machine is set up.

–Remove the carriage safety device 1 after undoing the nuts.

2.2 Movement

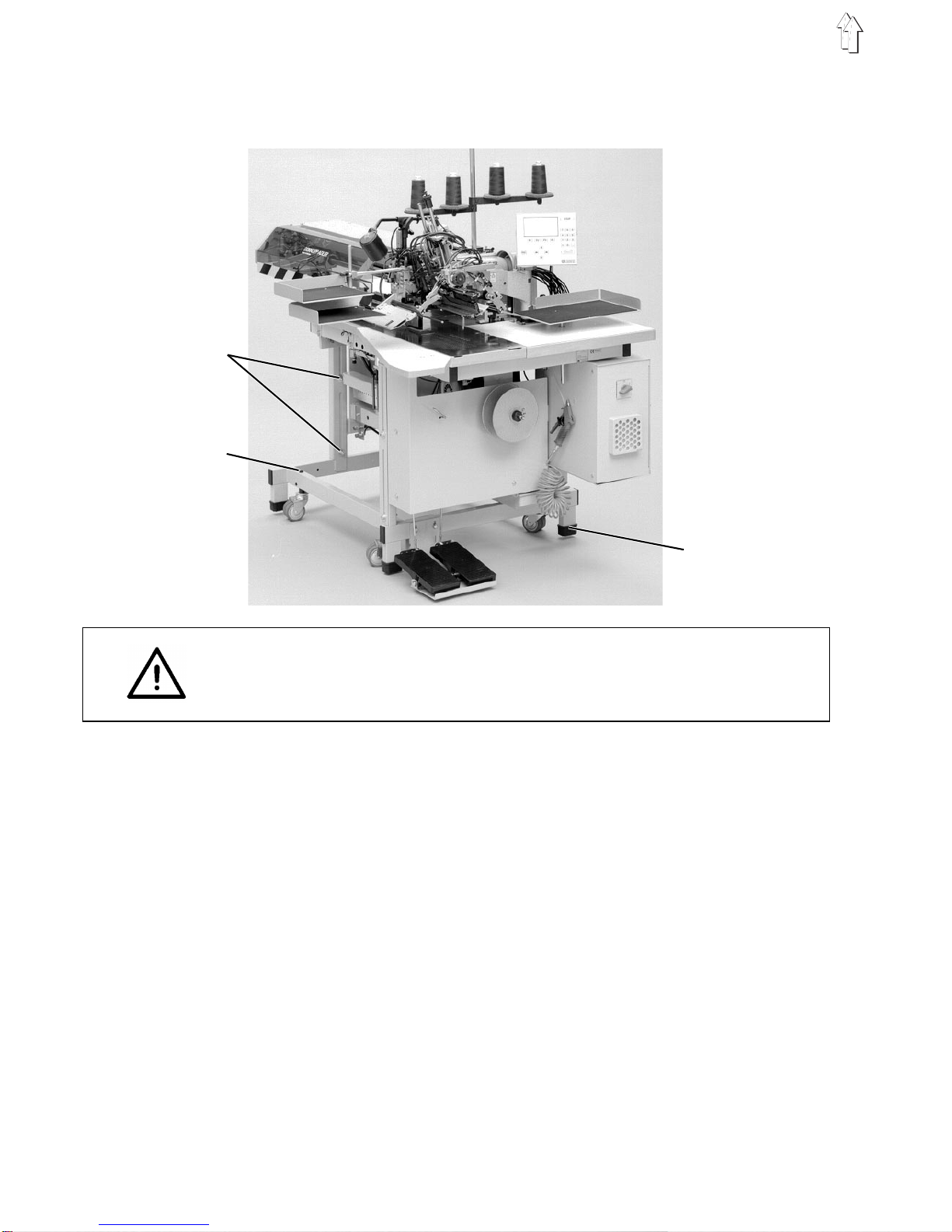

The sewing-machine chassis is fitted with four castors for movement

around the plant.

Attention!

Prior to commissioning the sewing machine the sound absorbers 3 (in

the tools and hardware set) must be fitted to the four chassis supports.

Reverse the castors so that the machine is motionless and stable.

–To move the machine extend the four castors by turning the

adjusting screws 2 to the left.

The chassis supports must have enough free floor space to allow

for movement.

–After moving the sewing machine, lower it by turning the

adjustment screws 2 to the right.

All four chassis supports must be firmly on the floor.

2.3 Adjusting working height

Working height can be adjusted between 87 and 110 cm (measured to

the top of the table plate).

It is set to the minimum of 87 cm prior to despatch.

–Undo locking screws 1 on all four spars of the chassis.

–Adjust the base plate to the required working height.

To prevent the base plate from tilting, pull it out (or push it in) by

the same amount on both sides.

–Tighten locking screws 1.

2.4 Checking V-belt tension

When the machine has been moved the V-belt tension (which is

pre-set prior to despatch) must be checked.

When the tension is correct it should be possible to depress the middle

of the V-belt 1 by about 10 mm by pressing on it with a finger.

Correcting V-belt tension:

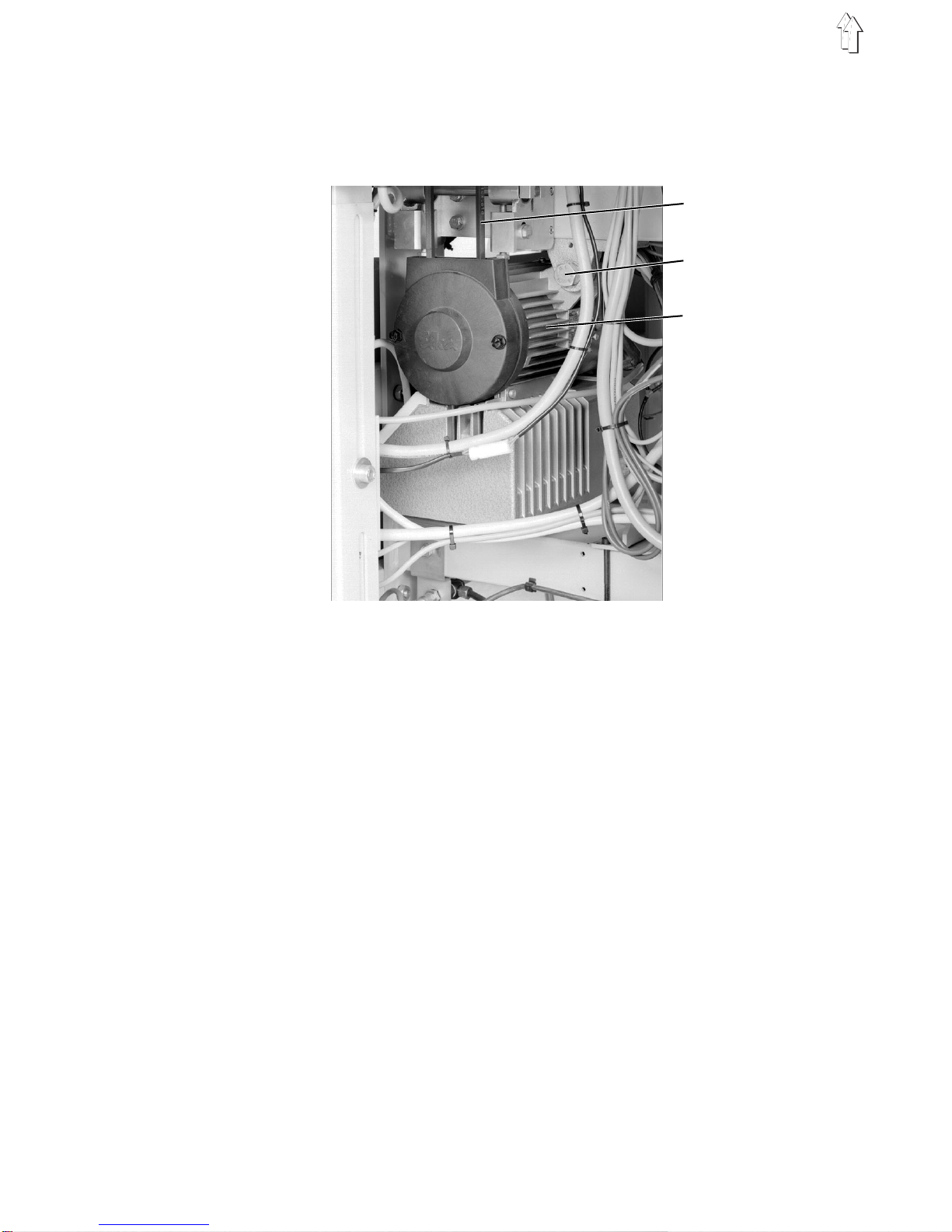

–undo screw 2

–swivel sewing drive 3 until the required V-belt tension is produced

–tighten screw 2

3. Attaching fitments removed for despatch

3.1 Pedal

Depending on the version, the sewing machine is equipped either with

a single pedal or with two (right and left).

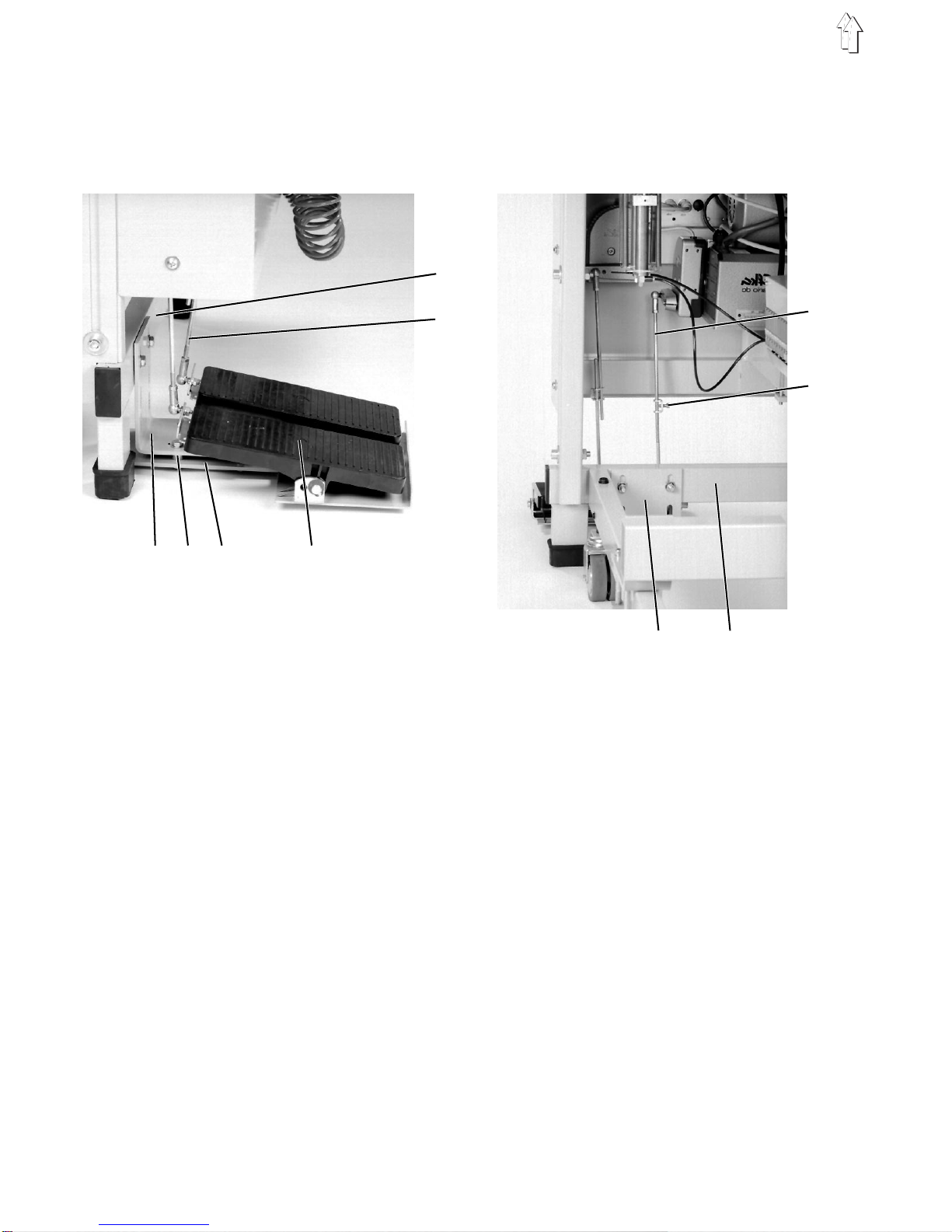

The pedal 4 is attached to the lower cross-member 5:

–Fix the pedal 4 to the lower cross-member 5 with the bracket 3.

The oblong slots in the bracket 3 enable the height to be slightly

adjusted.

Adjust the height of bracket 3 so that the pedal 4 can be easily

operated.

–The second bracket 1 (supplied) acts as a support.

Attach bracket 1 as shown in the illustrations,

placing the four separator rings 2 between brackets 1 and 3.

–Fit pedal linkage 6.

–Slightly loosen locking screw 7.

–Adjust the height of the pedal linkage 6 so that the pedal 4 is

horizontal when fully depressed.

–Tighten locking screw 7.

1 2 3 4

3 5

3.2 Thread pillar

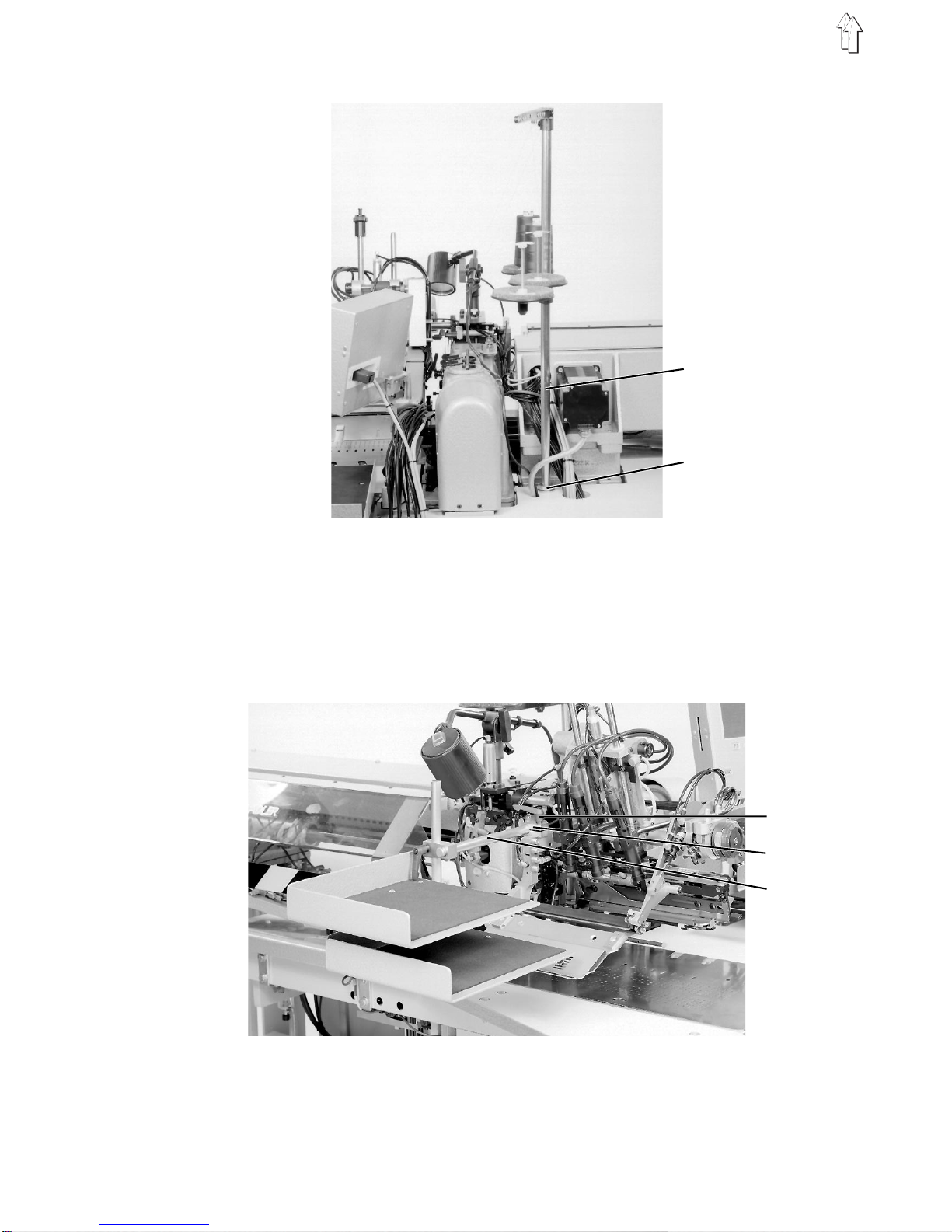

–Insert thread pillar 1 into the hole in the table plate and secure it

with nuts 2 and washers.

–Fit and align thread discs and unwinder arms as shown in the

illustration.

3.3 Trays

–Insert trays

with rod 5 into locking piece 4 and align.

–Tighten locking lever 3.

3.4 Folder (working method A)

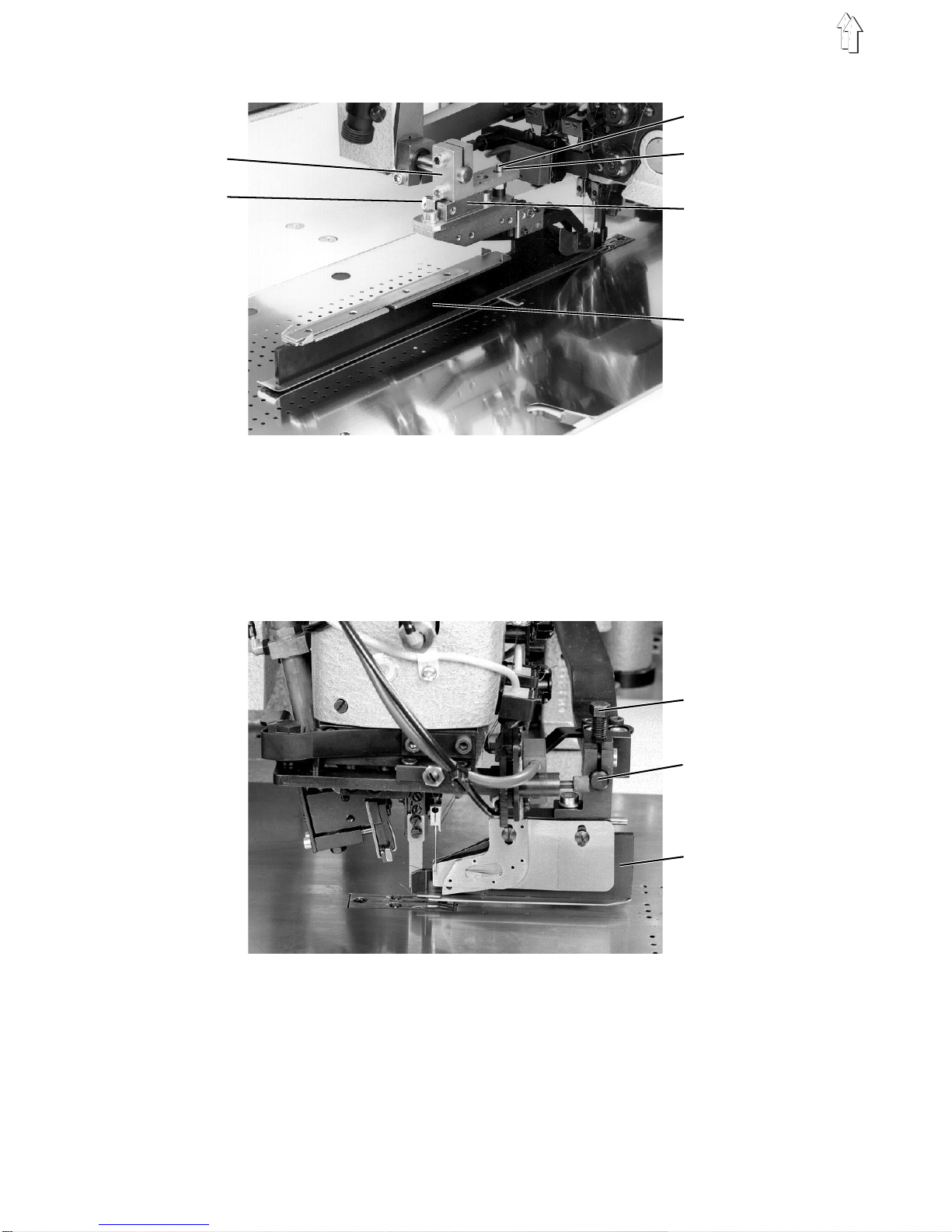

–Place Folder

6 with span bearing 5 on the mounting bolt of locking

piece 1 as far as it will go.

The pin 3 must enter oblong slot 4.

–Tighten locking screw 2.

The resulting setting will be as pre-set prior to despatch.

3.5 Folder and

gripper-folder (working method B, C)

Fixing the Folder

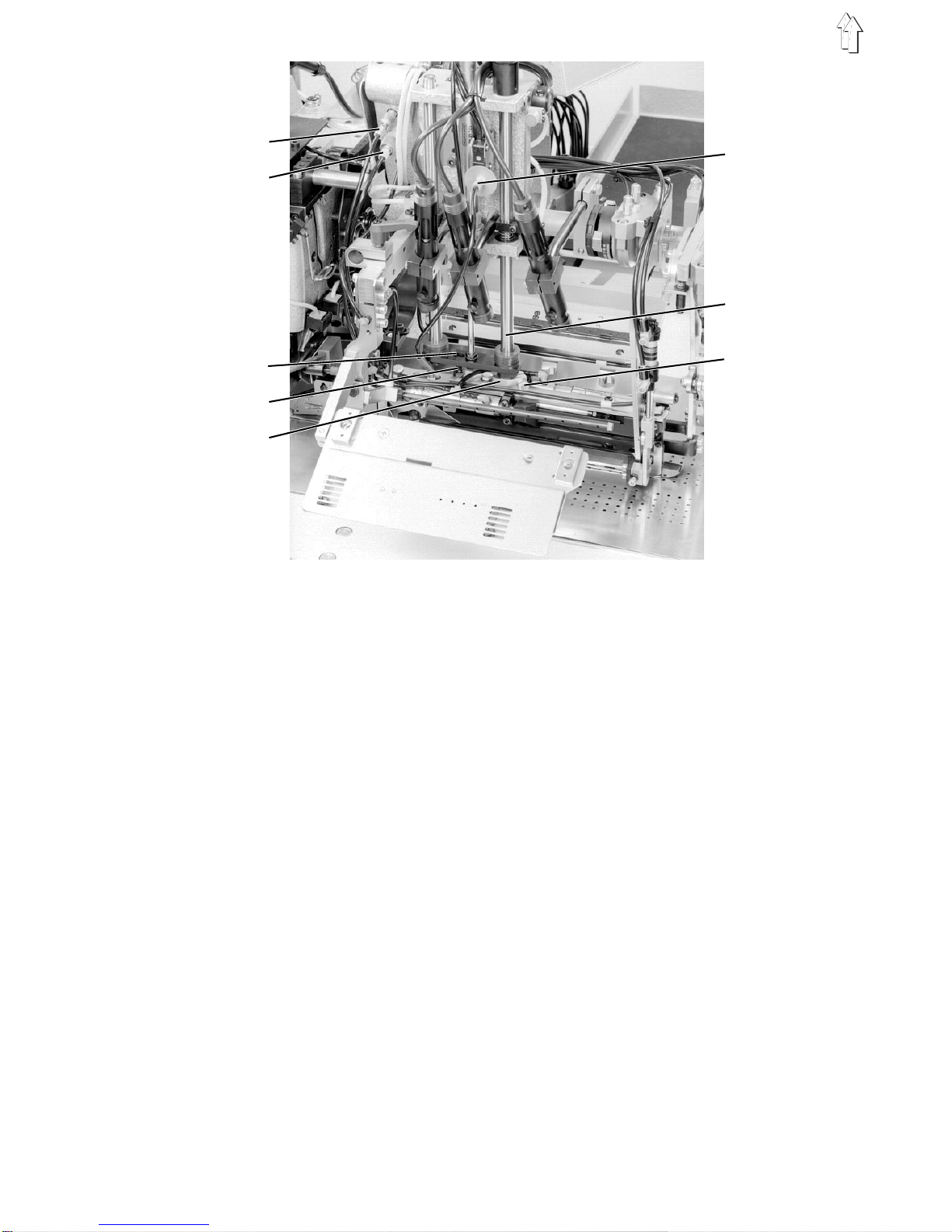

–swivel folding unit away to the side

–place Folder

3 on mounting 2

–tighten locking screw 1.

Mounting 2 incorporates a centering hole.

Tightening the locking screw 1 automatically brings about the

correct setting.

Fixing the gripper-folder

–swivel folding unit inwards

–push gripper-folder with mounting 5 onto rod 7 as far as it will go

The pin 4 must enter oblong slot 3.

–tighten locking screw 8

The resulting setting will be as pre-set prior to despatch.

–Insert compressed-air connection 6 for needle spreading.

–With working method C insert compressed-air connections 1 and 2

for braiding cutters.

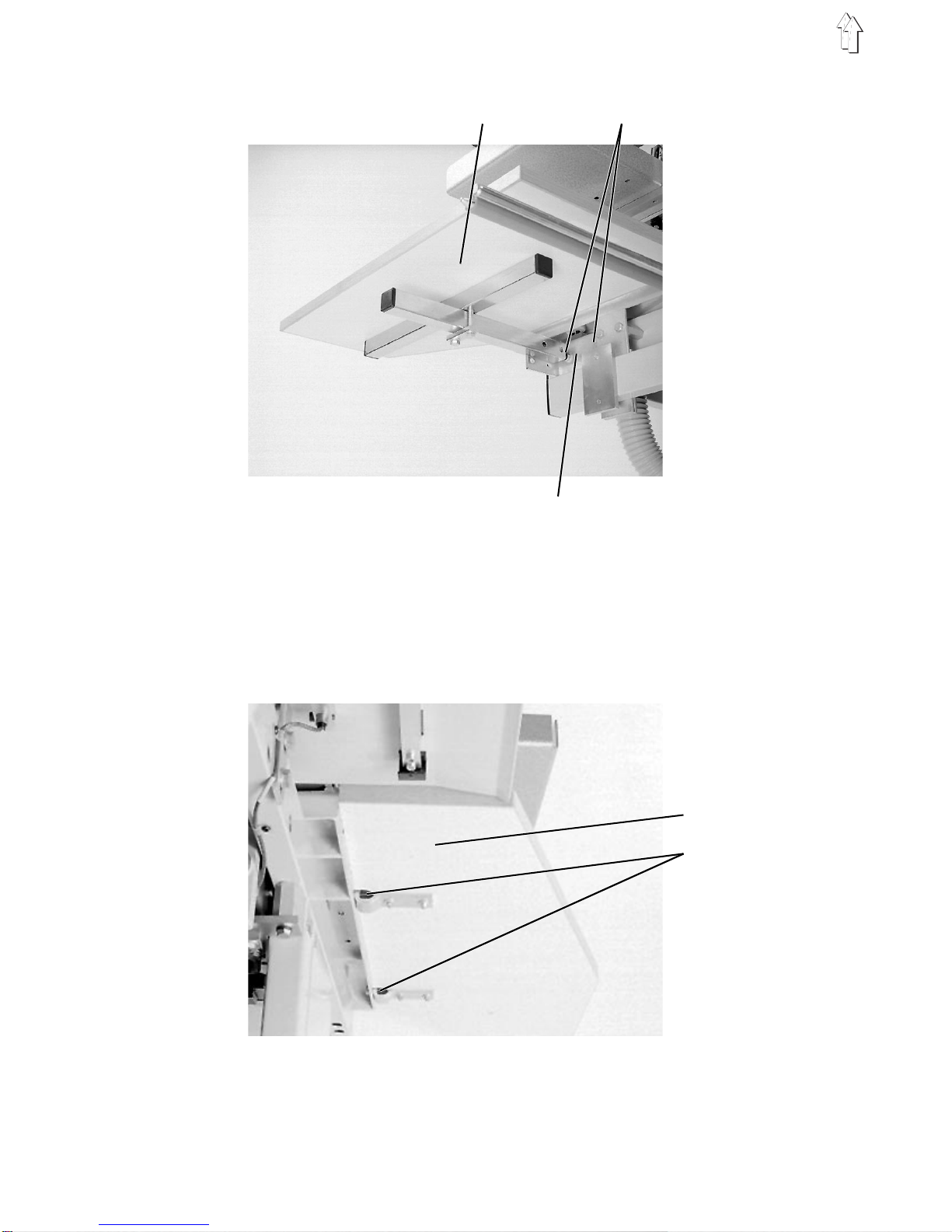

3.6 Table wideners (accessories)

Table widener for trouser seats (order no. 0794 002151)

–Attach table widener 1 with screws 2 and the strap located behind

the frame member 3.

–Slightly loosen the screws on the upper side of the table.

Push table widener 1 to create a gap between it and the table plate.

This gap is needed so that the pocket can pass freely through

once it has been placed in position.

Table widener for jacket fronts (order no. 0794 002101)

–Attach table widener 4 to support table with screws 5.

1 2
