NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 1 of 9

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes and Formulas Pg. 1

Distance Charts and Formulas Pg. 2

Ceiling Mount/Desktop Installation Pg. 3

Lens Shift Adjustable Range Pg. 4

Cabinet Dimensions Pg. 5-6

Lens Dimensions (Optional) Pg. 7

Ceiling Mount Dimensions and Input Panel Pg. 8

Control Codes Pg. 9

Product Description

Type

: 3 panel LCD projector,

Dimensions: 22.8”(W) x 8.2”(H) x 19.3”(D)

0.76 p-Si TFT w/MLA Weight: 40.1 lbs

Resolution: 1920 x 1200 (16:10) Brightness: 6500 Lumens

8000 Lumens

Fan Noise

: 39 dB / 33dB @ 1 meter

Power Consumption: 627W (max) BTU’s: 2131 BTU/hour

798W (max) 2713 BTU/hour

Network Ready, integrated wired and wireless adapter

Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP40ZL: Throw Ratio: 0.79 – 1.11:1 Focal Length: 13.3 – 18.6mm NP43ZL: Throw Ratio: 2.99 – 5.93:1 Focal Length: 49.7 – 99.8mm

Screen Sizes: 50”-150” F/#:2.0 - 2.

5 Screen Sizes:

50” - 500” F/#:2.2 -2.

NP41ZL: Throw Ratio: 1.30 – 3.02:1 Focal Length: 21.8 – 49.8mm

Screen Sizes: 50” - 500”

F/#:1.7 – 2.0

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using newly developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

 For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..

 Distances are in inches, for millimeters multiply by 25.4.

 Distances may vary 5%.

6765WUSS:

6780WUSS:

6765WUSS:

6780WUSS:

6765WUSS:

6780WUSS:

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 1 of 9

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

DUKANE CORP AV SERVICE DEPT

2900 Dukane Drive

St Charles, IL 60174

800-676-2487 / 630-762-4032

Fax 630-584-5156

[email protected]

www.dukaneav.com

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 2 of 9

Formulas: 16:10 Aspect Ratio (WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:10 Screen Formulas

NP40ZL: C(Wide) = 0.807W – 1.535 ------ C(Tele) = 1.131W – 1.632 W = Image Width W = H x 16/10

NP41ZL: C(Wide) = 1.323W – 1.763 ------ C(Tele) = 3.034W – 1.539 H = Image Height (size) H = W x 10/16

NP43ZL: C(Wide) = 2.929W + 5.143 ------ C(Tele) = 5.878W + 4.320 C = Throw distance Screen Diagonal = W x 18.868/16

Distance Chart for popular 16:10 Screens (WUXGA)

Note: For screen sizes not indicated in projection tables, refer to formulas above respective charts.

Diagonal

Width(W)

Height (H)

inches inches inches

60 51 32 39.5 - 55.9 65.6 - 152.8 154.2 - 303.4

67 57 36 44.3 - 62.6 73.4 - 170.8 171.6 - 338.3

72 61 38 47.7 - 67.4 79.0 - 183.7 184.0 - 363.2

84 71 45 55.9 - 78.9 92.5 - 214.6 213.8 - 423.0

90 76 48 60.1 - 84.7 99.2 - 230.0 228.7 - 452.9

100 85 53 66.9 - 94.3 110.4 - 255.7 253.5 - 502.8

120 102 64 80.6 - 113.5 132.9 - 307.2 303.2 - 602.5

150 127 79 101.1 - 142.2 166.5 - 384.4 377.7 - 752.0

180 153 95 121.6 - 171.0 200.2 - 461.6 452.2 - 901.5

210 178 111 142.2 - 199.8 233.8 - 538.8 526.7 - 1051.1

240 204 127 162.7 - 228.5 267.5 - 615.9 601.3 - 1200.6

270 229 143 183.2 - 257.3 301.1 - 693.1 675.8 - 1350.1

300 254 159 203.8 - 286.1 334.8 - 770.3 750.3 - 1499.7

400 339 212 272.2 - 382.0 447.0 - 1027.6 998.7 - 1998.1

500 424 265 340.6 - 477.9 559.2 - 1284.9 1247.0 - 2496.6

2.99 - 5.93:1

inches

Zoom Lenses

Screen Size (16:10)

NP40ZL

0.79 - 1.11:1

NP41ZL

NP43ZL

1.30 - 3.02:1

Dukane AV Division

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 2 of 9

Note: The Dukane models described in this document are manufactured

by NEC and use the same rmware, software programs, control code, and

accessory parts. The equivalent Dukane to NEC models are 6765WUSS

(NP-PA653UL), and 6780WUSS (NP-PA803UL).

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 3 of 9

Ceiling Mount Installation

Desktop Installation

Screen Cent er

Screen T op

Shift Rang e

Screen Cent er

Shift Rang e

Screen Bott om

ONLY FOR NP40ZL, NP41ZL and NP43ZL LENSES

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 3 of 9

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 4 of 9

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount

Application

The diagram below shows the location of the image

position in the lens. The lens can be shifted within

the shaded area as shown using the normal

projection position as a starting point.

Maximum Possible Range for NP40ZL, NP41ZL,

NP43ZL:

Towards ceiling/floor: 0.5H

Away from ceiling/floor: 0.1H

Right: 0.3W

Left: 0.3W

(W: width of projected image, H: height of projected

image)

Note: Horizontal lens shift range is 0.15W at a

200” projected image with NP41ZL

0.3W 0.3WW

0.6H

0.5HH0.1H

0.3W0.3W W

0.6H

0.5H H0.1H

CEILING FRONT

DES KTOP FRONT

VERTI CAL

HORIZONTAL

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 4 of 9

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 5 of 9

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the 6765WUSS/6780WUSS.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown with the NP41ZL lens

22.83

8.09

8.18

4.93

19. 45

In ta k e Fi lte r

Exhaust

AC In le t

N P41 ZL

2.29

2.57

11.46

1.56 19.71

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 5 of 9

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 6 of 9

Cabinet Dimensions

2.22 7.87

9.84

FOR CEILING MOUNT

4-M4(Max.M4 x 8)

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 6 of 9

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 7 of 9

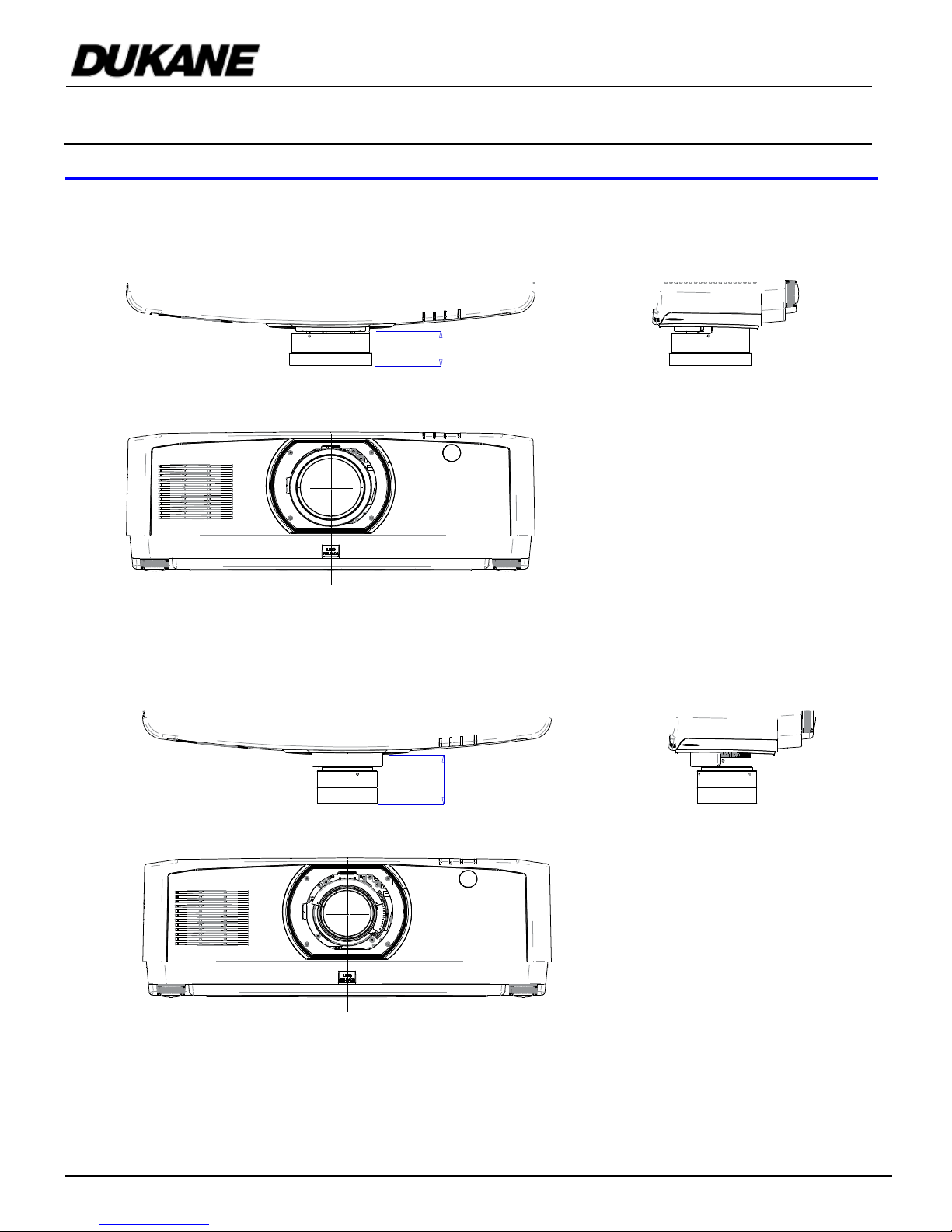

Optional Lens Dimensions (NP40ZL and NP43ZL)

2.90

NP43ZL

2.09

NP40ZL

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 7 of 9

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 8 of 9

Optional Ceiling Mount Dimensions (Part #: NP600CM)

The following diagrams show ceiling mount dimensions for the NP600CM.

Dimensions are in inches. For millimeters multiply by 25.4.

Input Panel

1.31 1.28

9.88

1.601.22 7.88

3.77

6.31 6.16 5.35 5.35

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 8 of 9

or Dukane mount PRG-UNV.

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PA653UL/PA803UL Page 9 of 9

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT HDMI1 02H 03H 00H 00H 02H 01H A1H A9H

INPUT SELECT HDMI2 02H 03H 00H 00H 02H 01H A2H AAH

INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H A6H AEH

INPUT SELECT Computer 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H BFH C7H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H

ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H

ASPECT RATIO (4:3 Screen)

4:3 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H

LETTERBOX 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H

WIDESCREEN 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H

ZOOM 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H

ASPECT RATIO (RGB)

4:3 WINDOW 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H

16:9 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H

5:4 03H 10H 00H 00H 05H 18H 00H 00H 0BH 00H 3BH

16:10 03H 10H 00H 00H 05H 18H 00H 00H 0CH 00H 3CH

15:9 03H 10H 00H 00H 05H 18H 00H 00H 0DH 00H 3DH

AUTO ADJUST 02H 0FH 00H 00H 02H 05H 00H 18H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

NOTE 1 : Pins 1, 4, 6, and 9 are used inside the projector.

NOTE 2:For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

NOTE 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

12345

67 8 9

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

6765WUSS/6780WUSS Installation Guide

Desktop and Ceiling Mount Rev 1.0

Dukane AV Division

www.dukaneav.com 6765WUSS/6780WUSS_Installation_ Guide-00 Page 9 of 9

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane ImagePro 8065 Bedienungsanleitung

Dukane

Dukane ImagePro 8102 Bedienungsanleitung

Dukane

Dukane ImagePro 8065 Bedienungsanleitung

Dukane

Dukane ImagePro 9100HC Bedienungsanleitung

Dukane

Dukane ImagePro 8053 Bedienungsanleitung

Dukane

Dukane ImagePro 8755B Bedienungsanleitung

Dukane

Dukane ImagePro 8950WU Bedienungsanleitung

Dukane

Dukane 8063C Bedienungsanleitung

Dukane

Dukane 28A638 Bedienungsanleitung

Dukane

Dukane 8527 Bedienungsanleitung

Dukane

Dukane 28A8751 Bedienungsanleitung

Dukane

Dukane ImagePro 8766 Bedienungsanleitung

Dukane

Dukane 90006W Bedienungsanleitung

Dukane

Dukane 8113 Bedienungsanleitung

Dukane

Dukane ImagePro FastFax 28A8043 Bedienungsanleitung

Dukane

Dukane ImagePro 8055 Bedienungsanleitung

Dukane

Dukane ImagePro 8888 Bedienungsanleitung

Dukane

Dukane ImagePro 8301 Bedienungsanleitung

Dukane

Dukane ImagePro 28A8800A Bedienungsanleitung

Dukane

Dukane 8959A Bedienungsanleitung

Dukane

Dukane ImagePro 9135 Bedienungsanleitung

Dukane

Dukane ImagePro 8761A Technisches Dokument

Dukane

Dukane 8952 Bedienungsanleitung

Dukane

Dukane 401-8755E-01 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
