Dukane Starfire HD 4010 Bedienungsanleitung

MODELS

SF6000

SF5510

SF4030

SF4010

SF3010

SF3000

HD 4010

This Dukane audio visual product is warranted to the original

purchaser under a 5year limited warranty – – in normal use and

service – – against defects in material and workmanship. DUKANE

CORPORATION EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED,INCLUDING ALL WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

During the warranty period, Dukane Corporation will repair or

replace (at the Manufacturer’s option) any such defective parts

(except for lamps, which are subject to whatever warranties the

manufacturer may provide) without charge to the purchaser for

parts or labor when the product is returned, prepaid and insured, with

proof of purchase date. This remedy of repair or replacement is

exclusive of all other remedies that the purchaser may have.

This exclusive remedy is void if the product has been damaged by

accident or unreasonable use, neglect, or improper service or other

causes not arising out of defects in material or workmanship.

Dukane Corporation disclaims all liability for incidental or con-

sequential damages of any kind, including all damages arising out

of any interruptions in operation of the product and all damages

to software.

No person, firm or representative is authorized to assume any

obligation or make any warranty on behalf of the Dukane Corporation

other than as stated above.

THIS LIMITED WARRANTY IS VALID FOR U.S.A. AND CANADA.

FOR OTHER LOCATIONS, LOCAL WARRANTIES APPLY.

5 YEAR LIMITED WARRANTY

2900 Dukane Drive • St. Charles, IL 60174-3395

Phone: 1-800-676-2487 • Fax: 630-584-0984

E-mail: [email protected] • Internet: www.dukcorp.com/av

Audio Visual Products

401-546-06

Audio Visual Products

When using your overhead projector, basic safety precautions should

always be followed, including the following:

1. Read and understand all instructions before using.

2. Close supervision is necessary when any projector is used by or near

children. Do not leave projector unattended while in use.

3. Care must be taken as burns can occur from touching hot parts.

4. Do not operate projector with a damaged cord or if the projector

has been dropped or damaged — until it has been examined by a

qualified service technician.

5. Position the cord so that it will not be tripped over, be pulled or

contact hot surfaces.

6. If an extension cord is necessary, a cord with a current rating at least

equal to that of the projector should be used. Cords rated for less

amperage than the projector may overheat.

7. Always unplug projector from electrical outlet before cleaning and

servicing and when not in use. Never yank cord to pull plug from

outlet. Grasp plug and pull to disconnect.

8. Let projector cool completely before putting away.

9. To protect against the risk of electric shock, do not immerse this

projector in water or other liquids.

10. To avoid the risk of electric shock, do not disassemble this projector,

but take it to a qualified service technician when some service or

repair work is required. Incorrect reassembly can cause electric

shock when the projector is used subsequently.

11.

The use of an accessory attachment not recommended by the manufac

turer may cause a risk of fire, electric shock or injury to persons.

12. Connect this projector to a grounded outlet.

13. Disconnect this unit from its source of supply before replacing the

projection lamp.

Additional lamp safeguards: never handle lamps with bare fingers; periodi-

cally inspect lamps, when they’re turned off, for signs of blistering or

blackening; insure proper action of the cooling system; turn off the

projector immediately if the image becomes abnormally dim; never

operate a projector with the lamp housing open; and make sure that the

lamp itself is properly seated.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

The sleek, low-profile Starfire Overhead Projectors are

available in your choice of 3000, 4000/3200, 5500/4400

and 6000 ANSI lumens. Features of each model vary and can

include a single, triple or triple/wide-angle lens; built-in

AC outlets; and even an electronic “soft start” power supply

that improves the projected image, extends the

lamp life and reduces operating costs.

Because operation of all units is very similar, this

manual covers all models in the Dukane Starfire Series.

2900 Dukane Drive • St. Charles, IL 60174-3395

Phone: 1-800-676-2487 • Fax: 630-584-0984

E-mail: [email protected] • Internet: www.dukane.com

Audio Visual Products

Thank you for choosing a

Starfire® Series

Portable/Professional

Overhead Projector.

LIFETIME LIMITED WARRANTY .................................Inside Cover

SPECIFICATIONS .................................................................. 1

ELECTRICAL SAFETY GROUNDING INSTRUCTIONS ........................ 1

INDEX OF FUNCTIONAL PARTS ............................................. 2-3

SF MODEL SETUP and FOLDUP ............................................. 4-5

HD MODEL SETUP ................................................................. 6

OPERATION ......................................................................... 7

Image Adjustment .......................................................... 7

High/Low Lamp Switch....................................................8

Lamp Changer ................................................................ 8

LAMP REPLACEMENT ............................................................. 9

CLEANING ......................................................................... 10

SERVICING ........................................................................ 10

Shipping Information .................................................... 10

Service........................................................................ 10

No Charge Warranty Repair............................................. 10

TROUBLESHOOTING ............................................................ 11

INFORMATION ON LAMP WARRANTY ...................................... 11

SF MODEL OPTIONAL ACCESSORIES ........................................ 12

HD MODEL OPTIONAL ACCESSORIES ....................................... 13

TABLE OF CONTENTS Page

SPECIFICATIONS

SF MODEL Dimensions........... 5.6" H x 16.4" W x 17.8" D (Folded)

32" H x 16.4" W x 17.8" D (Opened)

HD MODEL Dimensions.......... 8.5" H x 16.4" W x 17.8" D (Folded)

32" H x 16.4" W x 17.8" D (Opened)

Aperture............................... 6000, 5510 — 11.2" x 11.2" (A4)

3000, 3010, 4010, 4030 — 10.5" x 10.5"

Lens ............................ 3000 — Single Element, 293mm (11.5")

3010, 4010, 5510 — Three Element, 327mm (13.0")

4030, 6000 — Four Element, 280mm (11.0")

Lamp ............................................... 3000, 3010 — 360W, ENX

4010, 4030, 5510, 6000 — 410W, FXL

Elevation...................................................... Up to 20 Degrees

Focus............................................................ Rack and Pinion

Power .....................................3000, 3010 — 120V, 60Hz, 4.4A

4010, 5510 — 120V, 60Hz, 9.8A

4030, 6000 — 120V, 60Hz, 10.3A

SF MODEL Power Cord ............................3-Wire Grounded, 10 Ft.

HD MODEL Power Cord ...........................3-Wire Grounded, 10 Ft.

Safety ............ Safety Interlock System, Automatic Thermal Cutoff

SF MODEL Weight.........................................................19 Lbs.

HD MODEL Weight.........................................................22Lbs.

ELECTRICAL SAFETY

GROUNDING INSTRUCTIONS

This Class I product uses a three-wire power cord that grounds

the product for your protection. Do not DEFEAT or REMOVE the

grounding pin. If an extension cord is used, it must also be a

three-wire type with an ampere rating equal to or greater than

the product’s rating. The plug must be connected to a properly

grounded three-terminal power receptacle. Connection to any

other type of receptacle should be done only by a qualified

electrician in accordance with local and/or national electrical

codes.

A number of terms are used frequently in this instruction booklet.

The OVERHEAD PROJECTOR will be easier to operate if you become

familiar with the terms for the functional parts listed below:

INDEX OF FUNCTIONAL PARTS

1. Mirror; use to direct projected


2. Projection Head; rotates 180°

to allow projection in different

directions or onto different

screens

2a. Rotate in 4th element mag-

nification lens (Models 6000

and 4030) for enlarged image

from same distance

3. 120V AC Outlet; for use with

LCD panel/computer connection

(4010, 4030, 5510, 6000 models

only — 5A MAX!)

4. Mast; rack & pinion focusing

mechanism

5. Focus Knob; turn to focus pro-

jected image

6. Stage; place presentation media

here for projection

7. Stage Latch; release for lamp

access

8. Base Housing

9. Locking Collar; push down to

release mast (foldaway design)

10. Power Switch

11. High/Low Switch; (4010, 4030,

5510, 6000 models only)

12 15

12. Door Leg Assembly; close for

foldaway design, cord storage

13. Door Latch (one each side);

keeps doors closed

14. Lamp Change Lever; slide for

replacement/reserve lamp

15. Power Cord; stored in the unit’s

base

Models 6000 and 4030 also feature a soft start power supply which

extends lamp life, reduces operating costs and ensures a smoother,

flicker-free image.

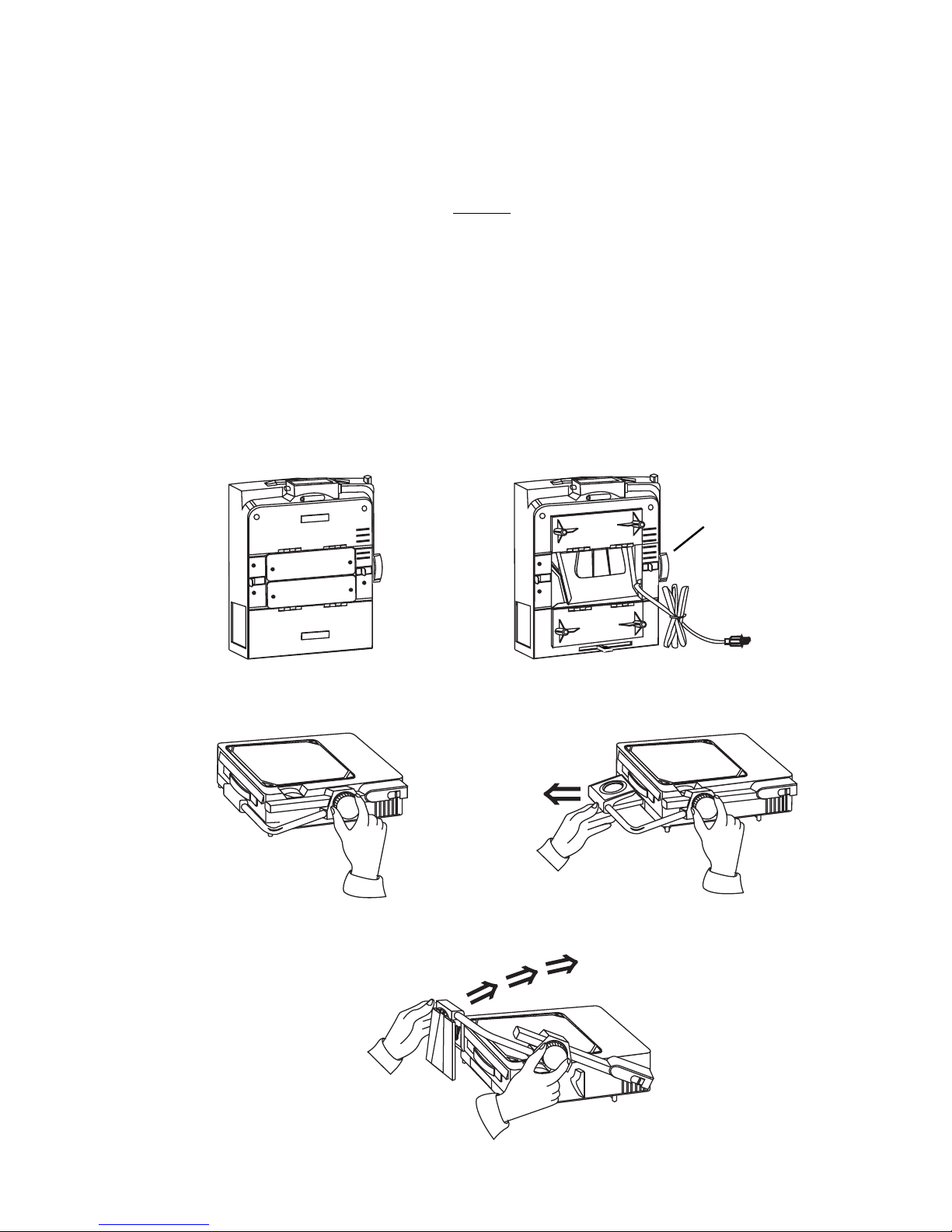

1. Set unit on projection table in the vertical position (handle up).

2. Slide bottom door latches out and swing both doors around to

magnet latches. Pull out the entire power cord. Leave doors open.

3. Tip unit over to rest on its legs. (Doors act as feet for the unit).

4. Turn focus knob clockwise until it stops at the end of the mast.

5. Rotate mast up until it locks into place.

6. Rotate the projection head assembly counterclockwise to the

working position.

7. Open mirror.

SETUP INSTRUCTIONS SF MODELS

TEP

1 —

TEP

3 —

TEP

2 —

TEP

4 —

TEP

5 —

Slide

latches out

and swing

doors open.

Remove entire cord.

Doors must be

open for unit

to operate.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dukane Projektor Handbücher

Dukane

Dukane ImagePro 6780WU Bedienungsanleitung

Dukane

Dukane ImagePro 8776-W Bedienungsanleitung

Dukane

Dukane ImagePro 8077 Bedienungsanleitung

Dukane

Dukane ImagePro 8774 Technisches Dokument

Dukane

Dukane 8950WSS Technisches Dokument

Dukane

Dukane CP-X2015WN/8755N Bedienungsanleitung

Dukane

Dukane ImagePro 8746A Bedienungsanleitung

Dukane

Dukane 8938W Bedienungsanleitung

Dukane

Dukane ImagePro 8063 Bedienungsanleitung

Dukane

Dukane ImagePro 8102 Bedienungsanleitung

Dukane

Dukane 28A8932 Bedienungsanleitung

Dukane

Dukane 6640W Bedienungsanleitung

Dukane

Dukane 8104WB Bedienungsanleitung

Dukane

Dukane 8964WSS Bedienungsanleitung

Dukane

Dukane 8960WUSS Montage- und Wartungsanleitung

Dukane

Dukane ImagePro 8900 Bedienungsanleitung

Dukane

Dukane 28A9115 Bedienungsanleitung

Dukane

Dukane 6528A Bedienungsanleitung

Dukane

Dukane ImagePro 8758 Bedienungsanleitung

Dukane

Dukane 8965WUSS Bedienungsanleitung

Dukane

Dukane 28A8040 Bedienungsanleitung

Dukane

Dukane ImagePro 8941A Bedienungsanleitung

Dukane

Dukane 8928C Bedienungsanleitung

Dukane

Dukane 8970 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
