Pre-installation_Product Information 1

Placeofinstallation

Check the width of the doors to ensure that the bathtub will fit •

through and into the bathroom.

There must be no floor heating below the bathtub.•

The floor must be absolutely flat and horizontal.•

I n s t a l l• bathtubswithpanellingafter tiling.

I n s t a l l• bathtubswithoutpanellingeither before or after tiling.

• Whirltubs:depending on the combination of bathtub and whirl-

system, system components might protrude beyond the rim of the

bathtub. This is why we recommend installation in a bathtub casing.

Toleranceswithacrylic:• as a result of the manufacturing process,

deviations from the specified nominal dimensions are possible within

the scope of the tolerances as per DIN 198. Please take this into

account during planning.

Inspectionopeningsandventilationgrates

Tilingthebath

Provision must be made for the following inspection openings:•

Outlet and overflow fitting 200 x 200 mm•

Aggregates 500 x 500 mm•

For the position, see chapter “Whirl systems product information”.•

Whirl tub or bathtub with coloured light: for the air supply, allow an •

opening with an area of approx. 15 cm2 (e.g. 3 x 5 cm or 2 x 7.5 cm)

in the panel.

BathtubwithDuravitpanelling

It must be possible to remove the panelling for inspection purpo-•

ses. For this reason, allow a certain amount of space in front of the

panelling.

For the air supply, an opening is pre-installed in the panelling; this •

must not be covered.

Waterconnection

The water may only be connected by a qualified plumber. Country-spe-

cific standards and local regulations must be observed in full.

Waterconnection

Connect the inlet and outlet according to current standards and local •

regulations.

Ensure that the connecting sleeve is flush with the floor.•

Electricalinstallationforbathtubswithcolouredlight

andwhirltubs

The electricity may only be connected by a qualified electrician.

Country-specific standards, local regulations and low-voltage guide-

lines must be observed in full.

Electricalconnection

Electrical data

Whirlsystem Max. rated

power without

heating

Max. rated

power with

heating

Frequency

Voltage

Air 1,08 kW -

50 Hz:

2 3 0 V ~ A C

60 Hz:

2 2 0 V ~ A C

Jet 0,74 kW -

Combi P 2,19 kW -

Combi E 2,74 kW 3,50 kW

Combi L 2,38 kW 5,34 kW

Jet E 1,69 kW 2,69 kW

Jet L 1,36 kW 4,36 kW

Pote• ntial equalisation installed, 3000 mm

Install supply line in acc. with the following requirements (two supply •

lines for combi system L with temperature module):

Fuse protection I• N = 16 A,

RCD max. 30 mA

Switched via all-pole disconnecting mains switch, outside zones 0, •

1 and 2 (see Fig. I)

Cable length 3000 mm•

Importantplanninginformationforbathtubsandwhirltubs

2250

600

2 1

2Pre-installation_Product Information

Whirl-SystemsProductInformation

P = standard P = optional R = switch on and off separately R = adjustable · = not available

Support frame

Cable-driven waste and overflow

Cable-driven waste and overflow with integrated water inlet *

12 jets embedded in the floor (Air) **

6 side mounted jets (Air and water)

2 adjustable rotating foot-massage jets

3 adjustable rotating back-massage jets

Inline heater to compensate loss of temperature during whirl action

Heating module to heat the whirlpool to desired temperature

Pneumatic push-button integrated in the rim of the tub

Air control regulator integrated in the rim of the tub

Integrated control panel

Blue backlit LCD display integrated in the rim of the tub

1 underwater light, 50 W ***

Changing coloured light (instead of underwater light)

Full system drainage

Electronic cleaning system

UV Hygiene Management

Protection against overheating

Coloured light with remote control for whirltubsw

* except Blue Moon ** Blue Moon comes with 24 jets *** Blue Moon comes with 2 lights

This overview does not apply for D-Code Whirltubs

Equipment Air Jet CombiP CombiE CombiL

PRR

Pre-installation_Product Information 3

Whirl-SystemsProductInformation

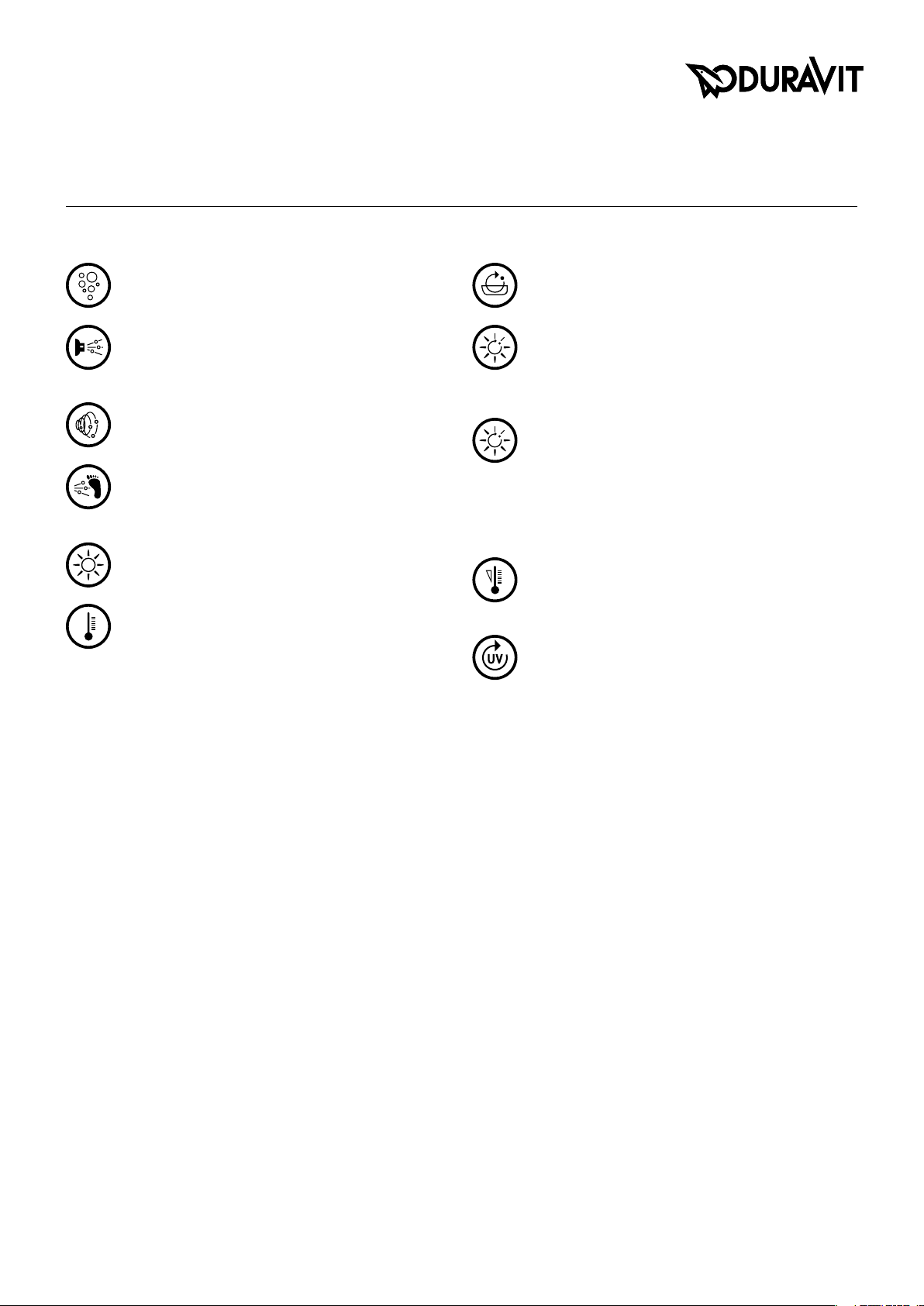

Whirlsystemsandadditionalmodules

Air-System

Warm air is injected into the bath by 12 (24 in Blue Moon) jets

embedded in the oor of the tub.

Jet-System

6 side mounted jets create maximum hydrotherapeutic action

with actuated intensity of the massage, freely regulated via an

air control regulator which is integrated in the rim of the tub.

Back-massage

Water-Air-jet

3 adjustable rotating jets have a benecial effect on the back.

Foot-massage

Water-Air-jet

2 adjustable rotating jets are stimulating the reex zones of

the foot.

LIght

1 (2 in Blue Moon) underwater light, 50 W halogen, creates a

cosy atmosphere in the bathroom.

Temperature

Electronically controlled thermal system to compensate for

loss of temperature during whirl action.w

HygieneManagement

Electronically controlled cleaning system for the

desinfection of the jets and pipes of the whirlsystem.

ColouredLight

Light from 5 (10 in Blue Moon) LED-spotlights set into the

side walls suffuses the water in alternating, bright colours.

A colour in accordance with the atmosphere. Halogen spot is

going to be replaced.

ColouredLightwithremotecontrolforbathtubsand

whirltubs

Light from 5 (10 in Blue Moon) LED-spotlights set into the

side walls suffuses the bath water in alternating, bright co-

lours. The 6 colours and white light plus 5 coloured lighting

programmes can be selected using the remote control. The

brightness of the colours can be dimmed. The LED coloured

lighting is not available for Combi L.

TemperatureL

Heating module with blue backlit LCD display and

control. This system can be used to adjust the whirltub to the

desired temperature.

UVHygieneManagement

Simple, environmentally-friendly hygiene by means of auto-

matic UV disinfection. Permanent monitoring of operation by

optical sensor.

Standard equipment: Full system drainage, cable-driven waste and overflow, chrome, support frame.

4Pre-installation_Product Information

Whirl-SystemsProductInformation

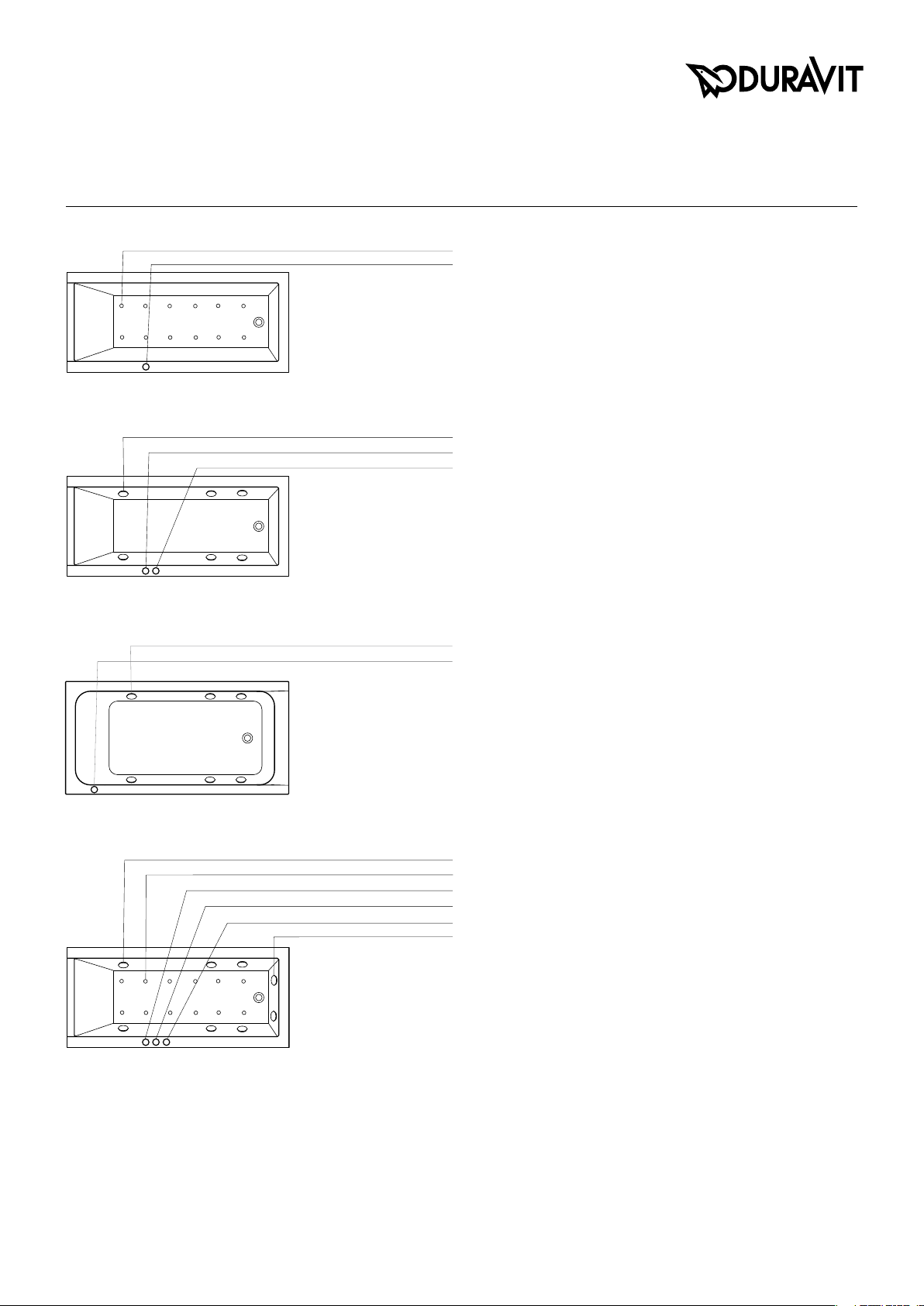

Equipment

6 side mounted jets (air + water)

Operating unit + Air control regulator

Jet-System(D-Code)

Equipment

6 side mounted jets (air + water)

Pneumatic regulator

Air control regulator

Accessories(optional)

Cable-driven waste and overow with integrated water inlet

(without image)

Coloured Light with remote control for whirltubs (without image)

Jet-System

Equipment

6 side mounted jets (air + water)

12 jets embedded in the oor (air)

Pneumatic regulator Jet-System

AIr control regulator Jet-System + foot-massage

Pneumatic regulator Air-System

2 adjustable rotating foot-massage jets

Accessories(optional)

Cable-driven waste and overow with integrated water inlet

(without image)

Coloured Light with remote control for whirltubs (without image)

Combi-SystemP

Air-System Equipment

12 jets embedded in the oor (air)

Pneumatic regulator

Accessories(optional)

Cable-driven waste and overow with integrated water inlet

(without image)

Coloured Light with remote control for whirltubs (without image)

Pre-installation_Product Information 5

Whirl-SystemsProductInformation

Combi-SystemL Equipment

3 adjustable rotating back-massage jets

12 jets embedded in the oor (air)

Control Panel Combi-System L

6 side mounted jets (air + water)

1 underwater light, 50 W

2 adjustable rotating foot-massage jets

Additionalmodules(optional)

Coloured Light (instead of underwater light) (without image)

UV-Hygiene management (without image)

Temperature L (to heat the whirltub to the desired temperature)

(without image)

Accessories(optional)

Cable-driven waste and overow with integrated water inlet (without image)

ControlPanelTemperatureL(optional)

ControlPanelCombi-SystemL

Blue backlit LCD display

The system is operated by pressing the raised symbols on the Control Panel.

The operating symbols are almost invisible at rst. By gently pressing the

area within the stainless steel frame, the lighting comes on gradually.

The functions are controlled via the now visible symbols.

Once the whirl action is over, the lighting dims completely.

Combi-SystemE Equipment

6 side mounted jets (air + water)

12 jets embedded in the oor (air)

Air control regulator back-massage (optional)

Control Panel Combi-System E

AIr control regulator Jet-System

AIr control regulator foot-massage (optional)

Additionalmodules(optional)

1 underwater light, 50 W

3 adjustable rotating back-massage jets

2 adjustable rotating foot-massage jets

Temperature (Inline heater to compensate loss of temperature during

whirl action) (without image)

Control Panel for electronic cleaning

Accessories(optional)

Cable-driven waste and overow with integrated water inlet

(without image)

Coloured Light with remote control for whirltubs (without image)

ControlPanelCombi-SystemE

The system is operated by pressing the raised symbol on the Control Panel.

6Pre-installation_Product Information

Whirl-SystemsProductInformation

Equipment

3 adjustable rotating back-massage jets (arranged in different heights)

24 jets embedded in the oor (air)

Control Panel Combi-System L

6 side mounted jets (air + water)

2 underwater lights, 50 W

2 adjustable rotating foot-massage jets

Additionalmodules(optional)

Coloured Light (instead of underwater light) (without image)

UV Hygiene Management (without image)

Temperature L (to heat the whirltub to the desired temperature)

(without image)

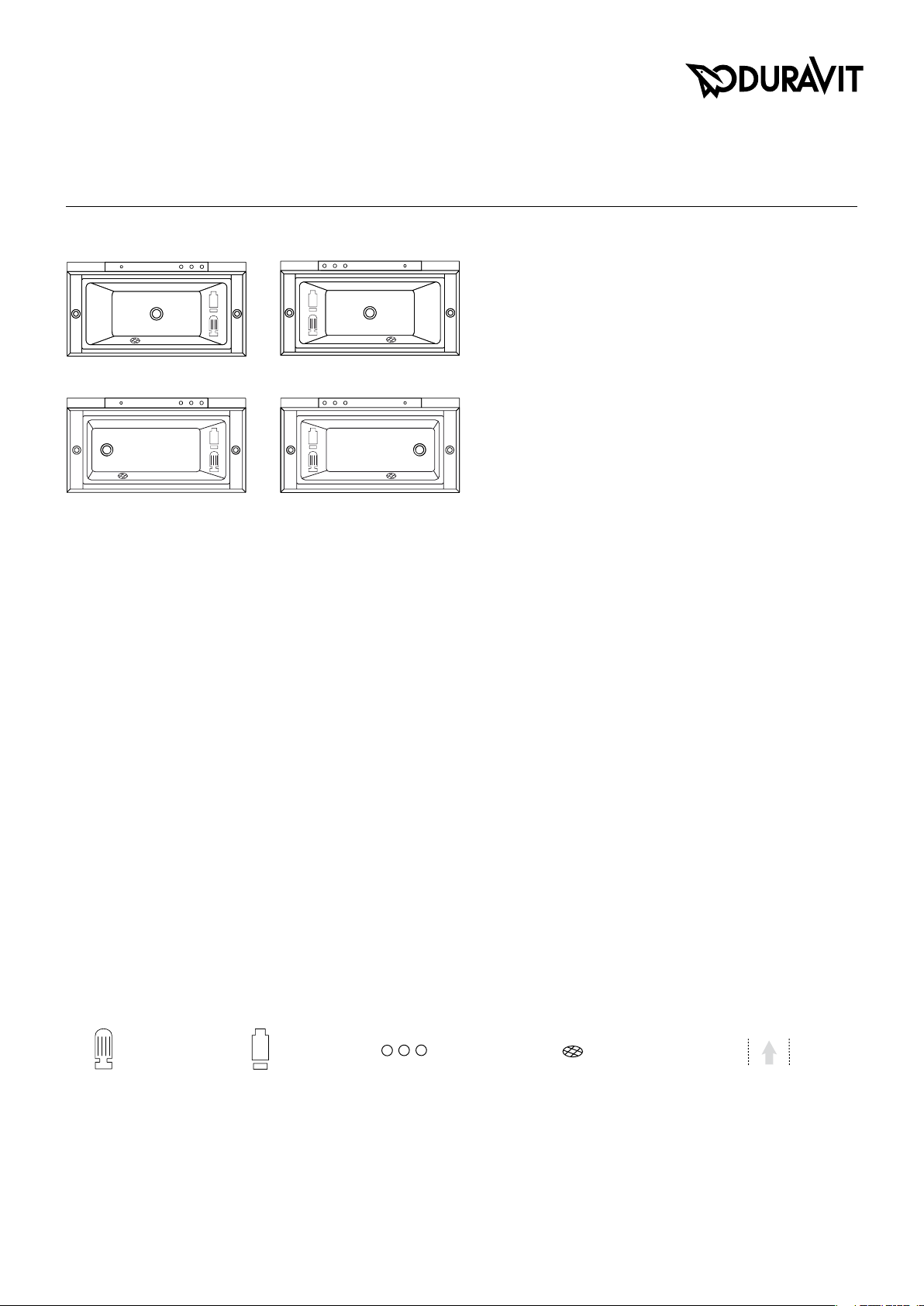

ControlPanelTemperatureL(optional)

ControlPanelCombi-SystemL

Blue backlit LCD display

The operating symbols are almost invisible at rst. By gently pressing the

area within the stainless steel frame, the lighting comes on gradually.

The functions are controlled via the now visible symbols.

Once the whirl action is over, the lighting dims completely.

Combi-SystemL(BlueMoon)

Combi-SystemE(BlueMoon) Equipment

6 side mounted jets (air + water)

24 jets embedded in the oor (air)

Air control regulator back-massage (optional)

Air control regulator Jet-System

Control Panel Combi-System E

Air control regulator foot-massage (optional)

Additionalmodules(optional)

2 underwater lights, 50 W

3 adjustable rotating back-massage jets

(arranged in different heights)

2 adjustable rotating foot-massage jets

Temperature (Inline heater to compensate loss of temperature during

whirl action) (without image)

Control Panel electronic cleaning system

Accessories(optional)

Coloured Light with remote control for whirltubs (without image)

ControlPanelCombi-SystemE

The system is operated by pressing the raised symbol on the Control Panel.

Pre-installation_Product Information 7

Whirl-SystemsProductInformation

Back

# 710077

Back

# 710082

Back

# 710023, # 710024 # 710156

# 710143 with Panel

Back

2ndoor

Back

# 710081, # 710162, # 710163

Back

# 710073, # 710074, # 710075 # 710078, # 710079, # 710080# 710076, # 710160, # 710161

Back

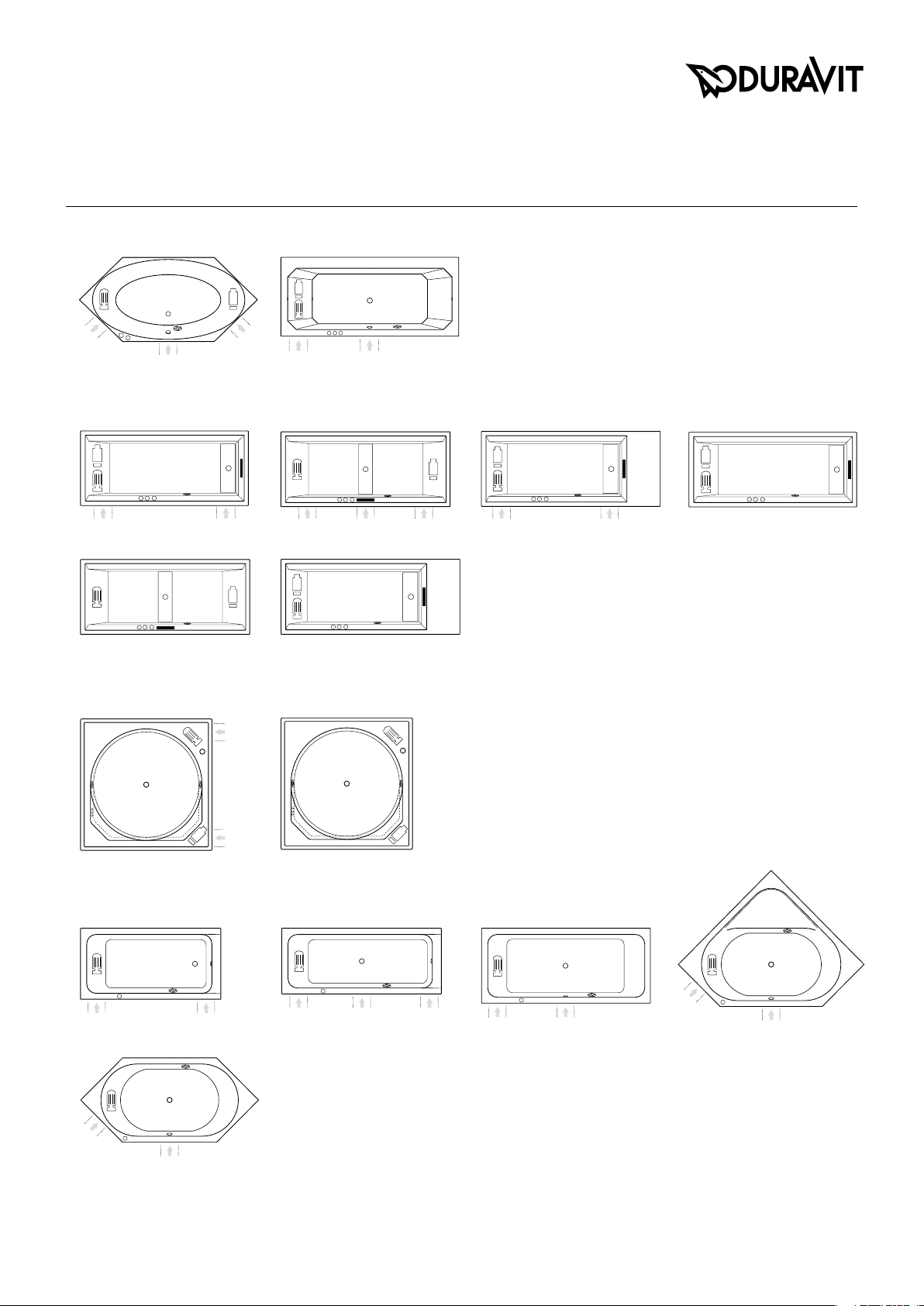

PositioningoftheControlPanel

The directions are taken from the perspective of a person bathing.

In the standard conguration, the Control Panel is always on the right

hand side, as are the drain and overow ttings in 2-seater baths

(c.f. Image.).

On request, alternative positioning of the Control Panel or aggregates is

however possible. Please send us a sketch showing the desired layout.

Duravit will check and wherever possible conrm the feasibility.

1930Series2x3

# 740138

# 740137

# 710143 Built-in version

Back Back

BlueMoon

D-Code

Back

# 740095, # 740096,

# 740098, # 740100

# 740097, # 740099

Back

# 740101

8Pre-installation_Product Information

Whirl-SystemsProductInformation

Paiova

Back

# 710015

Back

# 710020

Back Back

Back

# 710018# 710017# 710016

Back

# 710035, # 710037

# 710039, # 710041

# 710173

Back

# 710172# 71∫19

Back

# 710180

Back

# 710179# 710174 # 710178

# 710090# 710089 # 710028, # 710052# 710027, # 710141, # 710050

# 710036, # 710038

# 710040, # 710042

InstallationforPaiovawithfurniturepanelling

Paiova Whirltub with furniture panelling:

Lower edge of siphon lies 45 mm below upper edge of tiles

Daro,StarckX

HappyD.

Pre-installation_Product Information 9

Whirl-SystemsProductInformation

Vero

Starck

Back

# 710010

Back

# 710009

Back

# 710011

Back

# 710012

Back

# 710001, # 710002, # 710003,

# 710117, # 710118, # 700091,

# 700092

Back

# 710133

# 710111

Back

# 710004, # 710031, # 710032,

# 710119

Back

# 710135, # 710136

Back

# 710134

Seadream

Back

# 710112 # 710114

Back

# 710113

Back

# 700185

Back

# 700181 # 700198 # 700182, # 700183

# 700184

PuraVida

10 Pre-installation_Product Information

Whirl-SystemsProductInformation

Sundeck

Back

# 710066, # 710128

# 710127

Whirl-Pump Blower ControlPanel SuctionScreen recommendedequipmentcovers

Please note that in case of cominating tubs and whirlsystems, single components may reach over the rim of the tub. Therefore, we suggest installation into a bathtub case.

Back

# 710127

Back

# 710066, # 710128

PositioningoftheControlPanelonthepillar:

Furniturepanellingforfreestandingversion,cornerrightand

back-to-wallversion:

Directions are as seen from the perspective of a person in the

tub. In the standard conguration, the right hand always ope-

rates the Control Panel (see Fig. 1).

Custom version on request. In this case, a sketch showing

the desired layout is required. Duravit will check and conrm

whether the desired location is possible.

Furniturepanelforcornerleft:

Directions are as seen from the perspective of a person in the

tub. In the standard conguration, the left hand always operates

the Control Panel (see Fig. 2).

Custom version on request. In this case, a sketch showing

the desired layout is required. Duravit will check and conrm

whether the desired location is possible.

Numberofcontrolpanelsonthepillar:

The number of control panels is determined by the system and

the additional modules selected.

Drillholesfortapsintheconsole:

On request, drill holes can be made at the factory for base plates

for rim-mounted tap ttings. Please state the desired base plate

when ordering. Duravit can supply a list of suitable pre-punched

sets on request.

Fig. 1 Freestanding version, corner

right, and back-to-wall version

Fig. 2 Corner left

Back

Legend

Andere DURAVIT Toilette Handbücher

DURAVIT

DURAVIT SensoWash Starck f Bedienungsanleitung

DURAVIT

DURAVIT Ben 0847370000 Bedienungsanleitung

DURAVIT

DURAVIT SensoWash i Lite 620000 01 1 40 1310 Bedienungsanleitung

DURAVIT

DURAVIT D1654700 Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle Nordic Bedienungsanleitung

DURAVIT

DURAVIT SensoWash i Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle Vital SoftClose Bedienungsanleitung

DURAVIT

DURAVIT SensoWash 254459 00 Series Bedienungsanleitung

DURAVIT

DURAVIT SensoWash Starck f Plus Bedienungsanleitung

DURAVIT

DURAVIT 00670210 Series Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle Series Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle Dry 2808300000 Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle Basic 21820900001 Bedienungsanleitung

DURAVIT

DURAVIT SensoWash 212051 Bedienungsanleitung

DURAVIT

DURAVIT SensoWash Classic 613000 01 2 00 4300 Bedienungsanleitung

DURAVIT

DURAVIT 45700900A1 Bedienungsanleitung

DURAVIT

DURAVIT SensoWash Starck f 218901 20 U2 Bedienungsanleitung

DURAVIT

DURAVIT DuraStyle 0062310000 Bedienungsanleitung

DURAVIT

DURAVIT SensoWash 2158590000 Bedienungsanleitung

DURAVIT

DURAVIT Starck 1 Bedienungsanleitung

DURAVIT

DURAVIT Vero Bedienungsanleitung

DURAVIT

DURAVIT Rimless ME by Starck Bedienungsanleitung

DURAVIT

DURAVIT ME by Starck 280931 Series Bedienungsanleitung

DURAVIT

DURAVIT SensoWash Starck f Bedienungsanleitung

Beliebte Toilette Handbücher anderer Marken

Toto

Toto Washlet TCF4911 Series Bedienungsanleitung

Kohler

Kohler K-6419 Bedienungsanleitung

Grohe

Grohe Sensia ARENA Bedienungsanleitung

Kohler

Kohler K-5171K Montageanleitung

Geberit

Geberit AQUACLEAN MERA CLASSIC Bedienungsanleitung

Kohler

Kohler K-24097X Montageanleitung

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Bedienungsanleitung

American Standard

American Standard CONCEPT Cube TF-2704 Bedienungsanleitung

BIOLAN

BIOLAN ECO Stücklistenhandbuch

Thetford

Thetford C260 Series Bedienungsanleitung

KELISS

KELISS T162A Series Bedienungsanleitung

Kohler

Kohler K-22241K Montageanleitung

Kohler

Kohler ESCALE K-32771T-NS Bedienungsanleitung

BIOLAN

BIOLAN GARDEN TOILET Stücklistenhandbuch

washloo

washloo Prestige Bedienungsanleitung

JABSCO

JABSCO 37010 Series Bedienungsanleitung

Drive

Drive TSE 150 Bedienungsanleitung

Olympia

Olympia EPOQUE 69209 Bedienungsanleitung
