General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Index Page:

Service instructions class 867

(Edition 05/2008)

1. General notes

1.1 Gauges..................................................... 3

1.2 Descriptionofthelockingpositions.................................... 4

1.3 Graduation on the handwheel ....................................... 5

2. Sewing machine

2.1 Positionofthearmshaftcrankonthearmshaft............................ 6

2.2 Upper and lower toothed belt wheel / toothed belt ........................... 7

2.2.1 Position of the upper toothed belt wheel ................................. 7

2.2.2 Position of the lower toothed belt wheel ................................. 8

2.3 Bottom feed and stitch regulator gear .................................. 9

2.3.1 Basicsettingofstitchadjustment..................................... 9

2.3.2 Adjust the 2nd stitch length......................................... 11

2.3.3 Positionofthefeeddoginthethroatplatecutout........................... 12

2.3.4 Feeding motion of the feed dog ...................................... 14

2.3.5 Liftingmotionofthefeeddog ....................................... 15

2.3.6 Feeddogheight ............................................... 16

2.3.7 Balanceweight................................................ 17

2.4 Transmissionlever.............................................. 18

2.5 Needle bar linkage .............................................. 19

2.5.1 Align the needle bar linkage laterally ................................... 19

2.5.2 Needle penetration in feeding direction ................................. 20

2.6 Hook, looping stroke and needle bar height............................... 21

2.6.1 Looping stroke ................................................ 21

2.6.2 Needle bar height .............................................. 22

2.6.3 Distance between hook and needle.................................... 23

2.6.4 Needle guard ................................................. 24

2.7 Bobbin case opening ............................................ 25

2.7.1 General .................................................... 25

2.7.2 Setting of the bobbin case opening .................................... 25

2.7.3 Timing of opening .............................................. 27

2.8 Feeding foot and presser foot ....................................... 28

2.8.1 Feeding foot and presser foot stroke ................................... 28

2.8.2 Stroke motion of the feeding foot ..................................... 29

2.8.3 Sewingfootpressure............................................ 30

2.9 Stitch length limitation ............................................ 31

2.10 Stitch equality of the forward and backward stitch ........................... 32

2.11 Sewingfootlifting .............................................. 33

2.11.1 Mechanical sewing foot lift ......................................... 33

2.11.2 Height of the sewing feet arrested with hand lever........................... 34

2.11.3 Heightoftheliftedsewingfeet....................................... 35

Index Page:

2.12 Thread-guiding parts ............................................ 36

2.12.1 Thread regulator ............................................... 36

2.12.2Threadtake-upspring............................................ 37

2.13 Bobbin winder................................................. 38

2.14 Threadcutter................................................. 40

2.14.1 General .................................................... 40

2.14.2Threadpullingknife............................................. 41

2.14.3 Counter-knife and lower thread clamp .................................. 42

2.14.4 Cutting position with machines having needle repositioning ..................... 44

2.14.5 Cutting position with machines without needle repositioning .................... 45

2.15 Shortthreadcutter.............................................. 46

2.15.1 General .................................................... 46

2.15.2Threadpullingknife............................................. 47

2.15.3 Locking latch for the thread-pulling knife ................................ 49

2.15.4 Counter knife ................................................. 50

2.16 Potentiometerinthearm.......................................... 52

2.16.1 Basic setting without control panel .................................... 52

2.16.2 Basic setting with the control panel V810 or V820 ........................... 53

2.16.3Checkthepotentiometeradjustment................................... 54

2.17 Connections PCB .............................................. 55

3. Oil lubrication

3.1 Hooklubrication ............................................... 56

3.2 Maintenance ................................................. 58

1. General notes

The present service instructions describes the adjustment of the

special sewing machine 867.

ATTENTION !

The operations described in the service instructions must only be

executed by qualified staff or correspondingly instructed persons

respectively!

Caution: Danger of injury !

In case of repair, alteration or maintenance work turn off the main

switch and disconnect the machine from the pneumatic supply system.

Carry out adjusting operations and functional tests of the running

machine only under observation of all safety measures and with

utmost caution.

The present service instructions describes the adjustment of the

sewing machine in an appropriate sequence. Please observe in this

connection that various setting positions are interdependent.

Therefore it is absolutely necessary to do the adjustment following the

described order.

For all setting operations of parts involved in the stitch formation a new

needle without damage has to be inserted.

Machine covers having to be screwed off and on again for checking

and adjusting operations are not mentioned in the text.

Hint:

Some of the shafts of the special sewing machine 867 are provided

with flat spots. This facilitates the adjustment considerably.

In case of all adjustments on flat spots the first screw in rotation

direction is put on such a flat spot.

1.1 Gauges

The locking pin 1 required for adjusting the machine belongs to the

serial equipment of the machine. It is in the accessories and can be put

at the bottom side of the oil pan.

1.2 Description of the locking positions

With the locking pin 1 and the arresting grooves 2 and 3 in the arm

shaft crank 4 the sewing machine can be arrested in two adjusting

positions.

Position I = Locking pin Ø 5 mm for large groove

= Looping stroke, needle bar height

Position II = Locking pin Ø 3 mm for small groove

= Needle bar at its upper dead center, Graduation on

the handwheel

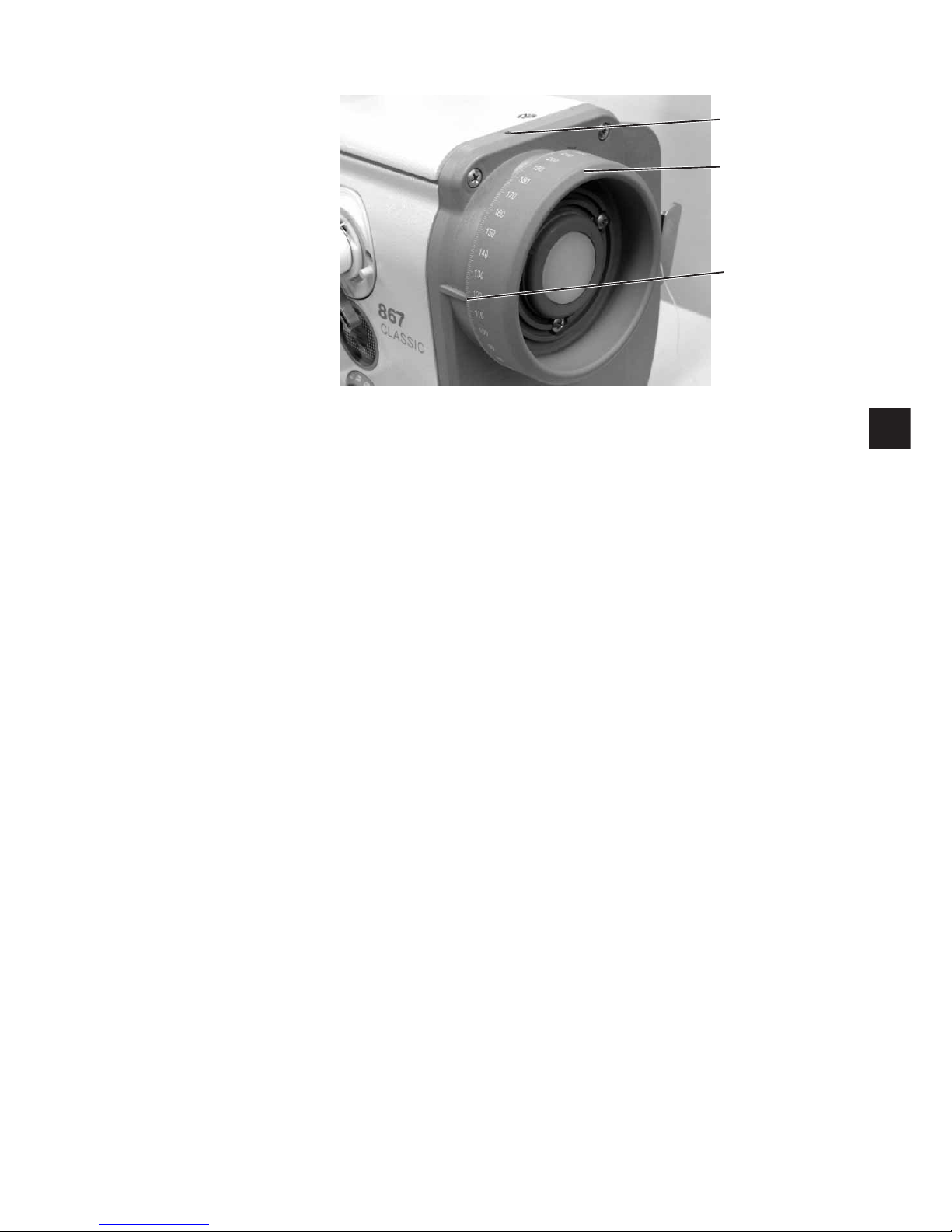

1.3 Graduation on the handwheel

The handwheel 2 has graduation printed on it.

Certain settings shall be done following to the position of the

handwheel.

–Turn the handwheel until the degree mark mentioned in this manual

points to the index 3.

–Carry out the described adjustment.

Setting the Handwheel

–Arrest the machine in position II by using the locking pin Ø 3 mm.

–Loosen the fastening screw for the handwheel through opening 1.

–Turn the handwheel so that the degree mark “0" points to the

index 3.

–Tighten the fastening screw again.

–Set the handwheel to 50° and tighten the second fastening screw.

2. Sewing machine

2.1 Position of the arm shaft crank on the arm shaft

Caution: Danger of injury !

Turnthemainswitchoff!

Check and set the position of the arm shaft crank only when the

machine is switched off.

Standard checking

The arm shaft crank 1 is fastened on the arm shaft 4 with the three

screws 2. The screws must sit on the flat spot 3.

Correction

–Loosen screws 2 at the arm shaft crank.

–Twist arm shaft crank 1 on the shaft in such a way that

the screws 2 sit on the flat spot 3.

–Push arm shaft crank 1 axially to the right as far as it will go.

–Tighten screws 2.

Andere Handbücher für 867

Inhaltsverzeichnis

Andere DURKOPP ADLER Nähmaschine Handbücher

DURKOPP ADLER

DURKOPP ADLER 650-10 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 867 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 867 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 610-01 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 867 Betriebsanleitung

DURKOPP ADLER

DURKOPP ADLER 867-M Premium Betriebsanleitung

DURKOPP ADLER

DURKOPP ADLER DAC BASIC - CLASS 271 PART II V 12-2010 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 512/532 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 610 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 911 Produkthandbuch

DURKOPP ADLER

DURKOPP ADLER 838 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 171 Betriebsanleitung

DURKOPP ADLER

DURKOPP ADLER 580 - Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER M-Type Delta D867 Betriebsanleitung

DURKOPP ADLER

DURKOPP ADLER 8967 Leitfaden

DURKOPP ADLER

DURKOPP ADLER 867 - 10-2010 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 911-210-3020-10 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 805 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 969 PURE Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 745-34 - Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 275 Series Leitfaden

DURKOPP ADLER

DURKOPP ADLER 868 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 867 Bedienungsanleitung

DURKOPP ADLER

DURKOPP ADLER 906 Bedienungsanleitung

Beliebte Nähmaschine Handbücher anderer Marken

Riccar

Riccar RL634DE Bedienungsanleitung

Singer

Singer 2517 Bedienungsanleitung

Pfaff

Pfaff 3307-1 SERIES Bedienungsanleitung

Janome

Janome Quilt Maker Pro 18 VERSA Bedienungsanleitung

Siruba

Siruba C007JP Bedienungsanleitung

Husqvarna Viking

Husqvarna Viking Designer SE Bedienungsanleitung

Singer

Singer 148-5 Bedienungsanleitung

IKEA

IKEA SY Bedienungsanleitung

Pfaff

Pfaff 571 Bedienungsanleitung

Singer

Singer 15-91 Bedienungsanleitung

Brother

Brother BB370 Bedienungsanleitung

Pegasus

Pegasus WT100 Series Bedienungsanleitung

Reliable

Reliable 7100DB Bedienungsanleitung

Pfaff

Pfaff 937 Bedienungsanleitung

Singer

Singer 6038 Bedienungsanleitung

Singer

Singer 413K Bedienungsanleitung

Pfaff

Pfaff 1471 E1 Bedienungsanleitung

Kenmore

Kenmore 16677 - Serger Sewing Machine Bedienungsanleitung
