5-BURNER GAS

GRILL

MODEL #DGA550SSP/DGA550SSP-D

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday,

or e-mail us at [email protected].

ANS Z21.58b-2012

CSA 1.6b-2012

Outdoor Cooking

Gas Appliance

70-10-054 Rev 02/2014

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

A Bottom shelf 1

BLocking Caster 2

C Caster 2

D Cart Left Side Panel 1

E Cart Right Side Panel 1

F Cart Rear Panel 1

GUpper Door Brace 1

HLeft Door Assembly 1

IRight Door Assembly 1

J Door Handle 2

K Door Handle Sleeve 4

LAA Battery 1

M Main Burner Control Knob 5

NSide/Rear Burner Control

Knob

PART DESCRIPTION QUANTITY

O Grill Body 1

PLeft Shelf Assembly 1

QSide Burner Cooking Grate 1

RRight Shelf Assembly 1

S Grease Pan 1

T Grease Cup 1

U Lid Handle 1

VLidHandleBezel 2

WWarming Rack 1

XHeat Tent 5

YCooking Grate 3

Z Tank Shelf 1

A1 CylinderExclusion 1

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

Please read and understand this entire manual before attempting to assemble, operate or install the

product. If you have any questions regarding the product, please call customer service at

1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday.

SAFETY INFORMATION

HARDWARE CONTENTS (shownactualsize)

DO NOTuseinanexplosiveatmosphere.Keepgrillareaclearandfreefromcombustiblematerials,

gasolineandotherammablevaporsandliquids.

DANGER

CALIFORNIA PROPOSITION 65

•Fuelsusedingas,oilred,woodburning,andcharcoalburningappliancesandtheproductsof

combustion of such fuels contain chemicals known to the state of California to cause cancer, birth

defects or other reproductive harm. This product contains chemicals, including lead and lead

compounds, known to the state of California to cause cancer, birth defects or other reproductive harm.

Wash hands after handling.

CAUTION

• NEVERusecharcoalorlighteruidwiththegrill.

• DO NOT use gasoline, kerosene or alcohol for lighting.

• The LP gas cylinder used with this appliance must be:

 (a)ConstructedandmarkedinaccordancewiththeSpecicationsforLP-GasCylindersof

the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/

CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and

Commision, as applicable; and

 (b)Providedwithalistedoverllingpreventiondevice.

appliances. This grill is not intended to be used in or installed on recreational vehicles and/or

boats.

• NEVERkeepalledcontainerinahotcarorcartrunk.Heatwillcausethegaspressureto

increase, which may open the relief valve and allow gas to escape.

• ALWAYS open grill lid slowly and carefully as heat and steam trapped within the grill can burn you

severely.

• DO NOTstoreorusegasolineorotherammableliquidsorvaporsinthevicinityofthisoranyother

appliance.

• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

• This grill is for use with propane gas only (propane cylinder not included).

• NEVER attempt to attach this grill to the self-contained propane system of a boat, camper trailer,

motor home or house.

• DO NOT attempt to move the grill while it is lit or when it is hot. The casters should be locked when

not moving the grill.

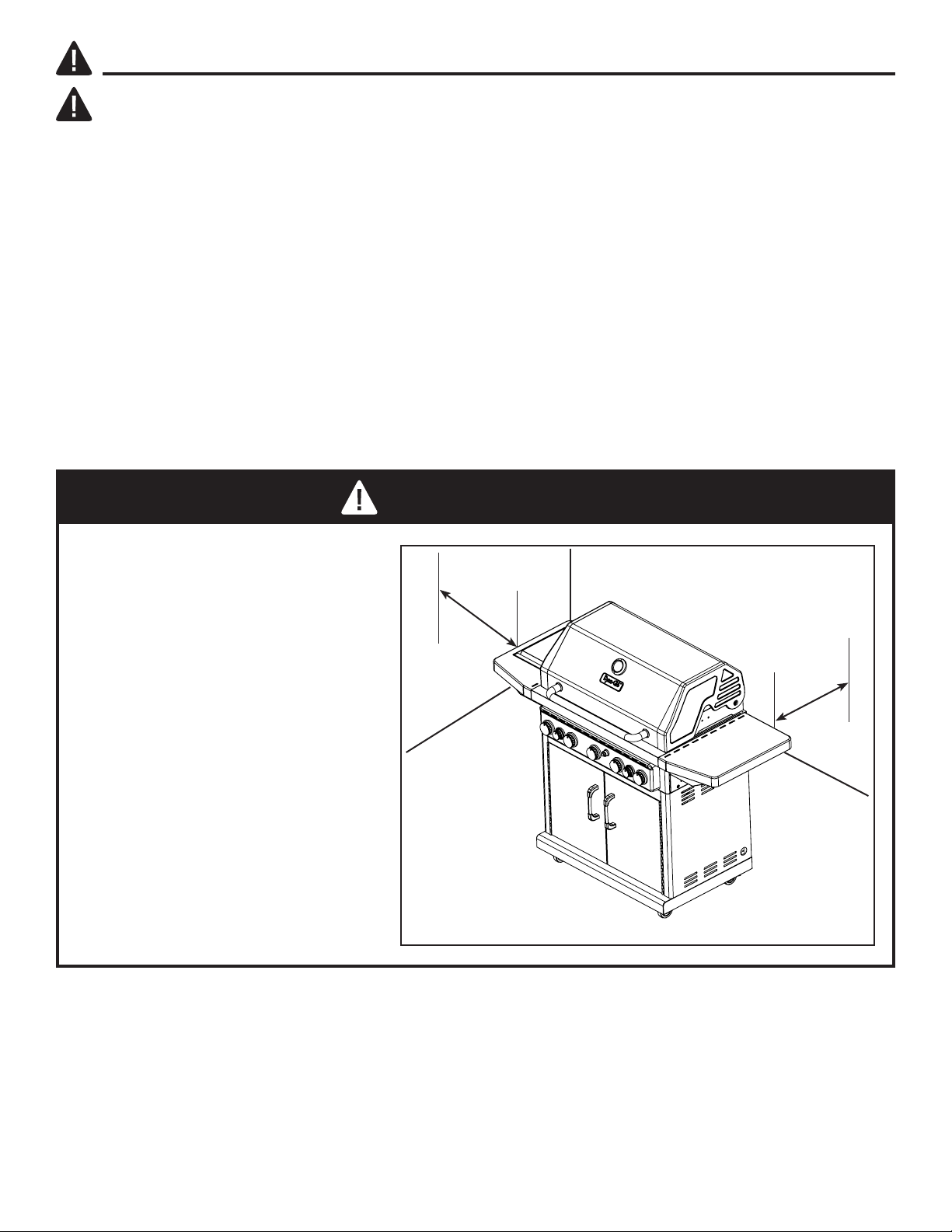

DO NOT place the grill under overhead

combustible construction or awnings.

Minimum clearance from sides and back

of unit to combustible construction is 36

in. (914.4 mm).

NOTE: The installation must conform

with local codes or, in the absence of

local codes, with either the National

Fuel Gas Code, ANSI Z223.1/NFPA 54,

Natural Gas and Propane Installation

Code, CSA B149.1, or Propane Storage

and Handling Code, B149.2.

WARNING

SAFETY INFORMATION

36 in.

(91.4 cm)

36 in.

(91.4 cm)

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents list. If any part is missing or damaged, do not attempt to

assemble the product.

Estimated Assembly Time: 50 minutes with two people

Tools Required for Assembly and leak testing (not included): Phillips screwdriver, spray bottle.

SAFETY INFORMATION

• DO NOT use the grill unless it is completely assembled and all parts are securely fastened and tightened.

• Keep all combustible items and surfaces at least 36 in. (91.44 cm) away from the grill at all times.

• DO NOT touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless

you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).

• DO NOT alter this grill in any manner.

• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or leaks, the

hose must be replaced prior to operating the appliance. The replacement hose assembly will be that

whichisspeciedbythemanufacturer,listedintherepairpartslistinthismanual.

• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill before

eachuse.Donotobstructtheowofgasorventilationair.

• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly

assemble or safely operate the grill.

• DO NOT leave a lit grill unattended. Keep children and pets away from the grill at all times.

• DO NOTplacethisgrillonanytypeoftabletopsurface.Thegrillshouldbeplacedonaatandlevel

surface.

• DO NOT use the grill in high winds.

ASSEMBLY INSTRUCTIONS

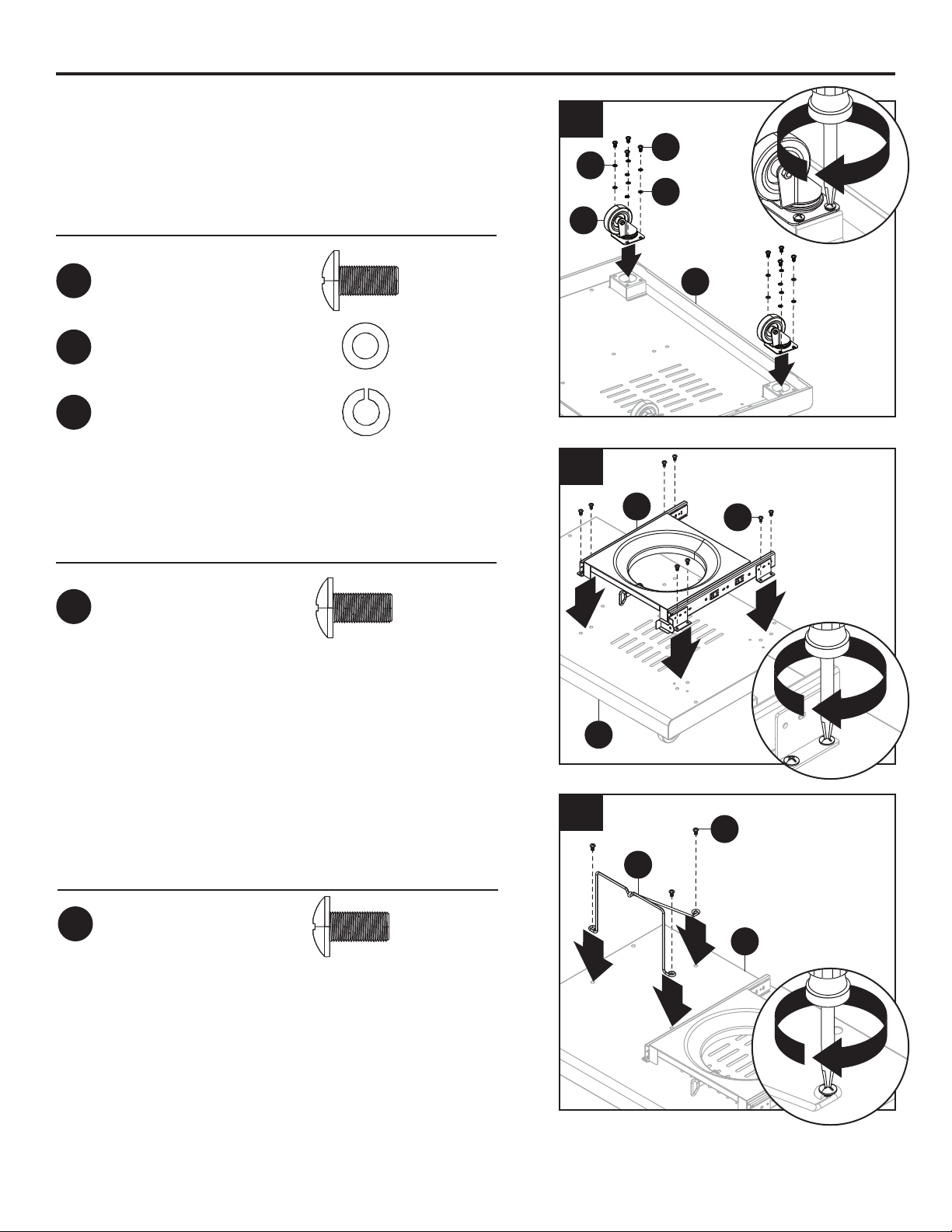

1. Attach two locking casters (B) to the rear of the

bottom shelf (A) and secure using four plain

washers (BB), four spring washers (CC), and

fourM6x12screws(AA)foreachlocking

caster (B).

Hardware Used

M6x12Screw

Plain washer

Spring washer

x8

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

ASSEMBLY INSTRUCTIONS

3. Turn over bottom shelf (A) and attach tank shelf

(Z)usingeightM6x12screws(AA).

2. Attach two casters (C) to the front of the

bottom shelf (A) and secure using four plain

washers (BB), four spring washers (CC), and

fourM6x12screws(AA)foreachcaster(C).

Hardware Used

M6x12Screw

Plain washer

Spring washer

x8

M6x12 Screw

Qty. 40 M4x10 Screw

Qty. 12 M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE:

Preassembled

with door handle.

Plain Washer

Qty. 16 Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE:

Preassembled

with lid handle.

AA BB CC

GG HH

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40 M4x10 Screw

Qty. 12 M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE:

Preassembled

with door handle.

Plain Washer

Qty. 16 Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE:

Preassembled

with lid handle.

AA BB CC

GG HH

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40 M4x10 Screw

Qty. 12 M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE:

Preassembled

with door handle.

Plain Washer

Qty. 16 Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE:

Preassembled

with lid handle.

AA BB CC

GG HH

M6x16 Screw

Qty. 10

4.Securecylinderexclusion(A1)tobottomshelf

(A)usingthreeM6x12screws(AA).

Hardware Used

M6x12Screw x3

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

ASSEMBLY INSTRUCTIONS

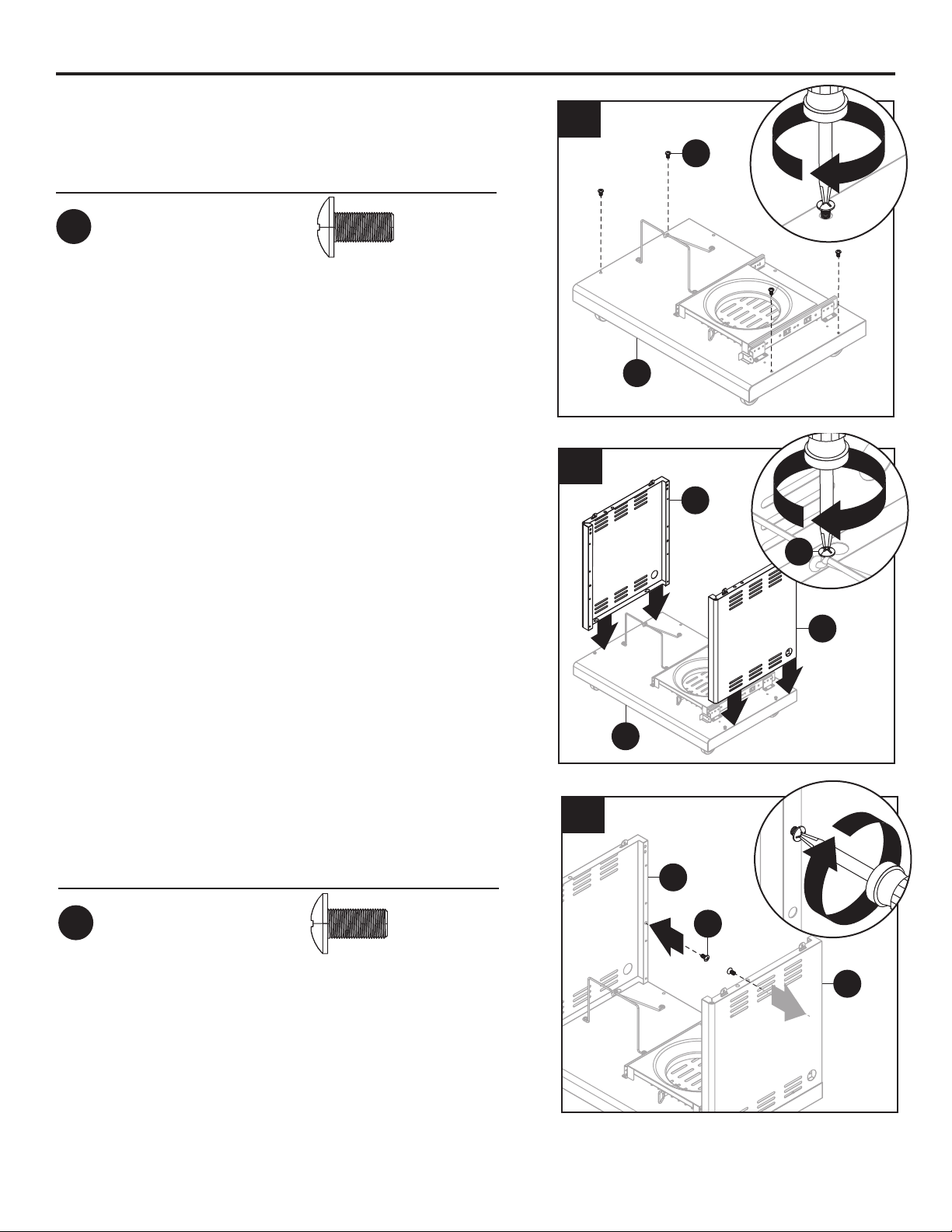

6. Attach the cart left and right side panels (D & E)

by placing the panel keyholes over the screw

heads (AA) on the bottom shelf (A). Slide the

cart side panels (D & E) so that the screw head

is over the smaller part of the keyhole. Thread

the screws (AA) down snug but DO NOT tighten

as some slack will be necessary in following

assembly steps.

5. PartiallyinsertfourM6x12screws(AA)intothe

bottom shelf (A).

Hardware Used

M6x12Screw x4

M6x12 Screw

Qty. 40 M4x10 Screw

Qty. 12 M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE:

Preassembled

with door handle.

Plain Washer

Qty. 16 Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE:

Preassembled

with lid handle.

AA BB CC

GG HH

M6x16 Screw

Qty. 10

Hardware Used

M6x12Screw x2

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

7. PartiallyinserttwoM6x12screws(AA)intothe

cart left and right side panels (D & E).

ASSEMBLY INSTRUCTIONS

Hardware Used

M6x12Screw

x3

x4

222

8. Attach the cart rear panel (F) by sliding the

keyholes in the cart rear panel (F) over the

inserted screws. Slide the cart rear panel (F) down

to meet bottom shelf (A). Secure the cart rear

panel (F) to the bottom shelf (A) with three screws

(AA). Tighten all screws, including the two screws

in cart side panels (D & E).

9. PartiallyinsertfourM6x12screws(AA)intothe

cart side panels (D & E). Attach the upper door

brace (G) by sliding the cut-outs in the upper door

brace (G) over the four screws (AA) and tightening

all four screws (AA).

10.RemovepreassembledM4x10screws(GG)

from the door handles (J). Insert two door handle

sleeves (K) into the holes located on the back

oftheleftdoorassembly(H).InserttwoM4x10

screws (GG) into the door handle sleeves (K)

and into the threaded holes in the door handle

(J). Tighten the screws. Repeat with right door

assembly (I).

Hardware Used

M4x10Screw x4

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

ASSEMBLY INSTRUCTIONS

11. Attach the left door assembly (H) to the cart

body by aligning the holes in the hinge of the

left door assembly (H) with the holes in the cart

leftsidepanel(D).SecureusingfourM4x10

screws (DD). Tighten all screws. Repeat with

right door assembly (I).

12. Remove preassembled screws (HH) from the lid

handle (U). Attach the lid handle (U) by inserting

twoM6x25screws(HH)frominsidethelidofthe

grillbody(O),throughthelidhandlebezels(V),

into the lid handle (U) and tightening securely.

Hardware Used

M4x10Screw

M6x25Screw

x8

x2

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

M6x12 Screw

Qty. 40

M4x10 Screw

Qty. 12

M6x20 Screw

Qty. 4

M4x10 Screw

Qty. 4

NOTE: Preassembled

with door handle.

Plain Washer

Qty. 16

Spring Washer

Qty. 16

M6x25 Screw

Qty. 2

NOTE: Preassembled

with lid handle.

AA DD EE

GG HH

BB CC

M6x16 Screw

Qty. 10

13. Slip main burner control knobs (M) and side/

rear burner control knob (N) onto the valve

stems located on the front control panel of the

grill body (O).

Andere Handbücher für DGA550SSP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Dyna-Glo Grill Handbücher

Dyna-Glo

Dyna-Glo DGP552SSN-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGH485CRP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGE486BSP-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGA480SSN Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGN486SNC Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGC310CNP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGB730SNB Technisches Dokument

Dyna-Glo

Dyna-Glo Signature DGSS443CB-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo SIGNATURE Series Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGH474CRP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGB390SNP-D-1 Bedienungsanleitung

Dyna-Glo

Dyna-Glo M486BBDG14-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGSS675CB-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGH485CRP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGP483SSN Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGF510SSP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGA550SSN Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGSS287CB Bedienungsanleitung

Dyna-Glo

Dyna-Glo Signature DGSS443CB Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGC313CNCP Bedienungsanleitung

Dyna-Glo

Dyna-Glo Signature Series Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGE486BSP Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGB390SNP-D Bedienungsanleitung

Dyna-Glo

Dyna-Glo DGP321SNN Bedienungsanleitung

Beliebte Grill Handbücher anderer Marken

Orbegozo

Orbegozo GR 2300 Bedienungsanleitung

bora

bora PT11 Bedienungsanleitung

Klarstein

Klarstein 10031664 Bedienungsanleitung

Garland

Garland MWE3W Bedienungsanleitung

Char-Broil

Char-Broil 463722714 Bedienungsanleitung

Nexgrill

Nexgrill 720-0830HK Bedienungsanleitung

Kenmore

Kenmore 415.16123800 Bedienungsanleitung

Camp Chef

Camp Chef PG24CLAU Bedienungsanleitung

Tucker Barbecues

Tucker Barbecues GTR Series Montageanleitung

Monogram

Monogram ZGG540NCP1SS Bedienungsanleitung

Equipex

Equipex Sodir Savoy Bedienungsanleitung

Gaggenau

Gaggenau VR 414 610 Bedienungsanleitung

Miele

Miele KM 408-1 Bedienungsanleitung

George Foreman

George Foreman GGR50B Bedienungsanleitung

AOG

AOG T series Bedienungsanleitung

Gorenje

Gorenje TG2000CB Bedienungsanleitung

Weber

Weber Genesis Silver-B Permamount NG 051701 Bedienungsanleitung

Glen

Glen SA 3037 Bedienungsanleitung
