Chapter 1 Hardware

Overview

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

Chapter 1 Contents

1.1

Syestem Feature ....................................................................................................... 3

1.2 System Unit Components .......................................................................................... 9

1.3 Solid State Drive (SSD) ........................................................................................... 15

1.4 Power Supply ........................................................................................................... 16

1.5 Batteries ................................................................................................................... 17

1.51

Main Battery ................................................................................. 17

1.52

Battery Charging Control ............................................................. 18

Figures

Figure 1-1 ID Parts Description Placement ......................................................................6

Figure 1-2 Computer Block Diagram ...............................................................................7

Figure 1-3 System Board Configurations .........................................................................7

Figure 1-4 System Unit Block Diagram ...........................................................................8

Figure 1-5 Solid state driver ...........................................................................................13

Tables

Table 1-1 SSD Specifications .........................................................................................14

Table 1-2 Battery Specifications .....................................................................................15

Table 1-3 Quick/Normal Charging Time ........................................................................16

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

1.1 System Features

Dynabook Satellite C40-G/ Satellite Pro C40-G is a Slim and Light entry notebook PC

based on the mobile Intel Comet Lake U series processor, providing high-speed

processing capabilities and advanced features. The computer employs a Lithium Ion

battery that allows it to be battery-operated for a longer period of time. The display

uses 14-inch FHD and HD LED panel, at a resolution of 1920x1080 and 1366x768.

The CPU package is BGA type.

The computer has the following features:

 Processor

•

CPU is mobile Intel Comet Lake U Processor:

Intel Comet Lake U i3 CPU

i3-10110U (2.10 G) Hz

Intel Comet Lake U i5 CPU

i5-10210U (1.60 G) Hz

Intel Comet Lake U i7 CPU

i7-10510U (1.80G) Hz

Intel Comet Lake U i7 CPU

i7-10710U (1.10G) Hz

Intel Intel® Celeron® Processor

5205U (1.90G) Hz

 Host Bridge System Controller

System Controller: Intel integrated Host bridge system into CPU.

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

 Graphics

Internal: Intel® UHD Graphics for 10th Gen Intel® processors

 Memory

The computer has 1 SO-DIMM DDR4 memory particles which support single

channel. DDR4 is driven at 1.2V. It can incorporate up to 16GB of memory

configuration.

Using the following sizes of memory configuration:

 4096 MB SO-DIMM DDR4-2666MHz

 8192 MB SO-DIMM DDR4-2666MHz

 16384 MB SO-DIMM DDR4-2666MHz

 Solid State Drive (SSD)

The computer accommodates SSD with following types:

 SSD M.2 128GB/256GB/512GB (SATA/PCIe)

 Display

LCD displays come in the following type at resolution 1920x1080 and

1366x768:

 14” FHD 250nits eDP 1920x1080 LED display

 14" HD 220nits eDP 1366x768 LED display

 On-Board LAN

The internal LAN supports 10/100/1Gbit Ethernet, enabling connection to a

LAN at up to 1Gbps. It supports Wake-up on LAN from S3/S4 and PXE boot

support. This internal LAN has RJ45 jack to directly accommodate a LAN

cable.

 Wireless LAN

The internal Mini Card slot supports Intel Jefferson Peak1 (802.11ac+BT5.0),

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

Intel Jefferson Peak2 (802.11ac+BT5.0), Non-Intel CM251(802.11ac+BT5.0),

and Intel Harrison Peak2, 802.11ax+BT5.1 Wireless LAN cards. The Antenna

has two wires dual band.

 Sound System

REALTEK ALC256 integrated audio controller supports multimedia. The sound

system contains the following:

 Stereo speakers

 External microphone &Headphone combo jack

 Integrated microphone (with Webcam)

 Keyboard

many kinds’ countries keyboard, which is Non-backlight keyboard with

UK/US/ keyboard.

 Pointing Device

Click Pad pointing device support. Gesture support for precision function as

Tapping/Tap and Drag/Pinch zoom/Up to 4 fingers.

 USB Port

The computer has three USB ports, two for USB3.0 type A, Another One is

USB type C (USB3.1 Gen1/DP/PD). High-Speed USB3.0/3.1 allows data

transfers up to 5Gbps

 HDMI Out Port

A HDMI monitor can be connected to HDMI Out Port on the computer.

 Bridge Media Slot

This slot is for your memory card requirements like SD/Mini SD (need

adaptor)/Micro SD (need adaptor)/SDHC/SDXC and MMC Cards to provide

memory card read on your computer.

 Webcam with embedded internal microphone

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

The computer has an internal camera. It supports HD (0.9M) with Camera

shutter. It also supports Camera LED, LED is on when Camera working. The

internal microphone is embedded in this camera module.

 Battery

The computer has a 2 Cell (6000mAh) Lithium Ion battery pack.

 Figures 1-1/1-2/1-3 and 1-4 show the computer and its system unit

configuration, respectively.

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

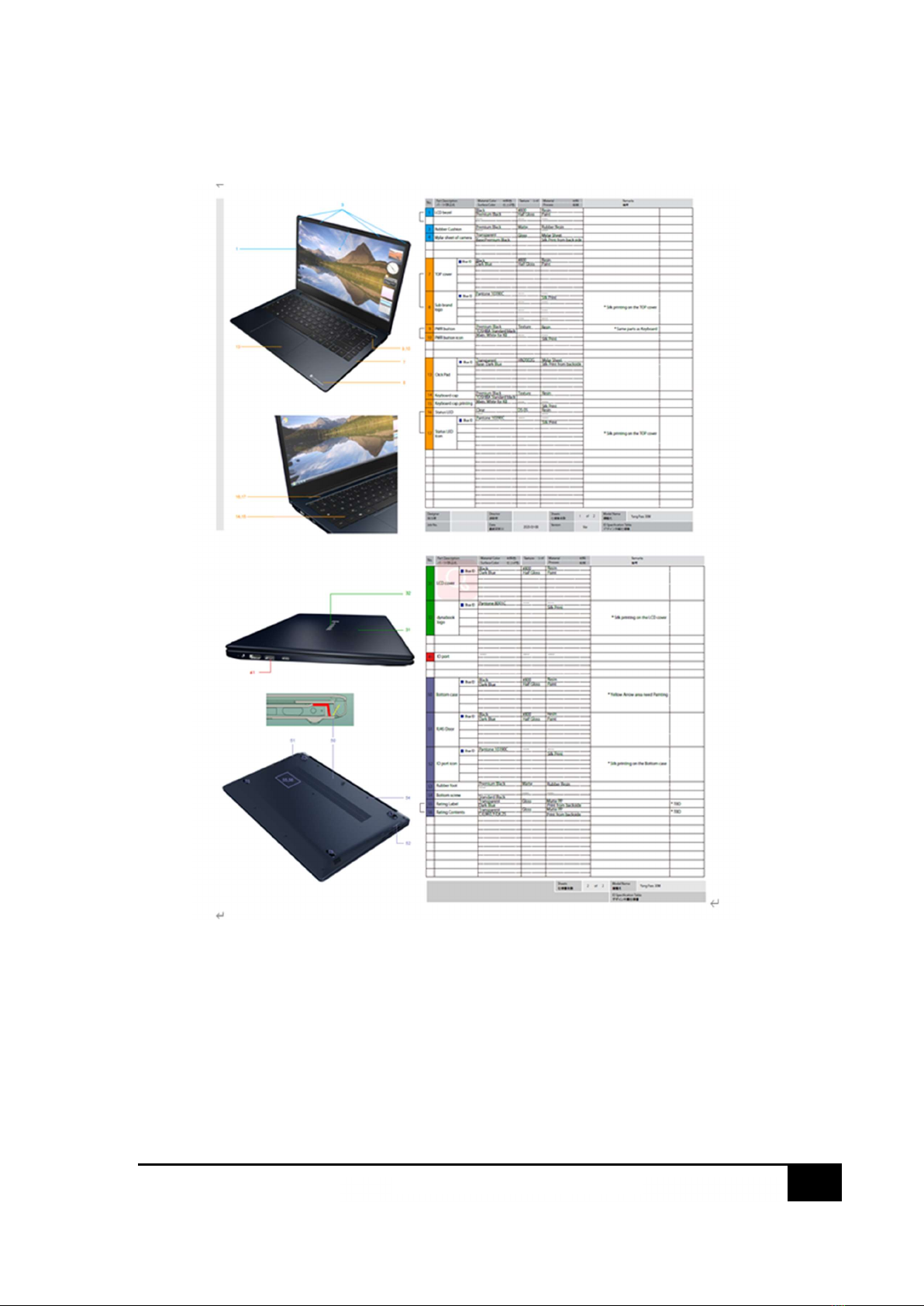

Figure 1-1 ID Parts Description Placement

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

Figure 1-2 Computer Block Diagram

Figure 1-3 System Board Configurations

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

1.2 System Unit Components

Figure 1-4 System Unit Block

Diagram

SATELLITE PRO C40-G, SATELLITE C40-G Maintenance Manual

The system unit of the computer consists of the following components:

 Processor: CPU is mobile Intel Comet Lake U Processor:

Intel Comet Lake U i3 CPU

i3-10110U (2.10 G) Hz

Intel Comet Lake U i5 CPU

i5-10210U (1.60 G) Hz

Intel Comet Lake U i7 CPU

i7-10510U (1.80G) Hz

Intel Comet Lake U i7 CPU

i7-10710U (1.10G) Hz

Intel Intel Celeron Processor CPU

5205U (1.90G) Hz

 Memory: The computer has 1 SO-DIMM DDR4 memory particles which support

single channel. It can incorporate up to 16GB of memory configuration.

 PC4-2666 (2666MHz) SO-DIMM DDR4 supported

 DDR4 1.2V operation

 Data transfer rates: PC4-2666 on i3/i5/i7 CPU, PC4-2400 on Celeron CPU

 BIOS ROM (Flash memory)
