Dynex DX-C114200 Bedienungsanleitung
PC/Mac USB File Transfer Adapter
DX-C114200
USER GUIDE
DX-C114200_11-0231_MAN_ENG_V1.fm Page 1 Thursday, March 3, 2011 3:51 PM
2
DX-C114200_11-0231_MAN_ENG_V1.fm Page 2 Thursday, March 3, 2011 3:51 PM
3
Dynex DX-C114200
PC/Mac USB File
Transfer Adapter
Contents
Important safety instructions ............................................3
Introduction.......................................................................4
Features.............................................................................5
Package Contents...............................................................5
System Requirements........................................................5
LED status..........................................................................6
Installing and using the adapter........................................7
Specifications...................................................................22
Legal notices....................................................................23
One-year limited warranty ..............................................25
Important safety
instructions
Always read the safety instructions carefully:
• Keep this User's Manual for future reference
• Keep this equipment away from humidity
DX-C114200_11-0231_MAN_ENG_V1.fm Page 3 Thursday, March 3, 2011 3:51 PM
4
• If any of the following situation arises, get the
equipment checked by a service technician:
• The equipment has been exposed to moisture.
• The equipment has been dropped and damaged.
• The equipment has obvious sign of breakage.
• The equipment has not been working well or you
cannot get it to work according to the User's
Manual.
Introduction
This PC/Mac USB File Transfer Adapter is a premier file and
data sharing solution for PC and MAC users. The Dynex Link
utility software is already embedded on the adapter and will
automatically load onto your system. Transfer e-mail, music,
photos, videos, and document files from one computer to
another, at speeds up to 480 Mbps. Compatible with Windows
2000, Windows XP, Windows Vista, Windows 7, and MAC
operating systems, the adapter is ideal for transferring data
files from one computer to another, which could be PC-to-PC,
or PC-to-MAC.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 4 Thursday, March 3, 2011 3:51 PM
5
Features
• Simple USB2.0 Plug-n-Play functionality.
• Bi-directional data transfer between two computers or
different operating systems:
• Notebooks and desktops
• Windows 2000, Windows XP, Windows Vista, and
Windows 7 operating system compatible (For PC-
to-PC)
• Windows and MAC operating system compatible
(For PC-to-MAC)
• Fast transfer rate of up to 16MB/second.
• Two easy steps of operation - simply connect and
transfer.
• No file size or media capacity limitations such as those
found with external media cards.
• Dynex Link software program loads automatically.
Package Contents
• PC/Mac USB file transfer adapter
System Requirements
• Windows 2000/Windows XP/Windows Vista/
Windows 7 (For PC-to-PC)
• Windows and MAC OS X v10.4 or later (For PC-to-MAC)
DX-C114200_11-0231_MAN_ENG_V1.fm Page 5 Thursday, March 3, 2011 3:51 PM
6
LED status
LED
color LED
status Description
Green On USB ports are connected to hosts.
Flashing fast Data is being transferred.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 6 Thursday, March 3, 2011 3:51 PM
7
Installing and using the
adapter
To install and use on Windows 2000, Windows XP,
Windows Vista, and Windows 7 (PC-to-PC):
1Plug one end of the USB adapter into your local PC and
the other end into your remote PC. The following work
area opens, showing the local and remote computers.
- OR -
DX-C114200_11-0231_MAN_ENG_V1.fm Page 7 Thursday, March 3, 2011 3:51 PM
8

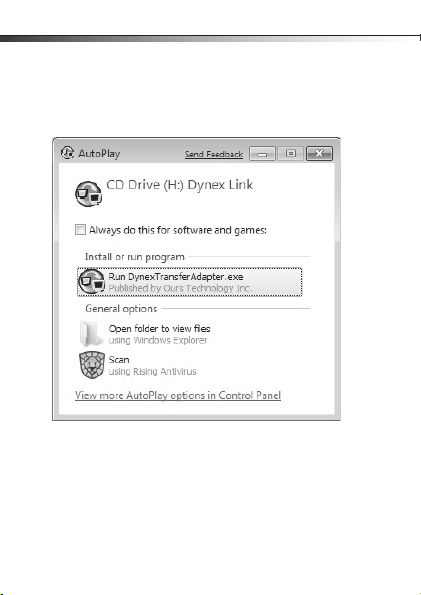

If you are using Windows Vista or Windows 7, when the
message box opens, click Run Dynex Transfer
Adapter.exe to start.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 8 Thursday, March 3, 2011 3:51 PM
9

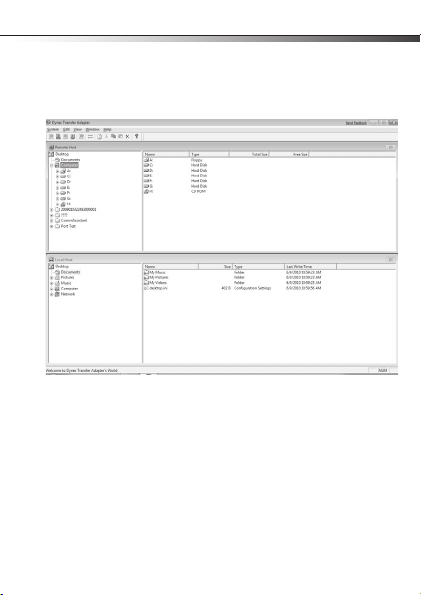

The following work area opens, showing the local and
remote computers.
2To transfer files, click and drag the files from one side to
the other side.
When the file appears on the other side, it is available
for use.
Note: If you close the program, or the program fails to
autorun, you can start it from My Computer by
double-clicking Dynex Link.
DX-C114200_11-0231_MAN_ENG_V1.fm Page 9 Thursday, March 3, 2011 3:51 PM
10
Under Windows XP/2000
DX-C114200_11-0231_MAN_ENG_V1.fm Page 10 Thursday, March 3, 2011 3:51 PM
