ASSEMBLY INSTRUCTIONS
DX-DRTVM102
Medium Low Profile Wall Mount with Optional -5° Tilt
Safety information and
specifications...........................................2
TVs the wall mount fits ........................3
Tools needed ...........................................3
Parts ............................................................4
Hardware...................................................5
Assembly instructions..........................6
For wood-stud, concrete-wall, or
concrete-bloack installation
2DX-DRTVM102
Need help? Call 800-305-2204
Safety information and specifications
IMPORTANT SAFETY INSTRUCTIONS -
SAVE THESE INSTRUCTIONS
CAUTION: Do not use this product for any
purpose not explicitly specified by Dynex.
Improper installation may cause property
damage or personal injury. If you do not
understand these directions, or have doubts
about the safety of the installation, contact Customer
Service or call a qualified contractor. Dynex is not
responsible for damage or injury caused by incorrect
installation or use.
The weight of your TV must not exceed 50 lbs. (22.6 kg).
The wall must be capable of supporting five times the
weight of the TV and wall mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young
children!
This product is not designed for use in metal stud walls.
Model #: DX-DRTVM102
Distributed by Best Buy Purchasing, LLC
Manufacturer: Milestone/Secura
Maximum weight: 50 lbs. (22.6 kg)
Screen size: 22" to 37" diagonal
Overall dimensions (W × H): 13.9" x 9.84" (353 x 250 mm)
Wall-mount weight: 3 lbs. (1.36 kg)
We’re here for you
www.dynexproducts.com
For customer service, call:
800-305-2204 (U.S./Canada markets)

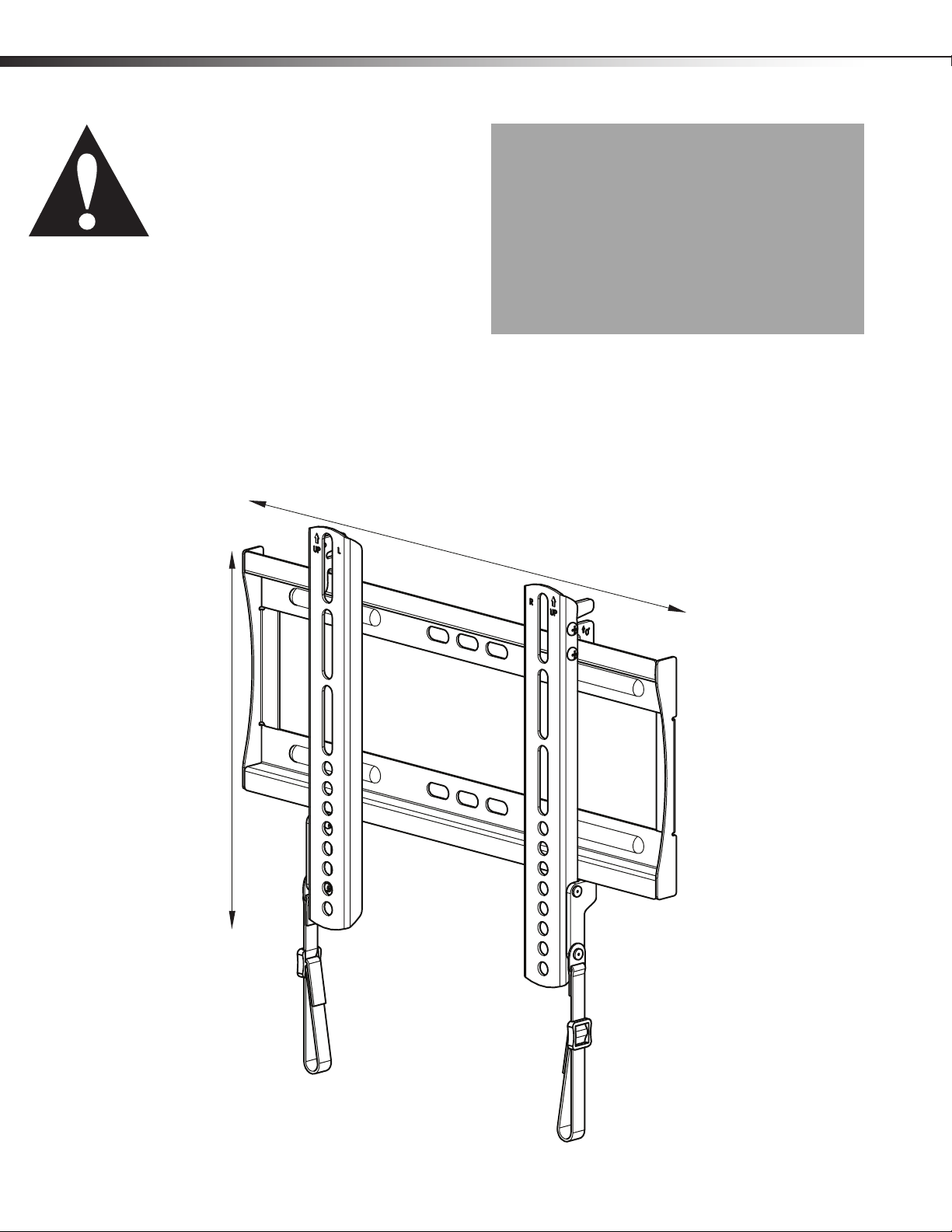

9.84" (250 mm)
13.9" (353 mm)
3
DX-DRTVM102
Need help? Call 800-305-2204
TVs the wall mount fits
The wall mount fits TVs with M4, M5, or M6 screw holes that are the following distances apart:
13.78" (350 mm) maximum horizontal distance
9.06" (230 mm) vertical distance
Tools needed

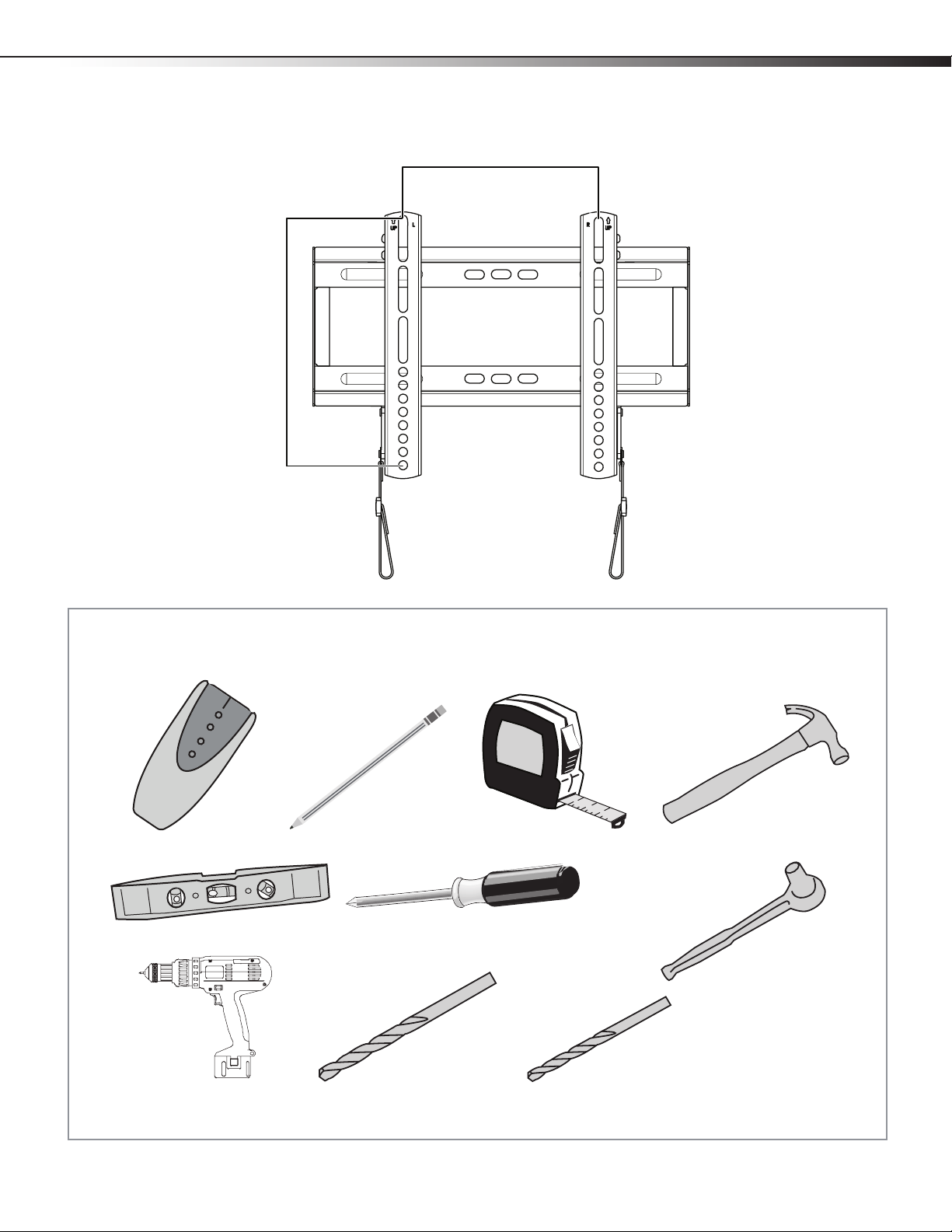

You will need the following tools to assemble your new wall mount:
Edge-to-edge stud finder Pencil Tape measure Hammer
Level Phillips screwdriver
Socket wrench with 1/2" (13 mm)
socket or adjustable wrench
Drill 7/32" (5.5 mm) wood drill
bit for wood stud wall
3/8" (10 mm) masonry
drill bit for concrete wall
OR
4DX-DRTVM102
Need help? Call 800-305-2204
Part s
Package contents: parts
Make sure you have all the parts necessary to assemble your new TV wall mount:

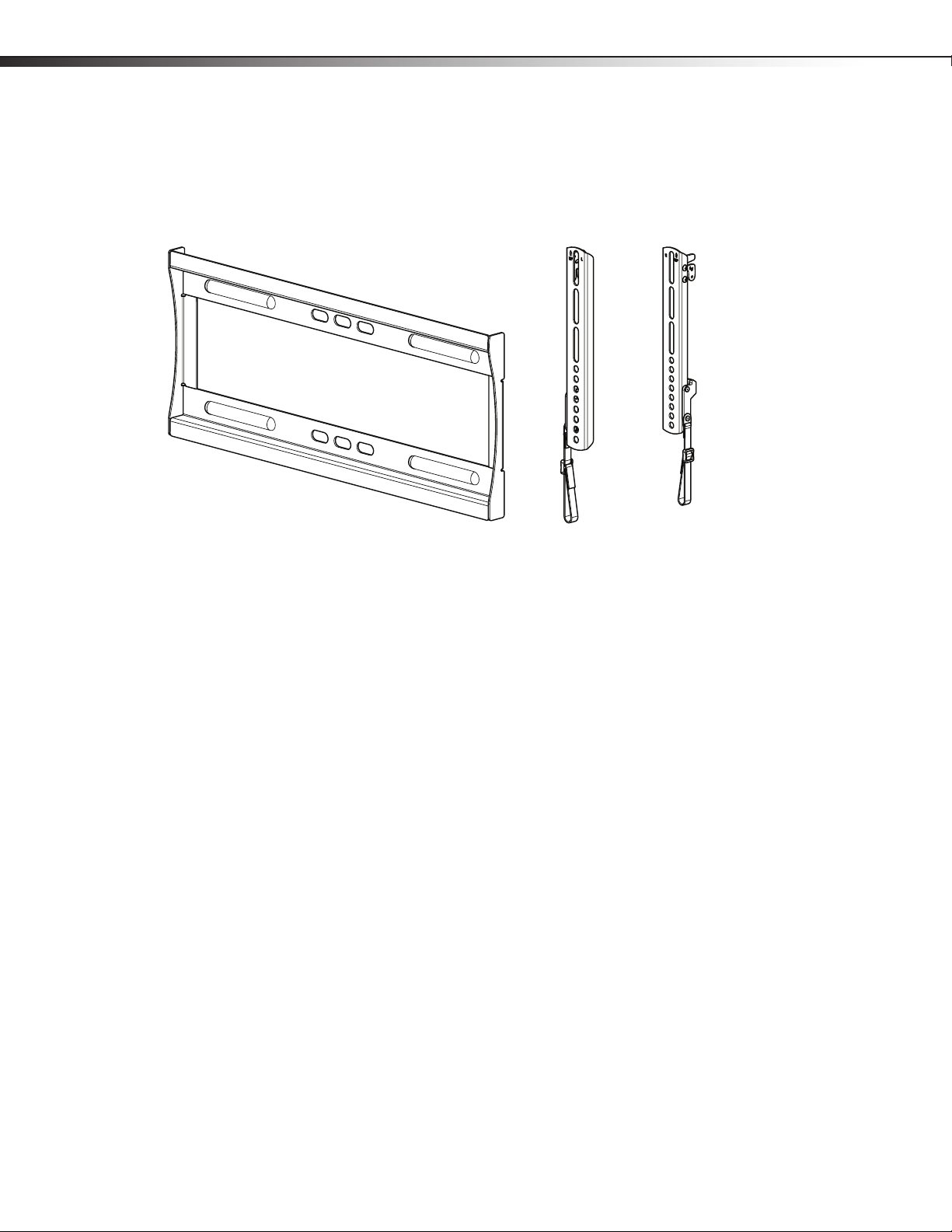

03 Right TV
bracket (1)
01 Wall plate (1) 02 Left TV
bracket (1)
5
DX-DRTVM102
Need help? Call 800-305-2204
Hardware

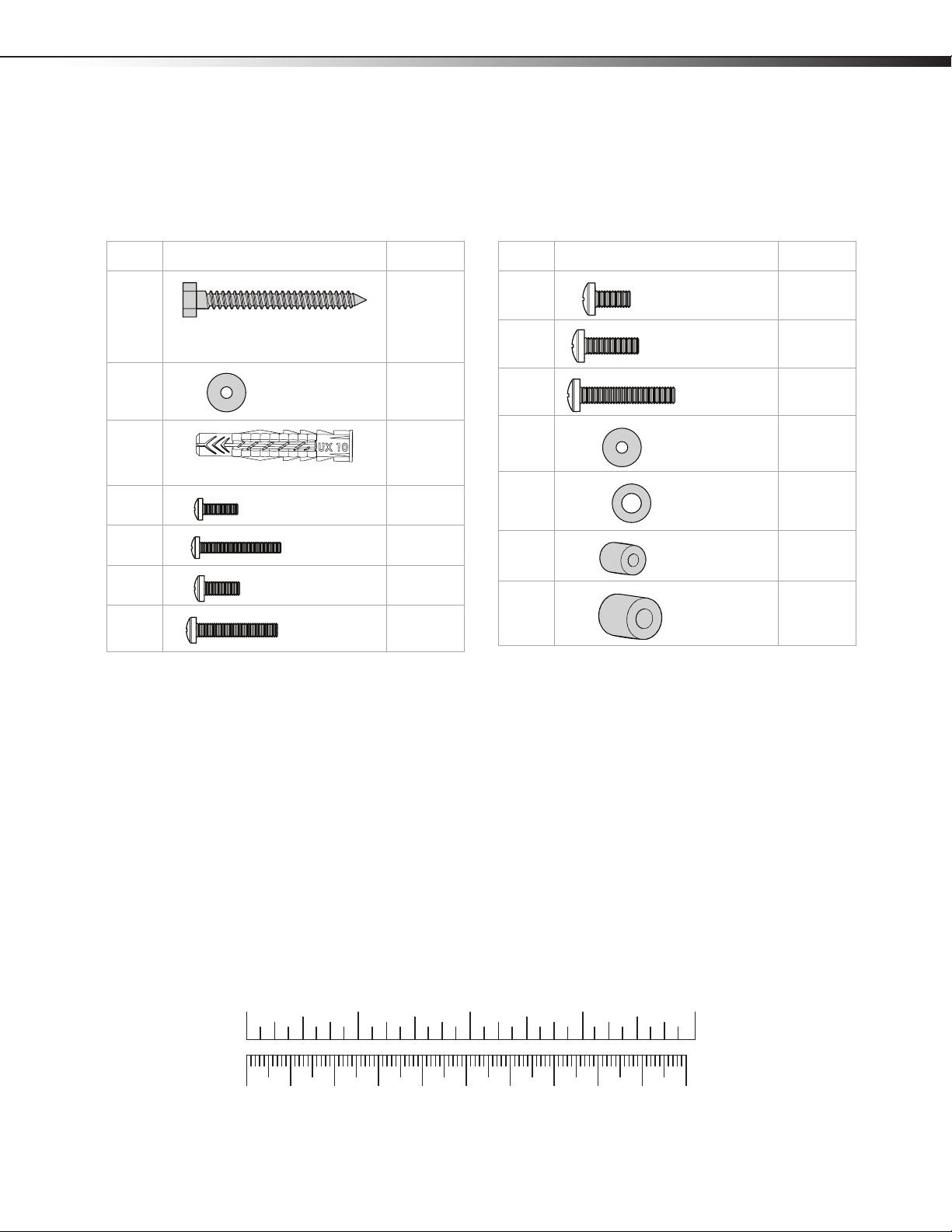

Package contents: hardware
Note: Not all hardware will be used.
Make sure you have all the hardware necessary to assemble your new wall mount:
Label Hardware Qty.
04 2
05 2
06 2
07 4
08 4
09 4
10 4
5/16" × 2 3/4" lag bolt
(7.9 mm × 69.9 mm)
5/16" (7.9 mm)
washer
Concrete anchor
M4 × 12 mm screw
M4 × 30 mm
screw
M5 × 12 mm screw
M5 × 30 mm
screw
Label Hardware Qty.
11 4
12 4
13 4
14 8
15 4
16 4
17 4
M6 × 12 mm screw
M6 × 20 mm screw
M6 × 35 mm
screw
M4/M5 washer
M6 washer
M4/M5 spacer
M6 spacer
10 20 30 40 50 60 70 80 90 100mm
1234in
6DX-DRTVM102
Need help? Call 800-305-2204
Assembly instructions
Step 1: Adjust the tilt
Note: The tilt on the left TV bracket (02) and right TV bracket (03) must be the same.

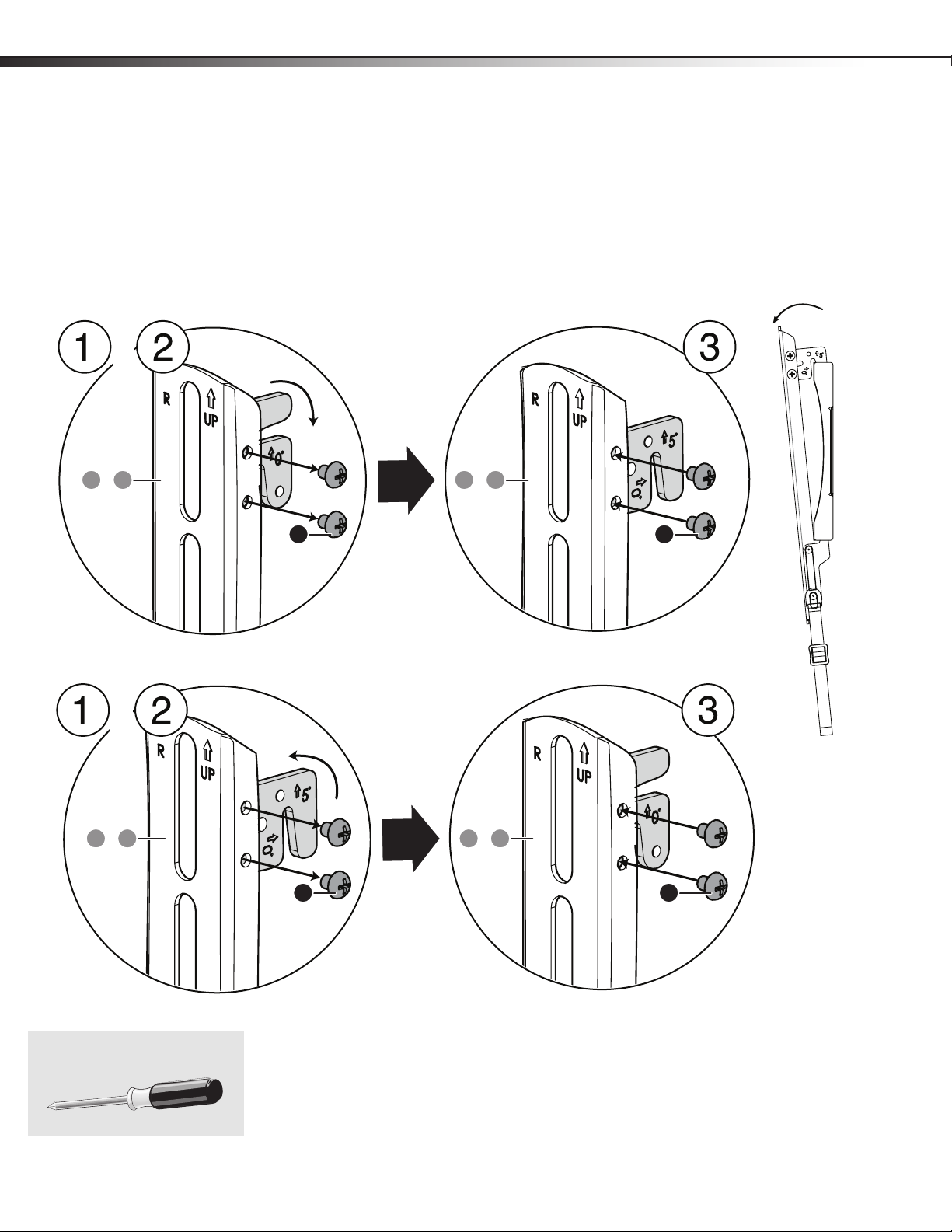

1Use a Phillips screwdriver to remove the two tilt screws (S) from the outside edges of each TV bracket (02
and 03).
2To tilt the TV forward by 5°, push the tilt brackets on the left TV bracket (02) and right TV bracket (03) down.
OR
To keep the TV completely vertical, push tilt brackets on the left TV bracket (02) and right TV bracket (03) up.
3Re-insert two tilt screws (S) into each TV brackets (02 and 03), then tighten the screws.
Caution: Do not over tighten the screws.
You’ll need:
S S
02 03 02 03
S S
02 03 02 03
Option 1: Mount tilted -5°
Option 2: Mount not tilted
&&
&&
Tilt bracket
Tilt bracket
&
&
Phillips screwdriver
7
DX-DRTVM102
Need help? Call 800-305-2204
Step 2: Determine whether your TV has a flat back or an irregular or obstructed back
1Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and
scratches.
2If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for
instructions.
3Align the screw holes in the brackets with the mounting screw holes on your TV. Position the brackets so they do
not extend above or below your TV and do not cover any connectors or jacks. Make note of which bracket screw
holes you will use.
If the brackets lay flush against the back of your TV and do not block any jacks, your TV has a flat back.
If there is a gap between a bracket and some part of the back of your TV, your TV has an irregularly-shaped back.
If a bracket blocks any jacks, your TV has an obstructed back. In either case, you need spacers.
4Remove the brackets.

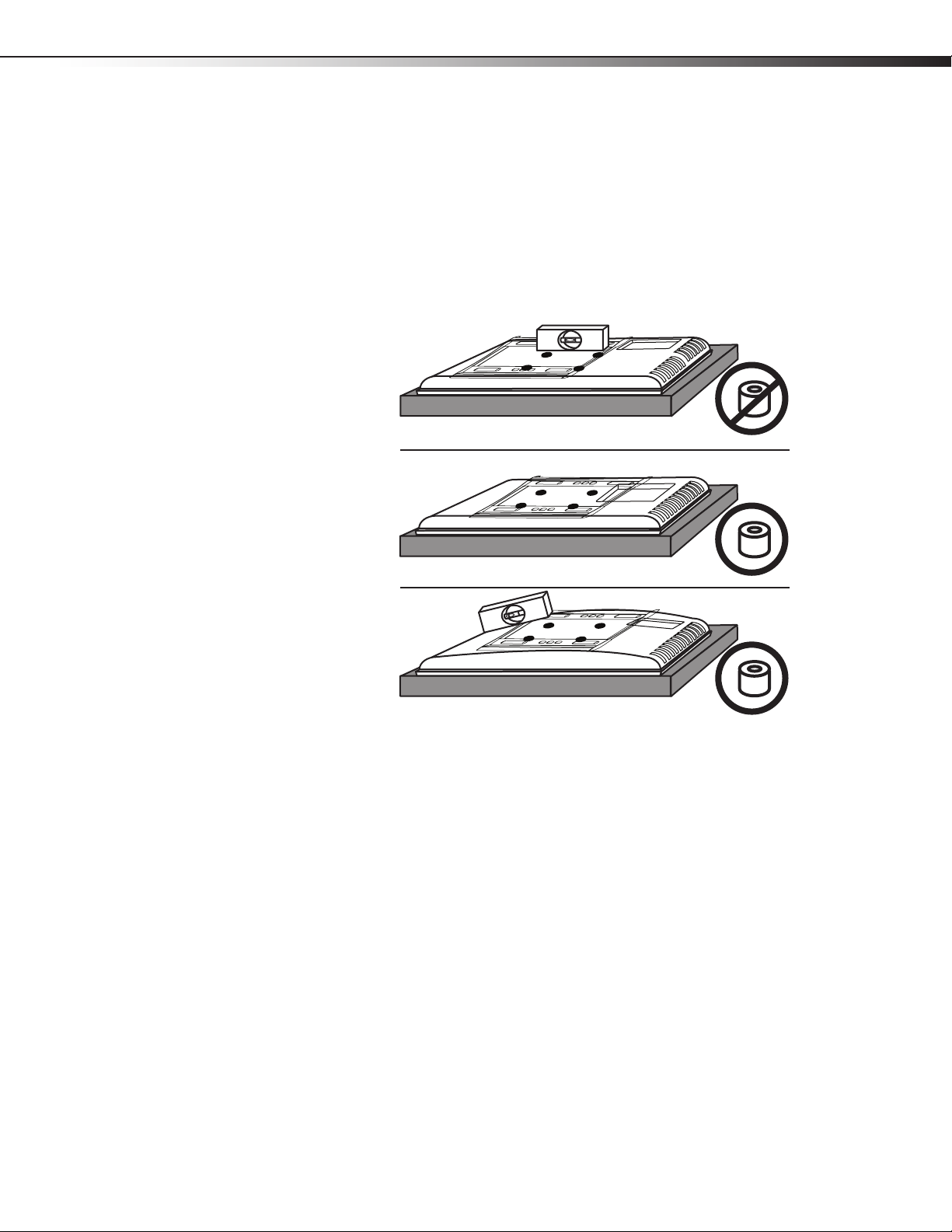

Flat back (no spacers needed)
Obstructed back (spacers needed)
Irregular back (spacers needed)
8DX-DRTVM102
Need help? Call 800-305-2204
Step 3: Select screws and spacers
1Select the hardware for your TV (screws, washers, and spacers). See the documentation that came with your TV
for screw length and diameter.
Select one of the following types of screws:
Select one of the following types of washers:
For an irregular or obstructed TV back, select one of the following types of spacers:
2Hand thread screws into the threaded screw holes on the back of your TV to determine the correct screw
diameter and length. If your TV has an irregular or obstructed back, place a spacer between your TV back and the
screw to make sure you have the correct length.
Caution: To avoid potential personal injuries and property damage,
make sure that there are adequate threads to secure the brackets to
your TV. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw and spacer combination to
accommodate your TV. Using hardware that is too long may damage
your TV. However, using a screw that is too short may cause your TV
to fall from the mount.
3Remove the screws.
For a flat back TV, go to “Step 4: Install the TV brackets Option 1: Installing for a TV with a flat back” on
page 9.
For an irregular or obstructed back, go to “Step 4: Install the TV brackets (continued) Option 2: Installing
for a TV with an irregular or obstructed back” on page 10.
M4 × 12 mm screws (07)M6×12mmscrews(11)
M4 × 30 mm screws (08)M6×20mmscrews(12)
M5 × 12 mm screws (09)M6×35mmscrews(13)
M5 × 30 mm screws (10)
M4/M5 washers (14) M6 washers (15)
M4/M5 spacers (16) M6 spacers (17)

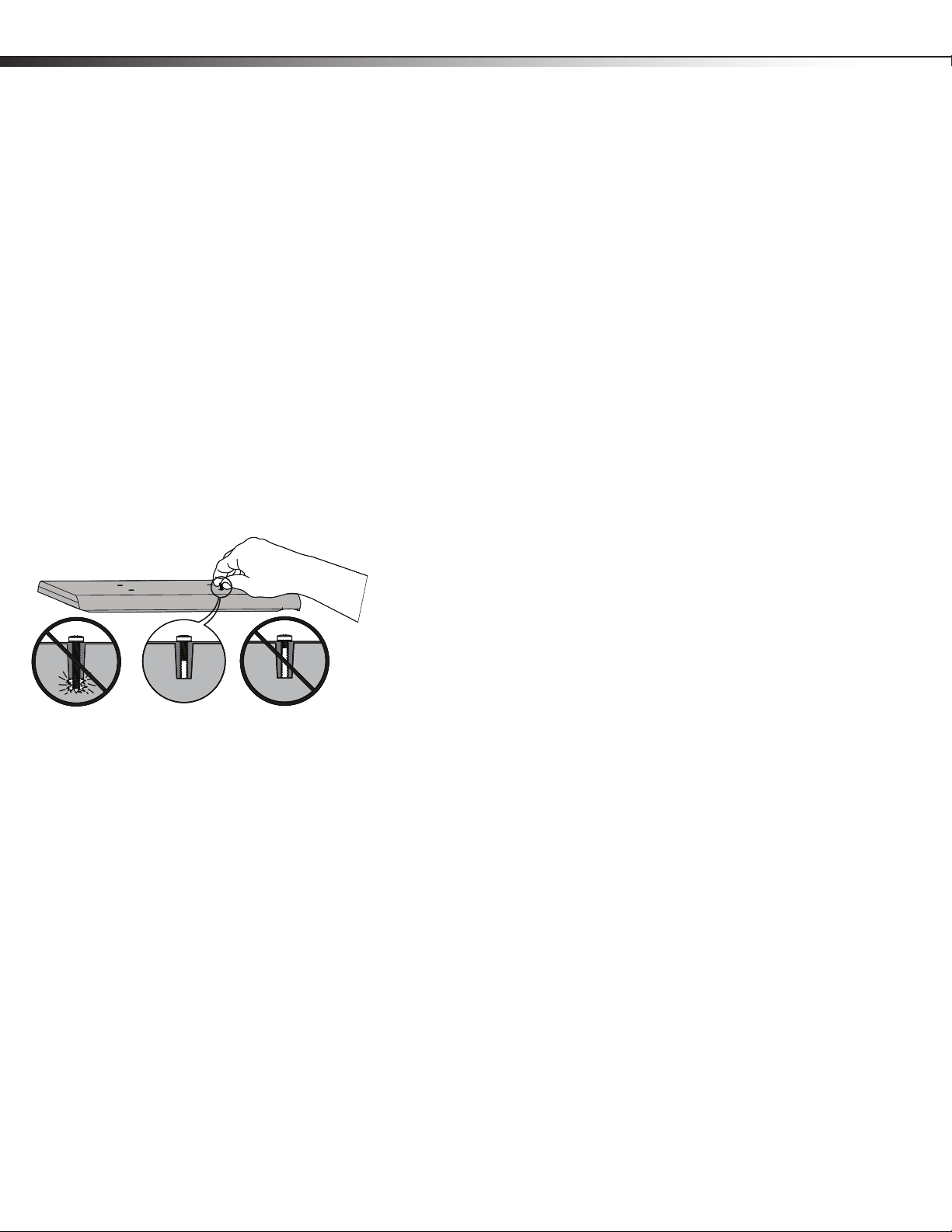

Screw is
too long
Screw fits
correctly
Screw is
too short
9
DX-DRTVM102
Need help? Call 800-305-2204
Step 4: Install the TV brackets
Option 1: Installing for a TV with a flat back

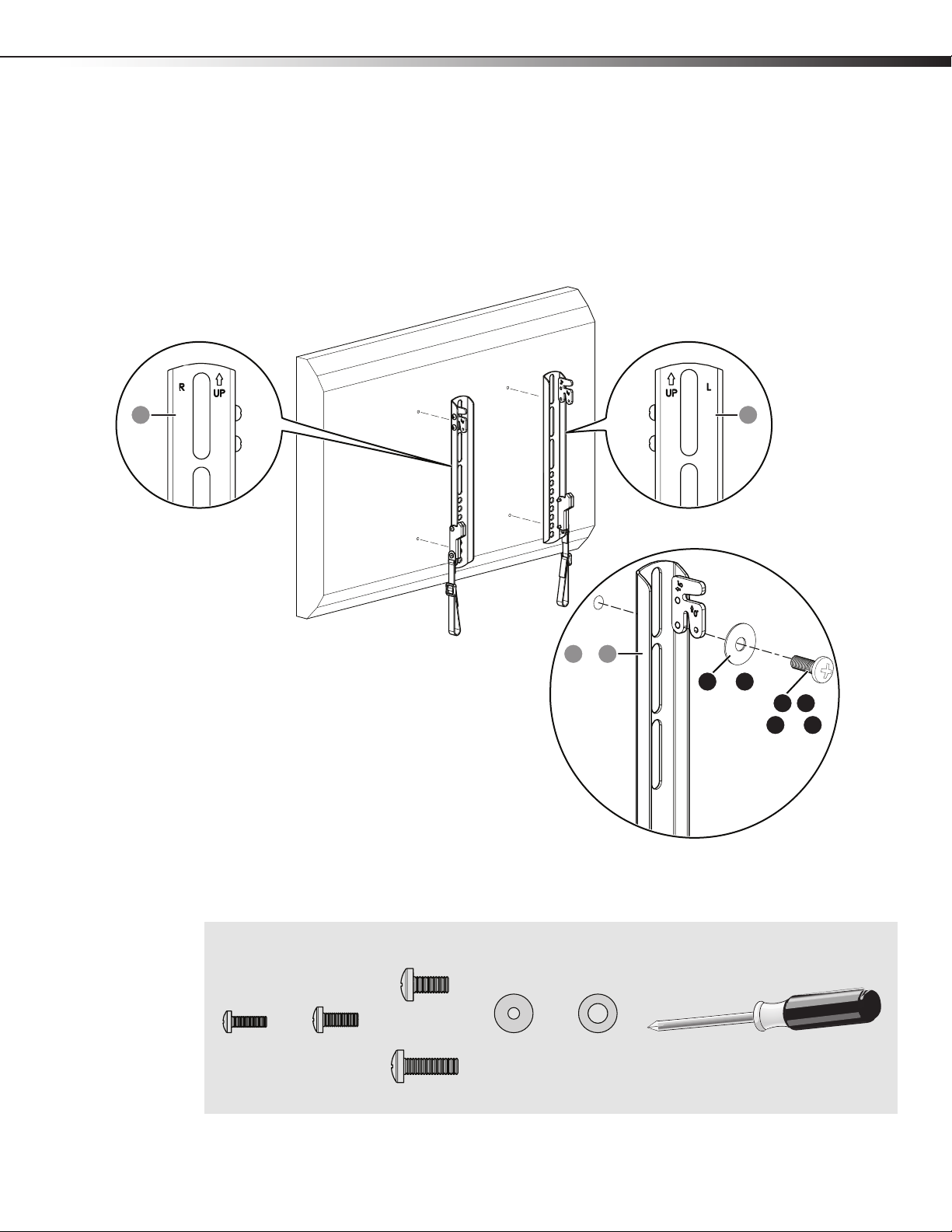

1Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the screw holes on the back
of your TV. The brackets are marked “R” for the right bracket and “L” for the left bracket.
2Place the M4/M5 washers (14) or M6 washers (15) over the holes in the TV brackets that align with the screw
holes on the back of your TV, then insert the M4 screws (07), M5 screws (09), or M6 screws (11 or 12).
3Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need:
0203
14 15
11 12
7 9
0302 &
OR
OR
07 (4) 09 (4) Phillips screwdriver
Screws
11 (4)
12 (4)
OR OR
OR
Washers
OR
14 (4) 15 (4)
10 DX-DRTVM102
Need help? Call 800-305-2204
Step 4: Install the TV brackets (continued)
Option 2: Installing for a TV with an irregular or obstructed back

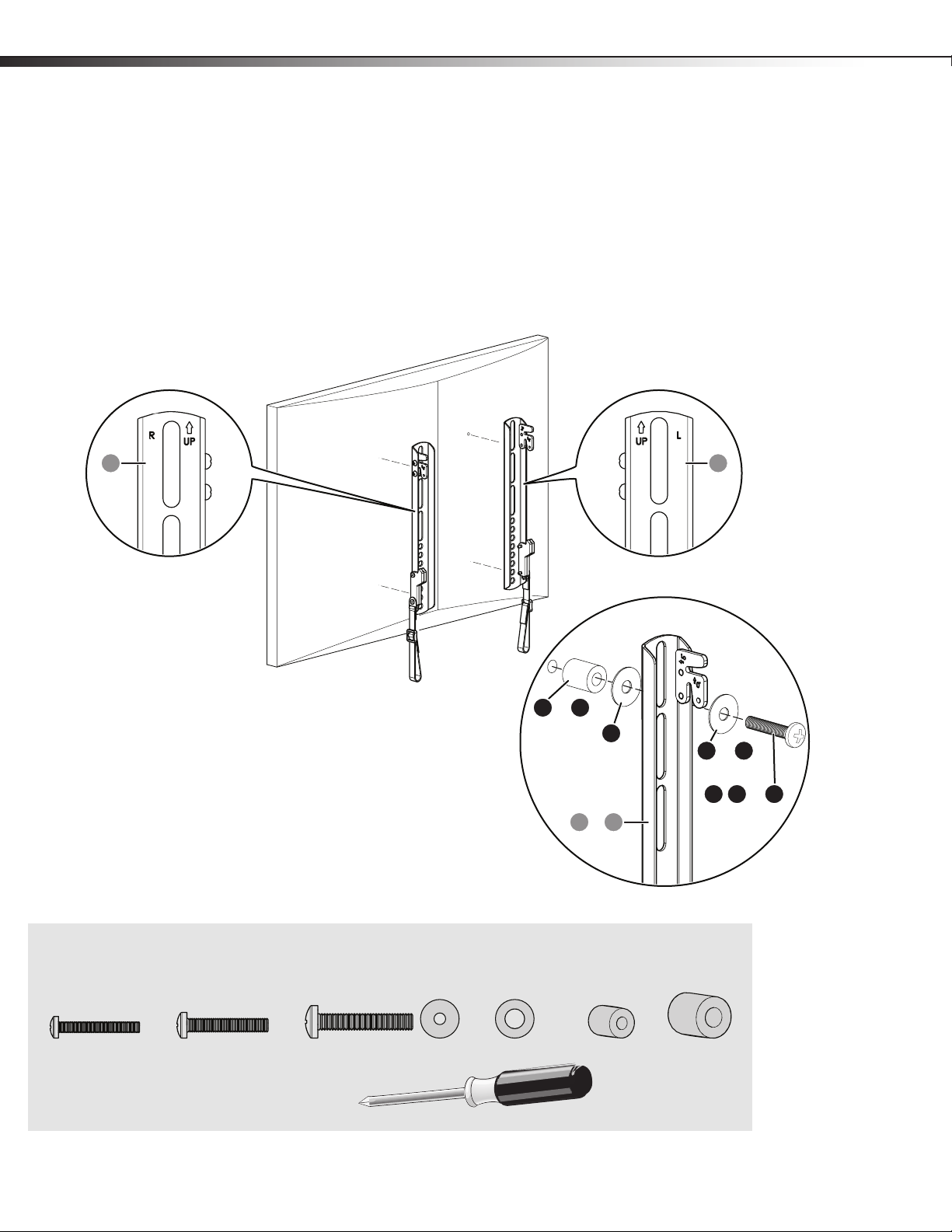

1Place M4/M5 spacers (16) or M6 spacers (17) over the mounting holes in the back of your TV.
2If you are using M4 or M5 screws, place M4/M5 washers (14) over the spacers.
3Align the holes you noted on the left TV bracket (02) and right TV bracket (03) with the spacers. The brackets are
marked “R” for the right bracket and “L” for the left bracket.
4Place M4/M5 washers (14) or M6 washers (15) over the holes in the TV brackets, then insert M4 screws (08),
M5 screws (10), or M6 screws (13).
5Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need:
0203
16
14
17
81310
0302
14 15
OR
OR
OR
&
08 (4) 10 (4)
Phillips screwdriver
Screws
13 (4) 16 (4)
OR OROR
Washers
OR
14 (8) 15 (4)
Spacers
17 (4)
