Eachine TYRO79 Bedienungsanleitung

TYRO79

QUICK START GUIDE (DIY)

Package included:

1 x 140mm racing frame kit

2 x 1607 2800KV brushless motor CW

2 x 1607 2800KV brushless motor CCW

1 x 4 IN 1 20A BLHeli_S ESC

1 x Customized F4 flight controller

1 x 700TVL CMOS camera

1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX

2 x 3030 4-blade propeller CW

2 x 3030 4-blade propeller CCW

TY RO 79 QUICK START GUIDE

-2-

Antenna

F4 flight controller

20A 4in1 Brushless ESC

Switchable VTX

700TVL CMOS

Micro camera

1607 2800kv

brushless motor

3030 4-blade propeller

-3-

Contents

1.0 Frame kit----------------------------------------04

4.0 Flight controller---------------------------------05

2.0 ----------------------------------------04

Motor-----

5.0

Switchable VTX---------------------------------06-09

3.0 Esc------------------------------------------------05

6.0

Camera-----------------------------------------------09

7.0 Screws---------------------------------------------10

9.0 Motor Unlock/Lock------------------------------12

8.0 Adjusting parameter -----------------------------10-11

10.0 Traversing flight---------------------------------12

TY RO 79 QUICK START GUIDE

1.0 Frame kit

2.0 Motor

Wheel base: 140mm

Bottom plate thickness: 3mm

Side plate thickness: 1mm

Frame kit material: 3K carbon fiber & 6065 aluminium

-4-

KV: 2800KV

Lipo cell: 2-4S

Weight: 17.8g (includes wires)

Output shaft length: 14mm

Maximum pull: signal 630g

(4S 3030 4-blade propeller)

Maximum power: 350W

Configu-ration: 9N/12P

Mounting holes distance: 12*12mm

Mounting holes: φM2

Bearing: NSK

N52 Strong NdFeB Magnet

Recommend propeller: 3 inch

TY RO 79 QUICK START GUIDE

3.0 ESC

Continuous current: 20A

Peak current: 25A (10S)

BEC output: no

Input voltage: 2-4S

Main control chip: 48mhz EFM8BB2

Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125

MOS: 3*3

MOS type: vs3610ae 30v64a

-5-

4.0 Flight controller

Main control chip: STM32F411

Sensor: ICM20602 6-axis

Integrated OSD

PPM/DSM/IBUS/UAR share: UART1-RX

Mounting holes distance: 20*20mm

Weight: 24g

PID circulation rate and refresh rate can up to 32kHz

Supports Betaflight/cleanflight/inav firmware

TY RO 79 QUICK START GUIDE

-6-

5.0 Switchable VTX

Supports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25×20×6mm

Weight: ≤3.2g (except antenna)

There are two ways to control the frequency and power

of the launches:

<1>

Enter the release: FEATURES->VTX SA can enter the following

interface.

uses remote control to visualize control, as shown in Figure

1.1

Figure 1.1

The second row is the status bar, respectively.

F:freestyle modeF5: is now in frequency band F,

fifth frequency point.

5820: now has a frequency of 5820.

500: now has a transmit power of 500MW

Third lines

BAND: indicates frequency band, and BAND can be

modified by remote control.A (BOSCAM A) B (BOSCAM B)

E (BOSCAM E) F (FATSHARK) F (E)

Fourth lines

CHAN: represents frequency points, and the 1---8 can be

modified by remote control.

Fifth lines

(FREQ): indicate the

corresponding frequency now, changing with the band and

Chan above.

Sixth lines

POWER: indicates the transmission

power and can be adjusted.

TY RO 79 QUICK START GUIDE

5.0 Switchable VTX

Seventh lines

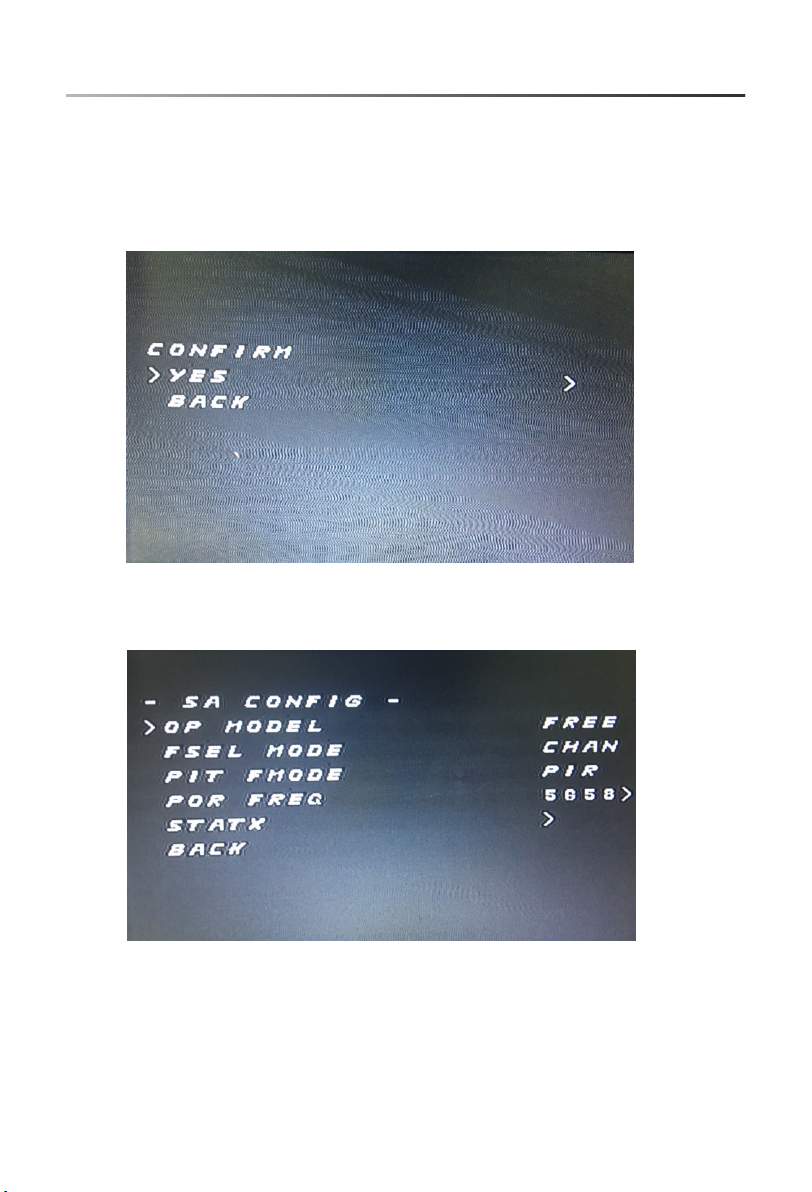

SET: Enter and select YES to confirm your BADN, CHAN, POWER

settings and take effect immediately., as shown in Figure 1.2

below

Figure 1.2

Figure 1.3

-7-

Eighth lines

The CONFIG: function is set in, as shown in Figure 1.3 below.

OP MODEL: mode adjustment, with free mode and race mode,

needs reboot to take effect.

FSEL MODE: regulates frequency setting mode, CHAN and

user, user mode is temporarily invalid.

PIT FMODE:PITMODE mode, with PIR and POR mode.

TY RO 79 QUICK START GUIDE

5.0 Switchable VTX

-8-

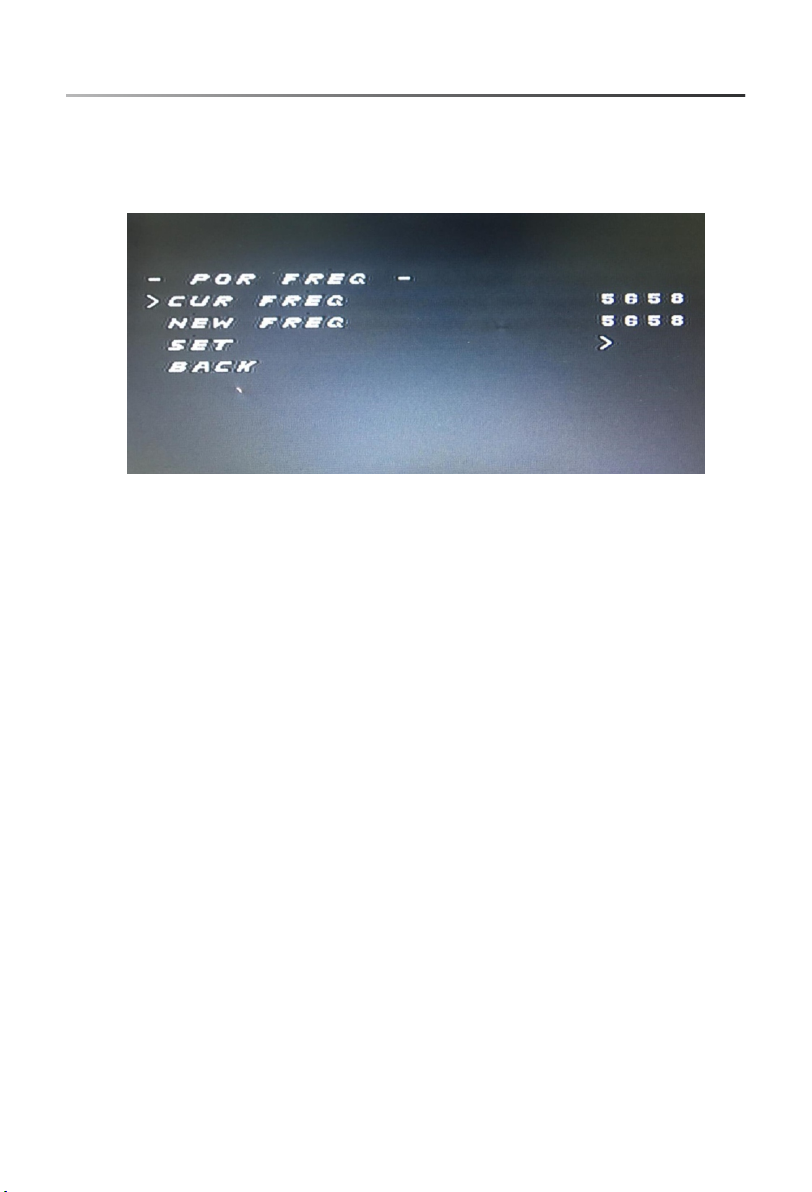

In the POR mode, POR FREQ: can enter into any frequency

between 5300-5900, as shown in Figure 1.4.

Figure 1.4

STATX: status information

XMM-VTX is operated by a button with three LED lights (red

light CH1-8; blue light BAND1-5; green light power 1-3 <25-

100-200 mW>)and TBS Smart Audio remote control operation.

Keyboard operation: Long press 3S (three LED indicators are

all on) to open and enter CH switching operation, and the red

light will flash, flashing once represents the currentCH1 (2-8

times for CH2-CH8 respectively). At this time, a short press of

the key CH plus 1 will flash the corresponding number of times.

CH1-8 cycle. Press the button 3S (three LED lights are all on)

to open and enter the BANDswitching operation, and the blue

light will flash. The flash once represents the current BAND1

(2-5 times for BAND2-BAND5 respectively). At this time, press

the button BAND plus 1, and the blue light will flash correspondingly.

BAND1-5 cycle. Press the button 3S (three LED lights are all on)

again to open the power switching operation, and the green light

will flash, one time represents the current power of the first grade

(2-3 times for the green light flashing respectively), at this time,

press the button power to add one gear, and the green light will

flash the corresponding number of times. Power stall 1-3 cycle.

Press the button 3S again (3 LED lights are all bright) to release

the above settings again. Note that the previous settings will not

be saved if the power is off before saving. For example, if CH is

only set, it is also necessary to press 3S three times longer to

save the settings.Long press button 8S (green light) quit PIT mode.

<2>

TY RO 79 QUICK START GUIDE

Note: In the remote control, the power of 25 corresponds to

the actual 25 mW, 200 corresponds to the actual 100 mW, and

500/800 corresponds to the actual 200 mW.

5.0 Switchable VTX

6.0 Camera

Case size: 19mm*19mm

Weight: 9.5g

Total pixels: PAL: 1020H×596V (0.61MP);

NTSC: 1020H×508V (0.52MP)

Effective pixels: PAL: 976H×582V (0.57MP);

NTSC: 976H×494V (0.48MP)

Signal system: PAL/NTSC switchable

Resolution ratio(horizontal center): 700TVL

Video output: 1.0Vp-p/75Ω

Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB

White balance: off

Exposure mode: electron exposure

Electronic shutter: 1/50(1/60) - 1/100000 S

Gamma correction: 0.45/1.0

Synchronization method: inter-sync

Camera lens: standard 2.1mm

Lens operating voltage: DC 5-12V

Working current: 70mA (low power consumption)

Working temperature: -20℃~ - 60℃

Humidity: 0%~98%

-9-

TY RO 79 QUICK START GUIDE

7.0 Screws

8.0 Adjusting parameter

-10-
