Eaton Memshield 3 Series Handbuch

IMPORTANT NOTES

1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician

in accordance with current electrical engineering Codes of Practice, Regulations for the Electrical equipment of

Buildings (BS7671), CDM2007 - Construction (Design and Management) Regulations 2007, HSG150 - Health and

Safety in Construction, Statutory requirements and any Specific instruction issued by the Company.

2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of

the person responsible for its future operation and maintenance, and is at all times available for ready reference.

3. These notes assume throughout that the product is disconnected from the supply. It is essential that this is done

before any work is carried out.

4. These Panelboards are only designed for use with Eaton MCCBs. Failure to comply will result in invalid warranty and certification.

5. Operation of the incoming and outgoing devices should only be carried out by an instructed or skilled person.

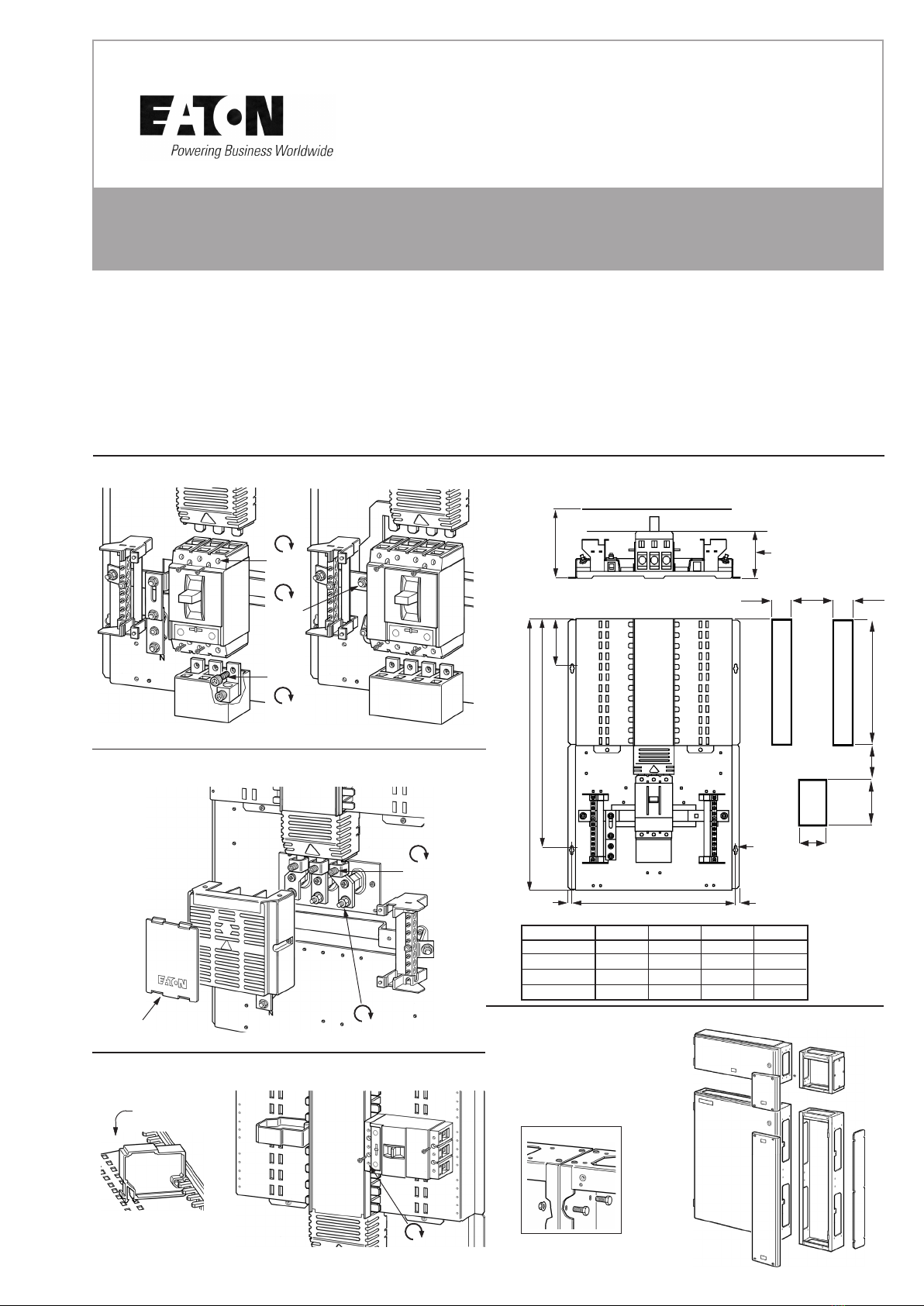

Memshield 3 250A Panelboard/Pan Assemblies

EPBN1425, EPBN1625, EPBN1825, EPBN11225

EPBPN1425, EPBPN1625, EPBPN1825, EPBPN11225

Instruction leaflet LT1208 (12/19)

250A MCCB INCOMER FITTING EPBKN1253, EPBKN1254

250A DIRECT CABLE INCOMER FITTING EPBKN125L

NOTE: When Top Fed, MCCB terminations must be reversed

OUTGOING MCCB AND BLANK FITTING EPBN1BP1

250A PAN ASSEMBLY DIMENSIONS

EPBPN1425 - EPBPN11225

CAT N0. A B C D

EPBPN1425 29.5 483 592.5 181.5

EPBPN1625 29.5 578.5 683 272

EPBPN1825 131 669 773.5 362.5

EPBPN11225 131 850 954.5 543.5

177.8

Min

Inside

Door

459 10.510.5

250A CABLE BOX, EXTENSION BOX, FILLER BOX AND

DIN ENCLOSURE

EPBN1425SXB -

EPBN11225SXB,

EPBN1XE250,

EPBN1CX250,

EPBN1EXDIN

Box fixing

15Nm

Click into

Cover aperture

14Nm

Locate

and click

NB - Provision to reposition Earth

Terminals in Cable Box

Fixings

COVER APERTURES

152.5

108.1

130

102

123

InsideCover

69.569.5

14Nm

IMPORTANT:

Fit MCCB with the adjustment

dial end towards the Busbar.

All Dimensions

in millimetres

(Terminal Screw)

6Nm

15Nm

LH OUTGOING CIRCUITS RH OUTGOING CIRCUITS

Warning -

Intellectual Property Rights

Eaton wishes to make it clear that it owns intellectual property rights in the

product which it manufactures (whether or not lis ted in thisleaflet) and that

it will take legal action against any party found to be manufacturing, using,

or selling any article which infringes the company’s intelle ctual property.All

marks in this document identified with an Rsymbol or aTM symbol adjacent

to the mark are trademarks of Eaton.

2019 Eaton Electric Limited.

The use to which this product is put and its place of installation is outside our

control. Particular care should therefore be taken to follow the instructions given

here and to ensure their continued availability in conjunction with the use of the

product.

No responsibility can be accepted by us if these instructions are disregarded.

Further copies of these instructions and information concerning the installation

and proper use of this product can be obtained by contacting the:

Technical Services Department

Eaton Electric Limited, Middleton, Manchester. M24 7GQ

Tel: +44(0)8700 545 333,

email: [email protected]

www.eaton.com/recycling

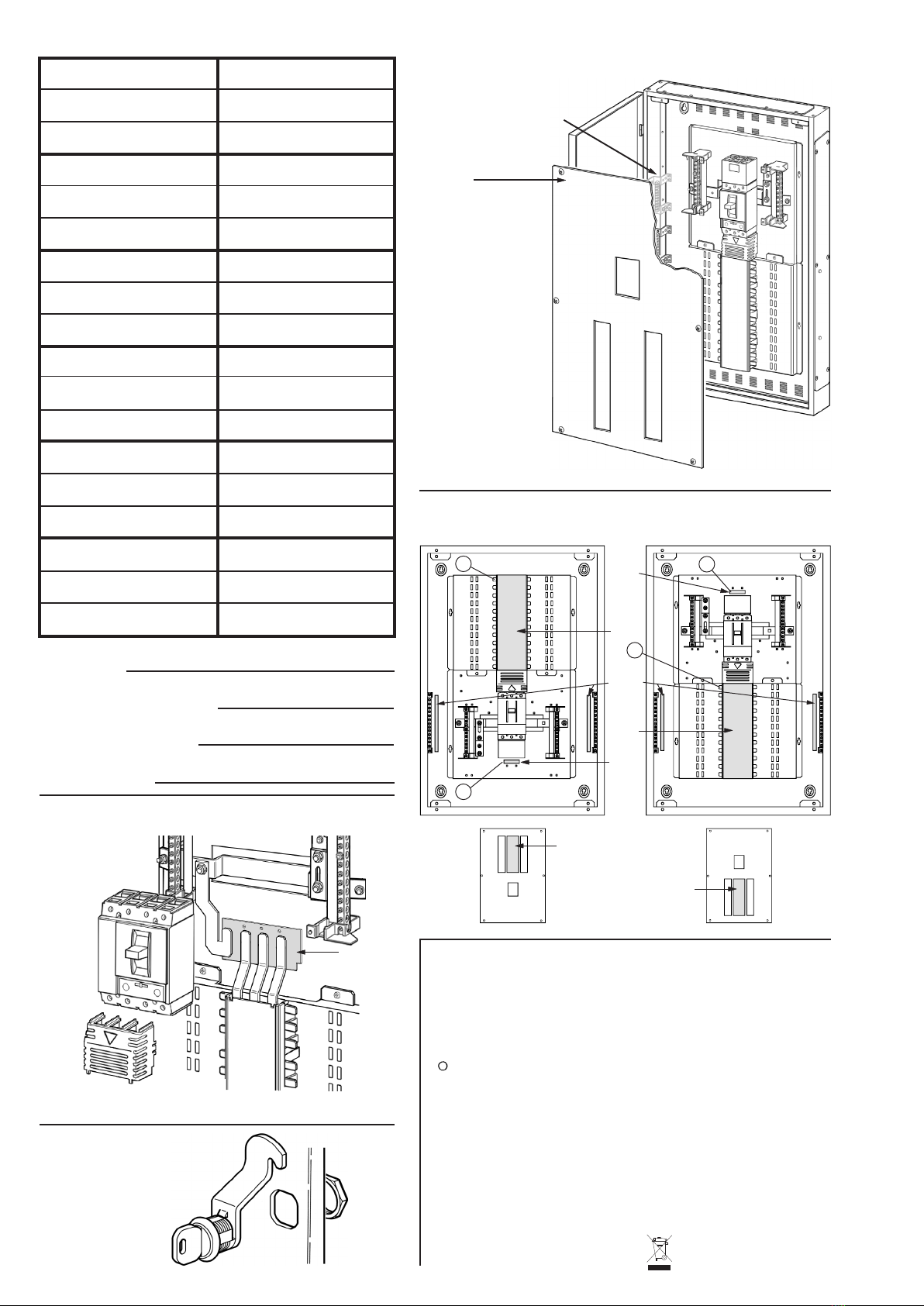

TOP ENTRY

LABEL FITTING

Ensure all way labels are fitted in the correct places

BOTTOM FEED TOP FEED

Phase

Label

Earth

Labels

Busbar

Way

Label

Phase

Label

L1 L1

Alternative Earth position

(both sides)

Main

Cover

Prior to cabling, check pan assembly alignment with main cover

Panelboards are supplied ready for bottom entry.

For top entry convert as shown below.

KEY LOCK FITTING

EPBDLK1

FED FROM:

INCOMING CABLE SIZE:

INSTALLATION DATE:

CONTRACTOR:

TOP FEED ADAPTOR FITTING EPBKTFSN2

USED IN CONJUNCTION WITH EPBKN1253 AND EPBKN1254

Busbar

Way

Label

Adaptor

Shield

Rotate Inner Cover

and Pan assembly

1800

Cover Way

Label

Cover Way

Label
