Eaton Memshield 3 Series Handbuch

IMPORTANT NOTES

1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician

in accordance with current electrical engineering Codes of Practice, Regulations for the Electrical equipment of

Buildings (BS7671), CDM2007 - Construction (Design and Management) Regulations 2007, HSG150 - Health and

Safety in Construction, Statutory requirements and any Specific instruction issued by the Company.

2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of

the person responsible for its future operation and maintenance, and is at all times available for ready reference.

3. These notes assume throughout that the product is disconnected from the supply. It is essential that this is done

before any work is carried out.

4. These Panelboards are only designed for use with Eaton MCCBs. Failure to comply will result in invalid warranty and certification.

5. Operation of the incoming and outgoing devices should only be carried out by an instructed or skilled person.

Memshield 3 630/800A Panelboard/PanAssemblies

EPBN2863, EPBN21263, EPBN21863, EPBN3880, EPBN31240

EPBPN2863, EPBPN21263, EPBPN21863, EPBPN3880, EPBPN31240

Instruction leaflet LT1210 (12/19)

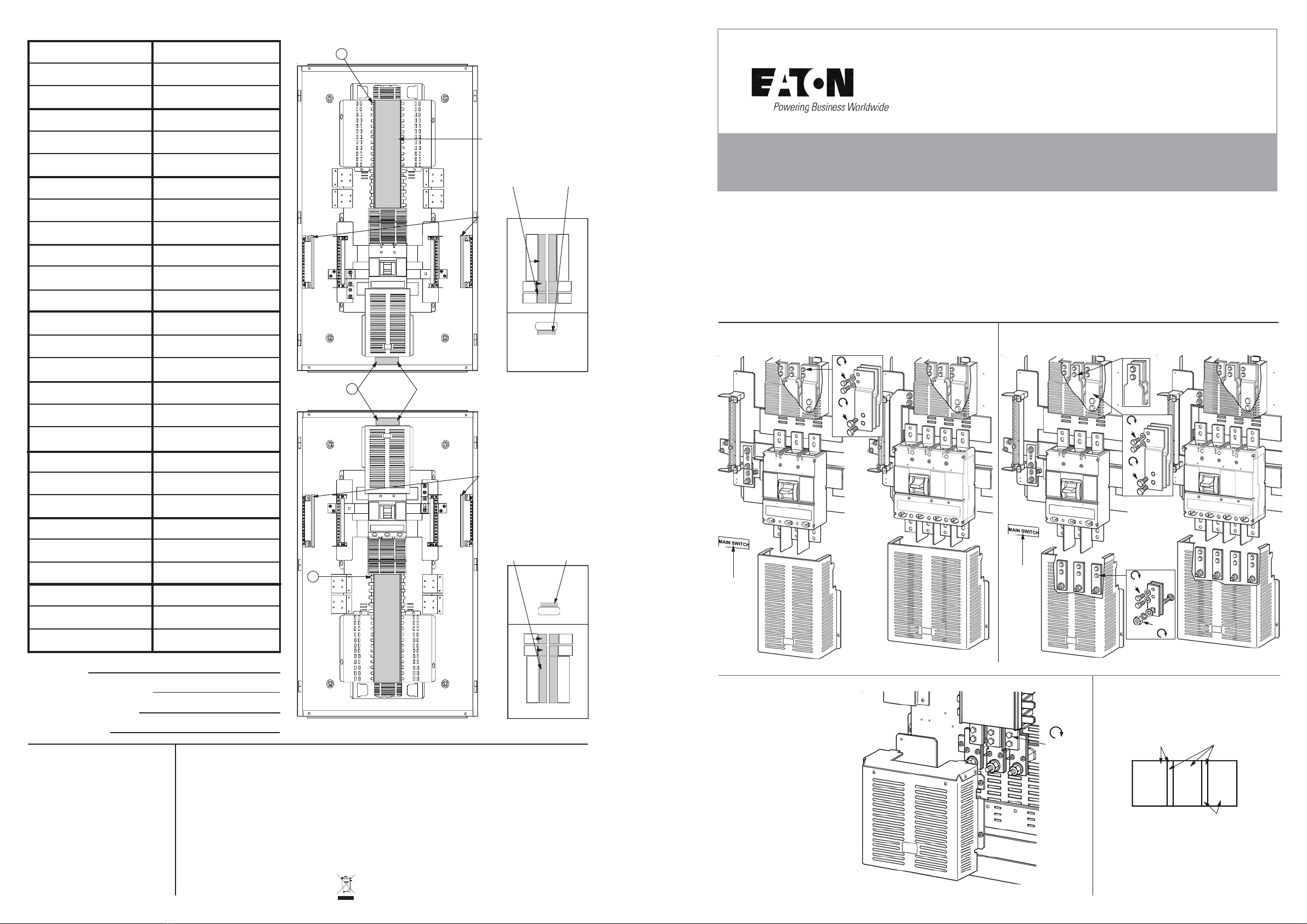

630A MCCB INCOMER FITTING

EPBKN2633 EPBKN2634

NOTE: When Top Fed, MCCB terminations must be reversed

800A MCCB INCOMER FITTING

EPBKN3803 EPBKN3804

Position

on Cover

14Nm

31Nm

46Nm

Position

on Cover

14Nm

31Nm

630A DIRECT CABLE

INCOMER FITTING EPBKN263L

(FOR 630A PANELBOARDS ONLY)

MCCB INCOMING COVER

KNOCKOUT REMOVAL

DO NOT REMOVE FOR DIRECT

CABLE INCOMER

14Nm Remove for 4 Pole

Bottom Feed Incomer

Remove for 3 Pole

Top and Bottom

FeedIncomer

Remove for

4 Pole Top

FeedIncomer

The use to which this product is put and its place of installation is outside our control.

Particular care should therefore be taken to follow the instructions given here and to

ensure their continued availability in conjunction with the use of the product.

No responsibility can be accepted by us if these instructions are disregarded. Further

copies of these instructions and information concerning the installation and proper use

of this product can be obtained by contacting the:

TechnicalServicesDepartment

Eaton Electric Limited,

Middleton,

Manchester, M24 1GQ.

Tel: +44(0)8700 545 333,

email:[email protected]

www.eaton.com/recycling

LH OUTGOING CIRCUITS RH OUTGOING CIRCUITS

FED FROM:

INCOMING CABLE SIZE:

INSTALLATION DATE:

CONTRACTOR:

Warning -

Intellectual Property Rights

Eaton wishes to make it clear that it

owns intellectual property rights in the

product which it manufactures (whether

or not listed in this leaflet) and that it will

take legal action against any party

found to be manufacturing, using, or

selling any article which infringes the

company’s intellectual property.All

marks in this document identified with

an R symbol or a TM symbol adjacent

to the mark are trademarks of Eaton.

BOTTOM FEED

LABEL FITTING Ensure all way labels are fitted in the correct places

Busbar

Way

Label

TOP FEED

Phase Label

Earth

Labels

Earth

Labels

Cover Way

Labels Main Switch

Label

Cover Way

Labels Main Switch

Label

CAT N0. A B C D E F G H J K

EPBPN2863 167 N/A 543.5 996 1052.5 1240 1291 177 96.75 601.5

EPBPN21263 167 N/A 724.5 1177 1233.5 1421 1472 267.5 187.25 692

EPBPN21863 167 438.5 996 1448.5 1505 1692 1743 403.25 323 828

EPBPN3880 167 N/A 580.5 1033 1089.5 1277 1328 177 96.75 638.5

EPBPN31280 167 N/A 761.5 1214 1270.5 1458 1509 222.25 142 794.5

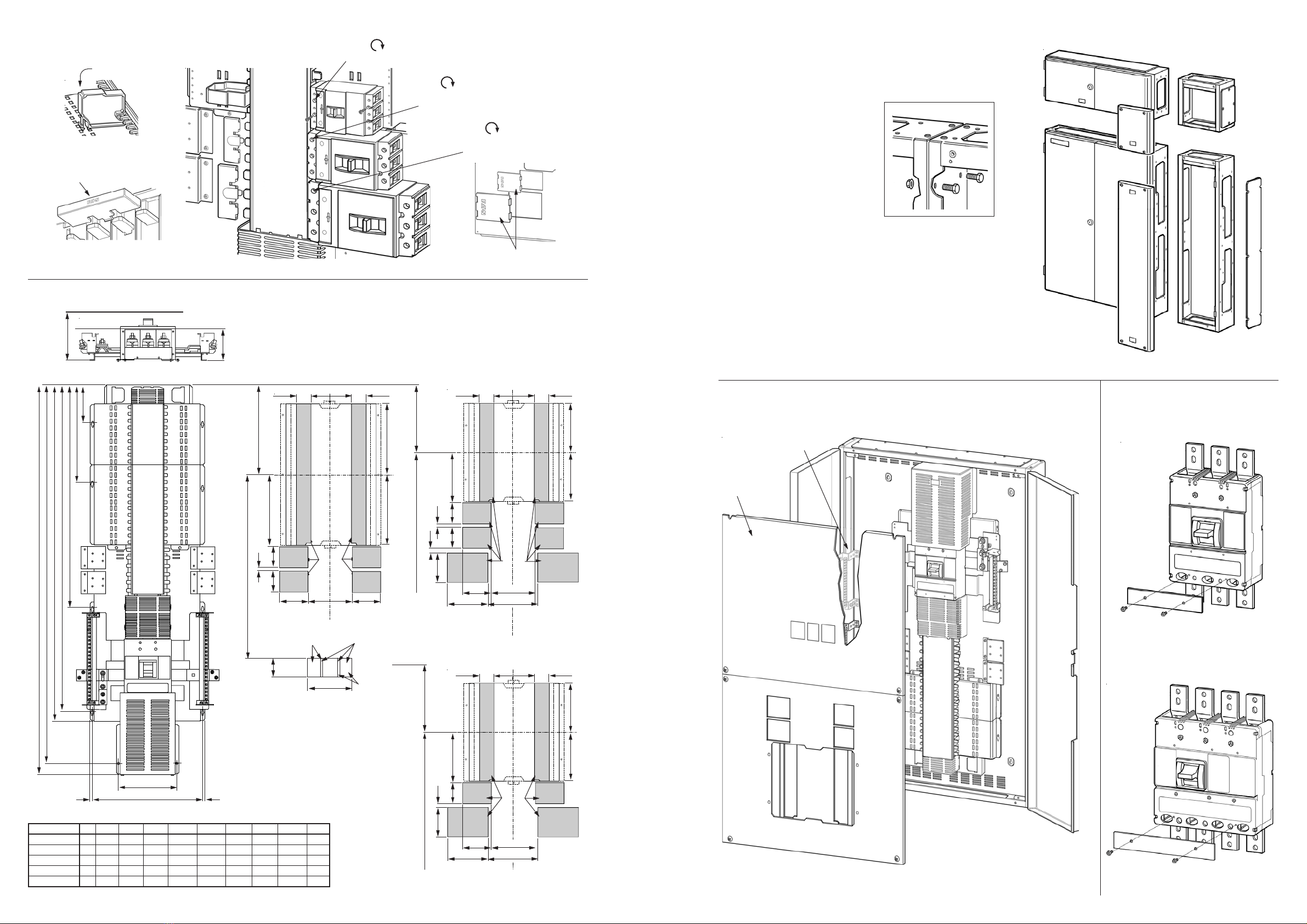

OUTGOING MCCB & BLANK FITTING EPBN1BP1, EPBN2BP3, EPBN3BP3

Locate and click

COVER APERTURES

130 130

MCCB

Apertures

630/800A PAN ASSEMBLY DIMENSIONS

EPBPN2863, EPBPN21263, EPBPN21863, EPBPN3880, EPBPN31280

6Nm (Terminal Screw)

14Nm

(Terminal Screw)

19Nm

(Terminal Screw)

202.8

Min

Inside

Door 151

InsideCover

130

183.5

102

10.5

68.95 68.95

188.5 68.95 68.95

188.5

208.8

224.4

208.8

137 MCCB

Apertures

137

68.95 68.95

188.5

130

183.5

208.8

224.4

102

MCCB

Apertures

EPBPN31280

EPBPN3880

Click into

Coveraperture

499

265

EPBPN2863, EPBPN21263, EPBPN21863

Remove for 4 Pole

Bottom Feed Incomer

Remove for 3 Pole

Top and Bottom

FeedIncomer

Remove for

4 Pole Top

FeedIncomer

225.2

83.1

IMPORTANT:

Fit MCCB with the adjustment

dial end towards the Busbar.

TOP FEED ADAPTOR FITTING

EPBKTFSLW

Prior to cabling, check pan

assembly alignment with

main cover

630/800A CABLE BOX, EXTENSION BOX, FILLER BOX AND DIN

ENCLOSURE FITTING

EPBN2183SXB, EPBN21863SXB

EPBN3EX250, EPBN2CX250, EPBN3EXDIN

3 POLE

4 POLE

NB - Provision to reposition Earth

Terminals in Cable Box

Boxfixing

Rotate Inner Cover

and Pan assembly

1800

Alternative Earth position

(both sides)

Main

Cover

TOP ENTRY

Panelboards are supplied

ready for bottom entry.

For top entry convert as

shownbelow.
