Eaton INDGW-X2 Bedienungsanleitung
UPS Industrial Gateway Card
INDGW-X2
Installing and Accessing the Network Module
English
10/18/2021
2.2.3
Eaton is a registered trademark of Eaton Corporation or its subsidiaries and affiliates.
Phillips and Pozidriv are a registered trademarks of Phillips Screw Company.
National Electrical Code and NEC are registered trademarks of National Fire Protection Association, Inc.
Microsoft®, Windows®, and Windows Server® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
UNIX® is a registered trademark of The Open Group.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
VMware is a registered trademark or trademark of VMware, Inc. in the United States and/or other jurisdictions.
Google™ is a trademark of Google Inc.
All other trademarks are properties of their respective companies.
©Copyright 2019 Eaton Corporation. All rights reserved.
No part of this document may be reproduced in any way without the express written approval of Eaton Corporation.
Unpacking the Network module
Installing the Network Management Module – 6
•
•
•
•
•
1 Installing the Network Management Module
1.1 Unpacking the Network module
The INDGW-X2
will include the following accessories:
Installation instructions
USB AM to Micro USB/M/5P 5ft Cable
RS-485 wiring terminal

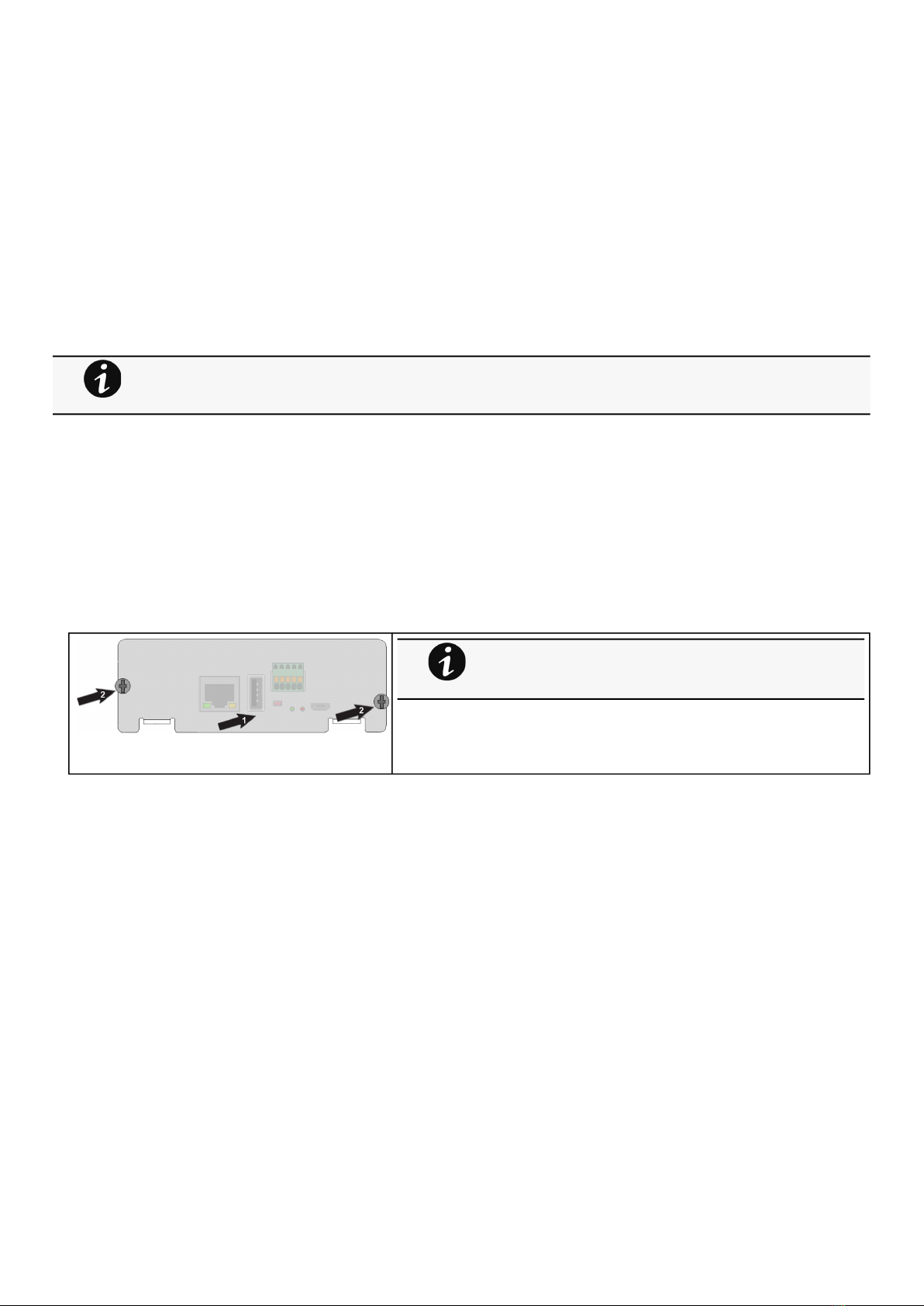

1.2 Mounting the Network Module
The Network Module is hot-swappable. Inserting and/or extracting the Network Module from the communication slot of theproduct
has no effect on the output.
Remove the two screws securing the option slot cover plate and store the plate for possible future use.
Install theNetwork Module along the alignment channels in the option slot.
Secure the Network Module using the two screws.
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
If theproduct is powered up, you can verify that the Network
Module is seated properly and communicating with theproduct by
checking that the Status ON LEDflashes green after 2 minutes.
Accessing the Network Module
Installing the Network Management Module – 10
•
•
2 Accessing the Network Module
2.1 Accessing the web interface through Network
2.1.1 Connecting the network cable
Connect a standard
gigabit compatible shielded ethernetcable (F/UTP or F/FTP)
between the network connector on theNetwork Module and a
network jack.
2.1.2 Accessing the web interface
STEP 1 –On a network computer, launch a supported web browser. The browser window appears.
STEP 2 –In the Address/Location field, enterhttps://
[IPaddress]
with the static IP address of the Network Module.
STEP 3 –The login screen appears.
STEP 4 –Enter the user name in the User Name field. The default user name is admin.
STEP 5 –Enter the password in the Password field. The default password is admin.
STEP 6 –The password must be changed at first login.
STEP 7 –Click Login. The Network Module web interface appears.
2.2 Finding and setting the IP address
2.2.1 Your network is equipped with a BOOTP/DHCP server (default)
2.2.1.1 Read from the device LCD
If your device has an LCD, from the LCD’s menu, navigate to Identification>>>"COM card IPv4".
Note the IP address of the card.
Go to the section: Accessing the web interface through Network.
2.2.1.2 With web browser throughthe configuration port
For example, if your device does not have an LCD, the IP address can be discovered by accessing the web interface through RNDIS
andbrowsing to Settings>Network.
Security settings in the Network Module may be in their default states.
For maximum security, configure through a USB connection before connecting the network cable.
It is highly recommended that browser access to the Network Module is isolated from outside access using a
firewall or isolated network.
Accessing the Network Module
Installing the Network Management Module – 11
•
•
•
•
•
•
To access the web interface through RNDIS, see theAccessing the web interface through RNDISsection.
Navigate toContextual help>>>Settings>>>Network & Protocol>>>IPV4.
Read the IPv4 settings.
2.2.2 Your network is not equipped with a BOOTP/DHCP server
2.2.2.1 Define from the configuration port
The IP address can be defined by accessing the web interface through RNDIS.
To access web interface through RNDIS, see theAccessing the web interface through RNDISsection.
Define the IP settings:
Navigate toContextual help>>>Settings>>>Network & Protocol>>>IPV4.
Select Manual (Static IP).
Input the following information: Address, Subnet Mask, Default Gateway
Save the changes.
Accessing the Network Module
Installing the Network Management Module – 12
2.3 Accessing the web interface through RNDIS
This connection is used to access and configure the Network Module network settings locally through a RNDIS(Ethernet over USB
interface).
2.3.1 Connecting the configuration cable
1.Connect the Micro-B to USB cable to a USB connector on the host computer.
2. Connect the cable to the Settings connector on theNetwork Module.
2.3.2 Web interface access through RNDIS
2.3.2.1 Configuring the RNDIS
a Automatic configuration
b Manual configuration
STEP 1 –In case Windows® OS fails to find driver automatically, go to theWindows control panel>Network and sharing
center>Local area connection
STEP 2 –Right click on the RNDIS local area connection and select Properties.
STEP 3 –Select Internet Protocol Version 4 (TCP/IPv4)” and press the Properties button
RNDIS driver is used to emulate a network connection from USB.
After the card is connected to the PC, Windows® OS will automatically search for the RNDIS driver.
On some computers, the OS can find the RNDIS driver then configuration is completed, and you can go to
Accessing the web interface.
On some others it may fail then proceed to manual configuration.
Accessing the Network Module
Installing the Network Management Module – 13
STEP 4– Then enter the configuration as below and validate (IP = 169.254.0.150 and mask = 255.255.0.0, click OK, then click on
Close.
2.3.2.2 Accessing the web interface
STEP 1 –Be sure that the Deviceis powered on.
STEP 2 – On the host computer, download the rndis.7z file from the website www.eaton.com/downloads and extract it. For more
information, navigate toServicing the Network Management Module>>>Accessing to the latest Network Module firmware/
driversection.
STEP 3 – Launch setProxy.bat to add 169.254.* in proxy’s exceptions list, if needed. For manual configuration, navigate to Installing
the Network Management Module>>>Accessing the Network Module>>>Modifying the Proxy exception list section in the full
documentation.
STEP 4 –Launch a supported browser, the browser window appears.
STEP 5 –In the Address/Location field, enter: https://169.254.0.1, the static IP address of the Network Module for RNDIS. The log
in screen appears.
STEP 6 –Enter the user name in the User Name field. The default user name isadmin.
STEP 7 –Enter the password in the Password field. The default password isadmin.
STEP 8 –ClickLogin. The Network Module local web interface appears.
2.4 Accessing the card through serial terminal emulation
This connection is used to access and configure the Network Module network settings locally through Serial (Serial over USB
interface).
2.4.1 Connecting the configuration cable
STEP 1 – Connect the Micro-B to USB cable to a USB connector on the host computer.
Installing the Network Management Module – 14
•
•
Accessing the Network Module
STEP 2 – Connect the cable to the Settings connector on theNetwork Module.
2.4.2 Manual configuration of the serial connection
STEP 1 –On the host computer,download therndis.7z file from the website www.eaton.com/downloads and extract it.
STEP 2 – Plug the USB cable and go toWindows® Device Manager.
STEP 3 – Check the CDC Serial in the list, if it is with a yellow exclamation mark implying that driver has not been installed follow
the steps 4-5-6-7 otherwise configuration is OK.
STEP 4 – Right click on it and select Update Driver Software. When prompted to choose how to search for device driver software,
choose Browse my computer for driver software. Select Let me pick from a list of device drivers on my computer.
STEP 5 – Select the folder where you have previously downloaded the driver file Click on Next.
STEP 6 – A warning window will come up because the driver is not signed. Select Install this driver software anyway
STEP 7 – The installation is successful when the COM port number is displayed for the Gadget Serial device in theWindows®
Device Manager.
2.4.3 Accessing the card through Serial
It is intended mainly for automated configuration of the network and time settings of the network card. It can also be used for
troubleshooting and remote reboot/reset of the network interface in case the web user interface is not accessible.
CLI can be accessed through:
SSH
Serial terminal emulation.
Serial driver is used to emulate a serial connection from USB.
After the card is connected to the PC, manual configuration of the driver is needed for Windows® OS to discover
the serial connection.
Accessing the Network Module
Installing the Network Management Module – 15
For more details, refer toInformation>>>CLIsectionin the Network Module User Guide on theEatonwebsite www.eaton.com/
downloads.
Changing network parameters may cause the card to become unavailable remotely. If this happens it can only be
reconfigured locally through USB.
You can see this list of available commands by typing in the CLI:
?
You can see the help by typing in the CLI:
help
