Eaton Powerware Series Bedienungsanleitung

Powerware Series

Eaton BladeUPS

External Battery Interconnect

User's Guide

® ®

Eaton, Powerware, Advanced Battery Management, and BladeUPS are registered trademarks of Eaton Corporation

or its subsidiaries and affiliates. Phillips is a registered trademark of Phillips Screw Company. All other trademarks

are properties of their respective companies.

reproduced in any way without the express written approval of Eaton Corporation.

Requesting a Declaration of Conformity

Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:

SHarmonized Standards: IEC 61000-3-12

SEU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits

93/68/EEC, Amending Directive 73/23/EEC

89/336/EEC, Council Directive relating to electromagnetic compatibility

92/31/EEC, Amending Directive 89/336/EEC relating to EMC

The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC

Declaration of Conformity, contact:

Eaton Power Quality Oy

Koskelontie 13

FIN-02920 Espoo

Finland

Phone: +358-9-452 661

Fax: +358-9-452 665 68

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Observe the warning associated with the electric shock

symbol.

CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for

additional information, such as important operating and maintenance

instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries

in the trash. This product contains sealed, lead‐acid batteries and must be

disposed of properly. For more information, contact your local recycling/reuse or

hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic

equipment (WEEE) in the trash. For proper disposal, contact your local

recycling/reuse or hazardous waste center.

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 5

Table of Contents

1 Introduction 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Safety Warnings 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Installation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Customer-Supplied External Battery 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Choosing a Mounting Option 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to the Vertical Rail 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the External Battery Interconnect to the Mounting Bracket 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring the External Battery Interconnect 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting the External Battery Interconnect to the BladeUPS 12i Module 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Specifications 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Model Specifications 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Warranty 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limited Warranty 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TABLE OF CONTENTS

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 7

Chapter 1 Introduction

The Eaton®BladeUPS®12i uninterruptible power system (UPS) is

compatible with a customer-supplied external battery only when used

with the External Battery Interconnect. This arrangement of

customer-supplied external battery and External Battery Interconnect is

not for use with the BladeUPS 12 module. The addition of

customer-supplied external batteries can extend battery runtime to one

hour.

The External Battery Interconnect is a DC connection box that provides a

landing for the wires from an external battery. The External Battery

Interconnect converts external battery input wires to a plug that is

compatible with the Eaton BladeUPS 12i module (see Figure 1).

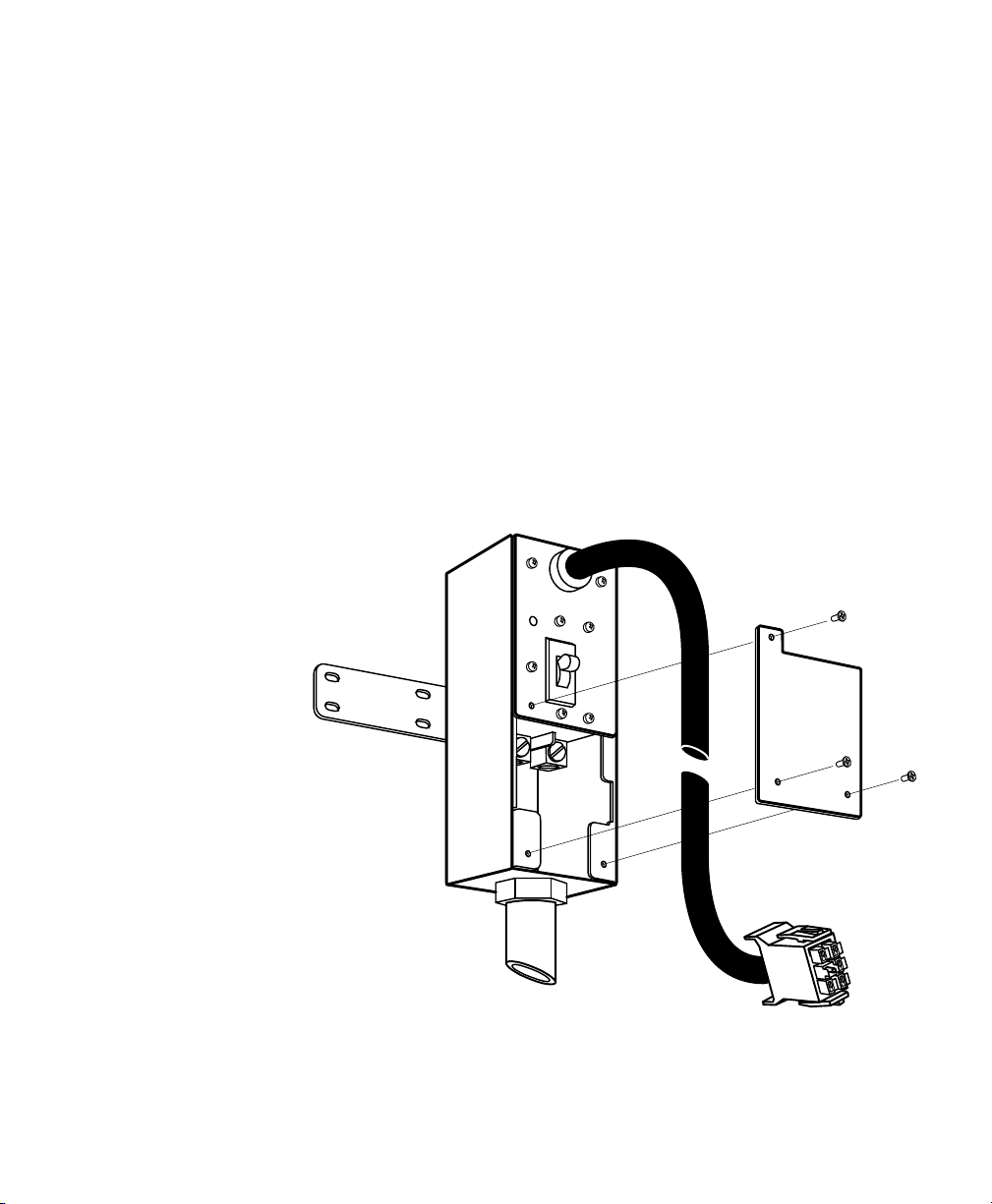

Figure 1. External Battery Interconnect

INTRODUCTION

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality

Note the following guidelines when configuring a BladeUPS 12i module

with a customer-supplied external battery and External Battery

Interconnect.

SConnect the External Battery Interconnect plug directly to the

BladeUPS 12i module. Because there is a single UPS battery

connector on the rear panel of the BladeUPS 12i module, you cannot

use a combination of customer-supplied external batteries and

Eaton-supplied Extended Battery Modules (EBMs) with the same

BladeUPS 12i module.

SNever connect the External Battery Interconnect plug to an EBM.

SThe same customer-supplied external batteries cannot be shared by

multiple BladeUPS 12i modules.

SFor consistent runtimes, each BladeUPS 12i module in parallel

systems must have the same amount of battery runtime.

SThe customer-supplied external batteries are charged through the

UPS internal charger.

STo configure the BladeUPS 12i module for customer-supplied external

batteries, configure the user setting for Watts per cell. For

information on user settings, refer to the user's guide for the

BladeUPS module.

SA Commissioning Test is not required when using customer-supplied

external batteries as long as the Advanced Battery Management®

(ABM) feature is not disabled.

SInternal BladeUPS batteries must be installed when using the

External Battery Interconnect.

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality 9

Chapter 2 Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that you should follow during installation and

maintenance of the UPS and batteries. Please read all instructions before operating the

equipment and save this manual for future reference.

DANGER

The UPS contains LETHAL VOLTAGES. All repairs and service should be performed by

AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE

PARTS inside the UPS.

Sikkerhedsanvisninger

VIGTIGE SIKKERHEDSANVISNINGER

GEM DISSE ANVISNINGER

Denne manual indeholder vigtige instruktioner, som skal følges under installation og

vedligeholdelse af UPS'en og batterierne. Læs venligst alle instruktioner inden betjening af

udstyret og gem denne manual mhp. fremtidige opslag.

FARE

Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og vedligeholdelse

bør kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af UPS'ens indvendige dele

kan repareres af brugeren.

SAFETY WARNINGS

Eaton®BladeUPS®External Battery Interconnect User's Guide S164201794 Rev 3 www.eaton.com/powerquality

Belangrijke Veiligheidsinstructies

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

BEWAAR DEZE INSTRUCTIES

Deze handleiding bevat belangrijke instructies die u dient te volgen tijdens de installatie en

het onderhoud van de UPS en de accu's. Lees alle instructies voordat u de apparatuur in

bedrijf neemt en bewaar deze handleiding als naslagwerk.

GEVAAR

Deze UPS bevat LEVENSGEVAARLIJKE ELEKTRISCHE SPANNING. Alle reparaties en

onderhoud dienen UITSLUITEND DOOR ERKEND SERVICEPERSONEEL te worden uitgevoerd.

Er bevinden zich GEEN ONDERDELEN in de UPS die DOOR DE GEBRUIKER kunnen worden

GEREPAREERD.

Tarkeita Turvaohjeita

TÄRKEITÄ TURVAOHJEITA - SUOMI

SÄILYTÄ NÄMÄ OHJEET

Tämä käyttöohje sisältää tärkeitä ohjeita, joita on noudatettava UPS-virtalähteen ja akkujen

asennuksen ja huollon yhteydessä. Lue kaikki ohjeet ennen laitteiston käyttöä ja säilytä ohje

myöhempää tarvetta varten.

VAARA

Tämä UPS sisältää HENGENVAARALLISIA JÄNNITTEITÄ. Kaikki korjaukset ja huollot on

jätettävä VAIN VALTUUTETUN HUOLTOHENKILÖN TOIMEKSI. UPS ei sisällä MITÄÄN

KÄYTTÄJÄN HUOLLETTAVIA OSIA.
