Eaton 5SC 500i Bedienungsanleitung

ENGLISH

Service and support:

Call your local service representative

619-00470-01-i (en)

5SC 500i

5SC 750i

5SC 1000i

5SC 1500i

Installation

and user manual

Page 2 619-00470-01-i (en)

Certication Standards

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.

Important instructions that must always be followed.

Do not discard the UPS or the UPS batteries in the trash.

This product contains sealed lead acid batteries and must be disposed as it's explain in this manual.

For more information, contact your local recycling/reuse or hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE)

in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.

Information, advice, help.

UPS directives:

• Safety: IEC 62040-1: 2008

• EMC: IEC 62040-2: 2005

• Performance: IEC 62040-3: 2010

CE mark (EN 62040-1: 2008 and EN 62040-2: 2006 (C1))

Class B emission level CISPR 22: 2005 + A2 2006 (EN 55022)

Harmonics emission: IEC 61000-3-2 edition 3.2: 2009

Flickers emission: IEC 61000-3-3 edition 2: 2008

The EC Declaration of Conformity is available upon request for products with a CE mark.

For copies of the EC Declaration of Conformity, contact Eaton Power Quality or check Eaton website:

www.powerquality.eaton.com

Page 3

619-00470-01-i (en)

ENGLISH

Contents

1. Introduction....................................................................................... 4

1.1 Environmental protection...................................................................................................4

2. Presentation ...................................................................................... 5

2.1 Standard installation ..........................................................................................................5

2.2 Rear panels........................................................................................................................5

2.3 Control panel .....................................................................................................................6

2.4 LCD description .................................................................................................................6

2.5 UPS setting through the LCD ............................................................................................6

3. Installation ........................................................................................ 7

3.1 Unpacking and contents check..........................................................................................7

3.2 Communication ports ........................................................................................................8

4. Operation........................................................................................... 9

4.1 Start-up and Normal operation...........................................................................................9

4.2 Starting the UPS on Battery ..............................................................................................9

4.3 UPS Shutdown ..................................................................................................................9

4.4 Operation on Battery Power ..............................................................................................9

4.5 Return of AC Input Power..................................................................................................9

5. Maintenance ................................................................................... 10

5.1 Troubleshooting................................................................................................................ 10

5.2 Battery-module replacement ........................................................................................... 11

6. Appendices ...................................................................................... 12

6.1 Technical specications.................................................................................................... 12

Page 4 619-00470-01-i (en)

1. Introduction

Thank you for selecting an EATON product to protect your electrical equipment.

The 5SC range has been designed with the utmost care.

We recommend that you take the time to read this manual to take full advantage of the many features

of your UPS (Uninterruptible Power System).

Before installing 5SC, please read the booklet presenting the safety instructions.

Then follow the instructions in this manual.

To discover the entire range of EATON products and the options available for the 5SC range,

we invite you to visit our web site at www.eaton.com/powerquality or contact your EATON representative.

1.1 Environmental protection

EATON has implemented an environmental-protection policy.

Products are developed according to an eco-design approach.

Substances

This product does not contain CFCs, HCFCs or asbestos.

Packing

To improve waste treatment and facilitate recycling, separate the various packing components.

• The cardboard we use comprises over 50 % of recycled cardboard.

• Sacks and bags are made of polyethylene.

• Packingmaterialsarerecyclableandbeartheappropriateidenticationsymbol 01

PET

Materials Abbreviations Number in

the symbols

Polyethylene terephthalat PET 01

High-density polyethylene HDPE 02

Polyvinyl chloride PVC 03

Low-density polyethylene LDPE 04

Polypropylene PP 05

Polystyrene PS 06

Follow all local regulations for the disposal of packing materials.

End of life

EATON will process products at the end of their service life in compliance with local regulations.

EATON works with companies in charge of collecting and eliminating our products at the end of

their service life.

Product

The product is made up of recyclable materials.

Dismantling and destruction must take place in compliance with all local regulations concerning waste.

At the end of its service life, the product must be transported to a processing centre for electrical and

electronic waste.

Battery

The product contains lead-acid batteries that must be processed according to applicable local regulations

concerning batteries.

The battery may be removed to comply with regulations and in view of correct disposal.

PET

Page 5

619-00470-01-i (en)

ENGLISH

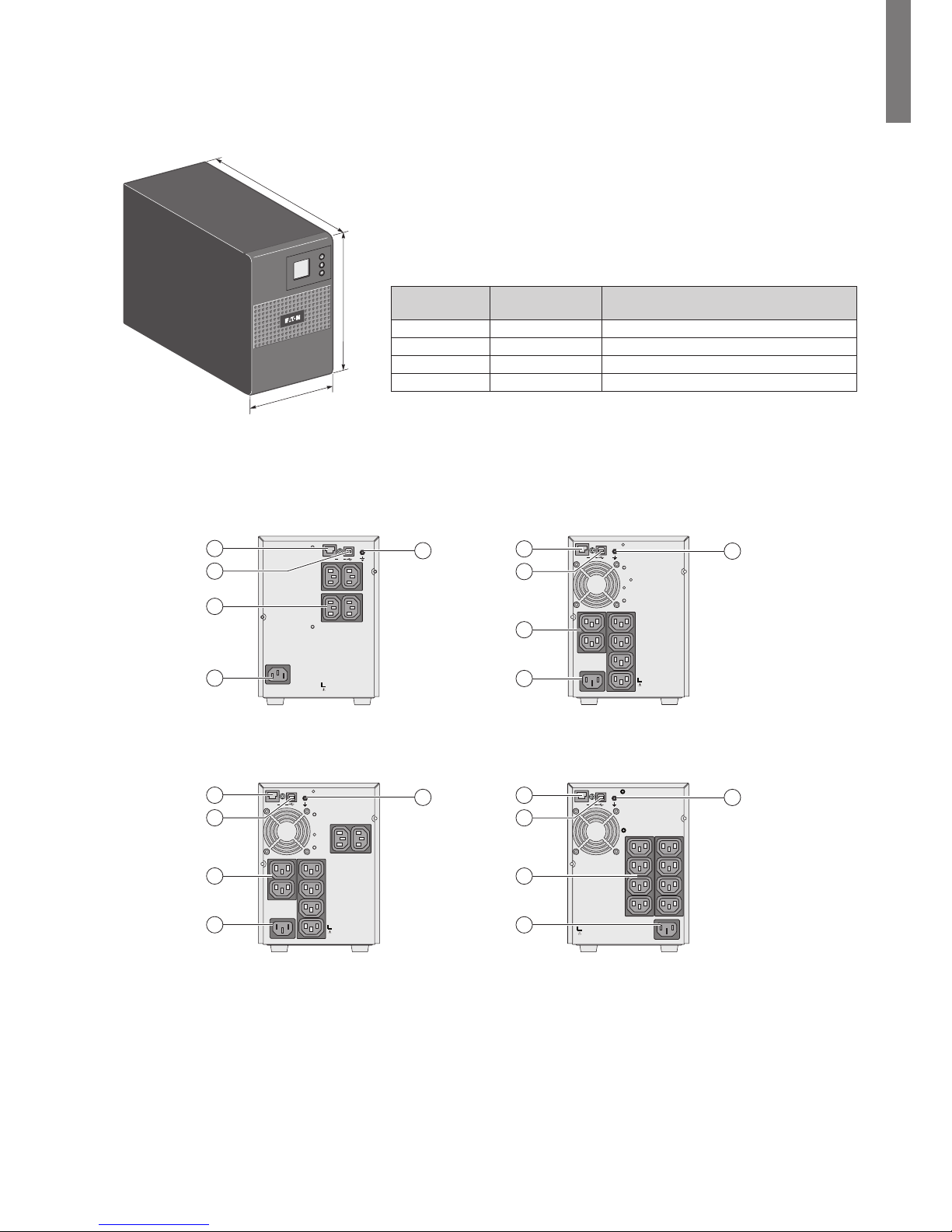

2. Presentation

2.1 Standard installation

Description Weights (kg/lb)Dimensions (mm/inch)

D x W x H

5SC 500i 6.60 / 14.60 240 x 150 x 210 / 9.4 x 5.9 x 8.3

5SC 750i 10.40 / 22.90 340 x 150 x 210 / 13.4 x 5.9 x 8.3

5SC 1000i 11.10 / 24.50 340 x 150 x 210 / 13.4 x 5.9 x 8.3

5SC 1500i 15.20 / 33.50 410 x 150 x 210 / 16.1 x 5.9 x 8.3

2.2 Rear panels

5SC 500i 5SC 750i

INPUT

OUTPUT

Refer to the Bottom of

the unit for caution markings!

RS232 OR

INPUT

OUTPUT

Refer to the Bottom of

the unit for caution markings!

RS232 OR

5SC 1000i 5SC 1500i

INPUT

OUTPUT

Refer to the Bottom of

the unit for caution markings!

RS232 OR

INPUT

OUTPUT

Refer to the Bottom of

the unit for caution markings!

RS232 OR

(1) USB communication port

(2) RS232 communication port

(3) Outlets for connection of critical equipment

(4) Socket for connection to AC-power source

(5) Ground screw

Page 6 619-00470-01-i (en)

2. Presentation

2.3 Control panel

The UPS has a three-button LCD. It provides useful information about the UPS itself, load status, events,

measurements and settings.

AVR

Min

kVA

6ON/OFF button

7Scroll down

8Mute alarm

2.4 LCD description

912

9UPS ON

10 AVR mode

11 Battery mode

12 Internal fault

13 Output load level

14 Battery level

15 Input measurements

16 Output measurements

17 Measuring unit

2.5 UPS setting through the LCD

Release scroll down button to select menu

5s 2s 2s 2s

Output voltage Alarm Sensitivity (1)

Example of setting

Save the new value

10s 5s 5s

• LCD will shut off if there is no activity for 3 minutes.

(1) In low sensitivity mode (Lo) UPS will tolerate more uctuations in power and will go on battery power less

often. If the connected load is sensitive to power disturbances, keep the sensitivity as Standard (Std).

Page 7

619-00470-01-i (en)

ENGLISH

3. Installation

3.1 Unpacking and contents check

(1) 5SC UPS

(2) Quick start and safety instructions

(3) User manual and IPSS (Intelligent Power Software Suite) CDROM

(4) 2 connection cables for the protected equipment

(5) RS232 communication cable

(6) USB communication cable

Packing materials must be disposed of in compliance with all local regulations concerning waste.

Recycling symbols are printed on the packing materials to facilitate sorting.

Page 8 619-00470-01-i (en)

3. Installation

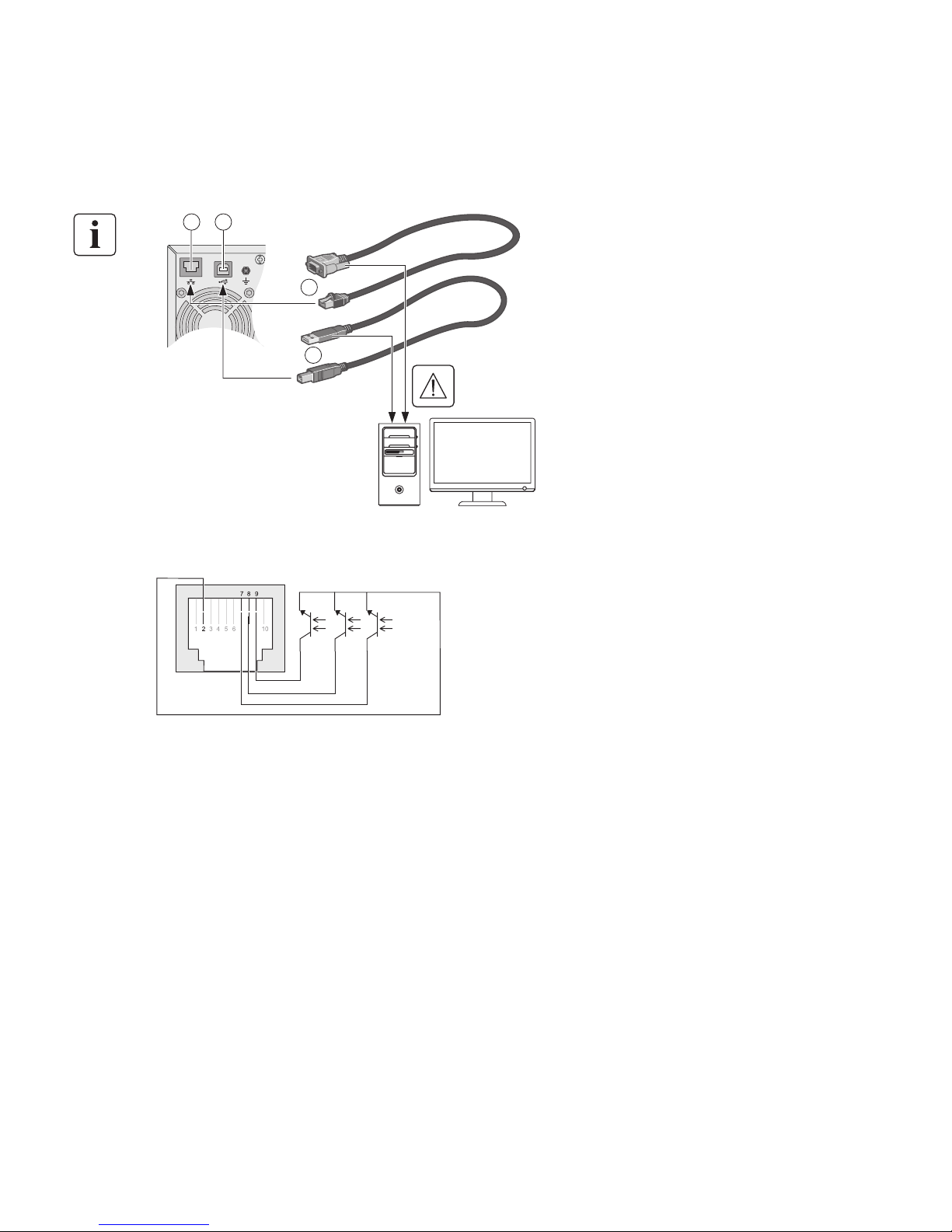

3.2 Communication ports

Connection of RS232 or USB communication port

The RS232 and USB communication ports cannot operate simultaneously.

1. Connect the RS232 (5) or USB

(6) communication cable to

the serial or USB port on the

computer equipment.

2. Connect the other end of the

communication cable (5) or

(6) to the USB (1) or RS232 (2)

communication port on

the UPS.

The UPS can now communicate

with EATON power management

software.

Characteristics of the optocoupler RS232 communications port • Pins 1, 3, 4, 5, 6, 10: not used

• Pin 2: common (user)

• Pin 7: low battery

• Pin 8: operation on battery

power

• Pin 9: UPS ON, equipment

supplied

n.o.: normally open contact

When a signal is activated, the contact is closed between the common (pin 2) and the pin

for the corresponding signal.

Contact characteristics (optocoupler)

• Voltage: 48 V DC max

• Current: 25 mA max

• Power: 1.2 W

Page 9

619-00470-01-i (en)

ENGLISH

4. Operation

4.1 Start-up and Normal operation

To start the UPS:

1. Verify that the UPS power cord is plugged in.

2. Press the button on the UPS front panel for at least 2 seconds.

3. Check the UPS front panel display for active alarms.

If the indicator is on, do not proceed until all alarms are cleared.

Correct the alarms and restart if necessary.

4. Verify that the indicator illuminates solid, indicating that the UPS is operating normally and any loads

are powered and protected.

4.2 Starting the UPS on Battery

Before using this feature, the UPS must have been powered by utility power with output enabled at

least once.

To start the UPS on battery:

1. Press the button on the UPS front panel until the UPS front panel display illuminates.

The UPS cycles through Standby mode to Battery mode.The indicator illuminates solid.

The UPS supplies power to your equipment.

2. Check the UPS front panel display for active alarms. Resolve any active alarms before continuing.

See "Troubleshooting" on page 10.

4.3 UPS Shutdown

To shut down the UPS:

1. Press the button on the front panel for three seconds.

The UPS starts to beep.The UPS then transfers to Standby mode, and the indicator turns off.

4.4 Operation on Battery Power

Transfer to battery power

• The connected devices continue to be supplied by the UPS when AC input power is no longer available.

The necessary energy is provided by the battery.

• The indicator illuminates solid.

• The audio alarm beeps every ten seconds.

The connected devices are supplied by the battery.

Low-battery warning

• The indicator illuminates solid.

• The audio alarm beeps every three seconds.

The remaining battery power is low. Shut down all applications on the connected equipment because

automatic UPS shutdown is imminent.

End of battery backup time

• All the LEDs go OFF.

• The audio alarms stops.

4.5 Return of AC Input Power

Following an outage, the UPS restarts automatically when AC input power returns (unless the restart

function has been disabled) and the load is supplied again.

Page 10 619-00470-01-i (en)

5. Maintenance

5.1 Troubleshooting

Operation status Possible cause Action

Overload Power requirement exceeds the

UPS capacity (greater than 105 % of

nominal).

Remove some of the equipment

from the UPS.The UPS continues

to operate, but may shutdown

if the load increases.The alarm

resets when the condition becomes

inactive.

Short-circuit fault A short-circuit occurred. Check device connection or

integrity.

If error persists, note the alarm

message and the UPS serial

number, and then contact your

service representative.

Battery fault The batteries in the UPS are

disconnected.

Verify that all batteries are properly

connected.

If error persists, note the alarm

message and the UPS serial

number, and then contact your

service representative.

The end of battery life is reached. Contact your service representative

for battery replacement.

Fan fault The UPS has a fan fault. Check that no object is blocking the

fan.

If error persists, note the alarm

message and the UPS serial

number, and then contact your

service representative.

Charger fault The UPS has a charger fault. The UPS does not charge the

battery anymore.

Note the alarm message and

the UPS serial number, and then

contact your service representative.

Andere Handbücher für 5SC 500i

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Eaton UPS Handbücher

Eaton

Eaton 93E Bedienungsanleitung

Eaton

Eaton Powerware 9355 Bedienungsanleitung

Eaton

Eaton Powerware 5115 Bedienungsanleitung

Eaton

Eaton 5P 1550VA Bedienungsanleitung

Eaton

Eaton Power Xpert 9395 550/275 Bedienungsanleitung

Eaton

Eaton ON-LINE Series Bedienungsanleitung

Eaton

Eaton 93PM IBC-L Bedienungsanleitung

Eaton

Eaton 9PX 6000 G Bedienungsanleitung

Eaton

Eaton 93PM IBC-L Bedienungsanleitung

Eaton

Eaton Aegis AGPHxxxxx series Bedienungsanleitung

Eaton

Eaton Power Xpert 9395P-1100/1100 Bedienungsanleitung

Eaton

Eaton Powerware BladeUPS Kurzanleitung

Eaton

Eaton 93E Bedienungsanleitung

Eaton

Eaton 5SC 1000i Rack2U Bedienungsanleitung

Eaton

Eaton EX 2200 RT 2U Bedienungsanleitung

Eaton

Eaton 5E700UD-KR Montageanleitung

Eaton

Eaton UPS 20 Bedienungsanleitung

Eaton

Eaton 93PM 150 kW SIAC-B Three-Wire Bedienungsanleitung

Eaton

Eaton 9PX 8000i RT6U HotSwap Netpack Bedienungsanleitung

Eaton

Eaton Powerware 9395 Bedienungsanleitung

Eaton

Eaton Powerware 5125 Bedienungsanleitung

Eaton

Eaton Powerware 9395 Bedienungsanleitung

Eaton

Eaton 9395 UPS and Plus 1 UPS 650825 kVA Bedienungsanleitung

Eaton

Eaton Powerware BladeUPS Bar Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung

ZincFive

ZincFive BC Series Bedienungsanleitung
