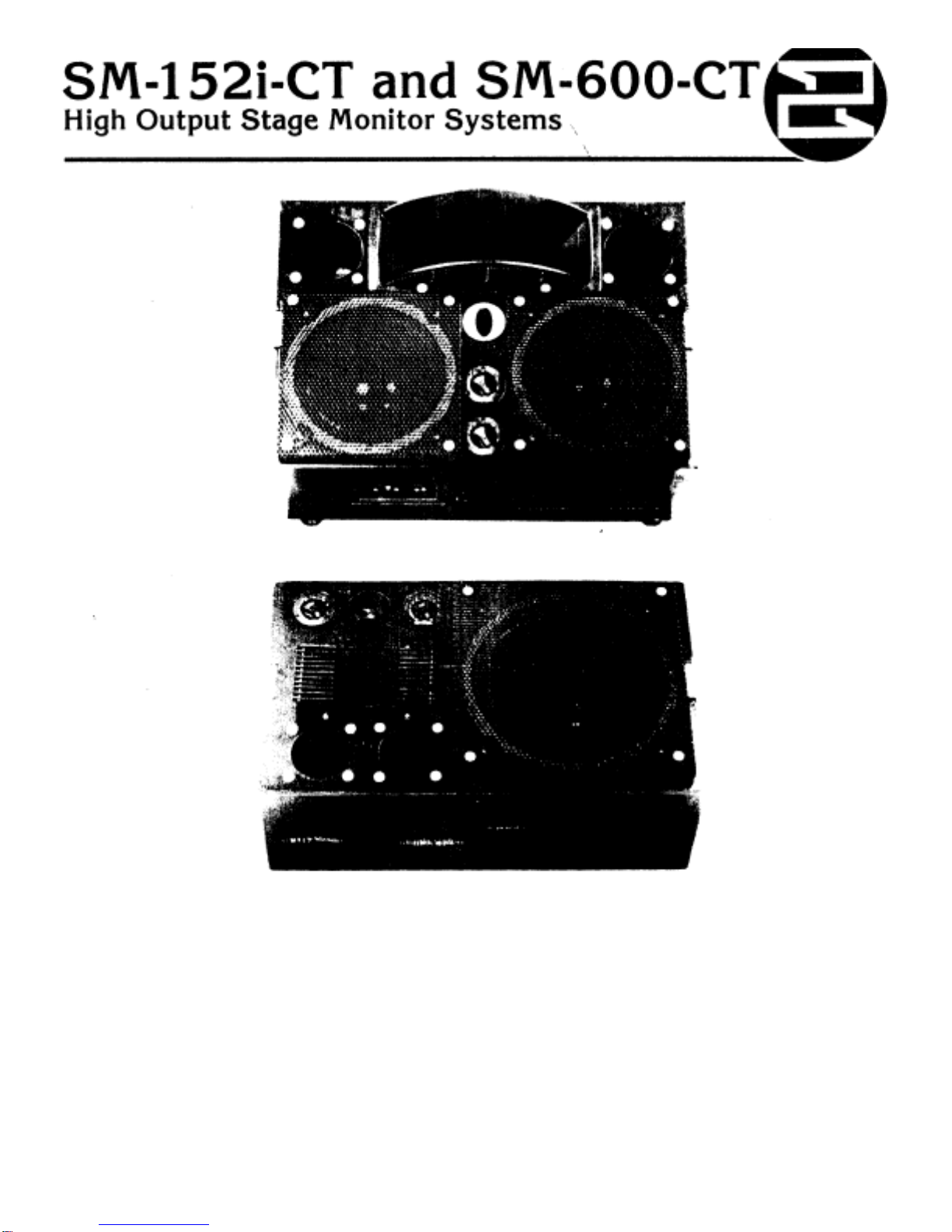

The SM- I 52i-CT and SM-600-CT are designed to be Application

the finest loudspeakers available for applications These high output monitors are intended to fulfill the

requiring high output, high definition stage foldback requirements of stage foldback systems for versatile

in a package capable of with standing continuous road vocal and instrument reinforcement articulation with

transport abuse without modification or repair. The wide bandwidth and total field reliability. To achieve

development of these systems took into account the this level of performance we employ complex cross

popularity of slant type configurations and wit1h addi- overs and large entry horns for use with large dia

tional engineering touches provide excellent overall phragm compression drivers and interchangeable

performance. These units are constructed to the tuning ass6mblies. Careful engineering attention is

highest standards in the EAW product line and are paid to all details of construction. We bring all of

members of our special duty, touring sound product EAW's experience to these units to make them the

group. This incl.udes all cross-grain laminated birch state of the art stage monitor series that they are.

hardwood construction and full road hardware includ

ing heavy gauge steel corners and feet, recessed SM- 1 52i-CT

handles, perforated steel grill speaker protection and This is a refinement of the clalssic two-way sound

t t it i ti i l 15i hb

driver

and

large

diameter

diaphragm

compression

driver

This

configuration has proven itself the cost effective answer to

high output monitoring applications with many sound

companies around the world. EAW has refined this classic

with a number of improvements optimizing the system for

maximally flat response and wider bandwidth. The two inch

entry horn lens offers better dispersion than the small

exponential horns typically used in small enclosures. The

smoother response and wider dispersion of this desiqn

allows for improved coverage and more gain before

feedback. When stage positioning calls for tight coverage due

to spill problems, the lens can be easily removed for a very

tight 451 conical dispersion. The interchangeable tuning

assembly allows for optimum box/driver alignment with all

commercially available high efficiency 15 inch drivers. This

feature, unique to EAW, lets you make use of existing

drivers and still maintain optimum low frequency

performance It also allows for future driver updating with

ease while maintaining box alignment.

Options for the SM- 152i-CT include a tweeter horn driver

cutout and crossover, one inch entry horn lens, and passive

800 Hz crossover for full passive operation.

Physically the SM-152i-CT will sit at three angles for

maximum versatility. Most angles provide excellent stage

sight lines and this remarkable package requires very little

floor space making it ideal for use in crowded stage

applications.

SM-600-CT The SM-600-CT is designed to offer the highest

output capabilities of any stage monitor system available. The

low frequency section consists of two 12 inch drivers

providing a sensitivity in the range of 100 to 104 dB SPL with

one watt at one meter. The actual efficiency will depend on

the drivers selected. At the recommended crossover

frequency of 800 Hz the two inch entry exponential horn

takes over with its nominal 90* by 40* coverage angle. This

translates into a maximum output capability of 128 dB SPL at

I m with two EAW/RCF LF-300-R bass drivers and a JBL

2441 high frequency driver. The unique interchangeable

tuning system allows the SM-600-CT to work well with all

high output 12 inch drivers. Optional features include

tweeter crossover/cutout and passive crossover.
