INSTRUCTION MANUAL

Full Motion

TV Wall Mount

Model EGMF2

60 lbs.

(27.2 kg)

If your TV weighs more, this mount is NOT compatible.

Visit echogear.com to ﬁnd a compatible mount.

Your TV (including accessories)

CANNOT EXCEED 60 lbs.

(27.2 kg) for this mount.

“You can think about it ...

but doooon’t do it.”

IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO USE. SAVE These INSTRUCTIONS

Yea, the boring stuff ... but read it, so you don’t jack things up!

Weight Restrictions

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly

or use of this product, contact The Echogear Pros (see back page).

CAUTION: Avoid potential personal injuries and property damage!

►This product is designed for use in wood stud, solid concrete, and concrete block walls -

DO NOT install into drywall alone

►The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

►Do not use this product for any purpose not explicitly speciﬁed by manufacturer

►Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Texto en español, página 20 Deutscher Text Seiten 24 Svensk text sida 28

中文文字说明请参见第 32 页

Texte français page 22 Nederlandse tekst op pagina 26

Русский текст: стр. 30 日本語は 34 ページ

CAUTION: DO NOT exceed

the maximum weight indicated. This

mounting system is intended for

use only with the maximum weights

indicated. Use with products heavier

than the maximum weights indicated

may result in collapse of the mount and

its accessories, causing possible injury.

wood

studs?Solid

Concrete or

Concrete

Block?

Perfect!

Good to Go

Perfect!

Good to Go

Unsure?

Contact The Echogear Pros

(see back page)

Grab Your Tools

Verify Your Wall Construction

UUUUHHH?!?

CAUTION:

DO NOT

install into

drywall alone

... unless you WANT to

watch your TV fall and

crash onto the ﬂoor.

Awl

Stud

Finder

7/32 in.

(5.5 mm)

for wood 3/16 in. 3/32 in.

Drill Bit

Socket

Wrench

Hammer

Drill Bit

3/8 in.

(10 mm)

for concrete

Wood Stud Installation Concrete Installation

Pencil Tape Level

Phillips

Screwdriver

Tape

Measure

Electric

Drill

Hex Key Hex Key

1/2 in.

(13 mm)

"Give it back

to Phil when

you ﬁnish"

"collect the

whole set!"

TOY SURPRISE

Inside Every Box

H1 H2

FREE

M8 x 25mm M8 x 50mm

M8 x 16mm M8 x 35mm

2.5mm

22mm

5mm

M6 x 12mm M6 x 35mm

5/16 x 2¾ in.

5/16 in.

1/4-20 x 3/8 in.

Fischer UX10 x 60R Anchor

REMEMBER THE LAST TIME

YOU “WINGED IT”?

M4 x 12mm M4 x 35mm

WARNING: DON'T FEED TO CHILDREN —This product contains small items that could be a choking

hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are

missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

What’s in the Box ... what's in the boooox

NOTE: Not all hardware included in this kit will be used.

STUFF FOR STEP 1

TV Screws (qty. 4 each)

[Only one size ﬁts your TV] Washers Spacers

[If necessary]

Brackets

qty.8

Secure

Screw

(attached)

qty.2

qty.4

M8/M6

01 02 03

M8 x 25mm M8 x 50mm

M8 x 16mm M8 x 35mm

2.5mm

22mm

5mm

M6 x 12mm M6 x 35mm

5/16 x 2¾ in.

5/16 in.

1/4-20 x 3/8 in.

Fischer UX10 x 60R Anchor

REMEMBER THE LAST TIME

YOU “WINGED IT”?

M4 x 12mm M4 x 35mm

STUFF FOR STEP 2

Wall Plate/Arm

Wall Plate

Template

Lag Bolt

Concrete

Anchor

Washer

(Lag Bolt)

Extension

Screw Cable Management

Clip

Extension

Bracket

qty.1

qty.2

11 qty.2

End Cap

(attached)

STUFF FOR STEP 3

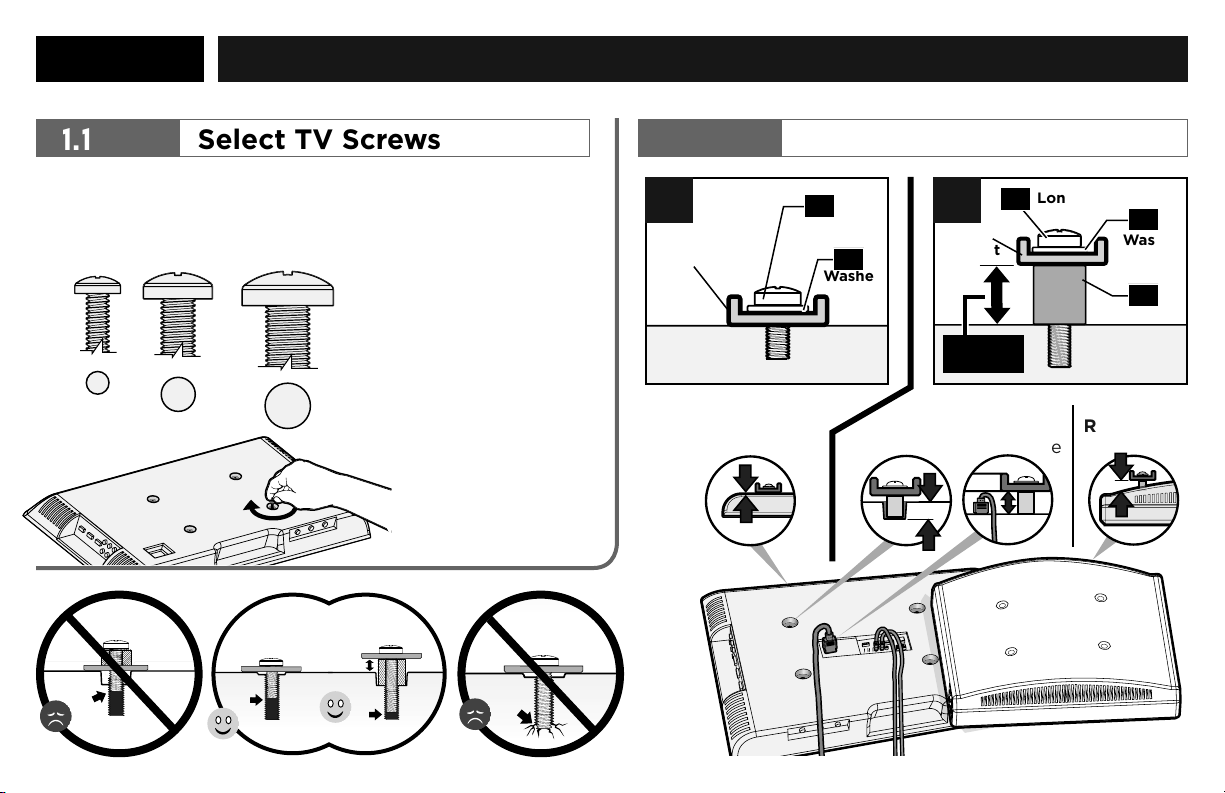

STEP 1 Attachthe TV BRACKETS TO YOUR TV

Select TV Screws

1.1

Only one screw size ﬁts your TV.

"Suggested uses for

the extra screws:

board game pieces,

industrial jewelry,

sweet corn holders,

musical instruments–

like maracas or

'monsoon' sticks,

stocking stuers,

currency (not most

countries) ..."

Select Spacers (if needed)

1.2

Flat TV with: Rounded TV

Inset Holes Cable

Interference

a b Long Screw

Short Screw

Washer

Spacer

TV Bracket

Bracket

EXTRA

SPACE

01 01

Flat TV

Spacer not

necessary

Secure the TV Brackets to Your TV

1.3

LOW

MOUNTING

HOLES

HIGH

MOUNTING

HOLES

TV BRACKETS MUST BE LEVEL

INSTALL UP/DOWN

IF NEEDED

With Spacer

No Spacer

Alternate

Spacer

setups

01 01

STEP 2 Install the Wall Plate

Max. 5/8 in. (16 mm)

CAUTION: Avoid potential personal injuries and

property damage!

Drywall covering the wall must not exceed 5/8 in. (16 mm).

Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm)

actual 1½ x 3½ in. (38 x 89 mm).

CAUTION: Avoid potential personal injuries and

property damage!

Mount wall plate

06 directly onto the concrete surface (no

surface covering).

Min.

8 in.

(20 cm)

Min.

8 in.

(20 cm)

Min.

8 in.

(20 cm)

Min.

16 in.

(41 cm )

Min. Wood Stud Width:

nominal 2 in. (51 mm)

actual 1 ½in. (38 mm)

Min. Wood Stud Depth:

nominal 4 in. (102 mm)

actual 3 ½in. (89 mm)

For

CONCRETE INSTALLATIONS,

follow STEP 2B on PAGE 12

For

WOOD STUD INSTALLATIONS,

follow STEP 2A on PAGE 10

REMEMBER THE LAST TIME

YOU “WINGED IT”?

"Come on ...

level with me"

Use a stud

ﬁnder ...

... and/or verify

the edges with

an awl or a

small drill bit.

X-Ray

Specs

sold

separately

"favorite

pokey

device"

(For Wood Stud)STEP 2A Install the Wall Plate

Align the Template

STEP 2A.2

Find a Stud

STEP 2A.1
