Ecoair ECO20LDK Bedienungsanleitung

USERS MANUAL

Read This Manual

Inside you will find many helpful hints on how

to use and maintain your dehumidifier properly.

Just a little preventative care on your part can

save you a great deal of time and money over

the life of your dehumidifier. You'll find many

answers to common problems in the chart of

troubleshooting tips. Review the chart of

Troubleshooting Tips before calling your

service engineer.

This dehumidifier may have been selected for quality test,

therefore some condensation may remain.

Model No.

ECO20LDK

Page 2

CONGRATULATIONS on your purchase of the SMART & FRESH

ECO20LDK Carbon Filter Dehumidifier

You have purchased a high quality dehumidifier capable of extracting humidity of 20 litres per

day at 80%RH 30℃. This unique unrivalled dehumidifier is packed full of features that you will

find beneficial.

1) Intelligent Controls to save energy and prolong the life of your unit

2) Carbon Filter to give you fresh air

3) Silent Mode to give you a powerful and yet a quiet unit

4) LCD display panel

Intelligent Control

1) Intelligent Energy™

Your dehumidifier is programmed with Intelligent Energy™ to help you save energy by

automatically lowering its fan speed when your desired or the set humidity is reached

within the Auto and Manual modes. The illumination of your LED display will automatically

shut off and comes back on.

2) Intelligent Protect™

Your dehumidifier is designed with Intelligent Protect™ to help protect your compressor

hence prolongs the life your unit. Intelligent Protect is a unique pre-programmed variable

time delay for starting and stopping the compressor in your dehumidifier. The time delay

varies between 1 minute to 10 minutes depending on the settings, ambient conditions and

functions selected.

Carbon Filter

Carbon filter provides air filtration system to remove airborne particles, contaminants and

impurities. This will provide protection against dust mite, pet allergen, pollen and mould spores.

Recommended for asthma sufferers.

Silent Mode

Activate the Silent Mode for peace and quiet.

LCD Display Panel

A large LCD Display (7.5cm x 3.75cm) that provides a number of indicators and readings:-

1) Fan Speed indicator

2) Water Full indicator

3) Continuous / Laundry mode indicator

4) Timer (1-8 hour) reading

5) Swing function indicator

6) Auto Defrost indicator

Page 3

7) Silent mode on indicator

8) Humidity reading - displays AMBIENT humidity when is on and displays SET humidity

when symbol is off. (To display SET humidity level, press △▽ button once. Reading

will revert to AMBIENT humidity level after 3 seconds).

9) Dry mode on indicator

10)Ambient room temperature (℃)

Page 4

Index

Safety Precautions……………………………………………..5

BS Plug Wiring………………………………………………….6

Ambient Environment For Operating…………………………7

Components Diagrams ……..…………………………………7

Operating Instructions



Functions of Control Panel & Key Pads

……………………………..8



LCD Monitor

……………………………………………….…….9



Operation of Key Pads- Auto, Manual & Continuous

…………….10-12



Timer

…………………………………..………………….…..12



Swing

……………………………………………..…….……..12



Automatic Defrosting

…………………………………………….13



Protection Of Water Full

………………………….……………..13



Intelligent Protect On Restart

………………………...…………...13



Intelligent Protect On Extreme Temperatures

……………………....13



Failures Of Humidity & Temperature Sensor

………………….…….13



Water Drip Proof Device

……………………………….…………13



Continuous Drainage

………………………………………….... 14

Maintenance & Cleaning……………………………………....14

Specification…………………………………………………….15

Service And Warranty……………………………………….…16

Responsible Disposal & Recycling …………………….….…17

Page 5

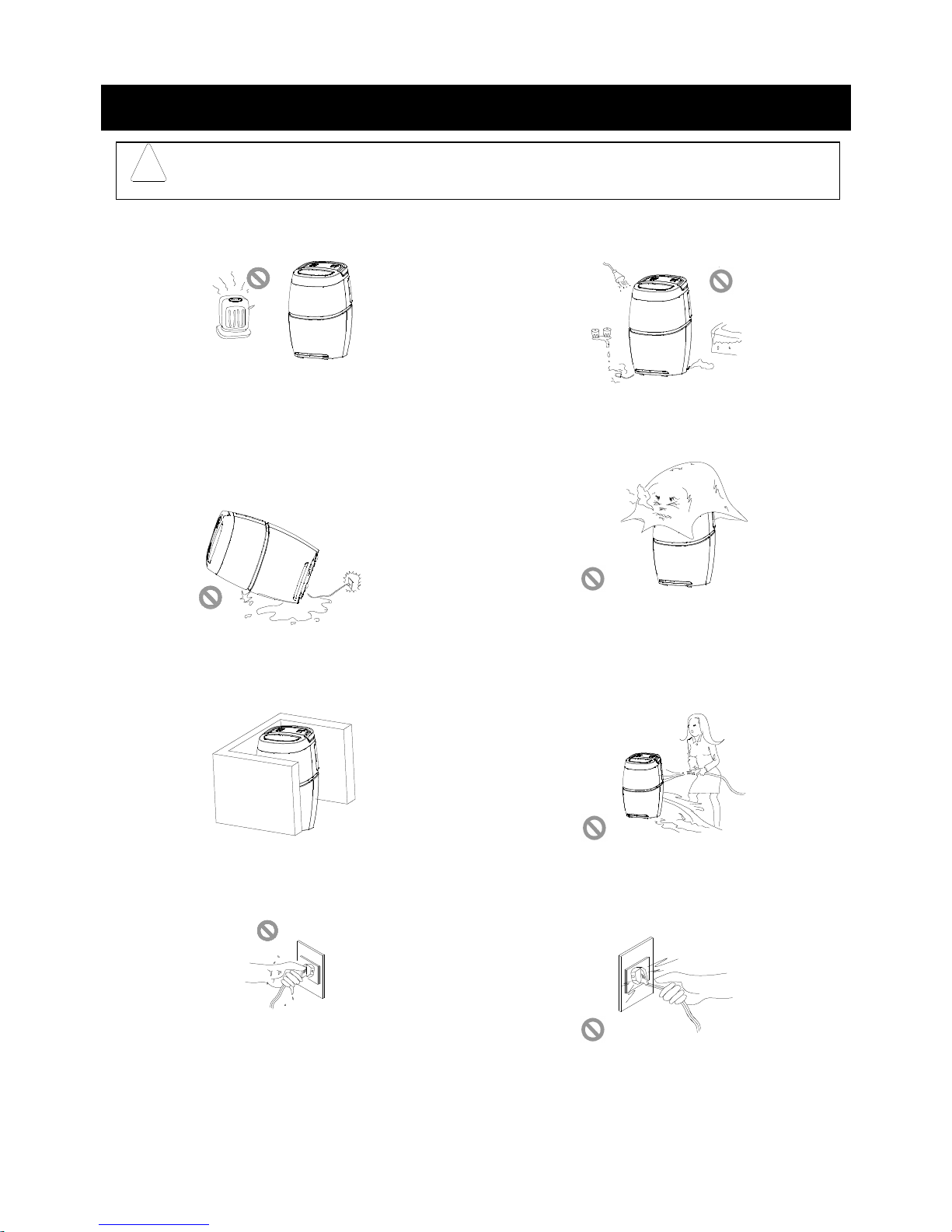

Safety Precautions

1）Do not place your dehumidifier close to other high

temperature appliance to avoid fire or damage.

3）Always ensure unit is upright, do not use when unit

is not upright or at a slanted angle. Disconnect

unit if unit topples over. Leave unit upright for at

least 2 hours before switching on.

5）Ensure there is 30 cm of clear space on all sides of

the unit.

7）Never pull the socket with damp hands.

9）If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

2）Never place unit in or allow contact with water or

rain or in a bathroom.

4）Always ensure the inlet and outlet ventilation is not

blocked at all times.

6）Do not spray water on the unit, spraying water may

cause malfunctioning and electric shock.

8）Do not pull the cable when removing the plug from

the mains.

Do not install and use the unit before carefully reading this instruction guide. Please

retain this manual for product warranty and future reference.

！

Page 6

BS Plug Wiring

Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains

lead are coloured in accordance with the following code:

BLUE - NEUTRAL

BROWN - LIVE

GREEN AND YELLOW – EARTH

As the colours of the wires in the mains lead of this appliance may not correspond with the

coloured markings identifying the terminals in your plug, proceed as follows:

1. The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked

with the letter Nor coloured BLACK..

2. The BROWN wire is the LIVE and must be connected to the terminal which is marked

with the letter Lor coloured RED.

3. The GREEN/YELLOW is the EARTH and must be connected to the terminal which is

marked with the letter Eor or coloured GREEN OR GREEN/YELLOW.

4. Always ensure that the cord grip is positioned and fastened correctly.

If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in doubt consult a

qualified electrician.

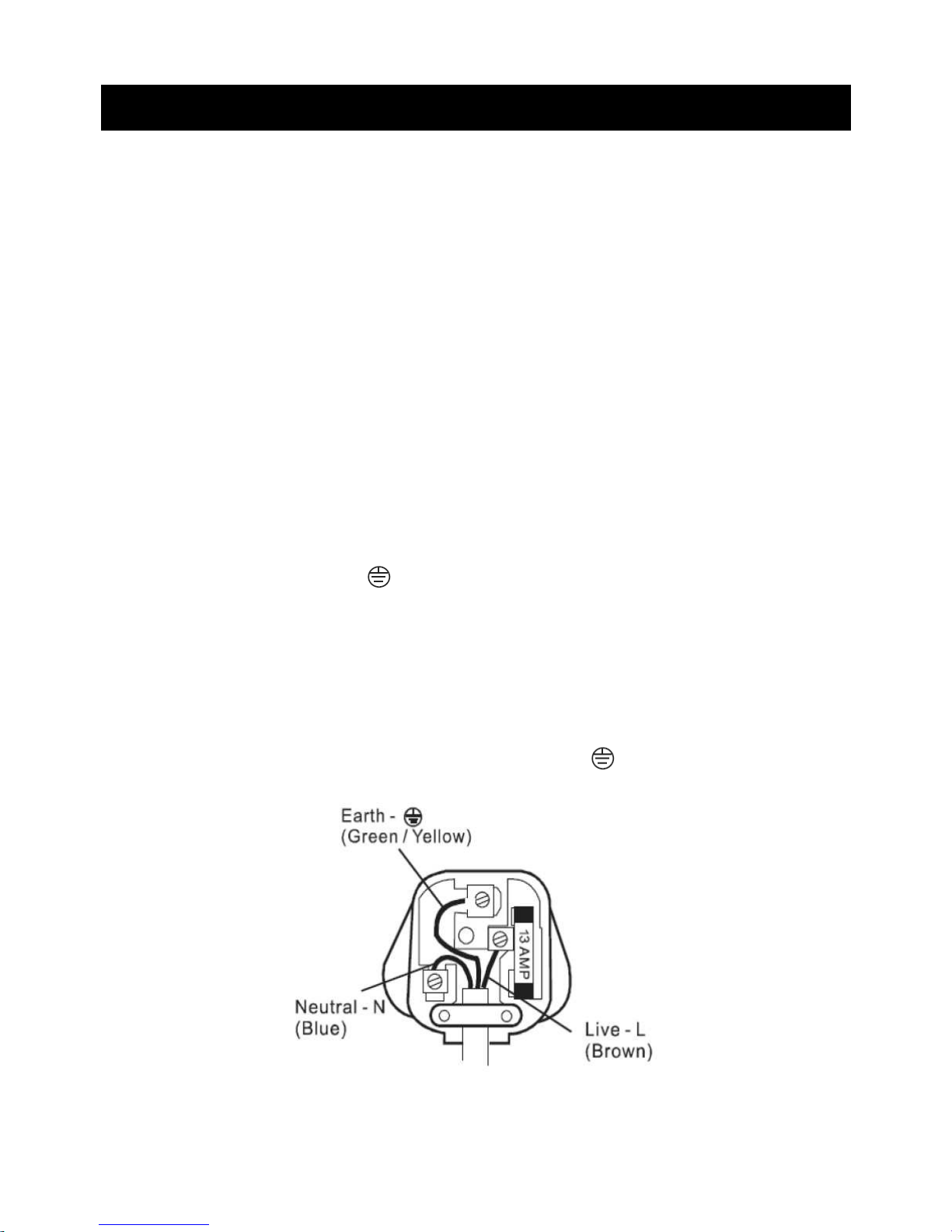

Wiring for a 13 Amp Plug (BS1363)

Please note. The Earth Terminal is marked with the letter Eor Earth Symbol.

Page 7

Ambient Environment For Operating

1. The appliance is designed to provide an optimum performance within ambient temperature

range of 5℃ to 35℃

2. Operate the unit indoors in your house or office, etc. Never use it in a wet environment such as

bathroom or outdoors.

3. Make sure the door and window are closed before operating the unit.

4. Ensure that the unit is placed on a flat, level and stable floor surface. Otherwise, the unit may

be unstable and can topple over. It will also cause excessive vibrations and become noisy.

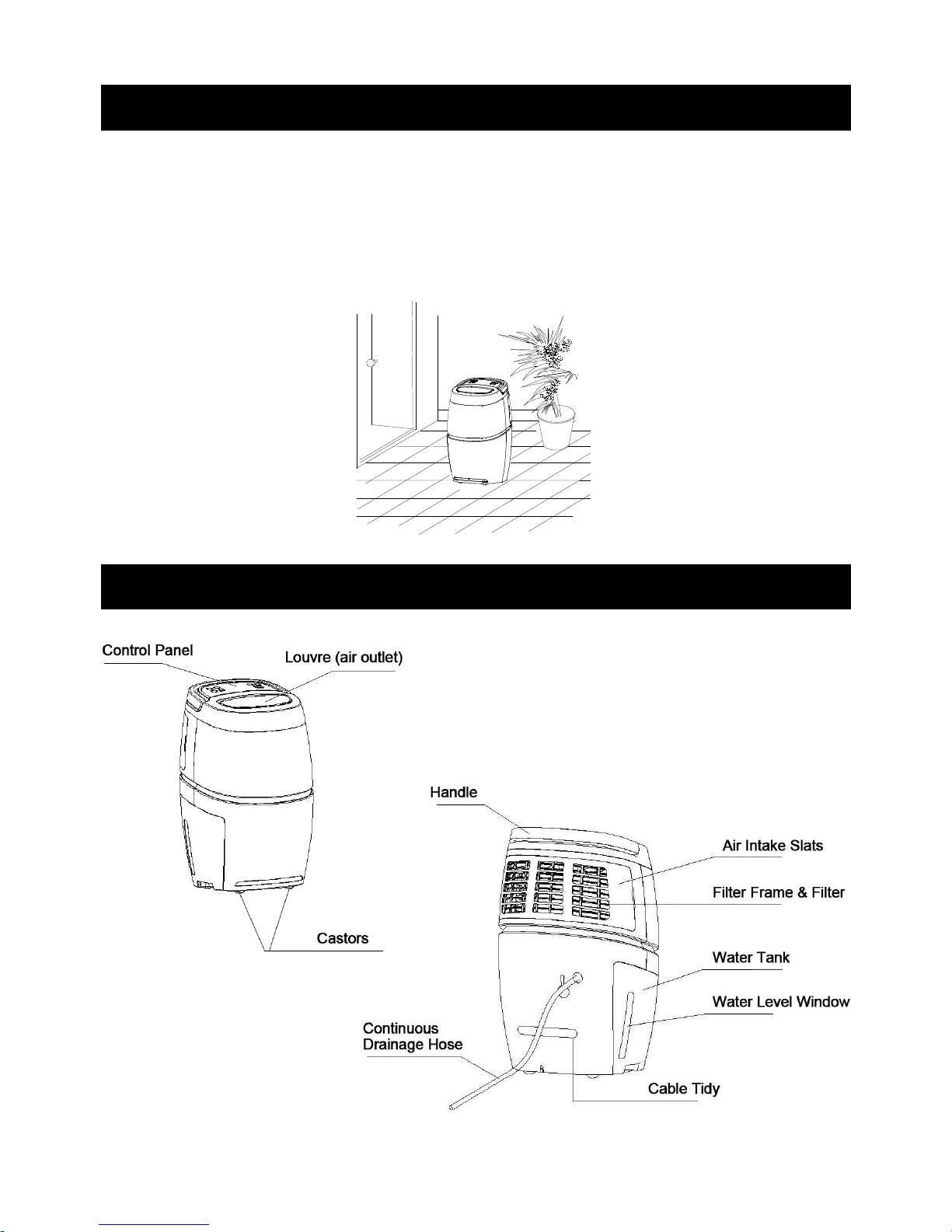

Components Diagrams

Page 8

Operating Instructions

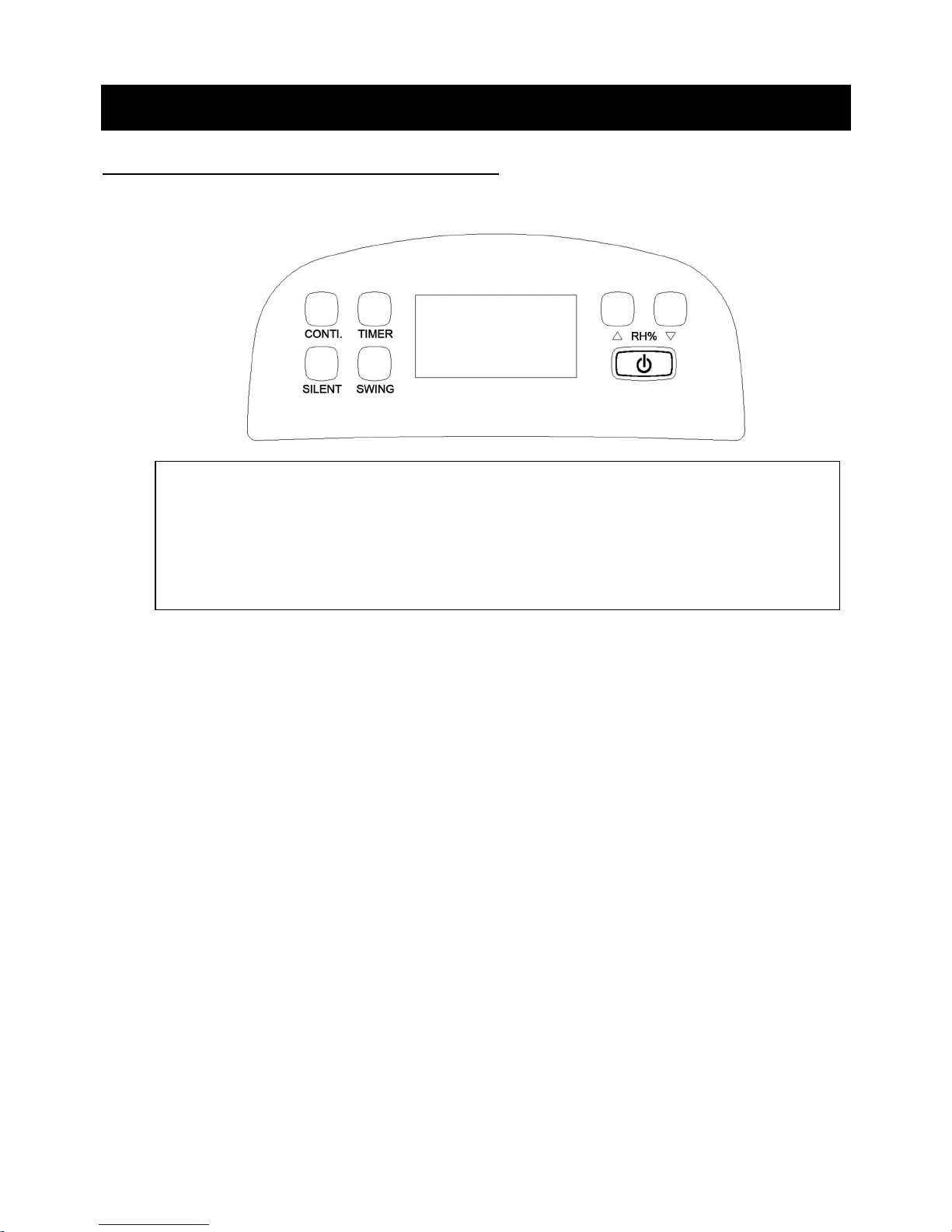

FUNCTIONS OF CONTROL PANEL & KEY PADS

1. On / Off: Power On / Off

2. SILENT: Press the button to activate and deactivate SILENT mode

3. CONTI.: Press to dehumidify continuously. (Also used as laundry mode)

4. TIMER: Set Timer ON of OFF 1 – 8 hours

5. SWING: Oscillation Setting.

6. RH%

△▽

: Set Humidity Level

△or ▽

Page 9

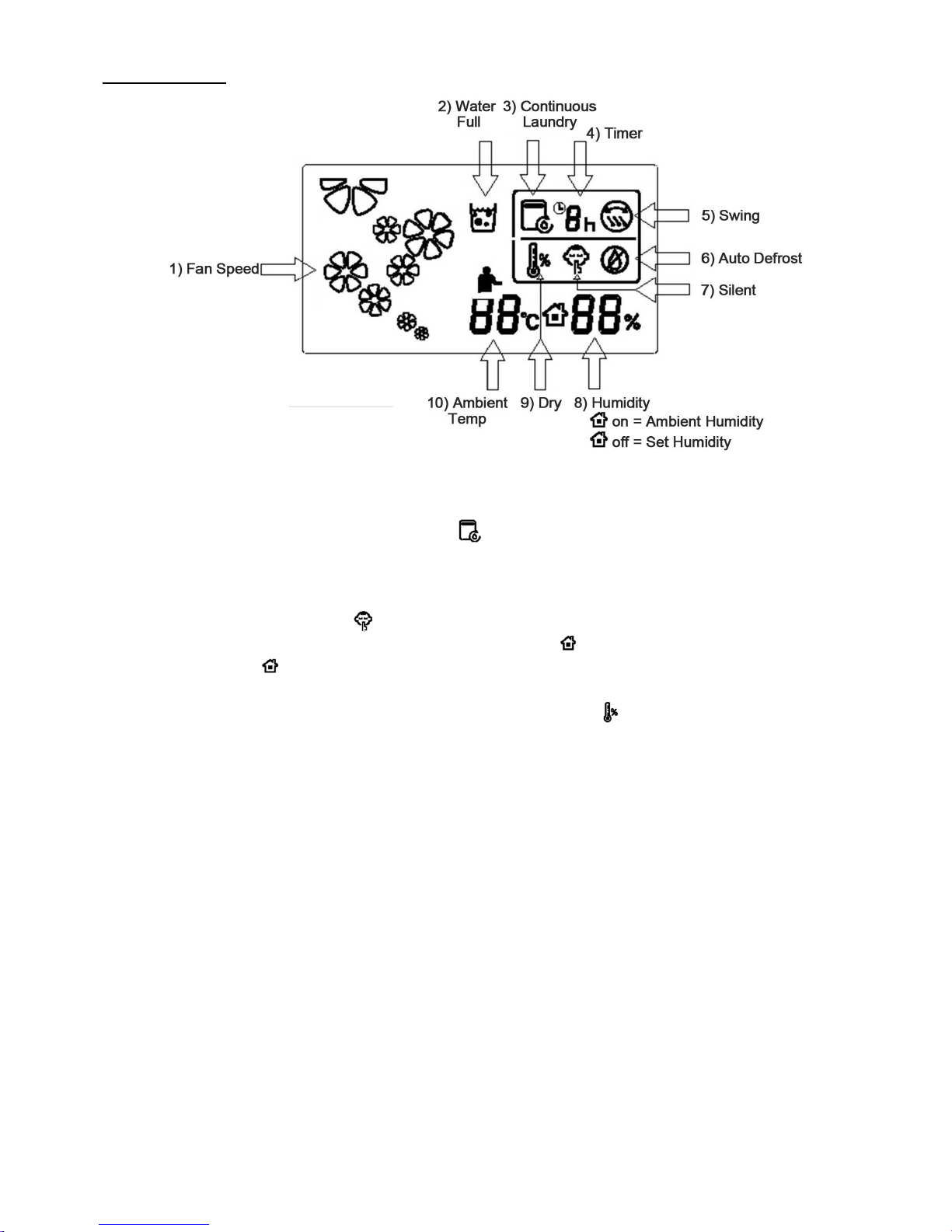

LCD MONITOR

1) Fan Speed indicator

2) Water Full indicator

3) Continuous / Laundry mode indicator

4) Timer (1-8 hour) reading

5) Swing function indicator

6) Auto Defrost indicator

7) Silent mode on indicator

8) Humidity reading - displays AMBIENT humidity when is on and displays SET humidity

when symbol is off. (To display SET humidity level, press △▽ button once. Reading

will revert to AMBIENT humidity level after a few seconds).

9) Dry Key to indicate Auto and Manual mode on indicator

10) Ambient room temperature (degrees ℃)

Page 10

OPERATION OF KEYS PADS

Plug into power socket:

The unit will beep 3 times, air louvre goes into closed position.

MODES

1) AUTO

2) MANUAL

3) CONTINUOUS

1) AUTO MODE

Switching on AUTO mode

Press ON button to switch on AUTO mode.

•The unit will beep once to indicate power on

•The DRY key will appear on the LCD display

•The louver opens to a wide position

•Your dehumidifier will be set at a default humidity level of 60% RH. (pressing the

△or

▽

once will display the set humidity level for a few seconds and then revert back to the

ambient humidity level)

•The fan will be at high fan speed.

SILENT Activation

Press SILENT button to activate the SILENT function within the DRY mode.

•Your dehumidifier will be set at the default humidity level of 60% RH.

•The fan will be on low fan speed.
