1 Overview

This Software Manual will show all information’s and handling of the Ident-Ex and the “Ident-Ex Setup”

software for Android and Windows.

2 Displaying firmware information

If the main trigger (trigger button on the underside), trigger (trigger button on the top) and SPP buttons are

pressed during operation, firmware information will be sent to a device that has been connected to the Ident-

Ex via Bluetooth (HID), where it is displayed. It must be ensured that the SPP button is pressed first, followed

by the main trigger and the trigger button. When releasing, the SPP button must be released before the main

trigger and trigger buttons.

The following information’s are transmitted:

Bootloader version

Firmware version

Version of the Bluetooth module used by the Ident-Ex

Address of the Bluetooth module used by the Ident-Ex

The 5 saved Bluetooth addresses of devices which have already been connected to the Ident-Ex via

Bluetooth.

Firmware information of the head module

3 Resetting to default settings

The firmware of the Ident-Ex can be used to reset the device to its factory settings. To enable this function,

the main trigger (trigger button on the underside), trigger (trigger button on the top) and SPP buttons must be

pressed and held for approx. 2 seconds when the Ident-Ex is starting up. Previous settings, such as

selection of the head module, main trigger and trigger button were not resetted and are retained.

4 Bluetooth Pairing of Ident-Ex and PC

If the Ident-Ex has not yet been paired with a PC, a pairing process must be performed before a Bluetooth

connection can be established between the Ident-Ex and PC. The Ident-Ex is using the SSP-Mode (Secure

Simple Pairing), in this case no pairing-password is required to pair with a device (Smartphone/Tablet or

PC).

Select the Bluetooth name of the Ident-Ex via Start -> Control Panel -> Hardware and Sound -> Add a

Bluetooth device. The PC is now paired with the Ident-Ex and a Bluetooth connection can be established. A

Bluetooth connection (HID) may be established automatically after the pairing process. This is indicated by

the illuminating Bluetooth LED on the Ident-Ex (the SPP LED is off). However, since we need to establish a

Bluetooth connection in SPP to install firmware, an existing HID Bluetooth connection must be deleted. To

do this, press and hold the SPP button on the Ident-Ex for approx. 2 seconds until the Bluetooth LED goes

out. An SPP Bluetooth connection can now be established.

Datum // date

30.03.2017

Teile-Nr. // part no.

300030

Dokument-Nr. Revision //

document no. revision

300030AL06E 04

Software Manual

Ident-Ex 01

Seite/gesamt // page/total

4 / 60

Dokument erstellt // document created

OSJ398 30.03.2017

Dokument geprüft // document checked

FIH091 30.03.2017

Ident-Ex 01: Software Manual

● Ablageort: W:\300030\070_Marketingunterlagen\07020_Bedienungsanleitungen\300030AL06Axx\300030AL06E04_IdentEx_Software.docx

●template no.: 0730QV06A03 ●template created: HAO006 20.01.2011 ●template checked: BEA373 20.01.2011 ● location: ISO drive ●

5 Bluetooth pairing of Ident-Ex and Android device

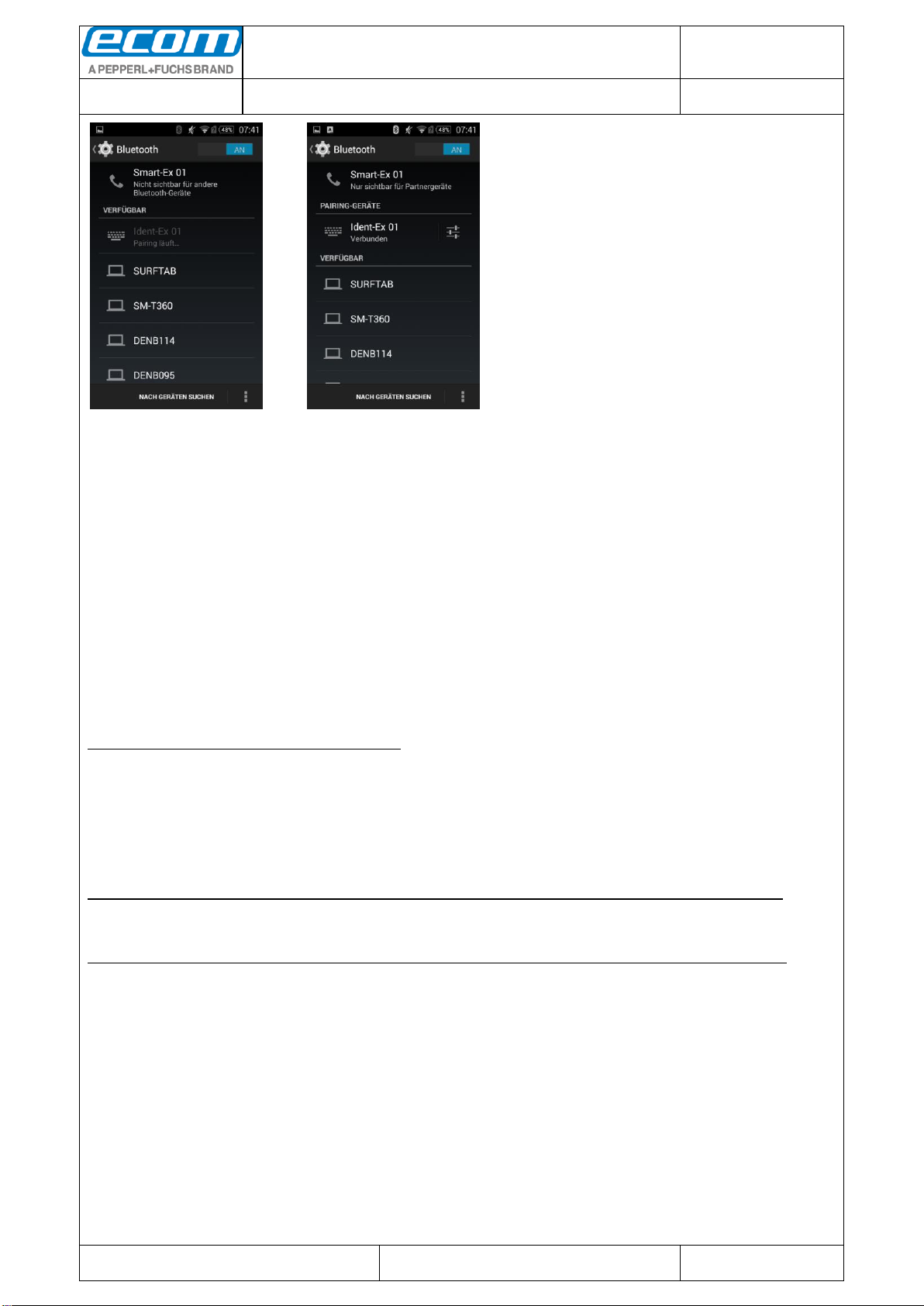

Pairing without „Ident-Ex Setup“ App:
