Preface

This publication, including all photographs, illustrations and software, is protected

any of the material contained herein, may be reproduced without written consent of

the author.

Version 2.0A

Disclaimer

The information in this document is subject to change without notice. The manufac-

turer makes no representations or warranties with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any

particular purpose. The manufacturer reserves the right to revise this publication and

to make changes from time to time in the content hereof without obligation of the

manufacturer to notify any person of such revision or changes.

FederalCommunicationsCommission(FCC)

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful inter-

ference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment onto an outlet on a circuit different from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with

this equipment to ensure compliance with the pertinent RF emission limits governing

this device. Changes or modifications not expressly approved by the system’s manu-

facturer could void the user’s authority to operate the equipment.

TrademarkRecognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

nVIDIA is a registered trademark of nVIDIA Corporation

Other product names used in this manual are the properties of their respective owners

and are acknowledged.

Preface

DeclarationofConformity

This device complies with part 15 of the FCC rules. Operation is subject to the

following conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interfer-

ence that may cause undesired operation

CanadianDepartmentofCommunications

This class B digital apparatus meets all requirements of the Canadian Interference-

causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur

le matériel brouilieur du Canada.

AbouttheManual

The manual consists of the following:

Chapter 1

Introducing the Motherboard

Chapter 2

Installing the Motherboard

Chapter 3

UsingBIOS

Chapter 4

Using the Motherboard Software

Describes features of the

motherboard.

Go to Hpage 1

Describes installation of

motherboard components.

Goto Hpage 7

Provides information on us-

ing the BIOS Setup Utility.

Go to Hpage 27

Describes the motherboard

software

Go to Hpage 49

Chapter 5

SettingUpNVIDIARAIDConfiguration

Provides information about

SATARAIDSetup

Go to Hpage 55

iii

TABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTS

Preface i

Chapter 1 1

IntroducingtheMotherboard 1

Introduction......................................................................................1

Feature...............................................................................................2

MotherboardComponents.............................................................4

Chapter 2 77

Installing the Motherboard 7

SafetyPrecautions...........................................................................7

Choosinga ComputerCase............................................................7

Installingthe Motherboard inaCase............................................7

CheckingJumperSettings...............................................................8

Setting Jumpers...................................................................8

Checking Jumper Settings...................................................9

Jumper Settings...................................................................9

ConnectingCase Components.....................................................10

Front Panel Header...........................................................12

InstallingHardware........................................................................13

Installing the Processor.....................................................13

Installing Memory Modules...............................................15

Installinga HardDiskDrive/CD-ROM/SATA HardDrive...18

Installing a Floppy Diskette Drive....................................19

Installing Add-on Cards....................................................20

Connecting Optional Devices............................................22

ConnectingI/ODevices................................................................25

Chapter 3 27

UsingBIOS 27

Aboutthe SetupUtility................................................................27

The Standard Configuration..............................................27

Entering the Setup Utility...................................................27

Updating the BIOS............................................................29

UsingBIOS......................................................................................29

Standard CMOS Feature...................................................30

Advanced BIOS Feature....................................................32

Advanced Chipset Feature.................................................36

Integrated Peripherals.......................................................39

Power Management Setup.................................................43

PNP/PCI Configurations...................................................44

PC Health Status................................................................45

Load Fail-Safe Defaults....................................................46

Load Optimized Defaults...................................................46

Set Supervisor/User Password..........................................47

Save & Exit Setup...............................................................47

Exit Without Saving............................................................47

Chapter 4 4949

4949

UsingtheMotherboardSoftware 49

Aboutthe SoftwareCD-ROM...............................................................49

Auto-installingunderWindows2000/XP/Vista.........................49

Running Setup....................................................................50

ManualInstallation........................................................................54

UtilitySoftware Reference............................................................54

Chapter 5 5555

5555

SettingUpNVIDIARAIDConfiguration 55

SettingUp aNon-BootableRAIDArray....................................55

Setting Upa Bootable RAIDArray.............................................58

IntroducingtheMotherboard

Chapter1

IntroducingtheMotherboard

Introduction

Thank you for choosing the GeForce6100PM-M2 motherboard. This motherboard

is a high performance, enhanced function motherboard that supports socket for AMD

PhenomTM processor (socket AM2+)/AMD AthlonTM 64 X2 Dual-Core/AthlonTM 64/

SempronTM processors for high-end business or personal desktop markets.

This motherboard is based on NVIDIA® ΜCP61 Premium media and communications

processor (MCP) for best desktop platform solution. MCP61P is a single-chip,

highly integrated, high performance HyperTransport peripheral controller, unmatched

by any other single chip-device controller. The memory controller supports DDR2

memory DIMM frequencies of 800/667/533/400. It supports two DDR2 sockets

with maximum memory size of 16 GB. High resolution graphics via one PCI Express

x16 slot, one PCI Express x1 slot, 10 USB 2.0 ports (4 USB ports and 3 USB 2.0

headers support additional 6 USB ports) and SATA support with RAID function.

There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and

keyboard connectors, COM1, LPT, VGA1, four USB ports, one LAN port and audio

jacks for microphone, line-in and 6/8-channel (optional) line-out. This motherboard

is designed in a Micro ATX form factor using a four-layer printed circuit board and

measures 244 mm x 214 mm.

Due to the DRAM maximum size is 4 GB at present, the memory maximum

size we have tested is 8 GB.

IntroducingtheMotherboard

Feature

Processor

HyperTransportTM Technology is a point-to-point link between two devices, it

enables integrated circuits to exchange information at much higher speeds than

currently available interconnect technologies.

• Accommodates AMD PhenomTM processor (socket AM2+)

AMD AthlonTM 64 X2 Dual-Core/AthlonTM 64/SempronTM processors

• Supports up to 2000 MT/s HyperTransportTM (HT) interface Speeds

This motherboard uses a socket AM2+/AM2 that carries the following features:

•DDR2 800/667/533/400DDR2 SDRAM withDual Channel supported

• Accommodates two unbuffered DIMMs

• Up to 8GB per DIMM with maximum memory size up to 16GB

Memory

Audio (optional)

• 7.1+2 Channel High DefinitionAudio Codec

• All DACs support 192K/96K/48K/44.1KHz DAC sample rate

Software selectable 2.5V/3.75V VREFOUT

• Meets Microsoft WHQL/WLP 2.x audio requirements

• Direct Sound 3DTM compatible

• 5.1 Channel High DefinitionAudio Codec

• ADCs support 44.1/48k/96k sample rate

• Meets Microsoft WHQL/WLP 3.0x audio requirements

• Direct Sound 3DTM compatible

The onboard Audio provides the following features:

•

• 7.1 Channel High DefinitionAudio Codec

• ADC support 48K/96K sample rate

High quality differential CD input

• Power Support: Digital: 3.3V; Analog: 5.0V

• Meets Microsoft WHQL/WLP 2.0 audio requirements

• Direct Sound 3DTM compatible

•

• 5.1 Channel HighDefinition Audio Codec

• ADCs support 44.1/48k/96k sample rate

• Meets Microsoft WLP 3.08 Vista premium and mobile PCs audio

requirements

• Direct Sound 3DTM compatible

The NVIDIA®MCP61P is a single-chip with proven reliability and performance.

• 1 GHz HyperTransport x16 up and down links to the AMD socket

AM2+/AM2CPUs

• PCI Express 16 lane link interface for external graphics processors

• PCI v2.3 interface at 33 MHz

• Integrated SATA 3.0 Gb/s Host Controller

• Ten USB 2.0 ports supported

• Fast ATA-133 IDE controller

Chipset

IntroducingtheMotherboard

Onboard LAN

This motherboard supports Ultra DMA bus mastering with transfer rates of 133/

100/66/33 Mb/s.

: • One PCI Express x16 slot for Graphics Interface

• One PCI Express x1 slot

• Two 32-bit PCI v2.3 compliant slots

• One IDE connector supporting up to two IDE devices

• One floppy disk drive interface

• Four 7-pin SATA connectors

Expansion Options

Integrated I/O

The motherboard comes with the following expansion options:

• Two PS/2 ports for mouse and keyboard

• One parallel port

• One serial port

• One VGA port

• Four USB ports

• One LAN port

• Audio jacks for microphone, line-in and 6/8-channel (optional) line-out

BIOS Firmware

• Power management

• Wake-up alarms

• CPUparameters

• CPUandmemorytiming

1. Some hardware specifications and software items are subject to change

without prior notice.

The onboard LAN provides the following features:

• 10BASE-T/100BASE-TX IEEE 802.3u fast Ethernrt transceiver

• Low-power mode

• MII and 7-wire serial interface

The motherboard has a full set of I/O ports and connectors:

The motherboard uses Phoenix-Award Workstation BIOS that enables users to

configure many system features including the following:

The firmware can also be used to set parameters for different processor clock

speeds.

2. Due to chipset limitation, we recommend that motherboard be oper-

ated in the ambiance between 0 to 50 °C.

IntroducingtheMotherboard

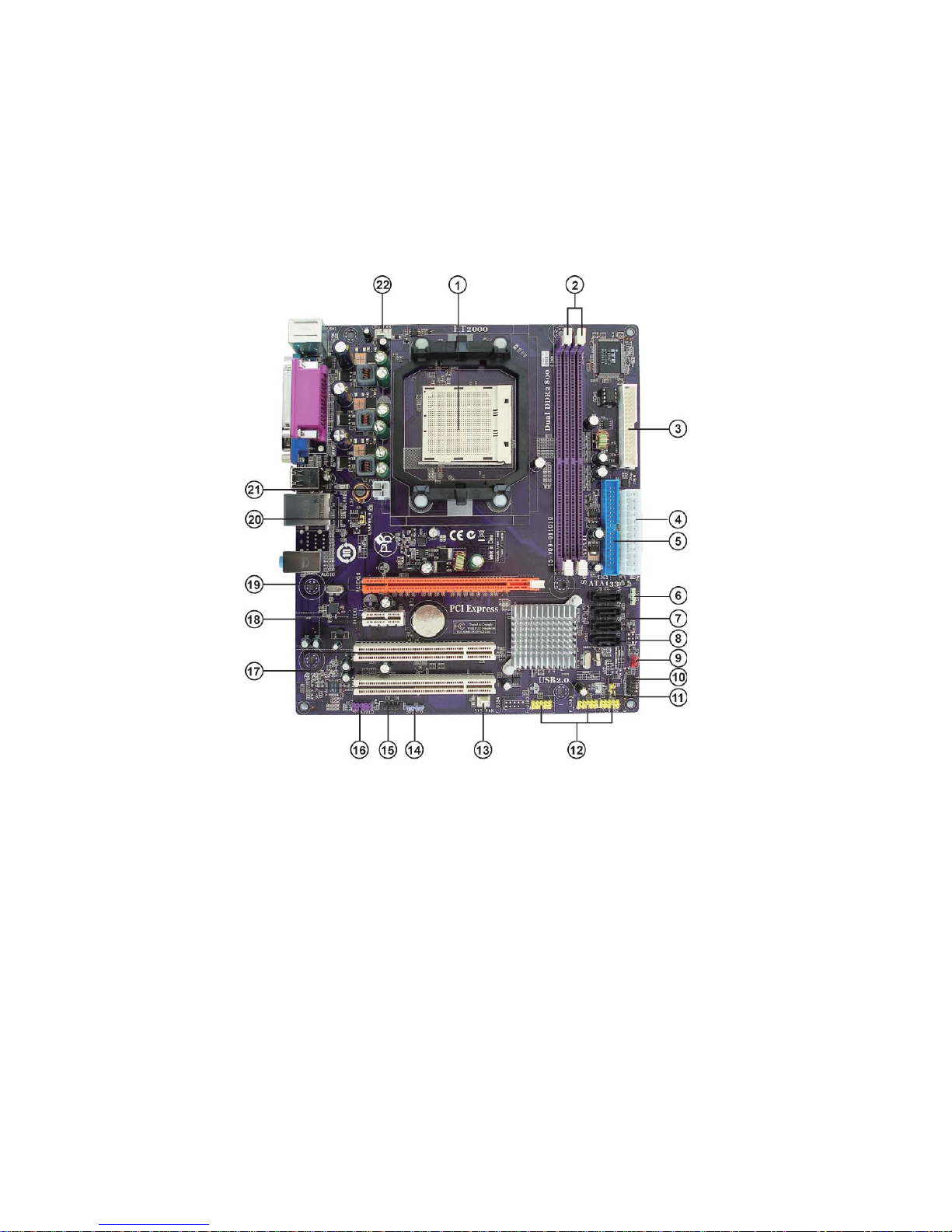

MotherboardComponents

Andere Handbücher für GeForce 6100PM-M2

Inhaltsverzeichnis

Andere ECS Hauptplatine Handbücher

ECS

ECS DURATHON 2 B150M-P73 Bedienungsanleitung

ECS

ECS 662/1066T-M2 Bedienungsanleitung

ECS

ECS 945GCT-M3 Bedienungsanleitung

ECS

ECS NM70-I3 Bedienungsanleitung

ECS

ECS A55F-M2 V.2.0 Bedienungsanleitung

ECS

ECS H61H2-M17 Bedienungsanleitung

ECS

ECS A75F-M Bedienungsanleitung

ECS

ECS Elitegroup P4M8OOPRO Bedienungsanleitung

ECS

ECS A890GXM-A Bedienungsanleitung

ECS

ECS L4S5A3 Bedienungsanleitung

ECS

ECS L4IBMG2 Bedienungsanleitung

ECS

ECS H61H2-M6 Bedienungsanleitung

ECS

ECS B85H3-A3 Bedienungsanleitung

ECS

ECS L4IBMGL6 1.0 Bedienungsanleitung

ECS

ECS A880LM-M Bedienungsanleitung

ECS

ECS A890GXM-A2 Bedienungsanleitung

ECS

ECS L4IGEA2 Bedienungsanleitung

ECS

ECS P6VEMT Bedienungsanleitung

ECS

ECS P43T-A2 Bedienungsanleitung

ECS

ECS H67H2-M v 1.1 Bedienungsanleitung

ECS

ECS P6VPA2 Bedienungsanleitung

ECS

ECS Motherboard Bedienungsanleitung

ECS

ECS A55F-M3 Bedienungsanleitung

ECS

ECS P4ITA2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
