EDIFIER W296BT Bedienungsanleitung
Walker
W296BT
Headphones
Operating instructions
1
■Product features
●Excellent low frequency, popular toning and suitable for various music style;
●Plastic ear hooks that are wore in ear to prevent from falling;
●CSR chip, Bluetooth Ver. 4.1 and the connection distance is over 10m;
●Operation time is over 8 hours and supports battery life display;
●Headphones IPX5 can cope with daily sweat and water splash. The wire controller
IPX7 can forever be rinsed by water;
●Three key wire controller can support voice call, volume adjustment and song
switching, easy for use;
●Support CVC noise reduction and HSP/HFP/A2DP/AVRCP protocol;
●Support one operating 2 units, voice control of mobile awakening and factory setting
restore.
■Specifications
Bluetooth version
Bluetooth V4.1
Bluetooth protocol
HFP、HSP、A2DP、AVRCP
Valid distance
10m
Operating time
8h
Charging time
2h
Standby time
About 300h
Rated input
DC 5.0V 500mA
Frequency response
range
20Hz-20KHz
2
Sensitivity (SPL)
100dB
Nominal impedance
16m
■Package list
Headphones*1 pcs
USB charging cable*1 pcs
Manual/Warranty card*1
PCS each
Silica earplug Large size*1
pair
Silica earplug Middle size*1
pair
Silica earplug Small size*1
pair
3

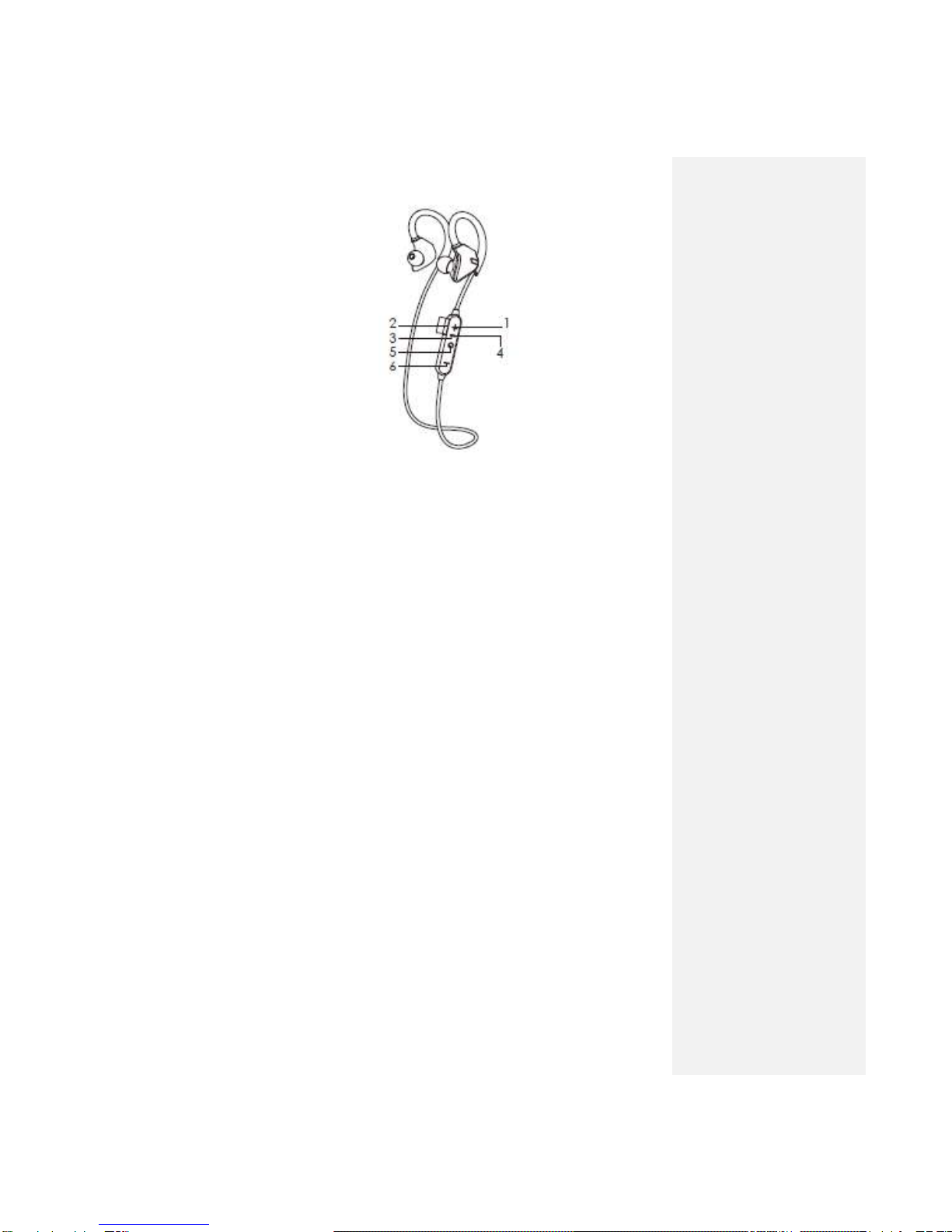

■Functions
1. Volume increment/Next song
2. Charging port
3. LED lights
4. Microphone
5. Multi-function key
6. Volume decrement/Last song
■Charging
Before usage, please ensure the headphones are fully charged; during
usage, if only the red light can be seen twice every 8 seconds and a prompt
beep is heard, this indicates low battery capacity. Please use after being
charged.
Red light on= Charging
Red light off/Blue light on= Charging completed
Charging time: about 2 hours.
Note: If headphones are not charged for a long time, the battery life shall be
shortened greatly. We suggest you to charge your headphones at least one
every three months.
4
Warning: The chargeable batteries that provide power for this
product must be disposed properly for recycling.Do not put
batteries into fire to preventing explosion.
■How to use headphones
1. Power on/Off
Power on: Press and hold multi-pad for about 2 seconds. Release the
key when the blue light is on and a prompt beep can be heard in the
headphones.
Power off: Press and hold multi-pad for about 5 seconds. Release the
key when the red light is on and a prompt beep can be heard in the
headphones.
5

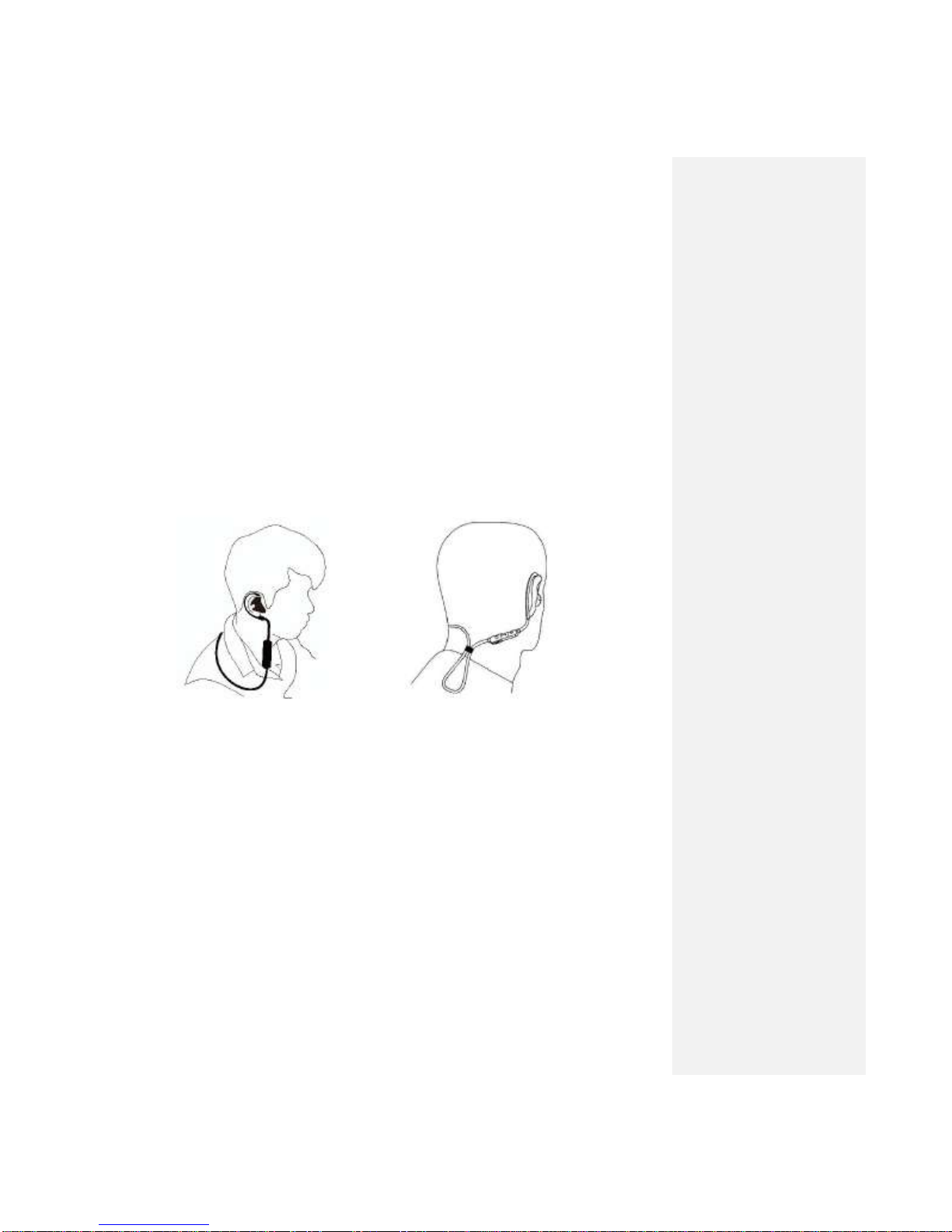

2. How to wear headphones
2.1 Select the earmuffs with proper size based on your ear size and install
them.
2.2 Wear the left and right channel to the corresponding left and right ear as
shown in the following figure. Wear the headphones first and then adjust
the ear hooks to go around the upper part of your ear to properly fix the
headphones.
2.3 Use the headphones‟ wire clip to obtain better wearing experience.
3. Pairing/Connection
6
Pair with bluetooth mobile
The steps are as below:
3.1 Place the headphones close to your mobile. The closer the better. Press
and hold multi-pad for about 5 seconds and release it when the red and
blue light flash alternatively. Now the headphones are in pairing mode.
3.2 Enable the mobile‟s bluetooth and search bluetooth devices. Select
„EDIFIER W296BT‟ to pair up and connect. After being connected
successfully, the prompt beep sounds and the headphones‟ blue light is
flashing quickly.
Tip: During connection, if the mobile prompts inputting password, please
input 0000; after pairing up, there is no need to pair up with the mobile after
power on again. The bluetooth headphones shall automatically connect the
mobile it connected last time.
One operating 2 units connection
The headphones can simultaneously connect two Bluetooth devices. The
operation is as below.
1. After the first mobile pairing up, switch the headphones off and on again to
enter the pairing status. Switch the headphones off again after the
second mobile is connected. After switching on, the headphones shall
automatically connect the second mobile and you can manually click on
the mobile to connect the first mobile.
2. After connecting with the second mobile, you can select “EDIFIER
7
W296BT” connection in the pairing records of the first mobile. Now the
headphones have successfully connected with two mobiles.
Note: When two mobiles have different operating system (E.g. One has
Android and one iOS). Some cross-system operations may have delay (E.g.
Pause songs in Amobile and meanwhile play songs in B mobile). Please be
aware that this is normal phenomenon.
4. Battery display
When this headphone is connected with iOS device, the headphones‟
current battery life is displayed on the device. When the headphone power is
low, the red color is displayed in the battery symbol to prompt you to charge
the headphones.
Fully charged Low power
5. How to use headphones to make a call
8
5.1 Basic call operation
Function
Headphone status
Operation
Receiving
incoming call
Incoming call ringing
Press the multi-function key
Refuse incoming
call
Incoming call ringing
Press and hold multi-pad about
2 seconds
Terminate call
Talking
Press the multi-function key
Increase volume
Talking
Press + key
Decrease volume
Talking
Press - key
Talking transferred
to mobile
Talking
Press and hold multi-pad about
2 seconds
Talking transferred
to headphones
Talking
Press and hold multi-pad about
2 seconds
Microphone muted
Talking
Press and hold + key about 2
seconds
Cancel mute
Talking(Microphone
muted)
Press and hold + key about 2
seconds
Voice dial
Connected device
Press + key and - key together
Redial last call
Connected device
Double click multi-function key
Note:
●In order to get the optimal effect for making a call, please place the wire
controller of microphone as close to your mouth as possible.
●Some calls received via mobile shall be first transferred to mobile. Now
you can use the call switch of your mobile or operate on your mobile to
switch the call to the headphones. Please read your mobile manual for
the operation in detail.
9
2. Make three way call
Function
Headphone
status
Operation
Hang out the current call
to receive new incoming
call
There is the
second
incoming call
Press the multi-function
key
Receive new incoming
call
There is the
second
incoming call
Press and hold multi-pad
about 2 seconds
6. Play music
Function
Headphone status
Operation
Increase volume
Play music
Press the volume + key
Decrease volume
Play music
Press the volume - key
Last song
Play music
Press and hold the
volume - key about 2
seconds
Next song
Play music
Press and hold the
volume + key about 2
seconds
Pause play
Play music
Press the
multi-function key
Restore play
Pause play
Press the
