1. Introduction

The USB 2.0 Ethernet Adapter allows your computer instantly connect to a

10/100Mbps network through simply a USB port; no hassle to open up your

computer case as is required for an internal card now! It’s also an ideal

USB-to-LAN alternative for gaming console that needs network access in an

environment lacking wireless capability. Compared with USB 1.1 standard

which offers 12 Mbps speed, the adapter’s compliance with USB 2.0

(480Mbps) ensures true 10/100 Mbps network speed without any compromise.

Furthermore, the adapter is in compact size and is USB bus-powered; it

requires no external power adapter, so that you can use it without crowding

your workspace at all.

Features

Complies with IEEE 802.3/802.3u standards

Complies with USB 2.0/1.1 specifications

Supports 10/100Mbps auto-negotiation

Supports bus-powered design and no external power adapter required

Supports Window 2000/XP/Server 2003/Vista and MAC OS 10.4.x and

above

Package Contents

Before installation, please check the items of the package. The package

should contain the following items:

USB2.0 to Fast Ethernet Adapter x1

Quick Installation Guide x1

CD (Driver & Multi-language Quick Installation Guide & User Manual) x1

System Requirements

CPU : Pentium III 1G above or similar

Memory size : 256MB RAM

One CD-ROM drive

Hard Disk : At least 100MB available space

One available USB port

OS: Window 2000/XP/Server 2003/Vista or MAC OS 10.4.x and above

LED Status

LED Color Description

Power Green On for connection to a 100Mbps network.

Off for connection to a 10Mbps or not connected.

Link Green LAN activity. Blinking when there is data flow

between LAN and the host computer.

2. Driver Installation

On Windows 2000/XP/Server 2003/Vista

1. With your computer switched on, insert the “USB2.0 to Fast Ethernet

Adapter” into an available USB2.0 port of your computer. The following

message will appear on your screen, Please click ‘Cancel’ and use the

wizard to install driver.

2. Please insert the installation CD into your CDROM drive. The Autorun

setup programs should run under Windows 2000/XP/Server 2003/Vista,

or you can click on the “Browse CD” to find other OS drivers in the CD.

3. Connect the Ethernet adapter’s USB end to a free USB port of your

computer. Then a pop-up message will appear in the notification area

indicating the installation is complete.

* Actual strings depend on your operation system. These screen shots are

from Windows Vista and might vary slightly for each operation system.

Now the installation is complete. You can connect the adapter to a network

device by an Ethernet cable:

1. Connect an Ethernet cable to the Ethernet port on the adapter.

2. Connect the other end of the Ethernet cable to your network hub, switch or

router.

The Link LED should light up green to indicate a proper physical connection

between the adapter and the network. If the Link LED doesn’t light up, please

verify the cable connections between all the network devices.

Verifying the Driver Installation on Windows

Once you finish the installation, you can open Windows Device Manager to

verify if your Ethernet adapter is properly installed. To access the Device

Manager:

On Windows Vista: Right-click Computer on the desktop and click

Properties > Device Manager.

On Windows XP/2000: Right-click My Computer on the desktop and click

Properties > (Hardware) > Device Manager.

In the Network adapters group, an item named ASIX AX88772 USB2.0 to

Fast Ethernet Adapter should be displayed.

If there is a question or exclamation mark next to that item, then the driver is

not properly installed. Please delete the item, select the Delete the driver

software for this device option (if provided), unplug the adapter from your

computer and then repeat the installation steps.

On MAC OS X 10.x

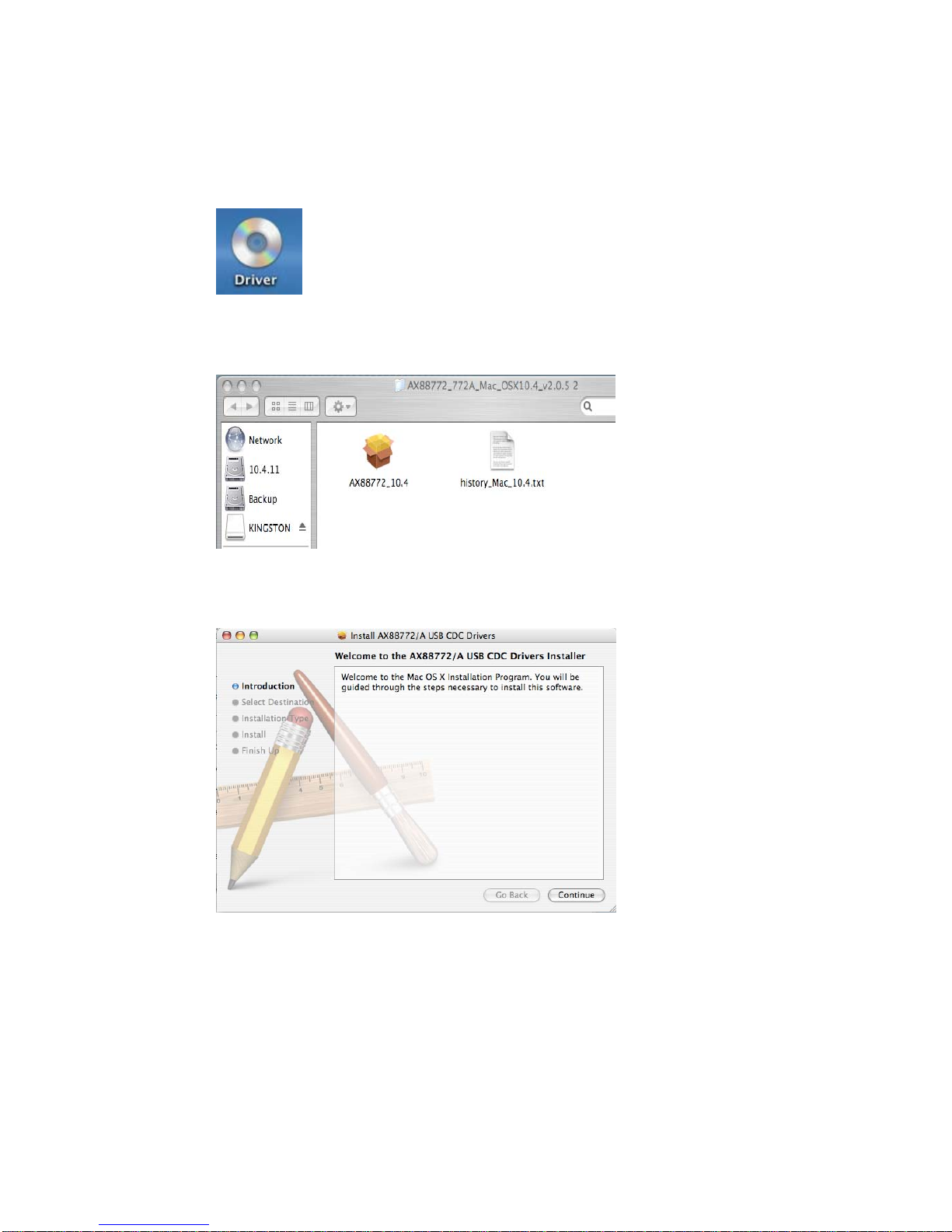

1. Insert the provided driver CD into your CD-ROM drive. Double-click

the CD and navigate to the directory of \Drivers\Mac

2. In the directory of Mac10.x, please double-click AX88772_10.4 to

execute the installer program.

3. The onscreen prompted and please click on Continue to go to next

step.

4. Please select a destination volume to install driver software and

click on Continue.

5. Click on Upgrade or Install to continue this installation.

6. Make sure that you want to install this driver now and the computer

will be restarted once the installation is done. Please click on

Continue Installation to continue this installation.
