Edimax HP-5102ACK Bedienungsanleitung

500Mbps Nano PowerLine Adapter Kit

with Integrated Power Socket

Transmit Network Data via Existing Electrical Wires

The Edimax HP-5102AC can transform the existing electrical wires in your home or office into a high-speed

network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t

have an existing Ethernet cable infrastructure, the HP-5102AC enables you to create a network environment

easily and cost-effectively.

Integrated Power Socket with Noise Filter

With the Edimax HP-5102AC, no electrical outlet goes to waste. It is built with an integrated power socket,

which you can use with any electrical device. So even when the HP-5102AC is plugged into a socket, you can

still plug another electrical device into the HP-5102AC and have your usual socket capacity. The in-built noise

filter also ensures that you do not experience a sudden drop of network speed when a high power consuming

electrical device is being used.

PowerLine Adapter Kit

Included are two Edimax HP-5102AC adapters; everything you need to set up a powerline connection. One

adapter connects to your router, and the other to your network device. Or, if you already have a powerline

network established, you can use the HP-5102AC adapters for additional network devices. The Edimax HP-

5102AC has a combo group/reset to automatically sync your HP-5102AC adapters into your network, and up to

8 powerline adapters can be used together across your home or office, using advanced 128-bit AES secure

encryption.

Key Features:

•Easy plug-n-play setup and 128 bit AES security

•Maximum powerline speed of 500Mbps

•Backward compatible with 200Mbps powerline adapters

•Features energy saving mode to reduce power consumption

•Utilizes existing electrical wires to transmit network data

•Powerline transmission range up to 300 meters

•Integrated power socket with noise filter

HP-5102ACK

www.edimax.com

conditions and environmental factors. Product specifications and design are subject to change without notice.

FEATURES & TECHNICAL SPECIFICATIONS

Hardware Standards Effect Data Rate

1 x Power jack

1 x Power socket

1 x 10/100Mbps Ethernet LAN port

1 x Group/Reset button

LED indicators: power, Ethernet, powerline

IEEE 1901

IEEE 802.3

IEEE 802.3u

HomePlug AC compliant

TCP: Up to 95 Mbps effective throughput

UDP: Up to 95 Mbps effective throughput

Frequency Band Modulation Schemes Operating Range

2-28MHz (with Mask) OFDM symbol modulation on line

synchronization 1024/256/64/16/8-QAM,

QPSK, BPSK, ROBO modulation

Up to 300 meters

QoS Nodes IGMP

4 levels priority based contention access,

and multi segment bursting

8 levels VLAN priority field, TOS field

QoS Classification by destination MAC

address and IP port

Up to 15 slaves with 1 master, 16 total

devices

Max 8 bridged devices per station

Support for IPv4/IGMPv1,v2,v3 snooping

Support for IPv6 and MLDv1, v2 snooping

Max 16 source addresses and group

members

IC / Memory Security Temperature & Humidity

AR7420+1540

1MB Flash

8MB SDRAM

128-bit AES link encryption with key

management

0-45 degrees Celsius

10-90% (non-condensing)

Power Outlet Dimensions & Weight Power Consumption

Line Voltage: 100 to 240VAC

Noise Filter Insertion Loss: Up to 35dB at

1MHz –40MHz

102 x 64 x 43mm

184g

Power Source Certification

100-240V AC, 50-60Hz CE, FCC, LVD

www.edimax.com

500Mbps Nano PowerLine AdapterKit

with Integrated Power Socket

HP-5102ACK

conditions and environmental factors. Product specifications and design are subject to change without notice.

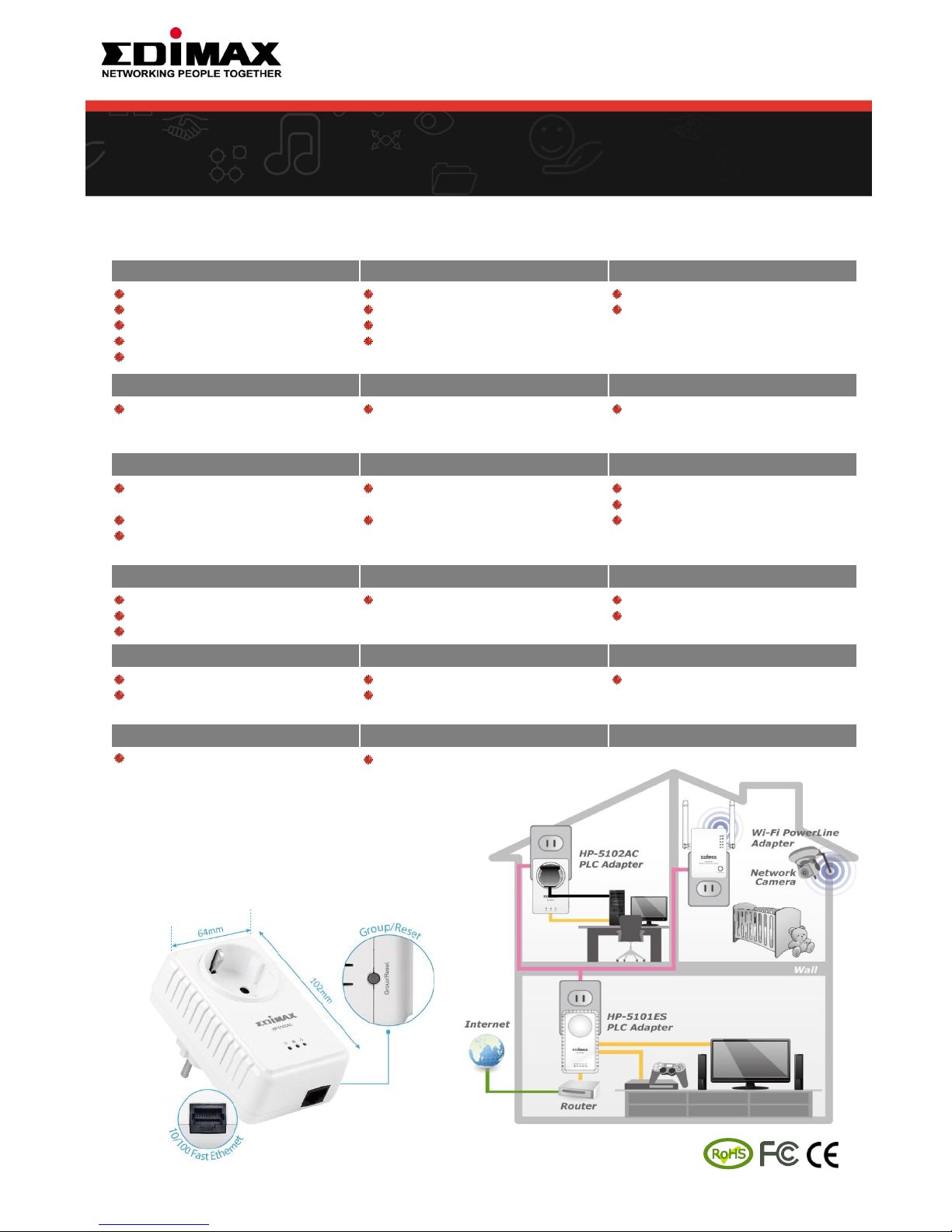

NETWORK SETUP DIAGRAM

•Plug a HP-5102AC into a power outlet and connect it to a broadband

router.

•Plug another HP-5102AC to a power outlet and connect it to a

computer's Ethernet port to establish a powerline connection.
